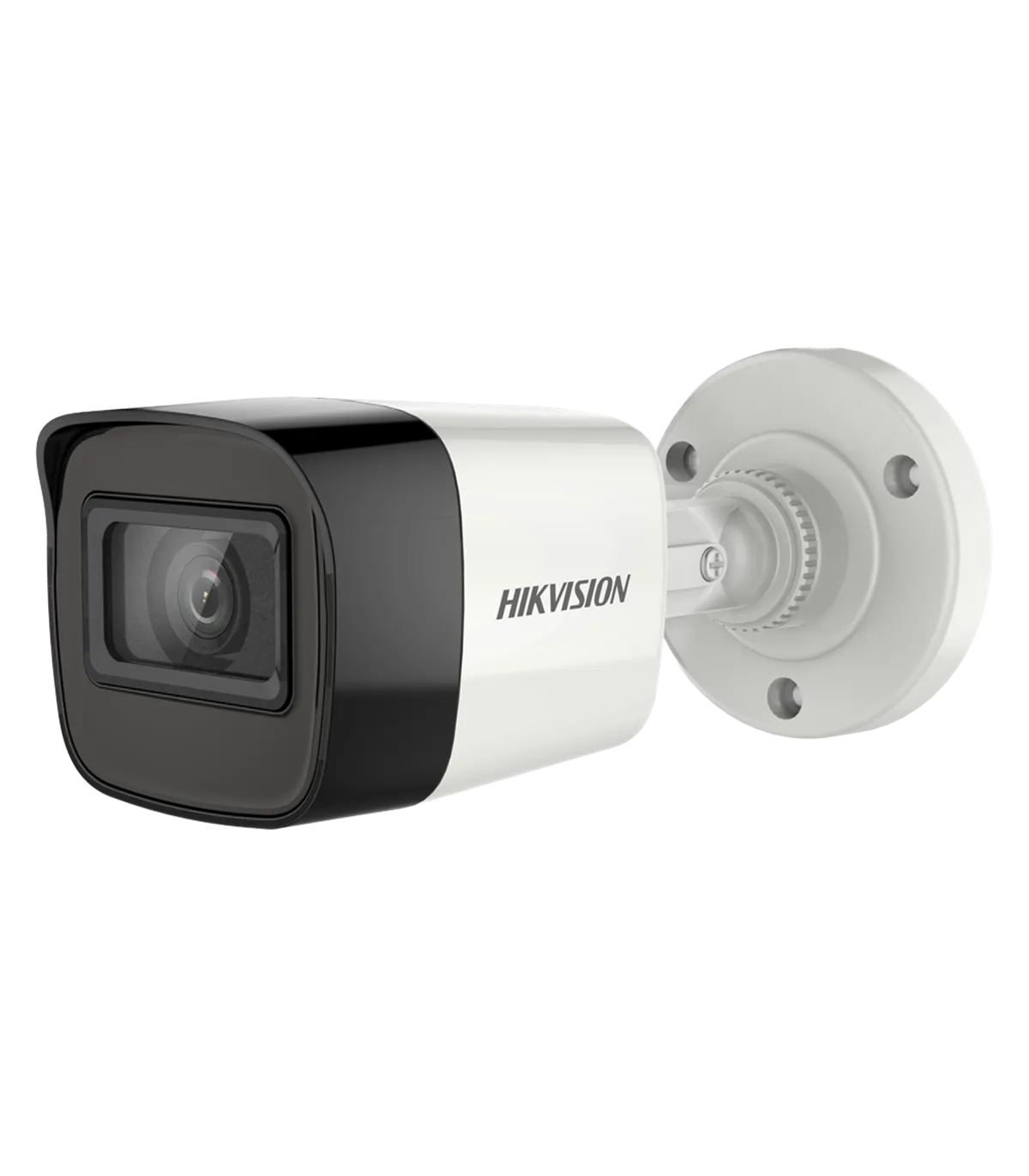

The DS-2CE16U1T-ITF(2.8mm) is a high-performance bullet camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera excels in providing clear and detailed images, making it suitable for residential and commercial security systems. With its 8.29 megapixel progressive scan CMOS sensor, it delivers exceptional video quality, ensuring that every detail is captured. The camera features a 4-in-1 output capability, allowing compatibility with various video formats, including HDTVI, HDCVI, AHD, and CVBS. Its IP67 waterproof rating ensures reliable performance in harsh weather conditions, while the EXIR IR technology provides effective night vision up to 30 meters.
| Brand | Hikvision |
| Series | Value |
| Image Sensor | 8.29 megapixel progressive scan CMOS |
| Maximum Resolution | 8 Megapixel (3480 x 2160) at 12.5 fps |
| Resolution | TVI: 8 Mpx (12.5~15 fps), 4 Mpx (25~30 fps), 2 Mpx (25~30 fps) CVI: 8 Mpx (12.5~15 fps) AHD: 8 Mpx (12.5~15 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Field of View (FOV) | 102.2º (H) |
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared Illumination | 0 Lux / Smart EXIR IR range of 30 m |
| Day/Night | Auto / Color / Black and White (ICR) |
| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Via Switch |
| Basic Functions | OSD Menu (remote) |
| Configurable OSD Functions | DWDR (105 dB), BLC, HLC, DNR, AGC, AWB, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power Supply | DC 12 V / 5.3 W max. |
| Protection Rating | IP67 waterproof |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 58 mm (H) x 61 mm (W) x 159.8 mm (D) |
| Base Diameter | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 345 g |
The DS-2CE16U1T-ITF(2.8mm) camera is perfect for a variety of surveillance scenarios, including residential properties, retail stores, and office buildings. For instance, an installer can deploy this camera at the entrance of a retail store to monitor customer activity and deter theft. With its high-resolution imaging and night vision capabilities, the camera ensures that both day and night surveillance is effective. The IP67 waterproof rating allows it to withstand outdoor conditions, making it suitable for external installations. Additionally, the remote monitoring feature enables users to access live feeds from anywhere, enhancing security management. The camera's easy installation and versatile compatibility with various video formats make it a go-to choice for installers looking for reliable surveillance solutions.
