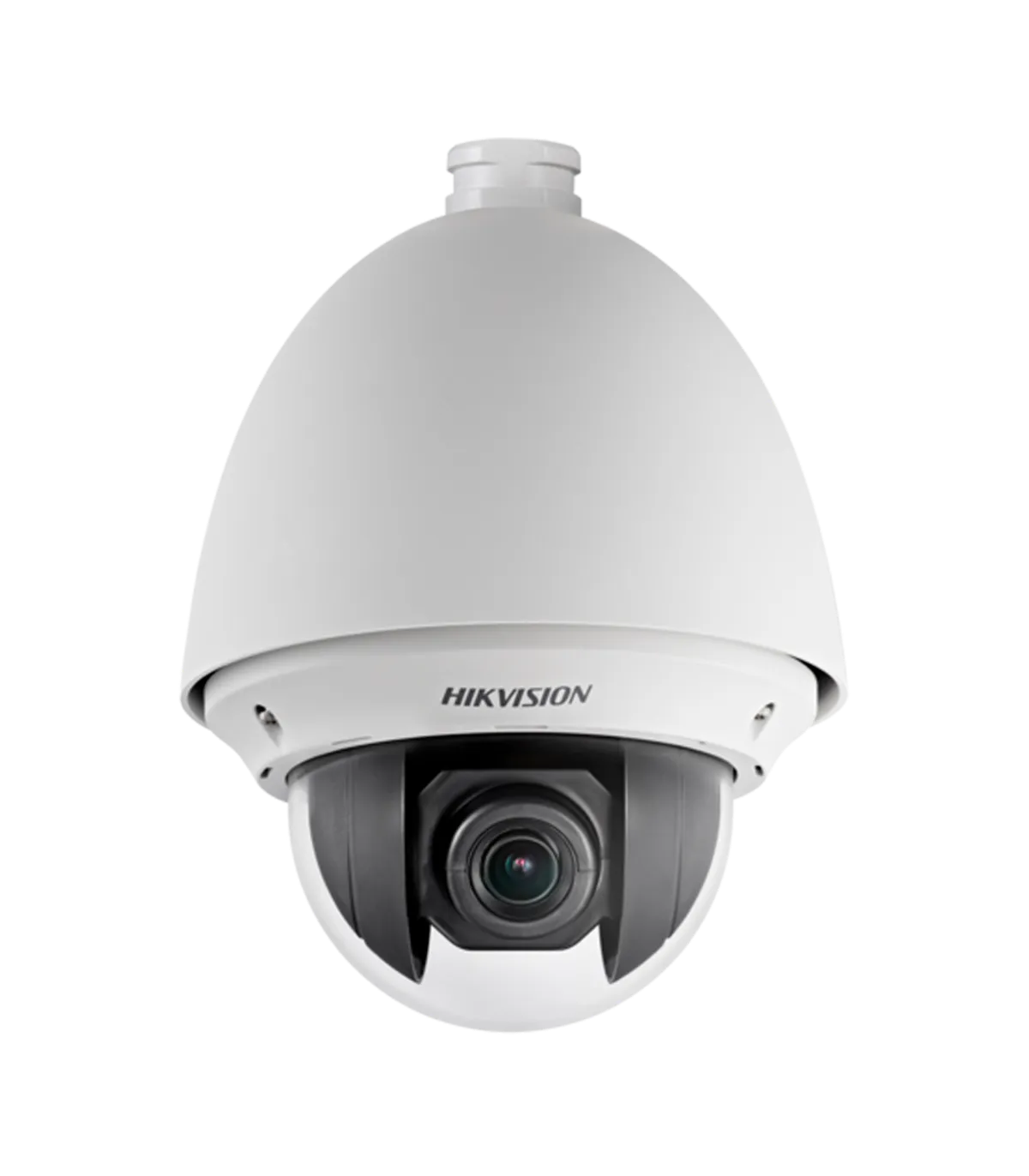

The Hikvision DS-2AE4215T-D(E) is a high-performance motorized dome camera designed for versatile surveillance applications. Ideal for outdoor environments, this camera excels in providing clear and detailed images in various lighting conditions, making it suitable for monitoring large areas such as parking lots, retail spaces, and public venues. Its advanced features ensure reliable performance, enhancing security measures for both residential and commercial properties.
| Brand | Hikvision |
| Series | Value |
| Image Sensor | 1/2.8“ Progressive Scan CMOS |
| Resolution | 1080p (1920x1080) at 25 FPS |
| Video Output | 1x BNC format HDTVI/HDCVI/AHD/CVBS |
| Minimum Illumination | 0.005 Lux @ F1.6, AGC ON (Color) 0.001 Lux @ (F1.6, AGC ON) (B/W) |
| Optics | 5~75 mm (Optical zoom 15X) |
| Field of View | 53.8º - 4º (H), 31.9º - 2.3º (V), 60.4º - 4.6º (D) |
| Focus | Auto / Semi / Manual |
| Digital Zoom | 16X |
| Electronic Shutter | 1/1s~1/10,000s |
| Day/Night | Removable mechanical ICR filter |
| Image Enhancements | BLC / HLC / WDR (120dB), AWB, ATW, AGC, 3D-NR |
| Image Stabilization | Yes (Electronic Image Stabilization) |
| Privacy Masks | Up to 8 areas |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: 5°~90° auto flip 180° |
| Manual Speed | Horizontal: 0.1°~100° /s, Vertical: 0.1°~80° /s |
| Speed Between Presets | Horizontal: 100° /s, Vertical: 80° /s |
| Preset Positions | 256 presets, 5 auto patterns, 10 auto tours, auto pan, auto scan |
| Communication | RS485, Pelco P / Pelco D / HIKVISION |
| Audio | Not available |
| Alarms | 2 Inputs / 1 Output |
| Power Supply | DC 12 V / 750mA, < 16W |
| Operating Temperature | -30º C ~ +65º C (<90% humidity) |
| Protection Grade | IP66 / Surge protection 4000V |
| Dimensions (without mount) | 239.5 mm (H) x 179.4 (Ø) mm |
| Weight (without mount) | 2 Kg |
The Hikvision DS-2AE4215T-D(E) is typically deployed in environments requiring robust surveillance solutions. Its high-definition imaging capabilities and advanced features make it an excellent choice for both installers and end-users. For installers, the camera's ease of integration with existing security systems and its versatile mounting options simplify the installation process. End-users benefit from the camera's ability to deliver clear images in various lighting conditions, ensuring comprehensive monitoring of critical areas. Whether used in retail, transportation, or public safety applications, this camera enhances security and provides peace of mind.
