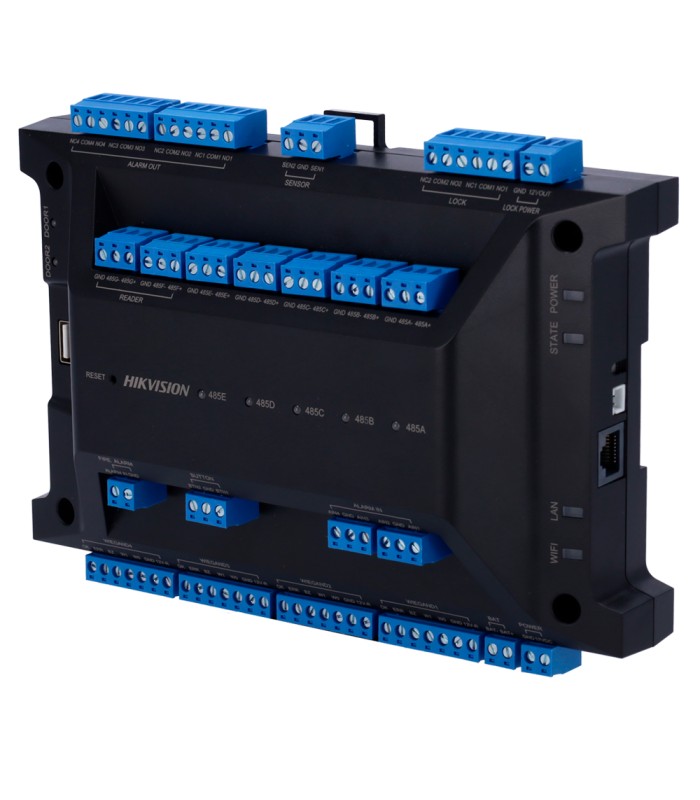

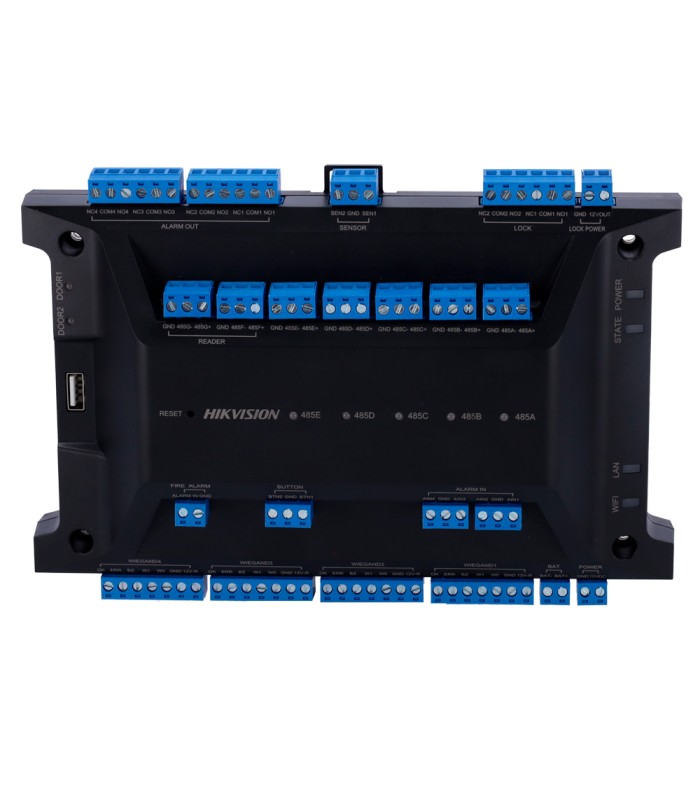

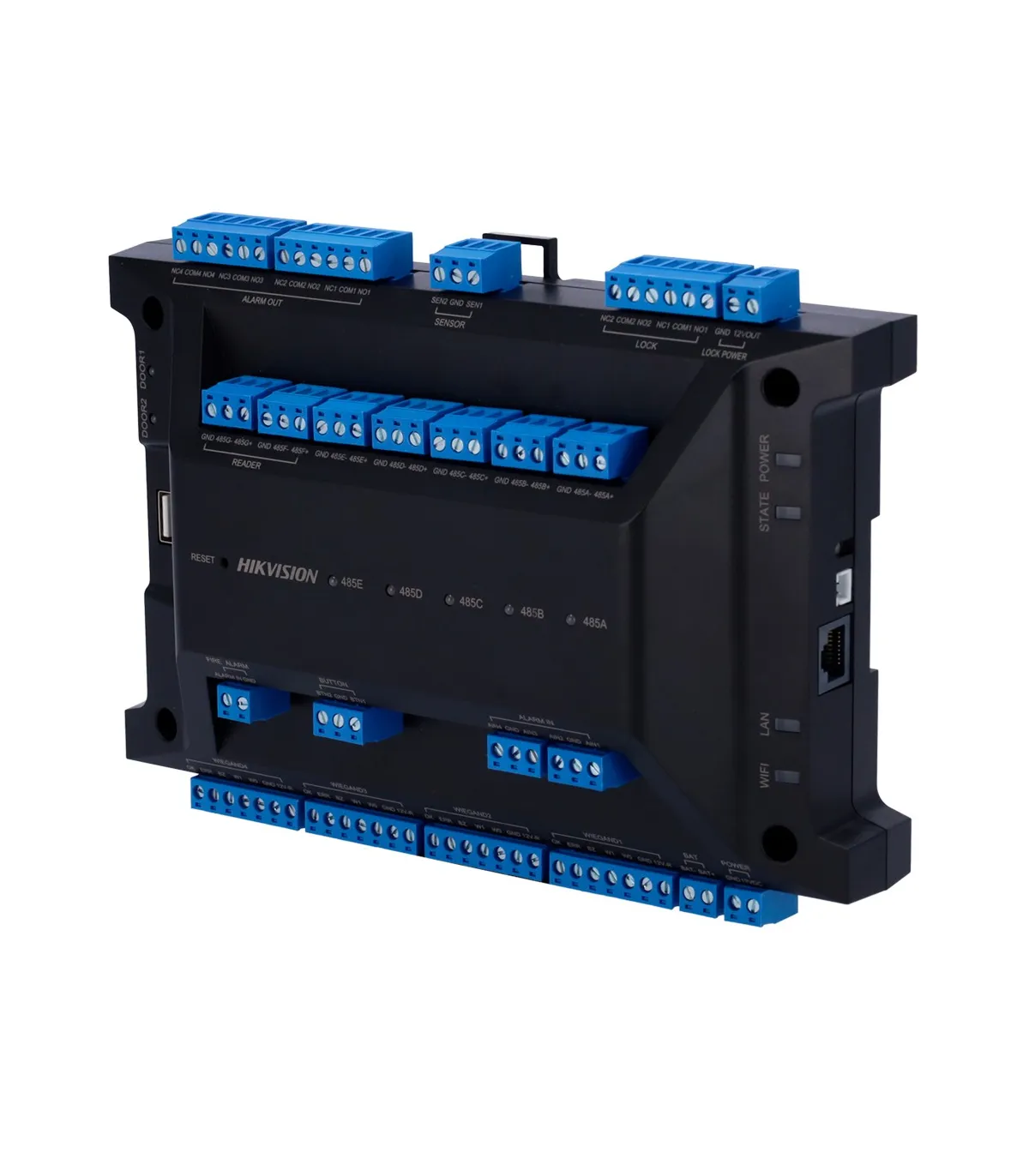

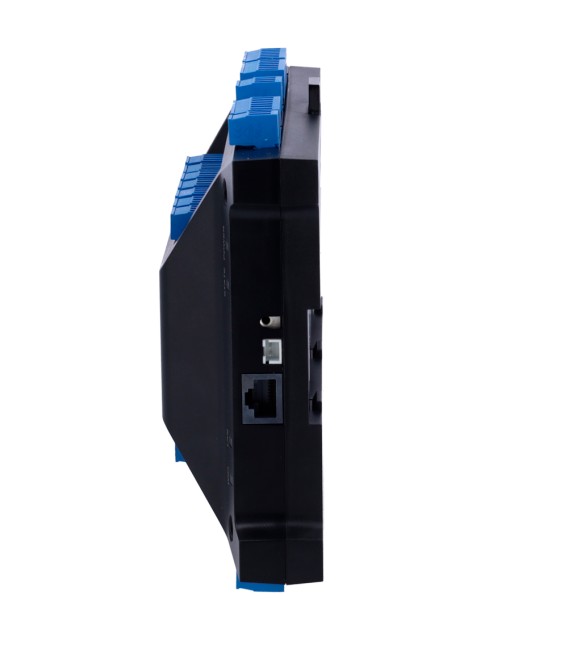

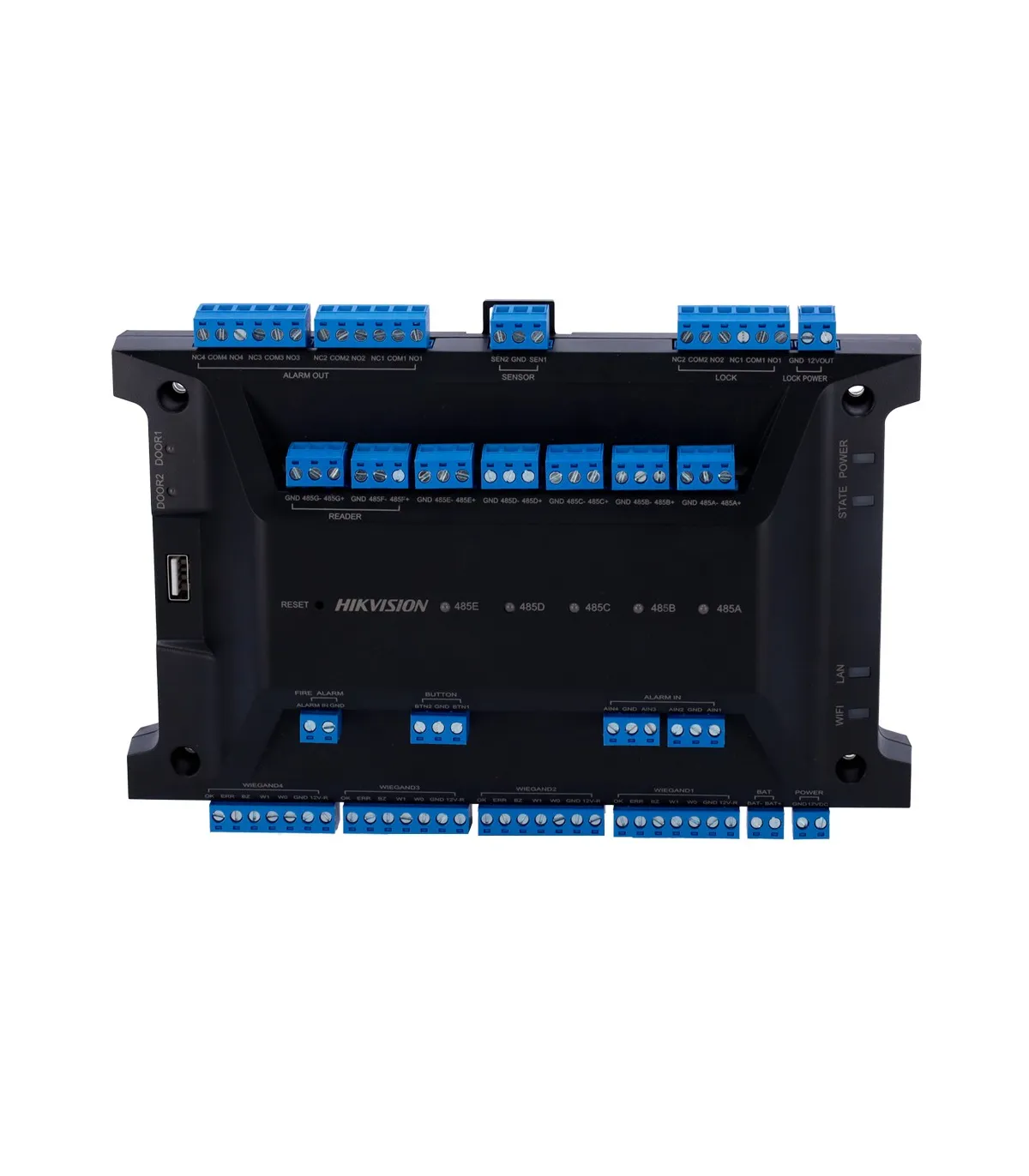

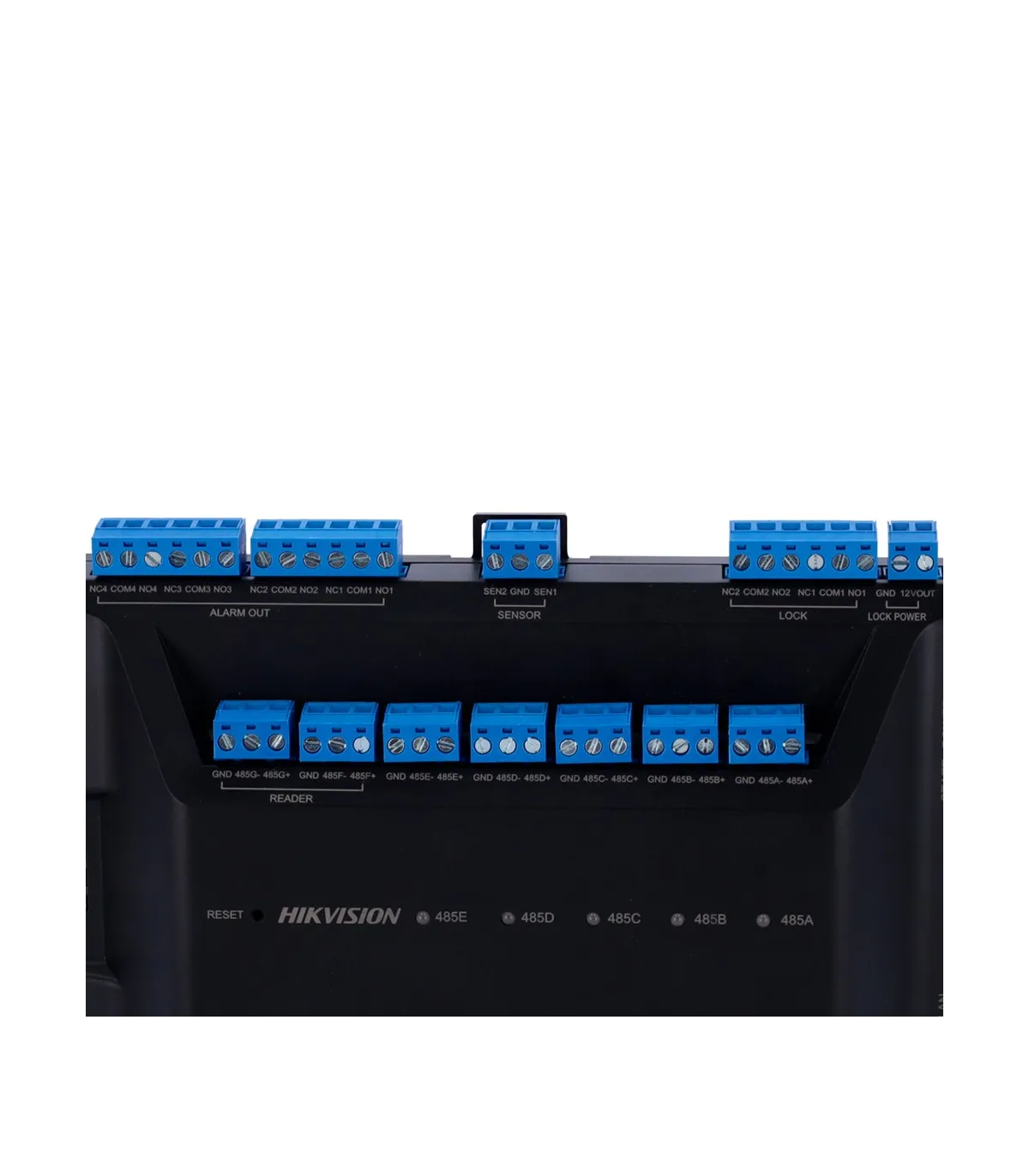

Multi-identification access controller Hikvision DS-K2702WX-E1(P)
- Hikvision
- Multi-identification access controller
- Without box
- Management of 2 doors
- Capacity 100,000 users and 600,000 records
- Supports up to 4 Wiegand readers and 4 RS485/OSDP readers
- TCP/IP communication, WiFi, USB, RS485 and ISUP
- Input of 2 pushbuttons, 2 door sensors, 4 alarm inputs and 1 fire input
- 2 relay outputs and 4 alarm outputs
- Relay configuration NO/NC
- Advanced functions: lock, anti-passback, multi-card and first card opening
- Integrated access control software
- Access to software via web browser for access control management and reporting
- Remote openings from Hik-Connect
- Compatible with iVMS-4200 software
- Standard PoE IEEE802.3af
Technical specifications
| Brand | Hikvision |
| Model | DS-K2702WX-E1(P) |
| Operating system | Linux |
| Capacity | Up to 100,000 users (10,000 fingerprints / 200,000 fingerprints) |
| Records | 600,000 records |
| Modes identification | Facial, fingerprint, card, QR and/or passwords |
| Proximity card | RFID EM 125 kHz and MF 13.56 MHz |
| Communication | TCP/IP, WiFi, USB, RS485 and ISUP |
| Outputs | 2 x relay output, 4 x alarm output, 1 x DC 12 V |

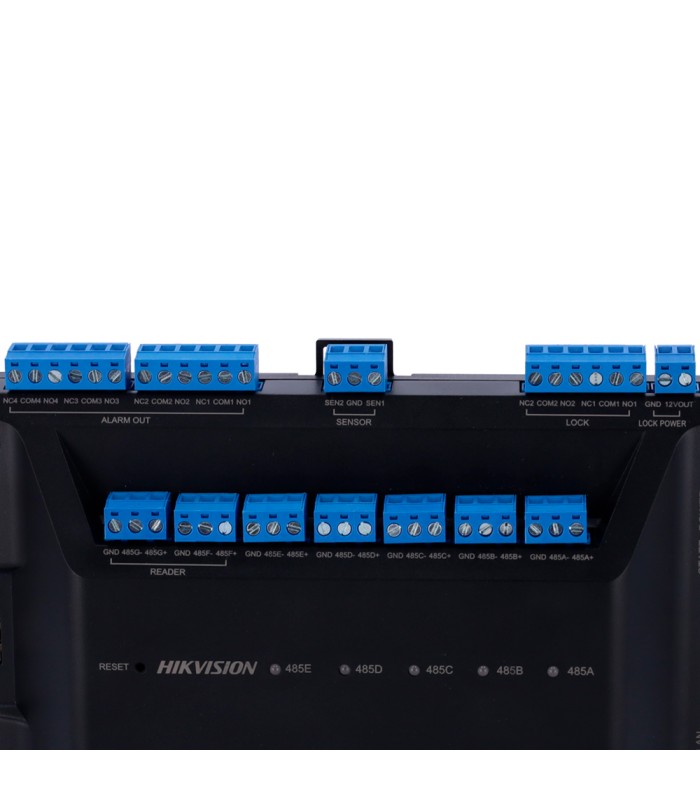

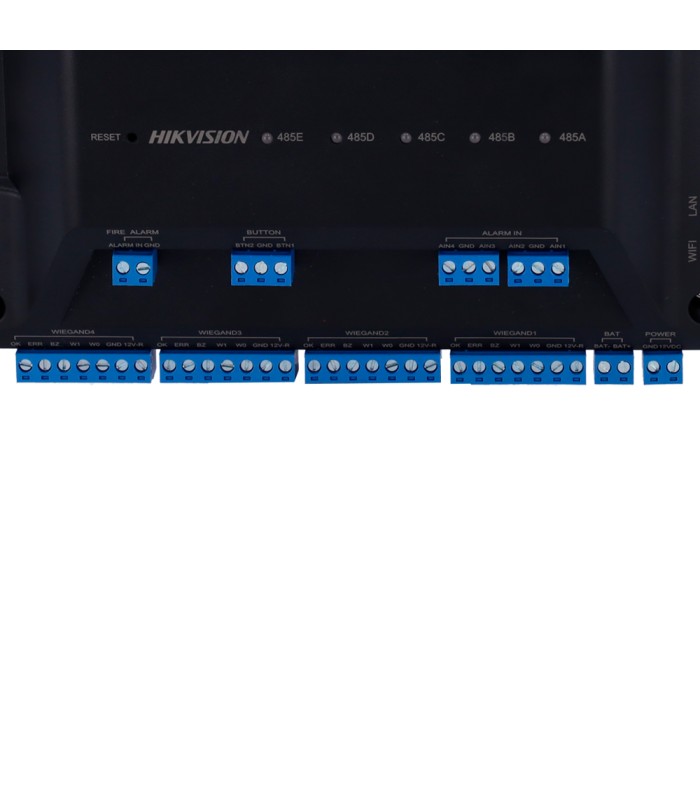

| Inputs | 4 x Wiegand 26/34, 7 x RS485 (5 x communication / 2 x RS485/OSDP reader), 2 x door sensor, 2 x opening button, 4 x alarm input, 1 x fire, 1 x tamper |
| Software | Embedded software with access via browser or AP created by the controller iVMS-4200 / iVMS-4200 AC |
| Mobile application | Hik-Connect |
| Functions | Multi-door locks, anti-passback, multi-card, first card opening |
| Secondary controllers | Connection of up to 62 secondary controllers via IP or RS485 with a control of up to 126 doors |
| Power | DC 12 V / 3 A max. PoE standard IEEE802.3af |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 222 (W) x 150 (H) x 51 (D) mm |
| Weight | 680 g |
Contents
- Access controller without Hikvision box
- Mounting material
- Instructions for use
