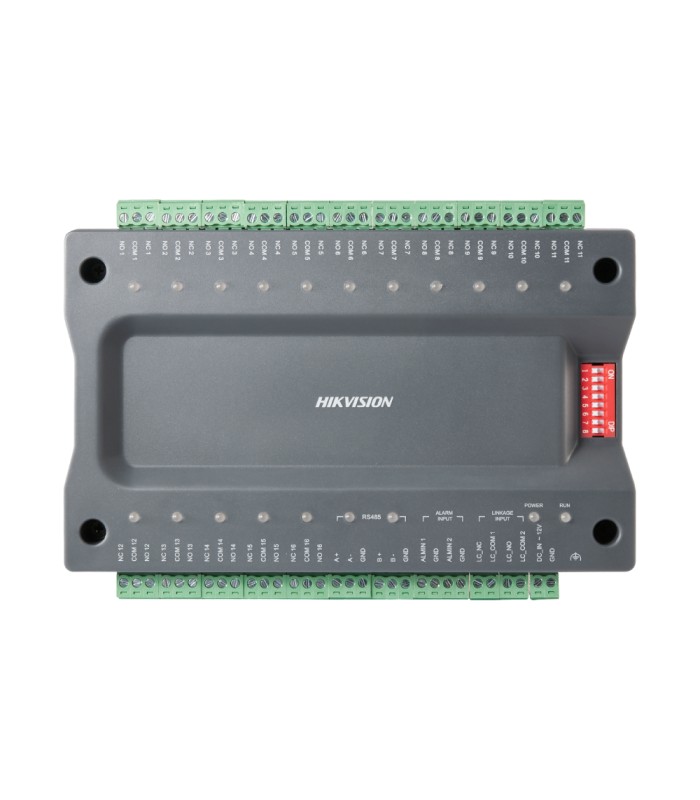

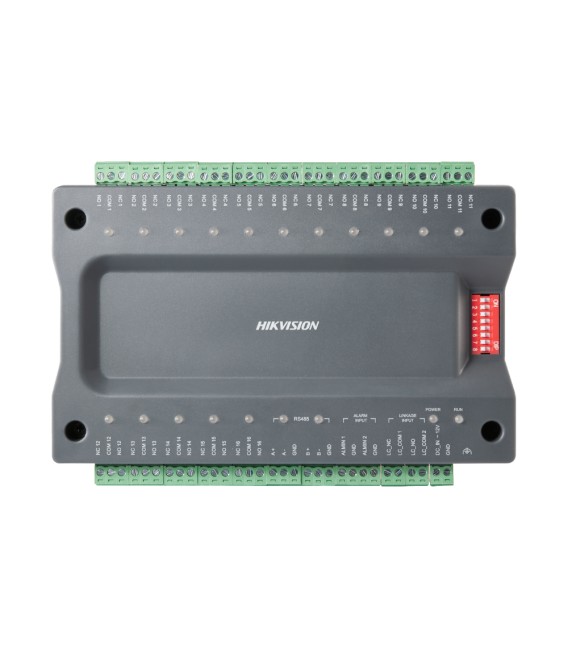

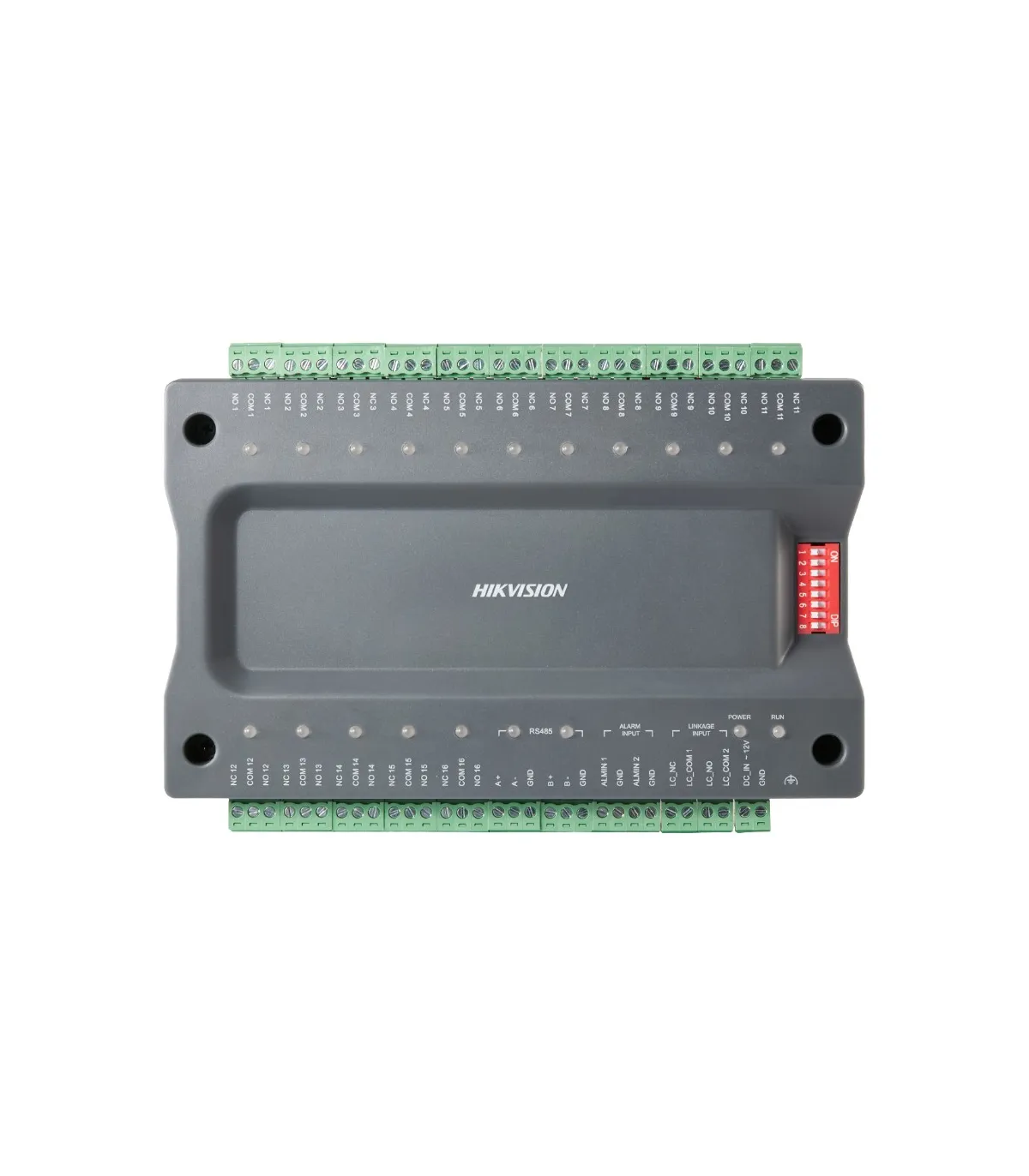

Hikvision DS-K2M0016A elevator slave controller
- Hikvision
- Elevator slave controller
- RS485 communication with master controller
- 16 relay outputs
- Operating modes: button, elevator call and auto-button
- DIP switch for configuration
- 2 alarm inputs
- Requires DS-K2210 master board
Technical specifications
| Brand | Hikvision |
| Model | DS-K2M0016A |
| Hardware CPU | 32bit |
| Outputs | 16 x relay outputs |
| Inputs | 2 x RS485, 1 x tamper |
| Power | DC 12 V power supply (not included) |
| Temp. operation | -40º C ~ +70º C |
| Operating humidity | 0% ~ 90% (non-condensing) |
| Mounting | On rail |
| Dimensions | 105 (W) x 167 (H) x 30 (D) mm |
Contents
- Elevator controller Hikvision
- Mounting material
- Instructions for use
