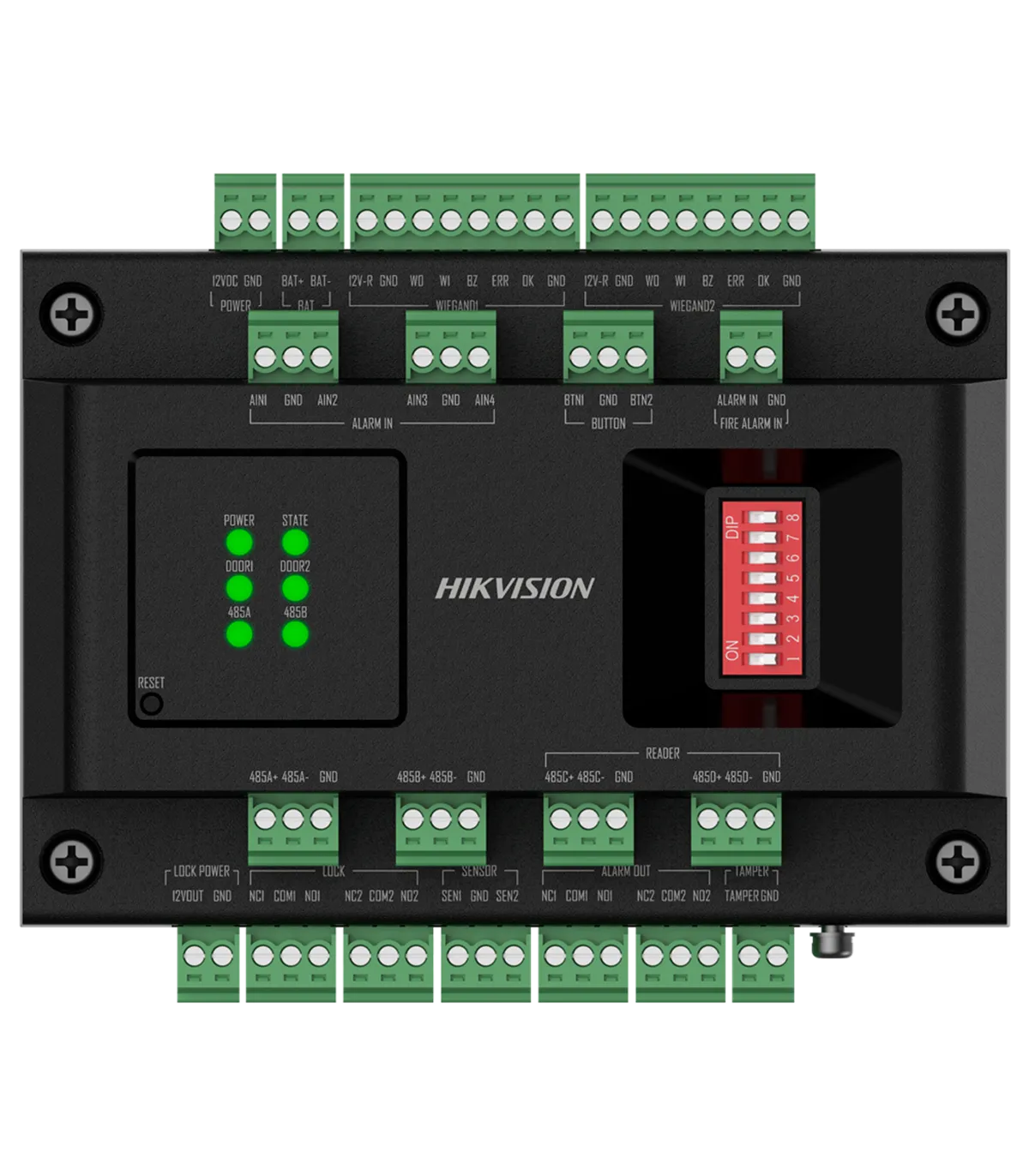

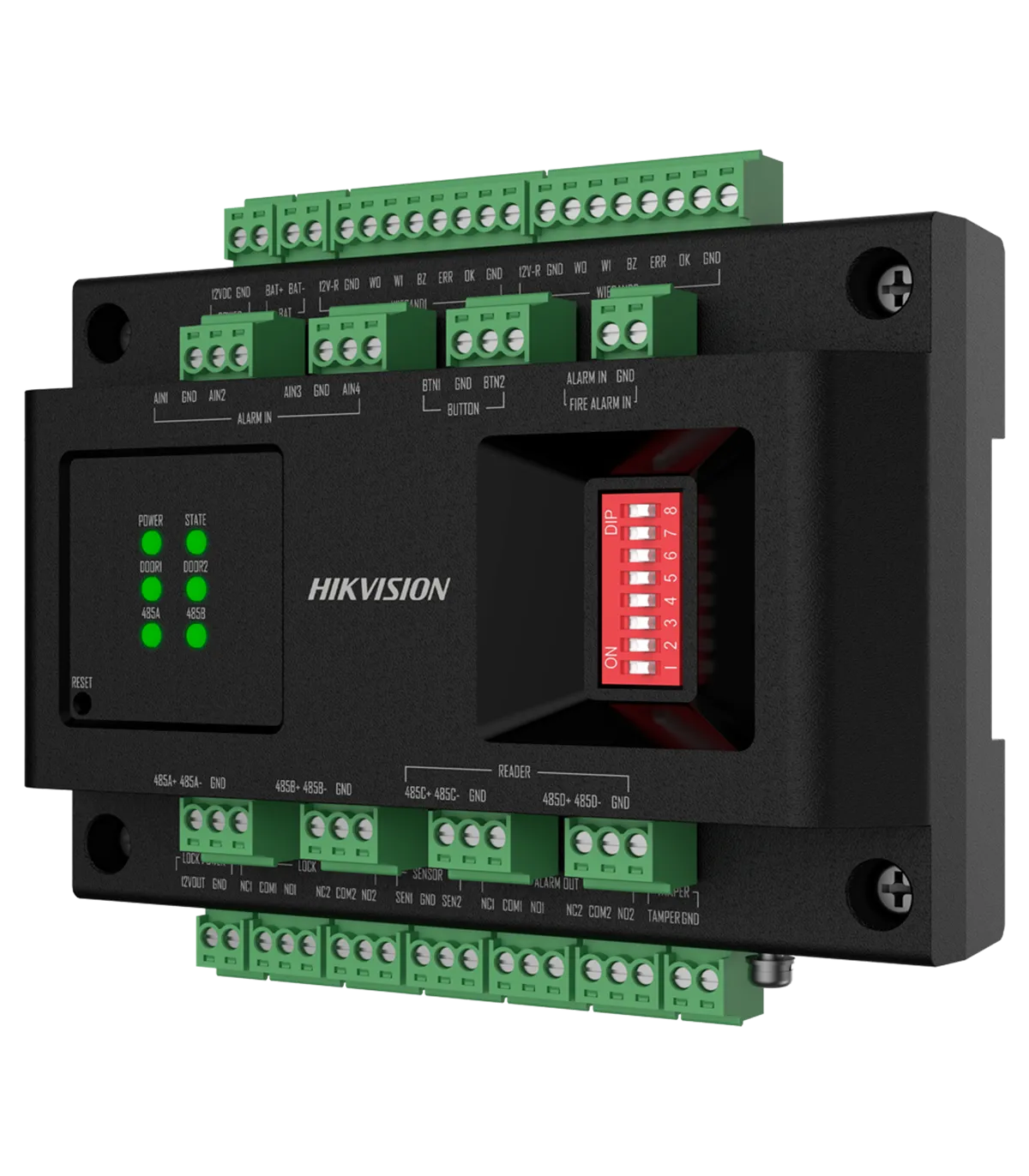

Hikvision biometric facial fingerprint access controller 2 doors OSDP DS-K2M002X

  • Access controller extender
  • Facial recognition, fingerprint, card, QR, or PIN
  • 2 doors | RS485 communication
  • 2 readers via Wiegand | 4 readers via OSDP
  • No enclosure
  • Master controller DS-K270x required
Read moreShow less
$171.10
In stock - Ships in 24/48h
✆ Ask on WhatsApp
Reference:
DS-K2M002X
Brand:
Hikvision
Description
  • Hikvision
  • Multi-Identification Access Extension Controller
  • Without enclosure
  • Management of 2 doors
  • Supports up to 2 Wiegand readers and 4 RS485/OSDP readers
  • RS485 communication
  • Input for 2 buttons, 2 door sensors, 4 alarm inputs, and 1 fire input
  • 2 relay outputs and 2 alarm outputs
  • NO/NC relay configuration
  • Advanced functions: interlock, anti-passback, multi-card, and first card opening
  • Requires connection to master controller DS-K270x for user and access permission management

Specifications: DS-K2M002X

BrandHikvision
ModelDS-K2M002X
Operating SystemLinux
Identification ModesFacial, fingerprint, card, QR, and/or passwords
Proximity CardRFID EM 125 kHz and MF 13.56 MHz
CommunicationRS485
Outputs2 x relay output, 2 x alarm output, 1 x DC 12 V
Inputs2 x Wiegand 26/34, 4 x RS485 (2 x communication / 2 x RS485/OSDP reader), 2 x door sensor, 2 x opening button, 4 x alarm input, 1 x fire
SoftwareEmbedded software with access via browser or iVMS-4200 / iVMS-4200 AC through master controller
FunctionsMulti-door interlocks, anti-passback, multi-card, first card opening
Secondary Controllers62 secondary controllers DS-K2M002X per each DS-K270x
Power SupplyDC 12 V / 3 A max.
Operating Temperature-10 ºC ~ +55 ºC
Dimensions124 (W) x 104 (H) x 43 (D) mm

Package Contents

  • Hikvision access controller without enclosure
  • Mounting materials
  • User instructions
Read moreShow less
Product Details
DS-K2M002X

Data sheet

Brand
Hikvision
Compatible models
UHF-READER-6M,ISK-841D,ISK-841D,DS-K1F820-F,DS-K1201AMF,DR-54NDF/M,DR-54NDF/M,BATT-1250-U,ACR205-QR-EM,A-R3P

Specific References

EAN13
6942160449203
Attachments
DS-K2M002X_EN.pdf
Download (977.05KB)
