€107.39
Single-door access controller
Supports up to 10,000 cards and 50,000 events
Brand: Hikvision Access Control

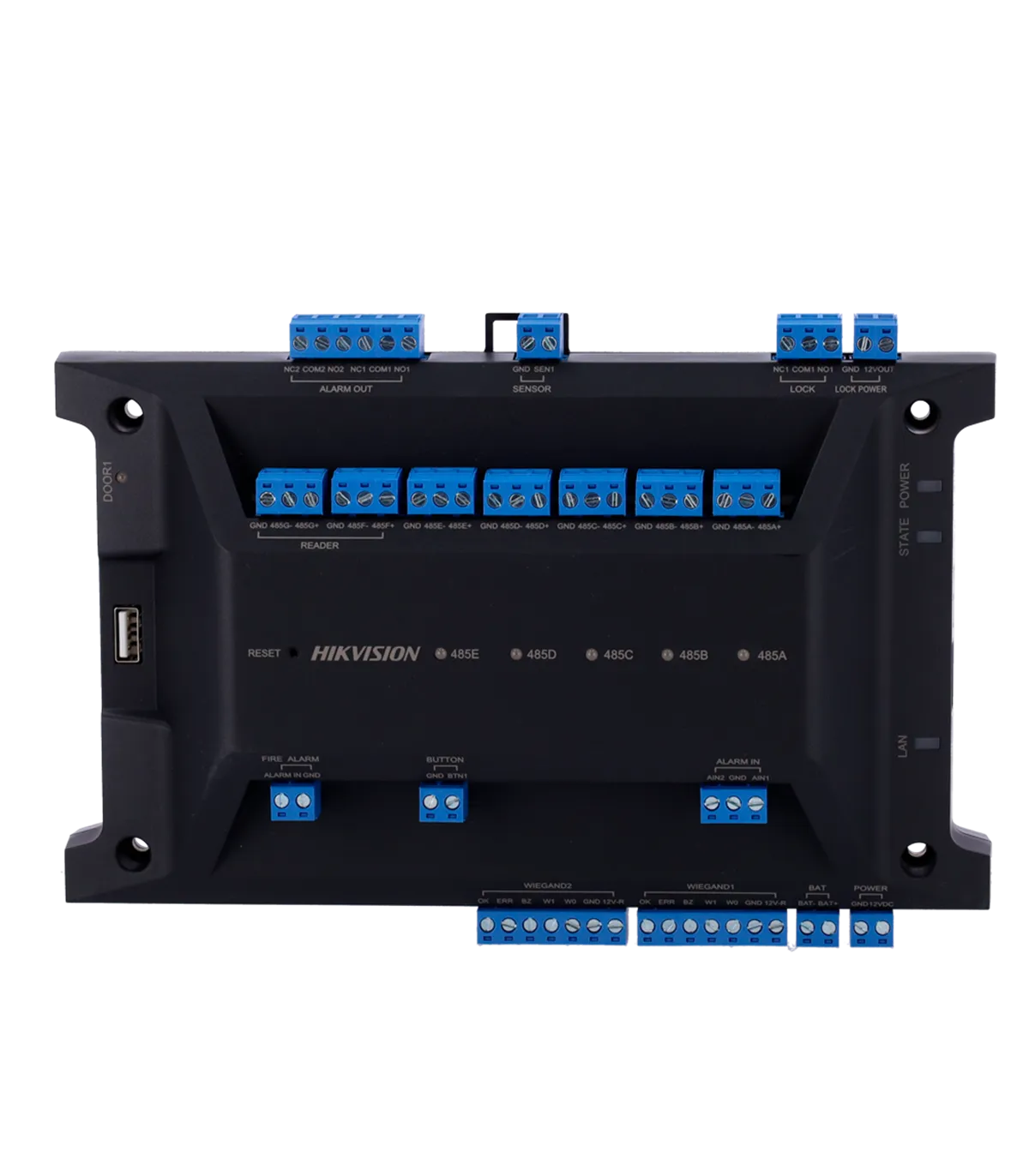

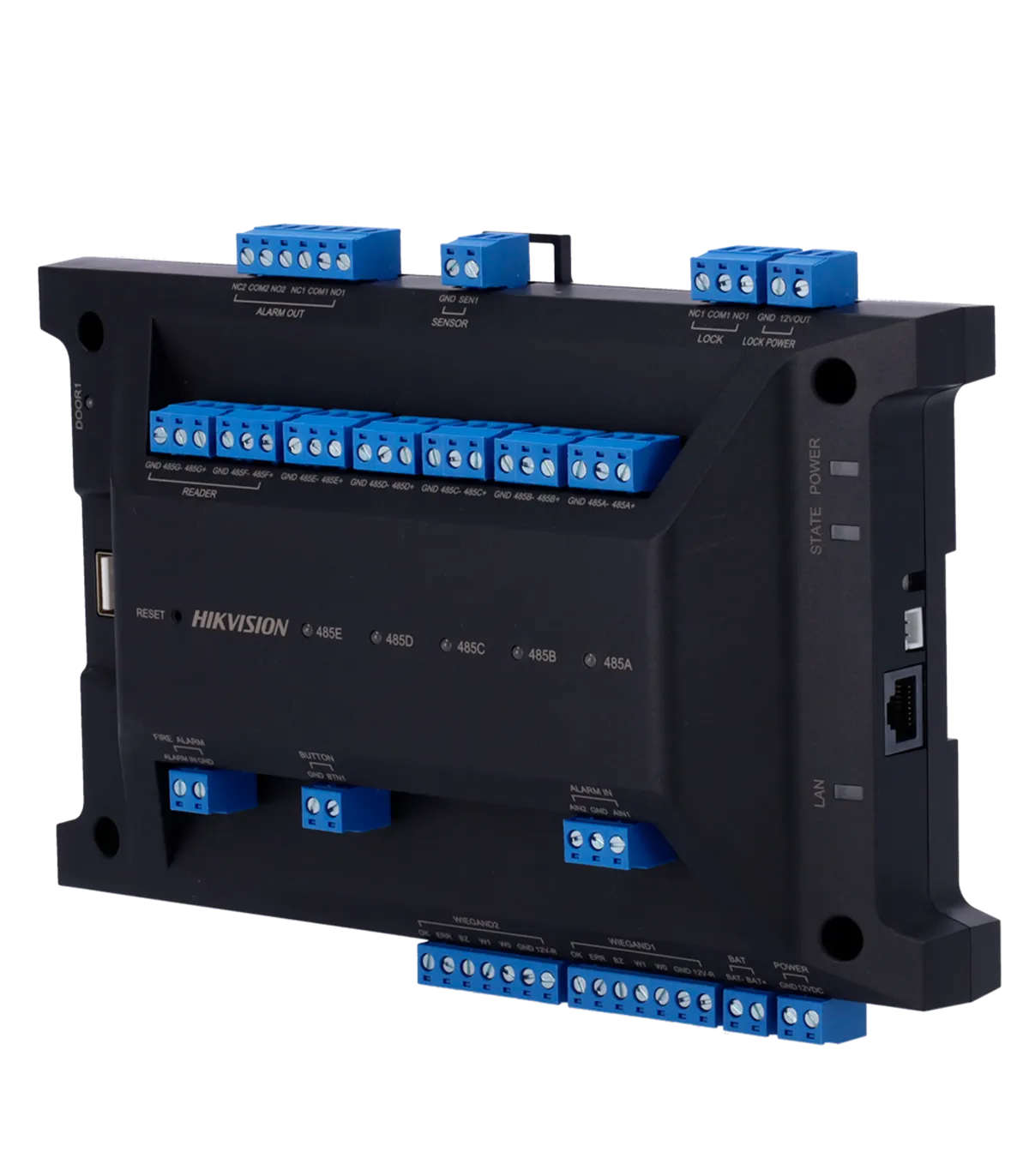

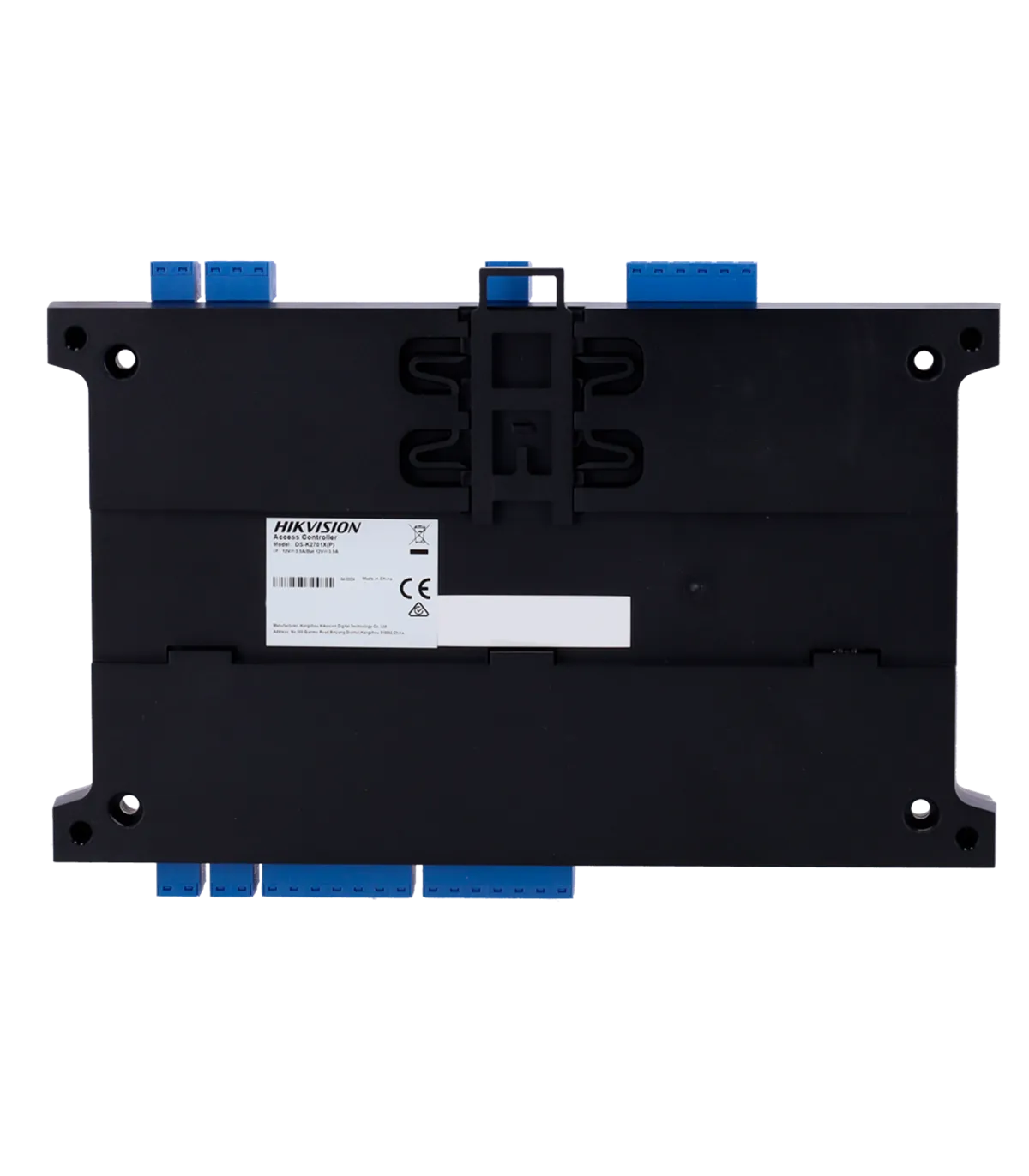

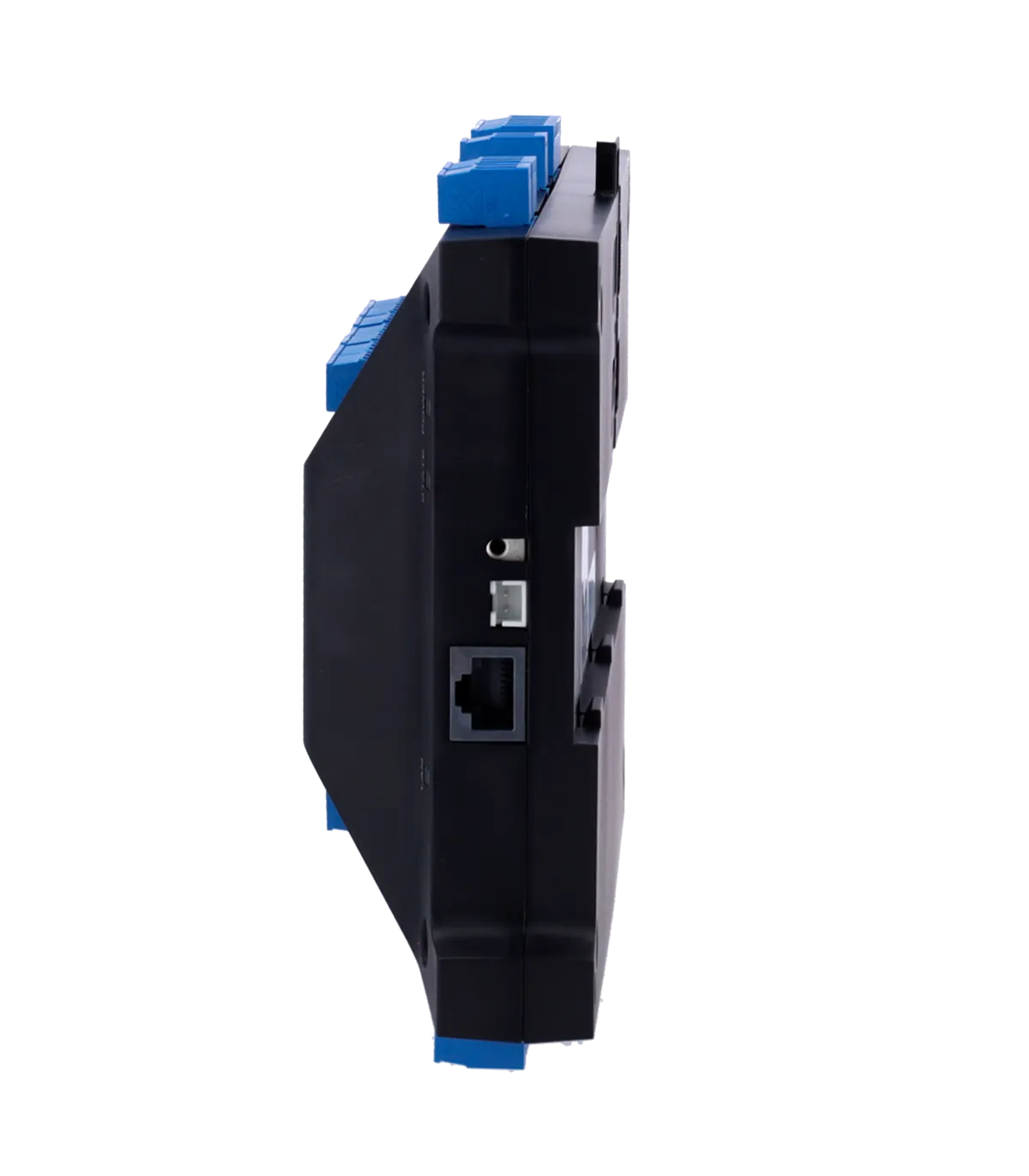

Hikvision Multi-Identification Access Controller Facial Fingerprint TCP IP DS-K2701X(P)
- Multi-Identification Access Controller
- Facial, fingerprint, card, QR, or PIN
- 1 door | TCP/IP and RS485 communication
- 2 readers via Wiegand | 2 readers via OSDP
- No enclosure
- Embedded software | iVMS-4200
€289.71
Reference:
DS-K2701X(P)
Brand:
An access controller is a professional element for perimeter and door protection. It is located in secure and hidden places, allowing the connection of readers, which are positioned in visible locations of the installation to identify the user seeking access, as well as the connection to electronic locks, which will be activated if the user is permitted access.
This controller supports readers based on the Wiegand protocol, allowing direct wiring from each reader to the controller. It features 2 readers for entry and exit at each door and supports biometric readers, which connect via RS485 and allow cascading BUS connections. By supporting RS485, it also supports OSDP on the same connector, with the latter being customizable in configuration and allowing up to 2 readers via this method.
This model includes 1 relay output, configurable as a normally open (NO) or normally closed (NC) contact.
By using an access controller, it is possible to secure certain functions such as opening all doors upon receiving a fire signal or activating an alarm upon detecting a forced door. Thanks to its inputs and outputs, it is possible to manage these functions more easily.
Advanced configurable functions: anti-passback technology (prevents a person from passing if they are already inside), turnstiles (a double-door system that allows one person to pass at a time), or occupancy control (prevents access to more users once a predetermined number is exceeded).
User, schedule, and access group configuration, as well as special functions, relay opening times, or reader reading times, are managed through the iVMS-4200 software.
- Hikvision
- Multi-Identification Access Controller
- No enclosure
- Management of 1 door
- Capacity for 100,000 users and 600,000 records
- Supports up to 2 Wiegand readers and 2 RS485/OSDP readers
- Communication via TCP/IP, USB, RS485, and ISUP
- Input for 1 button, 1 door sensor, 2 alarm inputs, and 1 fire input
- 1 relay output and 2 alarm outputs
- Relay configuration NO/NC
- Advanced functions: turnstile, anti-passback, multi-card, and first card opening
- Integrated access control software
- Web browser access for access control management and reporting
- Remote openings via Hik-Connect
- Compatible with iVMS-4200 software
Specifications: DS-K2701X(P)
| Brand | Hikvision |
| Model | DS-K2701X(P) |
| Operating System | Linux |
| Capacity | Up to 100,000 users (10,000 fingerprints / 200,000 cards/passwords) |
| Records | 600,000 records |
| Identification Modes | Facial, fingerprint, card, QR, and/or passwords |
| Proximity Card | RFID EM 125 kHz and MF 13.56 MHz |
| Communication | TCP/IP, USB, RS485, and ISUP |
| Outputs | 1 x relay output, 2 x alarm outputs, 1 x DC 12 V |
| Inputs | 2 x Wiegand 26/34, 7 x RS485 (5 x communication / 2 x RS485/OSDP reader), 1 x door sensor, 1 x opening button, 2 x alarm inputs, 1 x fire, 1 x tamper |
| Software | Embedded software with access via browser or app created by the controller iVMS-4200 / iVMS-4200 AC |
| Mobile Application | Hik-Connect |
| Functions | Multi-door turnstiles, anti-passback, multi-card, first card opening |
| Secondary Controllers | Connection of up to 62 secondary controllers via IP or RS485 with control of up to 126 doors |
| Power Supply | DC 12 V / 3 A max. |
| Operating Temperature | -10 ºC ~ +55 ºC |
| Dimensions | 222 (W) x 150 (H) x 51 (D) mm |
| Weight | 680 g |
Package Contents
- Hikvision access controller without enclosure
- Mounting materials
- User instructions
DS-K2701X(P)
Data sheet
- Brand
- HIKVISION
- Compatible models
- UHF-READER-6M,ISK-841D,ISK-841D,DS-K1F820-F,DS-K1201AMF,DS-K1104MK,DR-54NDF/M,DR-54NDF/M,BATT-1250-U,ACR205-QR-EM,A-R3P
Specific References
- EAN13
- 6942160449166
