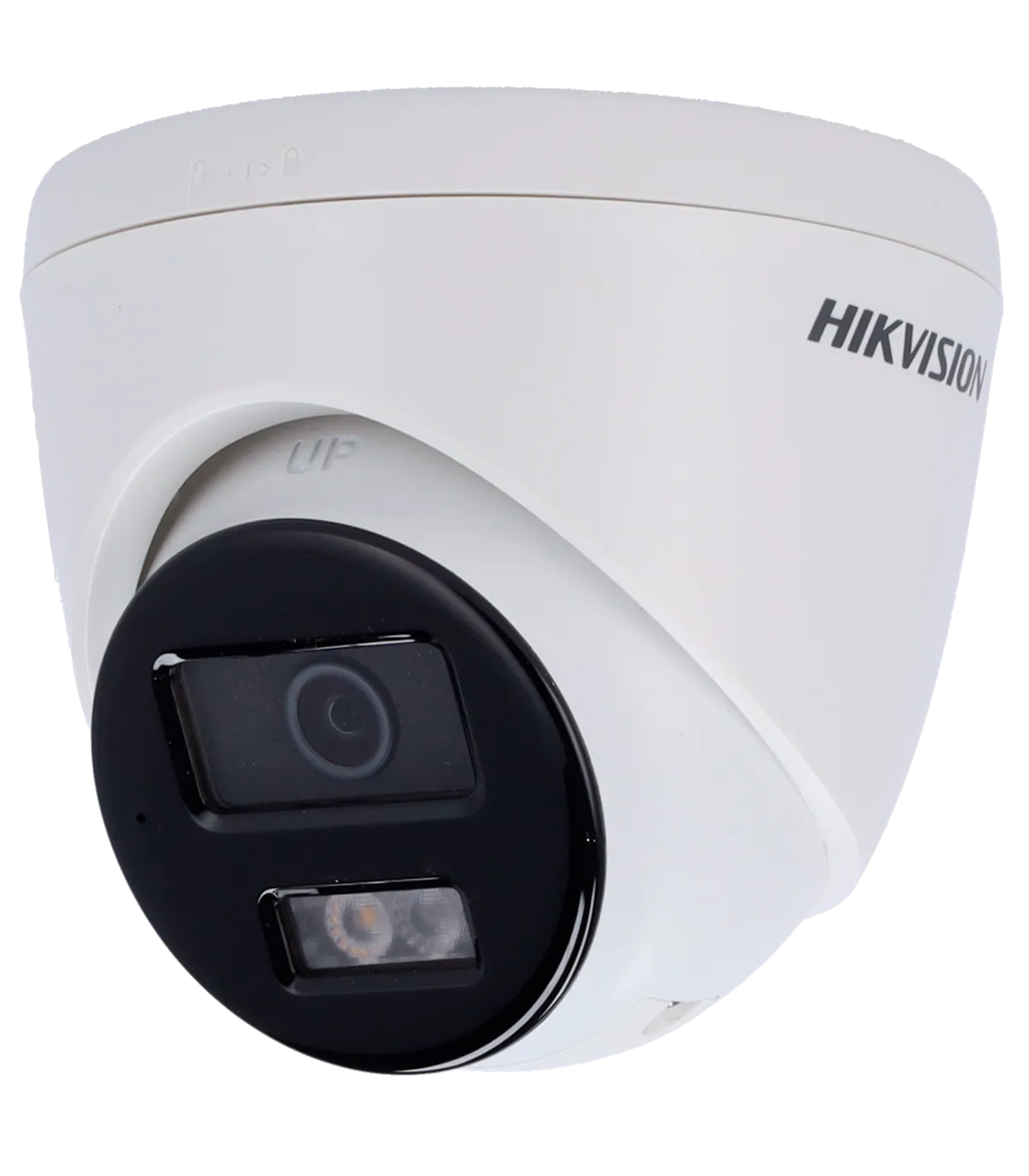

The DS-2CD1343G2-LIUF/SL(2.8mm) is a high-performance IP turret camera designed for effective surveillance in various environments. This device is ideal for both indoor and outdoor applications, providing clear and detailed images with its 4 Megapixel resolution. The camera features a 2.8 mm lens that offers a wide field of view, making it suitable for monitoring large areas. With its advanced features such as motion detection and hybrid light technology, this camera ensures reliable performance in low-light conditions.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 98°, V: 54°, D: 114° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Deterrent Alarm | Integrated siren and strobe light in the camera |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 660 mA / 8 W max. PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 110 x 102.7 mm (H) |
| Base Dimensions | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 340 g |
The DS-2CD1343G2-LIUF/SL(2.8mm) is an excellent choice for both residential and commercial security installations. For instance, a retail store can deploy this camera at entry points to ensure comprehensive surveillance. With its high-resolution imaging and motion detection capabilities, store owners can monitor customer activity and deter potential theft. The integrated audio features allow for two-way communication, enhancing customer service and security. Additionally, the IP67 waterproof rating ensures reliable performance in various weather conditions, making it suitable for outdoor use. The camera's remote access capabilities via web browsers and mobile apps enable real-time monitoring, providing peace of mind to business owners. Overall, this camera combines advanced technology with user-friendly features, making it a valuable asset for any security system.
