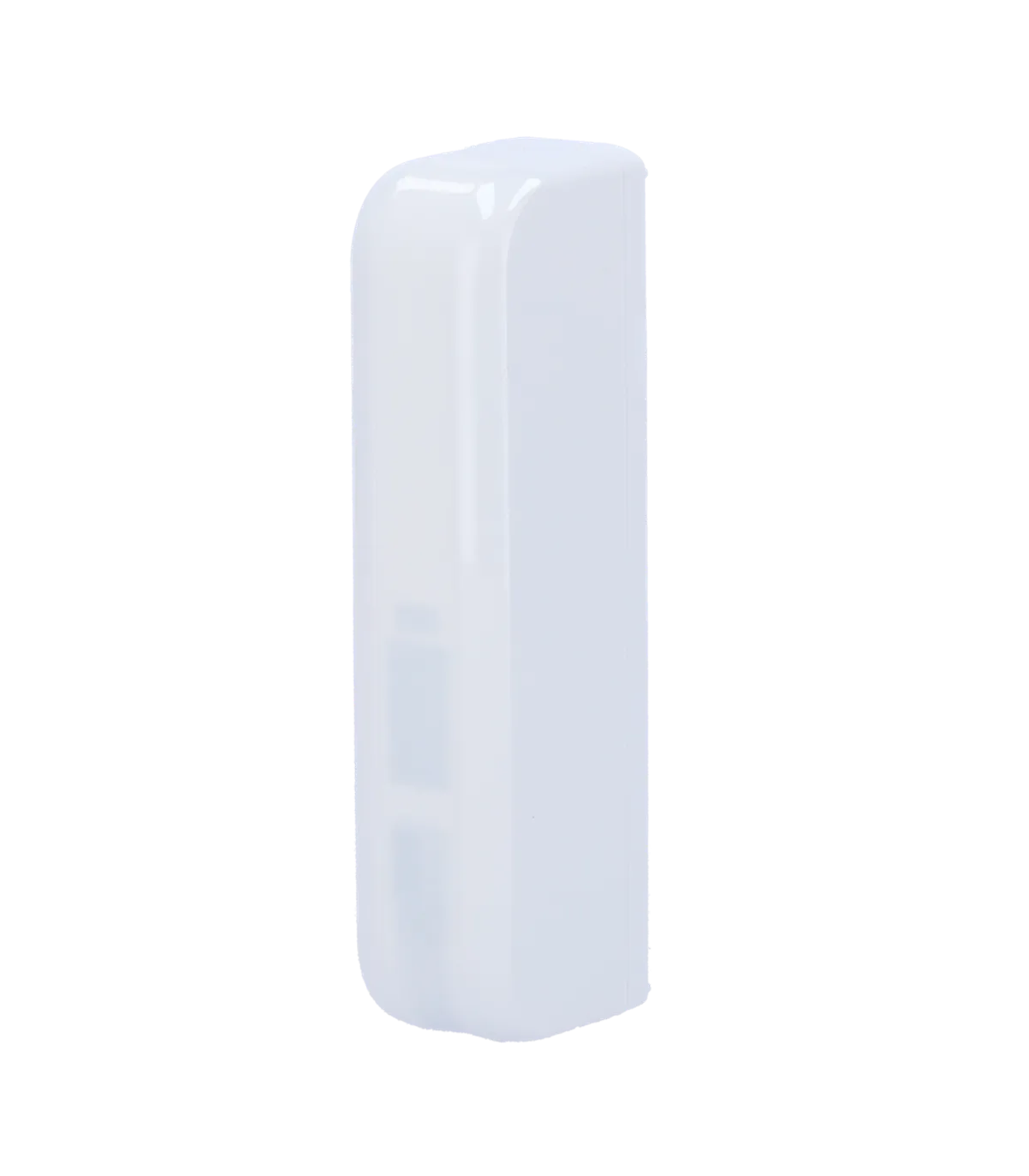

The DS-PDC10AM-VG3 is a high-performance wired curtain detector designed for both indoor and outdoor applications. This device utilizes passive infrared technology to effectively monitor and secure areas, making it ideal for protecting windows and narrow entry points. With features such as anti-masking and selectable end-of-line resistors, it ensures reliable operation in various environments.
| Brand | Hikvision |
| Model | DS-PDC10AM-VG3 |
| Technology | Passive infrared |
| Detection range | Ceiling installation: 6 meters Wall installation: 10 meters |
| Detection angle | 5º |
| Detection zones | 32 |
| Pet immunity | Not available |
| Installation height | From 2 to 4 meters |
| Masking | Available |
| Sensitivity | Automatic |
| Digital temperature compensation | Available |
| Anti-tamper | Available (front and rear) |
| Zero-degree angle zone protection | Available |
| Alarm output | Normally closed |
| LED indication | Alarm: blue PIR activated: green Masking: green + orange Failure: orange |

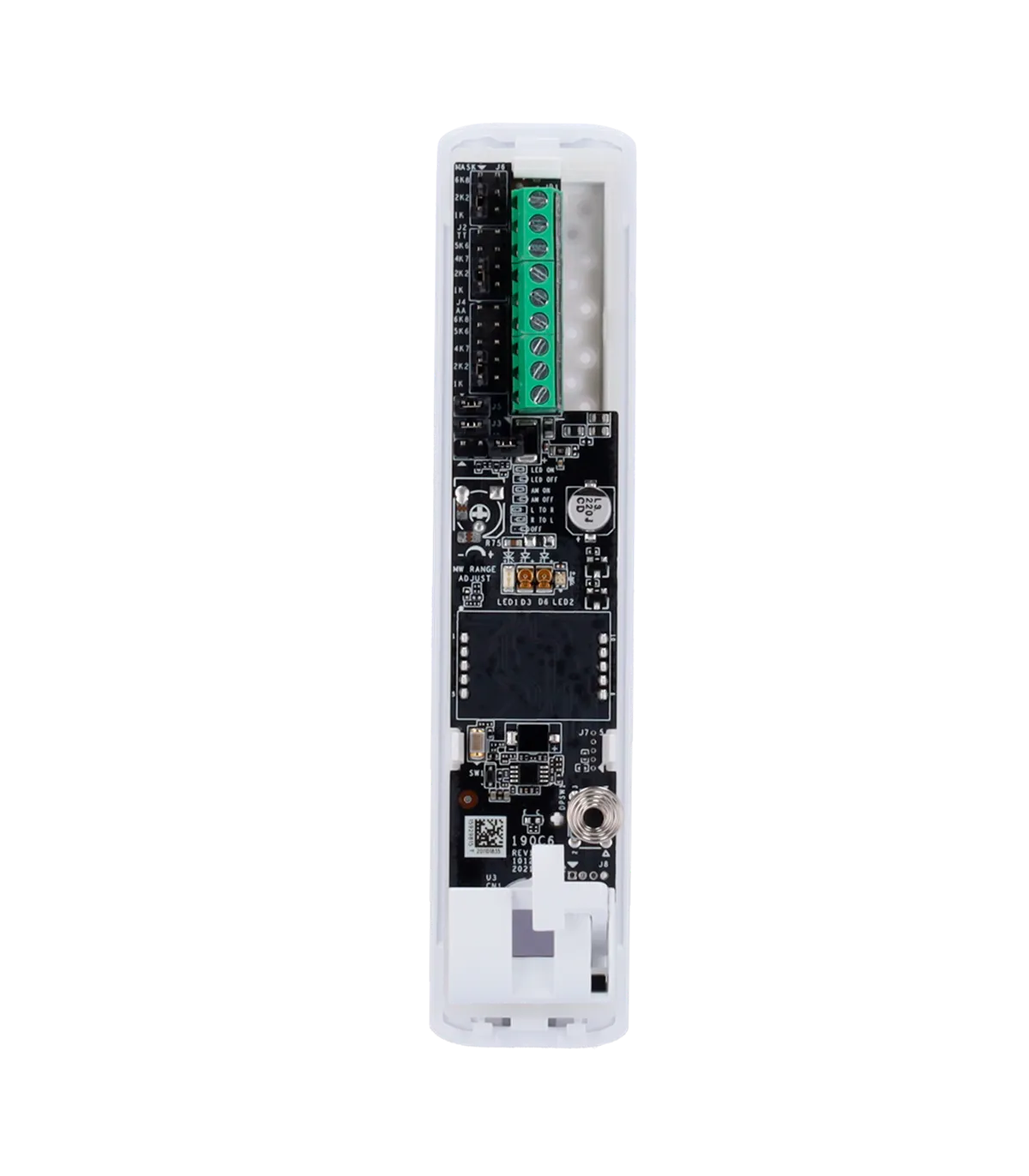

| End-of-line (EOL) resistors | Available, selectable with jumpers |
| Alarm resistors | 1K, 2K2, 4K7, 5K6, 6K8 |
| Tamper resistors | 1K, 2K2, 4K7, 5K6 |
| Anti-Masking resistors | 1K, 2K2, 6K8 |

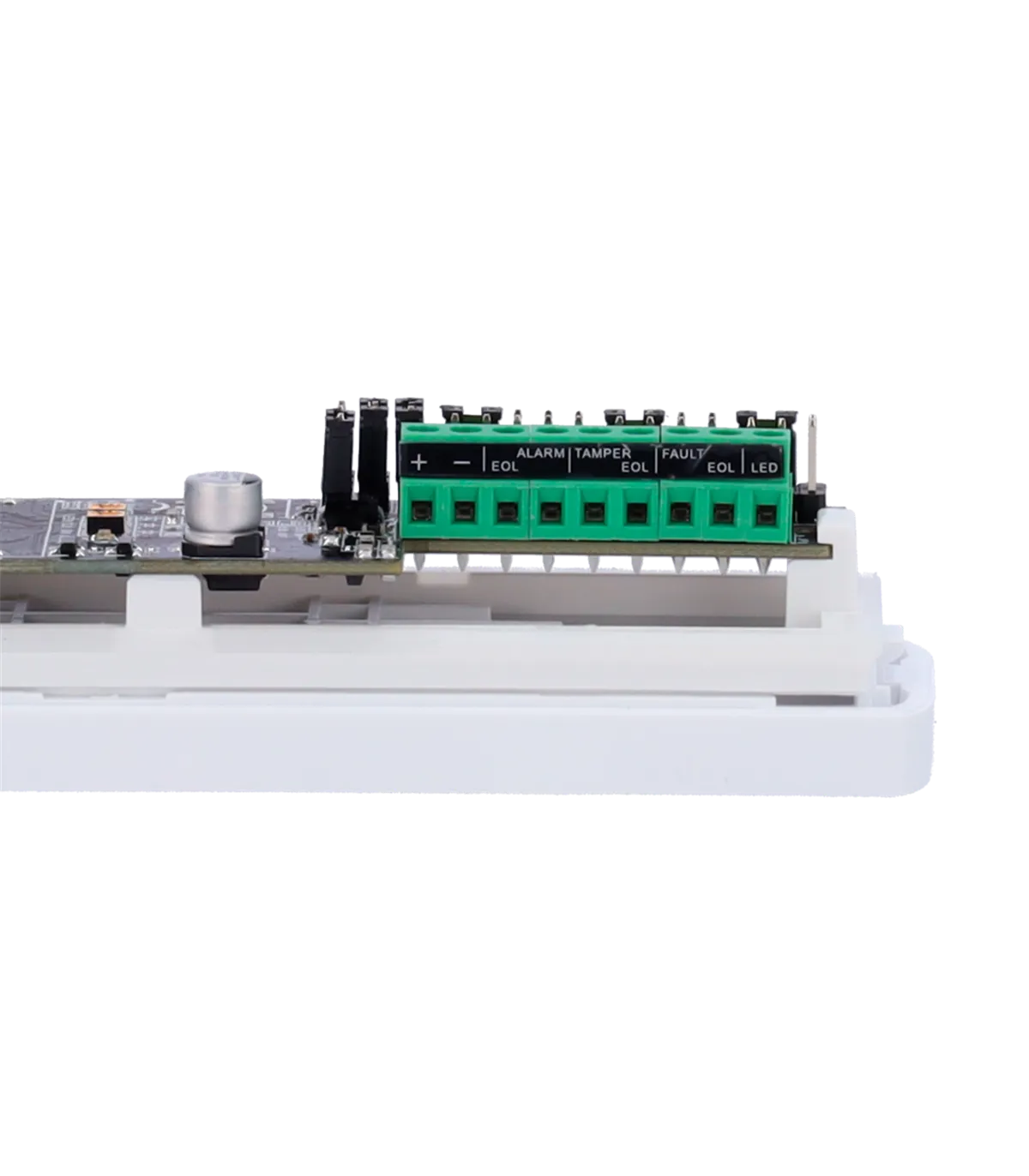

| Wired outputs | Alarm, tamper, and anti-masking |
| Power supply | 9~16 VDC (max. consumption 22 mA) |
| Operating temperature | -25 ºC ~ +60 ºC |
| Operating humidity | 10% to 90% |
| Application scenarios | Indoor and outdoor |
| Protection rating | IP65 |

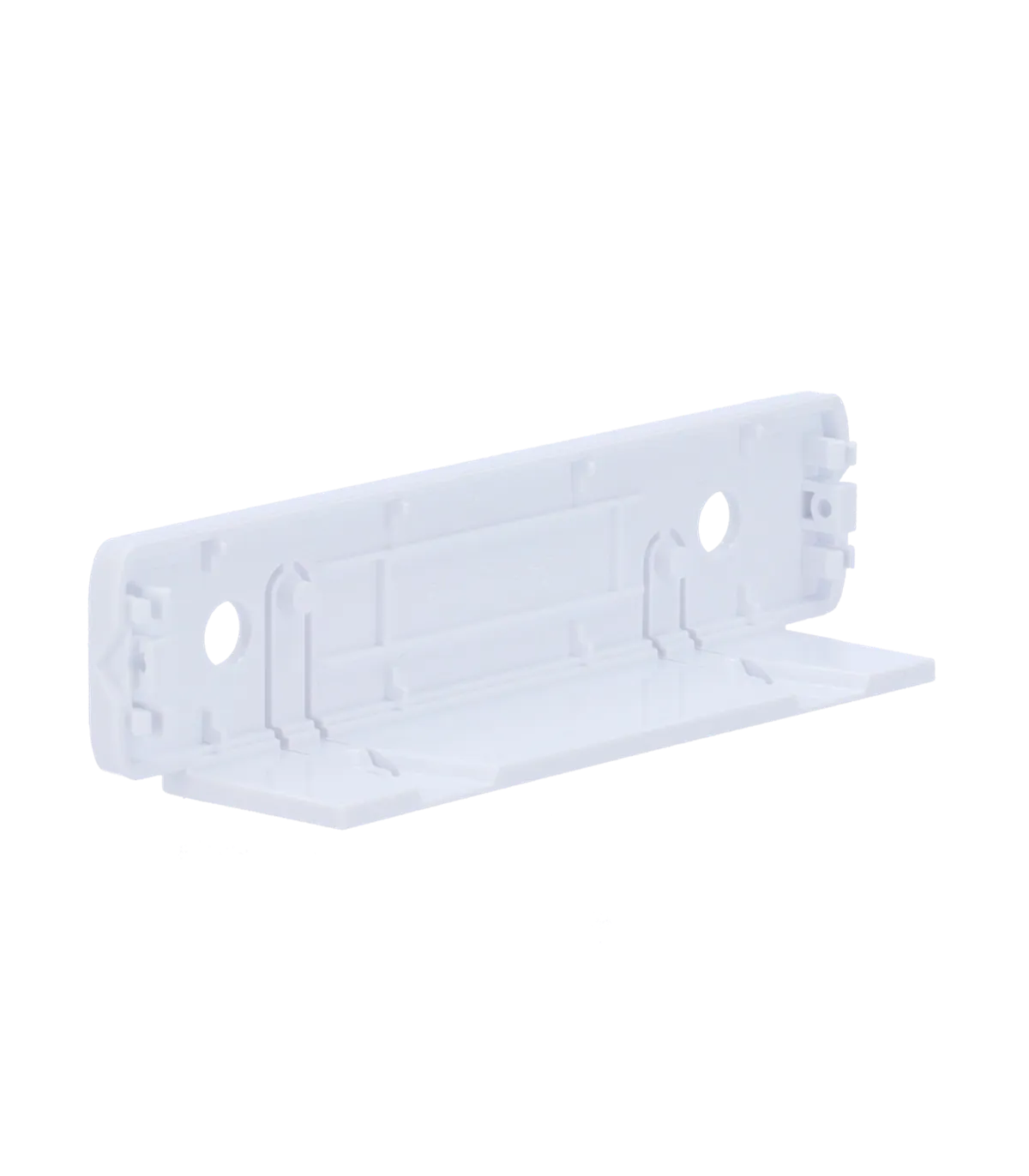

| Mounting support | Includes wall mount and L-bracket |
| Dimensions | 134.4 (H) x 29.2 (W) x 39.5 (D) mm |
The DS-PDC10AM-VG3 is an excellent choice for securing commercial spaces such as retail stores and offices. When installed near windows or narrow entry points, this wired curtain detector provides a reliable security solution. Its automatic sensitivity feature allows it to adapt to varying environmental conditions, ensuring optimal performance. The IP65 protection rating makes it suitable for outdoor use, while the anti-masking capability prevents tampering and ensures that the sensor remains functional. Installers will appreciate the selectable end-of-line resistors, which simplify the setup process. Overall, the DS-PDC10AM-VG3 is a robust and versatile option for enhancing security in both indoor and outdoor environments.
