Hikvision Wired Ceiling Detector 12 m Range Selectable EOL Resistors DS-PDCL12-EG2

Description & Key Features: DS-PDCL12-EG2

The DS-PDCL12-EG2 is a ceiling-mounted wired detector designed for indoor security applications. This device is ideal for environments requiring reliable intrusion detection, offering a Grade 2 security level. With its IR sensor technology, it provides a detection range of up to 12 meters and a 360º detection angle, making it suitable for comprehensive coverage in various settings. The detector features an anti-tamper mechanism and selectable end-of-line (EOL) resistors, ensuring enhanced security and adaptability in installation.

• Hikvision

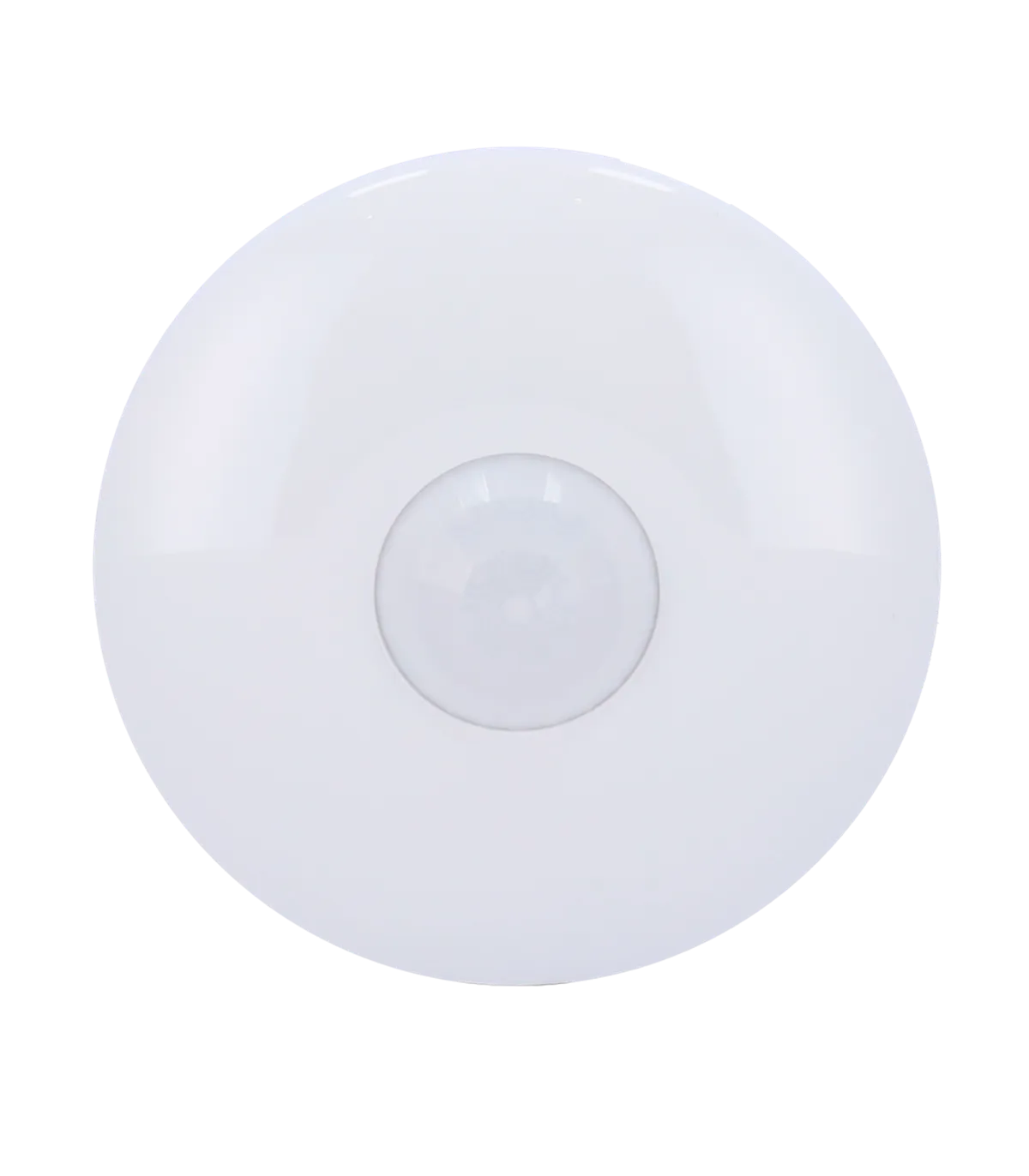

• Ceiling-mounted wired detector
• Grade 2
• IR sensor
• Anti-tamper mechanism

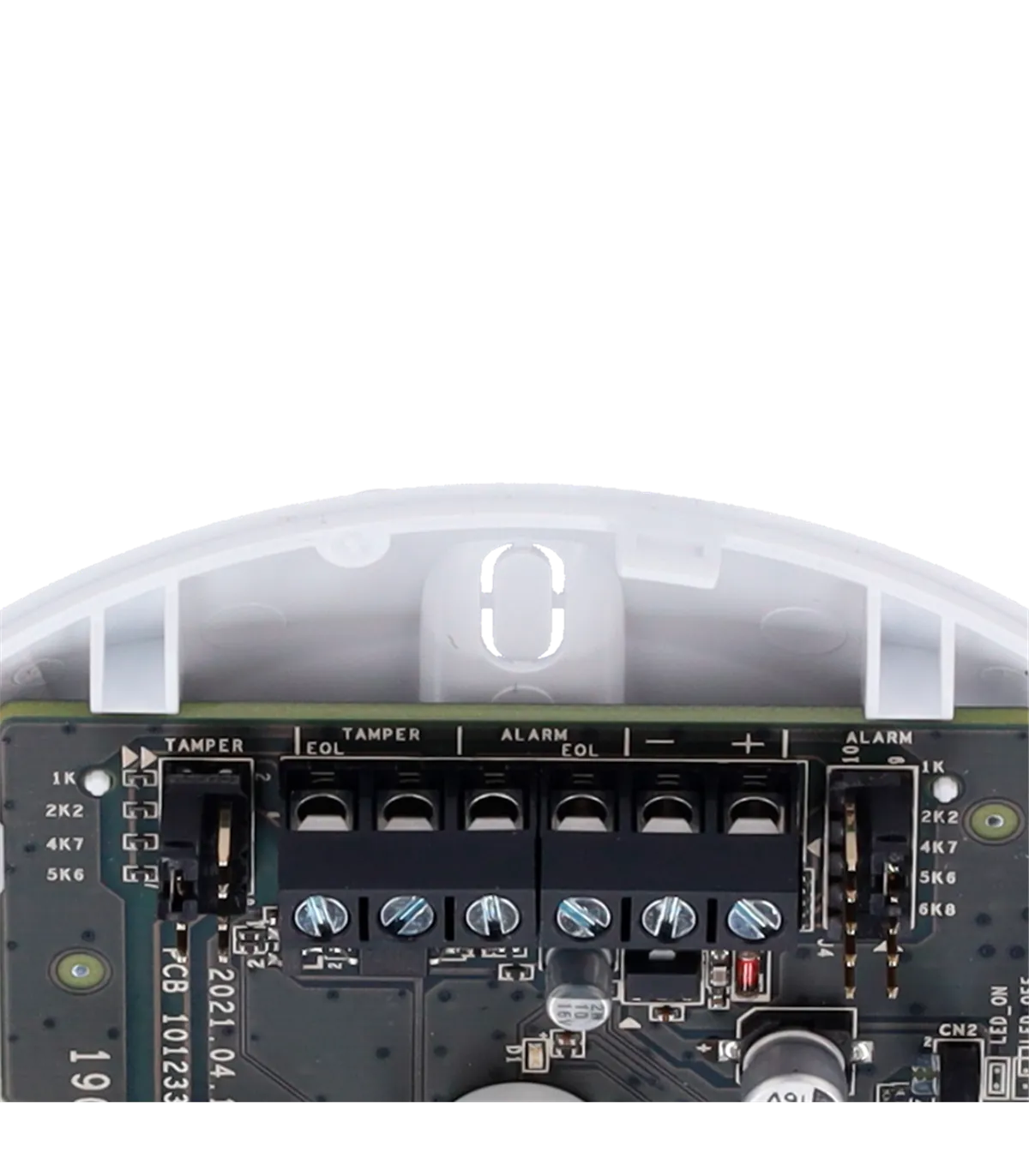

• Selectable end-of-line (EOL) resistors
• Automatic sensitivity
• Digital temperature compensation
• Detection range: 12 m
• Detection angle: 360º
• LED indicator
• Power supply: 9~16 VDC
• Indoor use

Specifications: DS-PDCL12-EG2

Package Contents

• Ceiling-mounted wired detector
• Instruction manual
• Mounting materials

Use Case

The DS-PDCL12-EG2 is particularly effective in commercial settings such as offices, retail stores, and warehouses where comprehensive security coverage is essential. Installers can easily mount the detector on the ceiling, ensuring a wide 360º detection angle that captures movement across large areas. The device's automatic sensitivity adjustment allows it to adapt to varying environmental conditions, providing reliable performance without frequent manual recalibration. Additionally, the anti-tamper mechanism enhances security by alerting users to unauthorized access attempts. With a detection range of up to 12 meters, this detector is perfect for monitoring entry points and sensitive areas. The integration of digital temperature compensation ensures consistent operation across a wide temperature range, making it suitable for diverse indoor environments.
