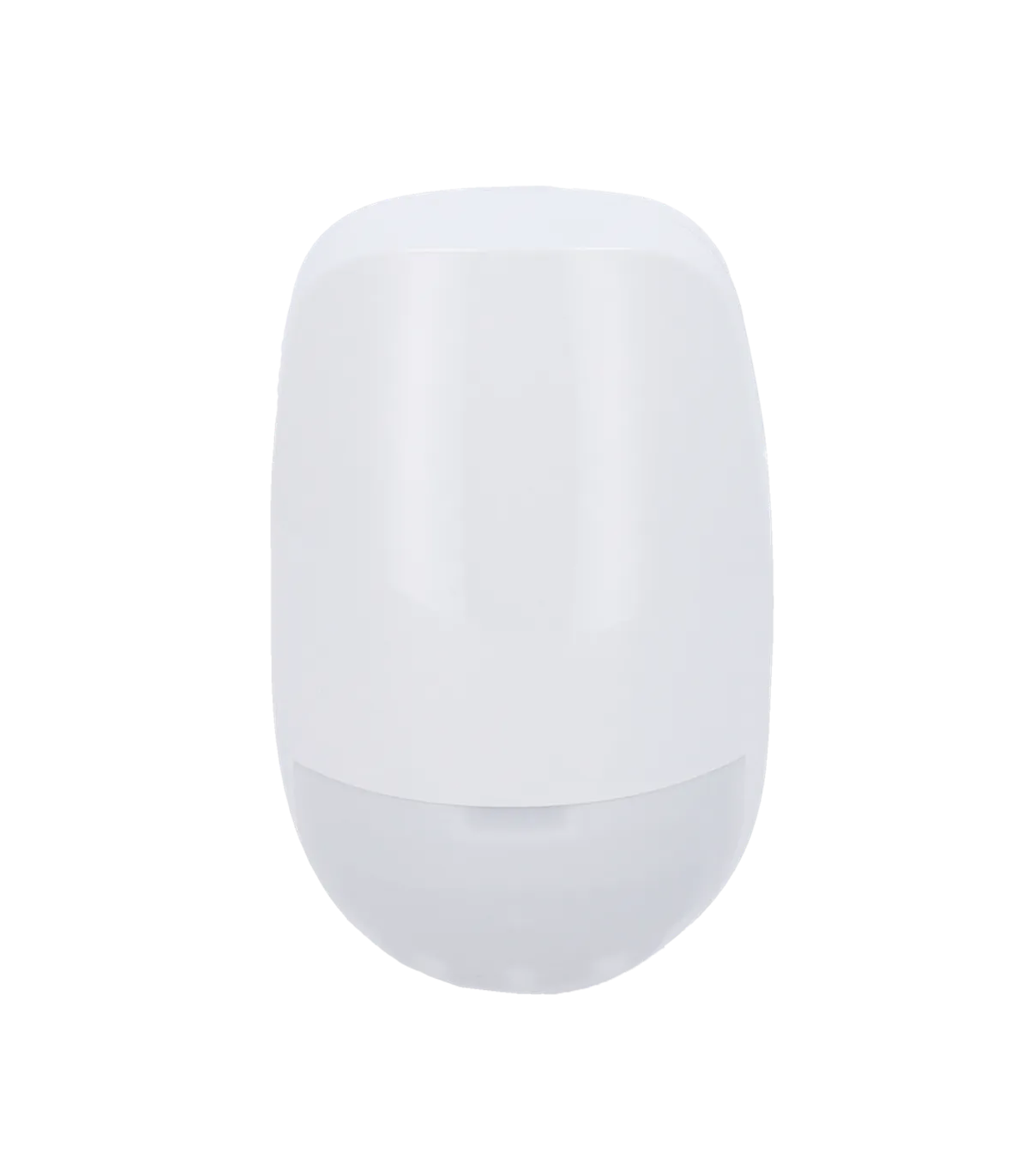

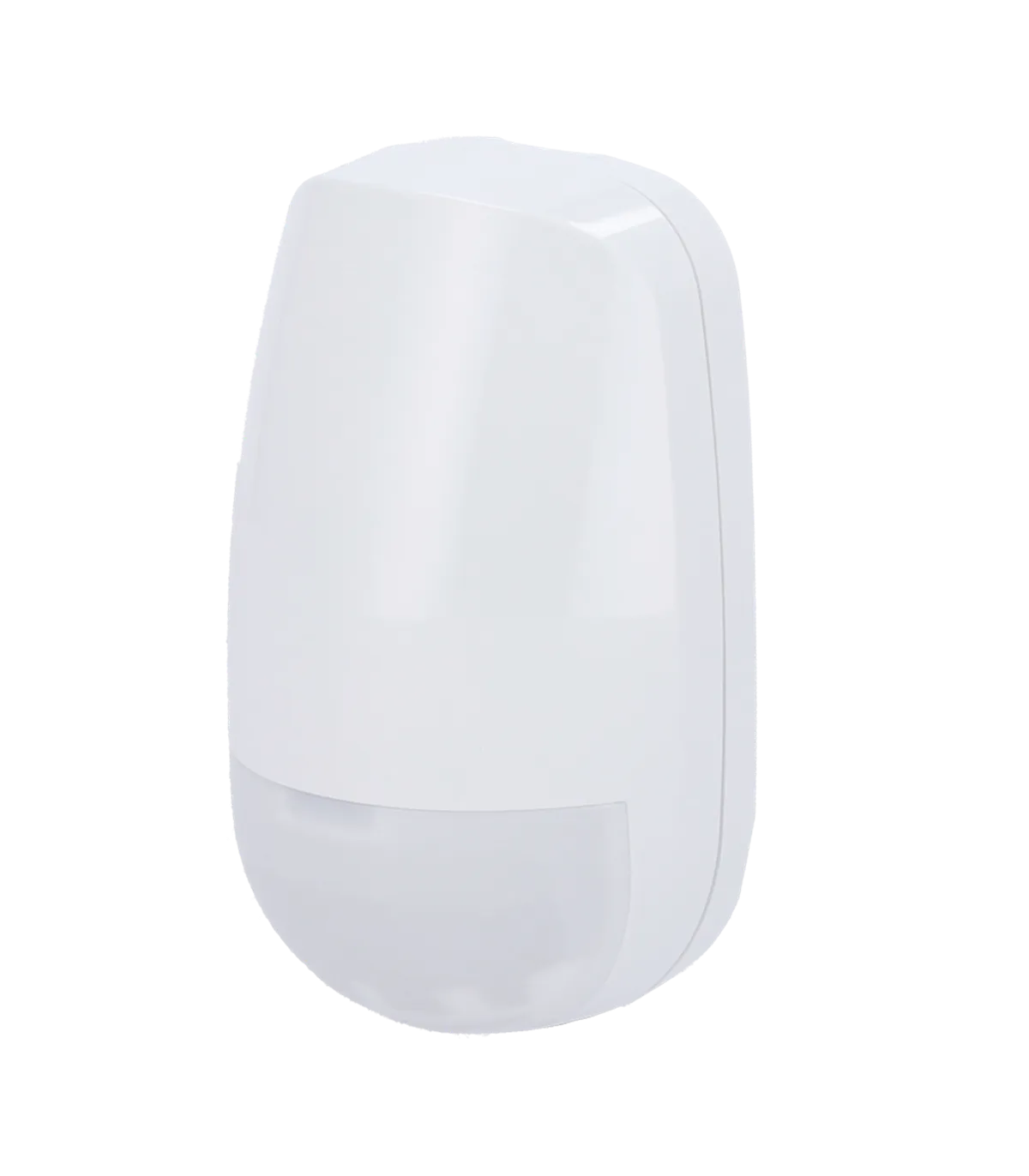

The DS-PDD15AM-EG2 is a dual-technology wired detector designed for enhanced security in indoor environments. It combines passive infrared and microwave technology to provide reliable detection capabilities. With a detection range of 15 meters and an angle of detection of 85.9º, this device is ideal for protecting residential and commercial spaces. Its advanced features, including anti-masking and anti-tamper mechanisms, ensure that security remains uncompromised, making it a vital component of any electronic security system.
| Brand | Hikvision |
| Model | DS-PDD15AM-EG2 |
| Security Grade | Grade 2 |
| Technology | Passive infrared and microwave |
| Detection Range | 15 meters |
| Detection Angle | 85.9º |
| Detection Zones | 52 |
| Microwave Frequency | 24 GHz (24.15 GHz to 24.25 GHz) |
| Microwave Range | Potentiometer adjustable |
| Installation Height | From 1.8 to 2.4 meters (recommended at 2.2 m) |
| Installation | Wall |
| Sensitivity | Automatic and low |
| Pet Immunity | Not available |
| Digital Temperature Compensation | Available |
| Anti-Tamper | Available (front) |
| Anti-Masking | Available |
| Anti-Hiding | Available |
| Anti-Blocking | Available |
| Alarm Output | Normally closed |
| LED Indication | Alarm: blue PIR activated: green Microwave: orange Anti-masking: orange + green |

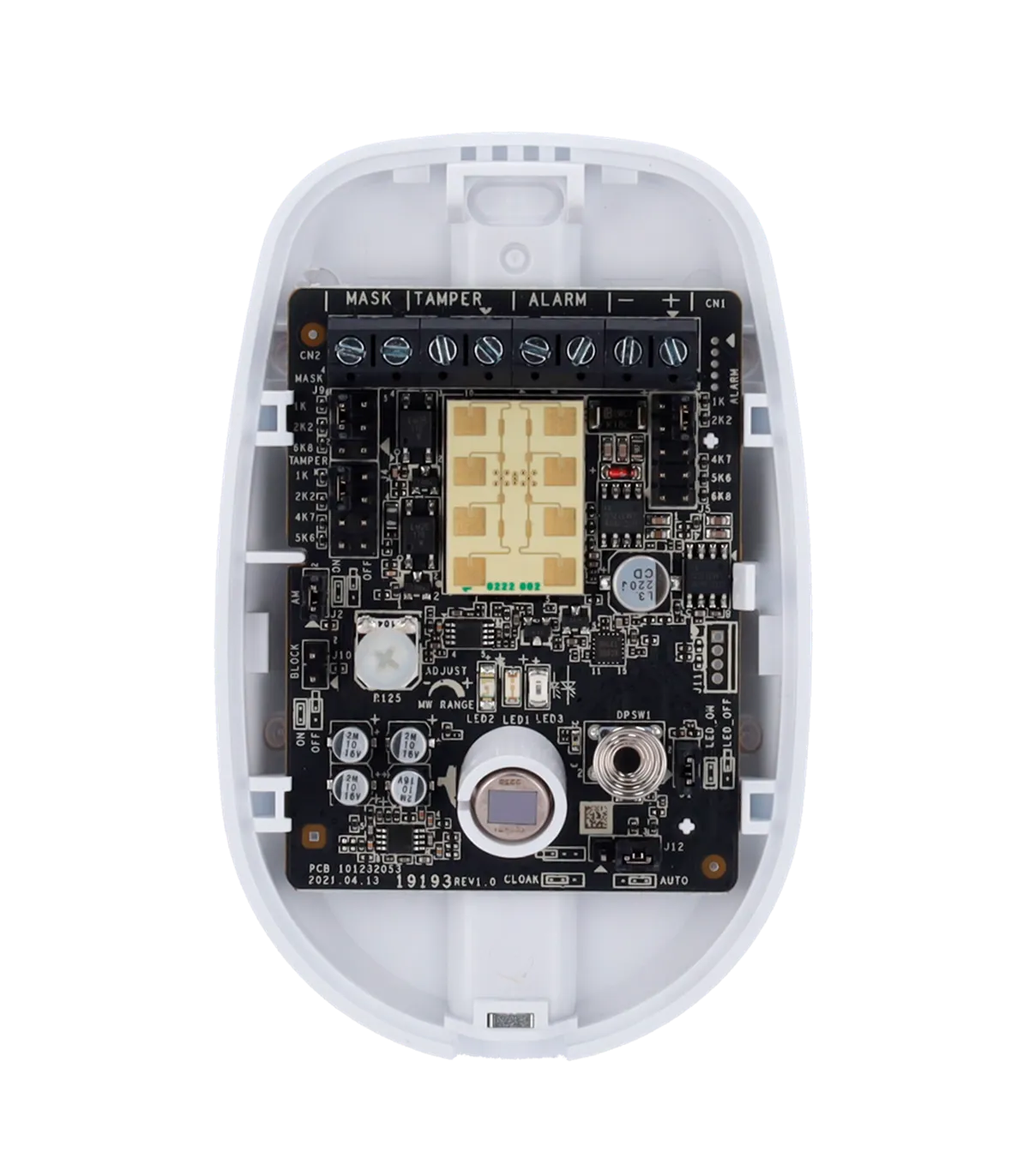

| End-of-Line (EOL) Resistors | Available, selectable with jumpers |
| Alarm Resistors | 1K, 2K2, 4K7, 5K6, 8K2 |
| Tamper Resistors | 1K, 2K2, 4K7, 5K6 |
| Anti-Masking Resistors | 1K, 2K2, 6K8 |

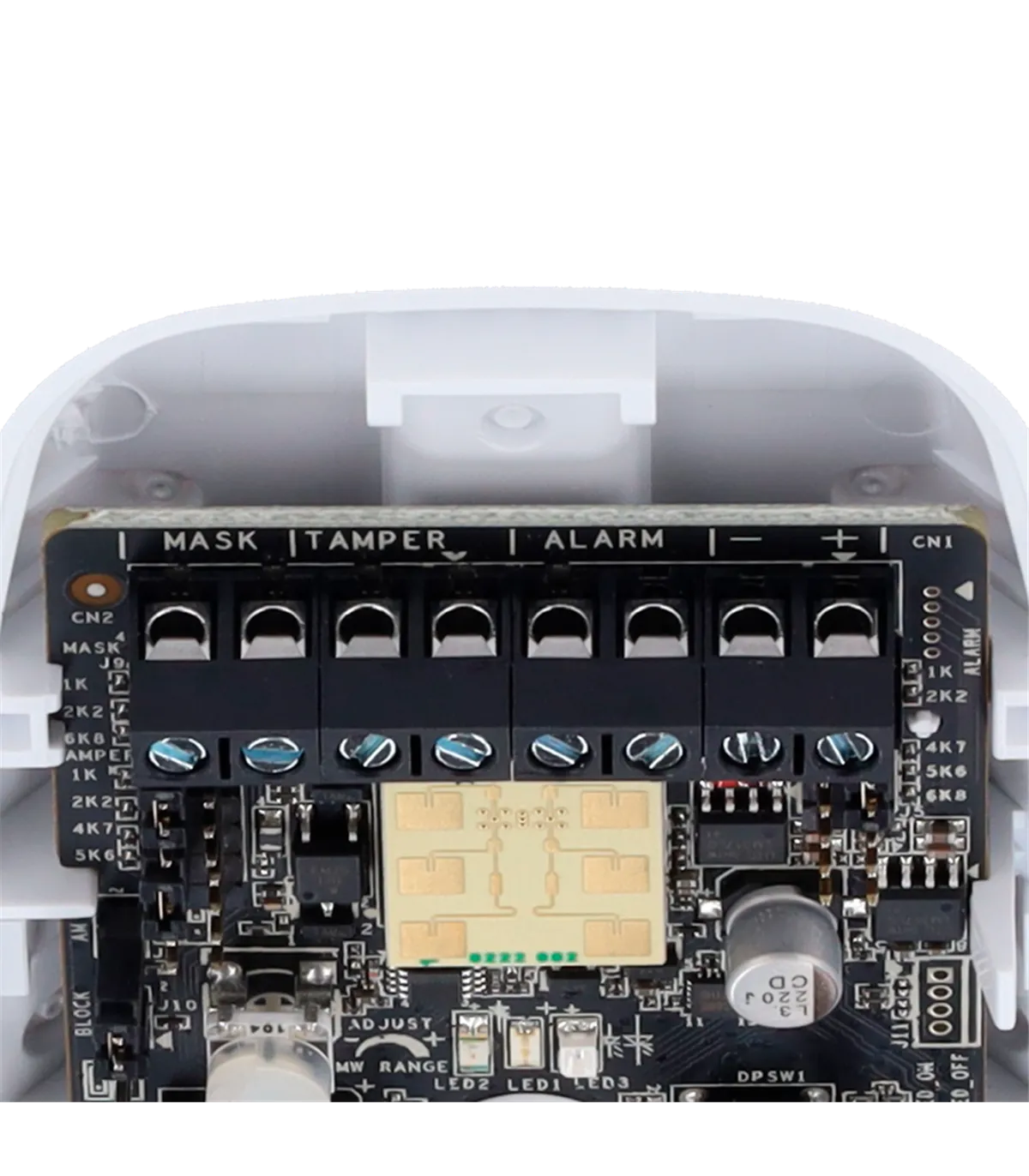

| Wired Outputs | Alarm, tamper, and anti-masking |
| Power Supply | 9~16 VDC (max. consumption 25 mA) |
| Operating Temperature | -10 ºC ~ +55 ºC |
| Operating Humidity | 10% to 90% |
| Application Scenarios | Indoor |
| Dimensions | 103.8 (H) x 65.7 (W) x 45.5 (D) mm |
The DS-PDD15AM-EG2 is ideally suited for installation in various indoor environments, such as offices, retail spaces, and residential properties. For instance, an installer can deploy this dual-technology detector in a retail store to enhance security against unauthorized access. With its 15-meter detection range and 85.9º detection angle, it effectively covers large areas, ensuring comprehensive surveillance. The device's anti-masking and anti-tamper features provide additional layers of protection, making it difficult for intruders to disable the system. Furthermore, the digital temperature compensation ensures reliable performance in varying environmental conditions, while the selectable end-of-line resistors facilitate easy integration into existing security systems. This makes the DS-PDD15AM-EG2 an excellent choice for those seeking a robust and reliable security solution.
