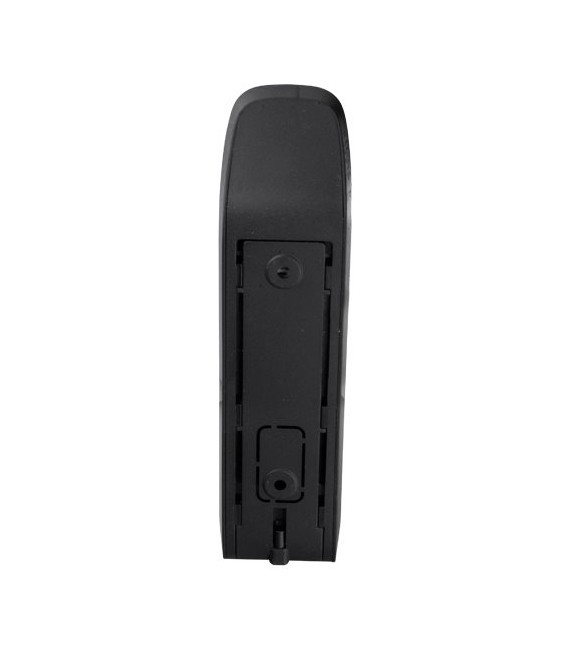

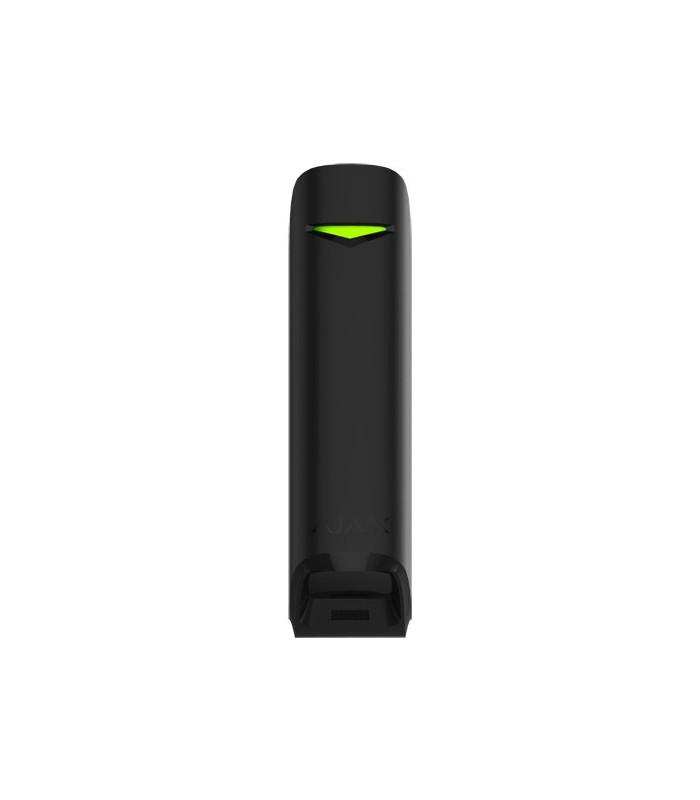

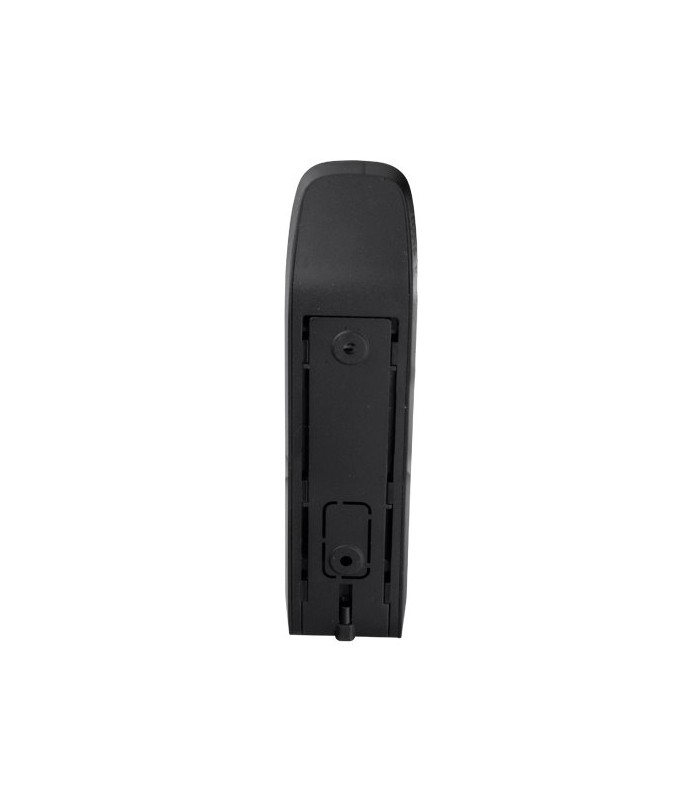

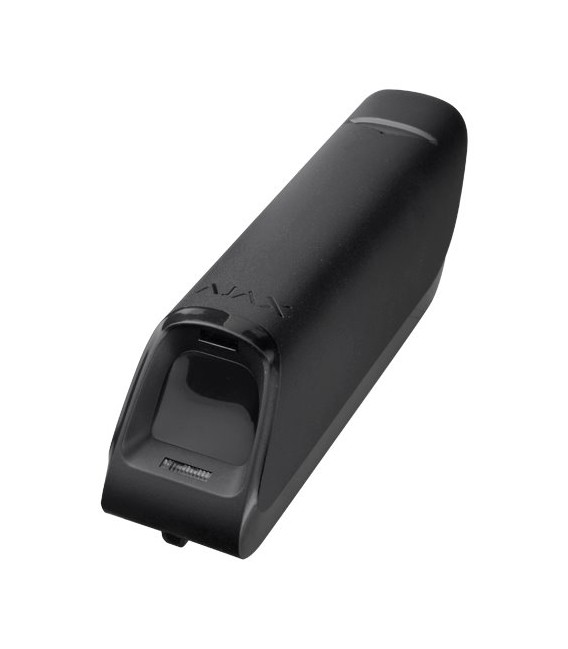

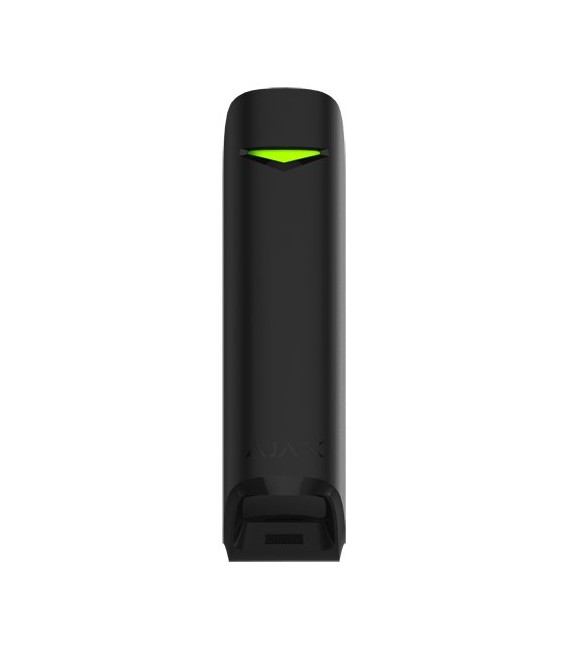

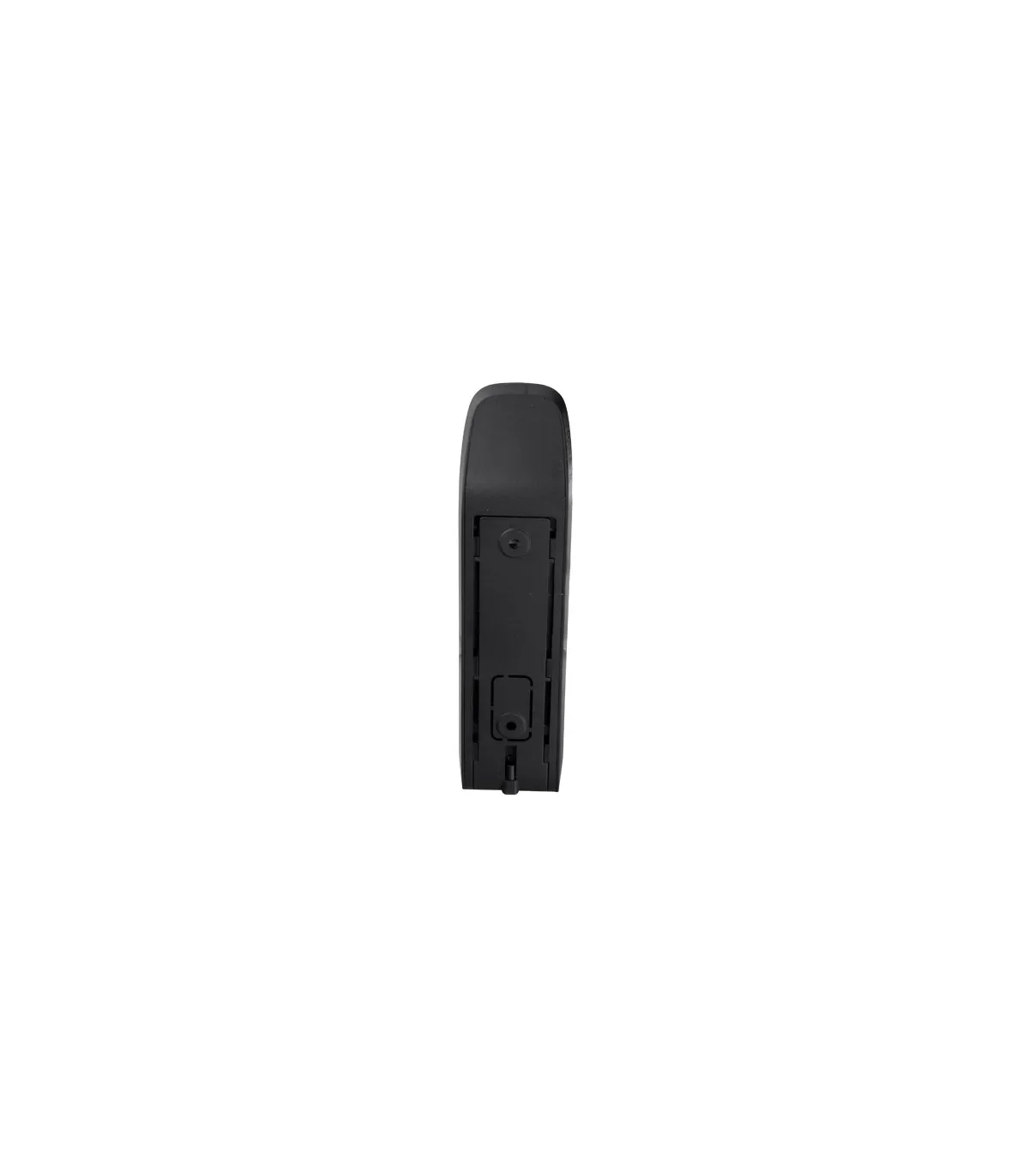

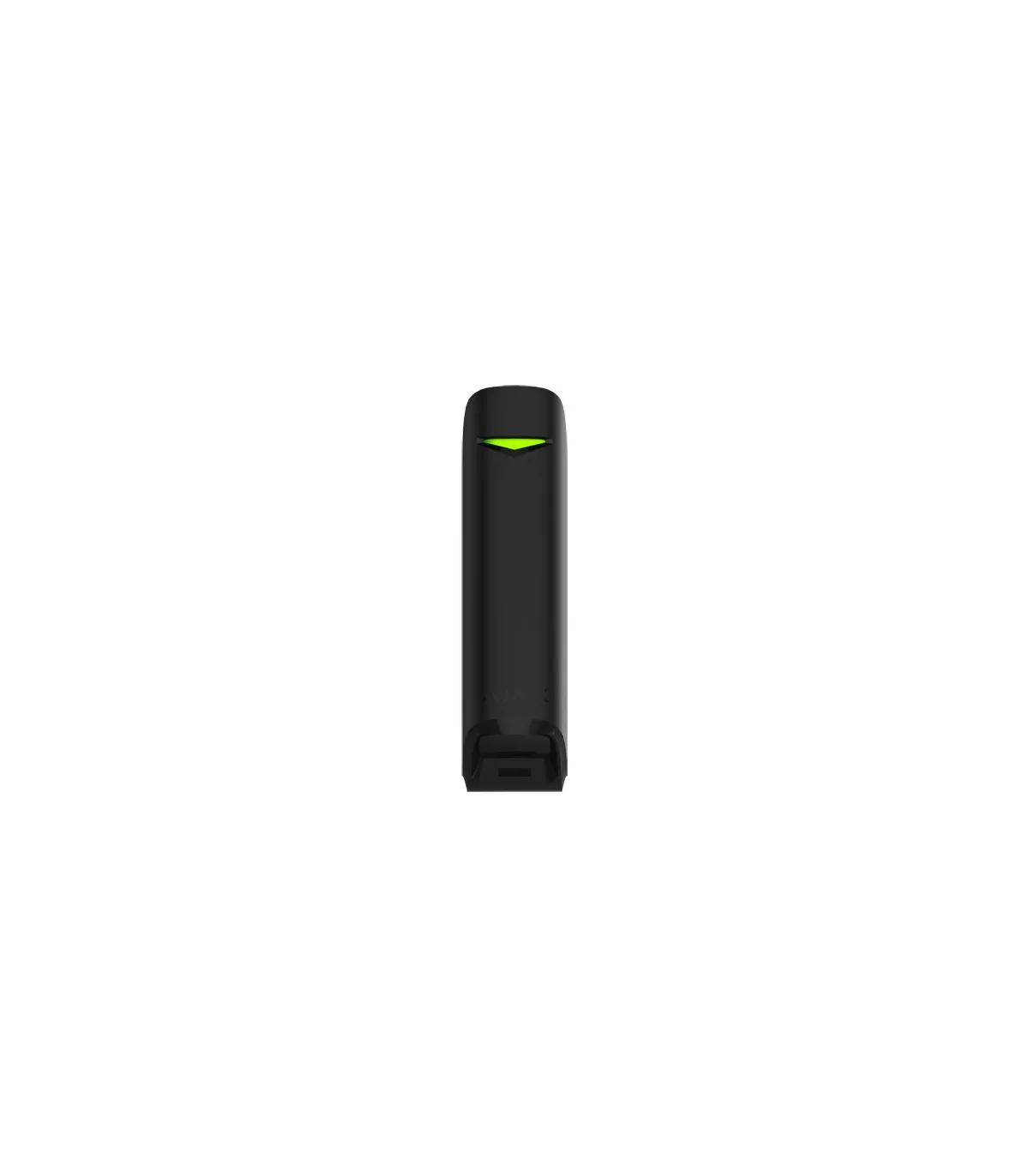

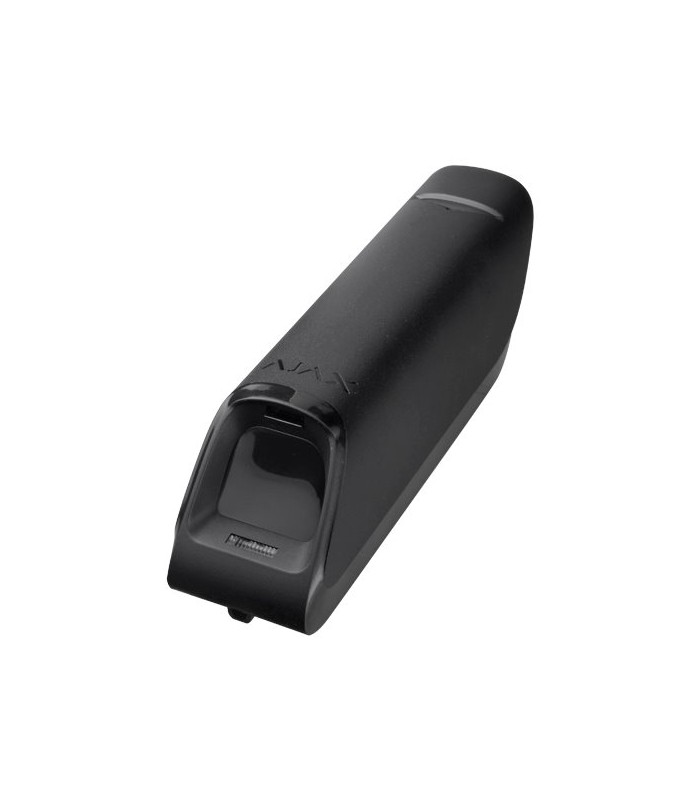

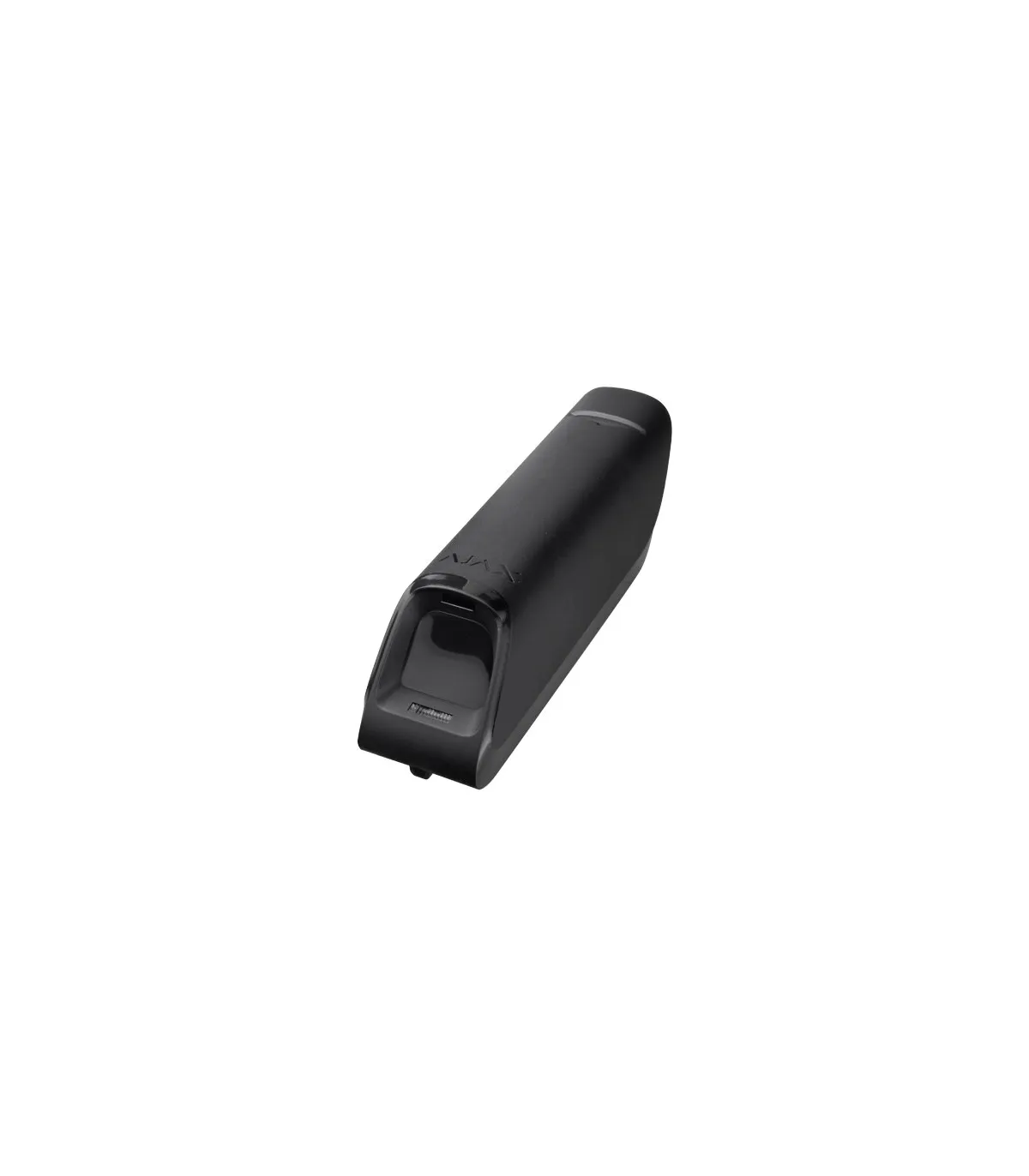

The Ajax AJ-CURTAINPROTECT-B Curtain PIR Detector is a high-tech device designed to protect your home or business from intruders. With its advanced motion detection technology, this detector can detect any movement within a curtain up to 15 meters away, providing effective protection for your property.
Its compact and discreet design makes it ideal for installation in any environment without drawing attention. Additionally, its easy installation and configuration make it an excellent choice for those seeking a reliable and user-friendly security solution. Protect what matters most with the Ajax AJ-CURTAINPROTECT-B Curtain PIR Detector!
| Brand | Ajax |
| Technology | Double Curtain PIR |

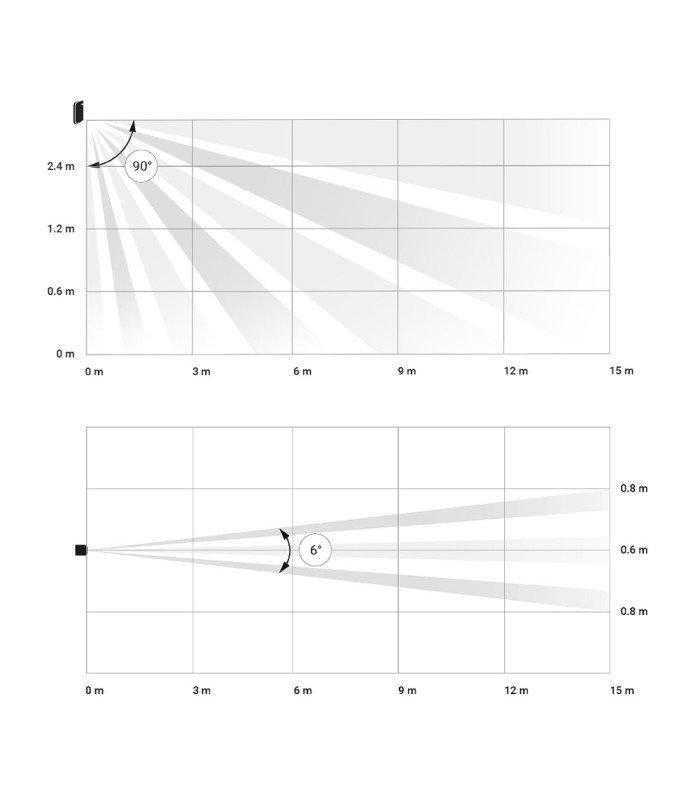

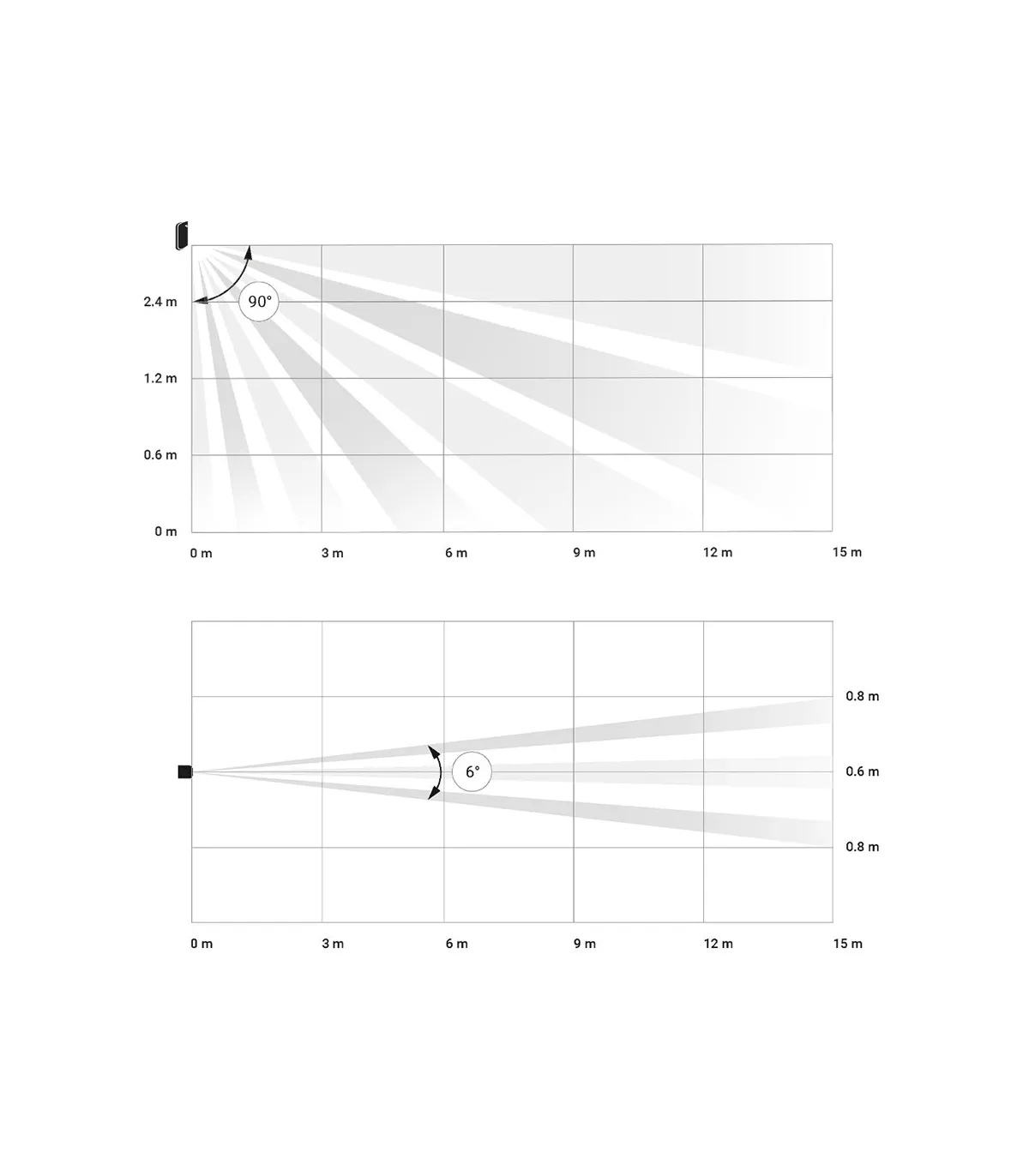

| Detection Range | 6~15m / 6º H / 90º V / Installation 2.4m |
| Frequency | 868 MHz Jeweller |
| Transmission Distance | ≤ 1700m in open space |
| Anti-Masking | Not available |
| Sensitivity | Adjustable. 3 levels (high, medium, low) |
| Anti-Tamper Protection | Available |
| LED Indication | Alarm, tamper, signal |
| Power Supply | 1 x CR123A 3.0V battery (approx. 3-year lifespan) |
| Operating Temperature | -10 ºC ~ 40 ºC |
| Protection Grade | IP54 |

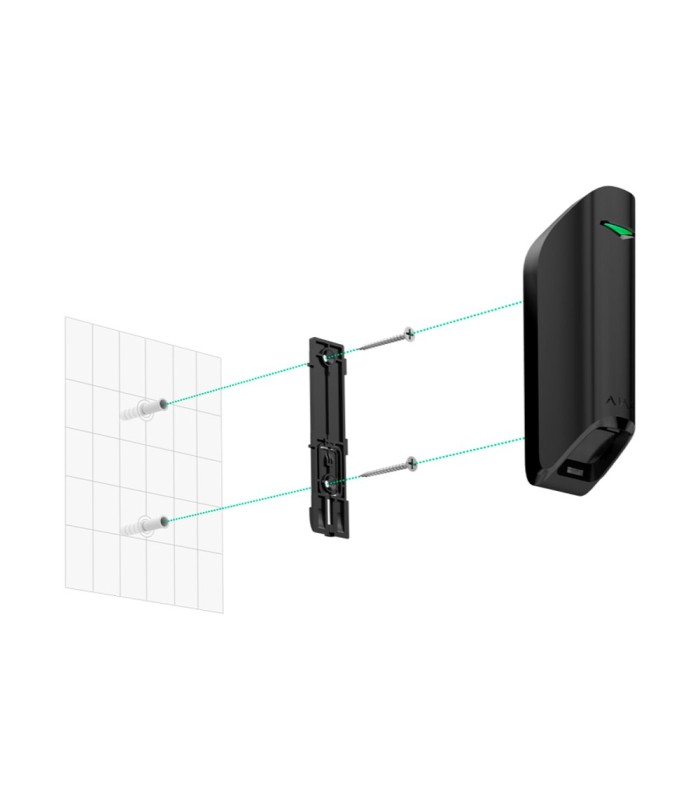

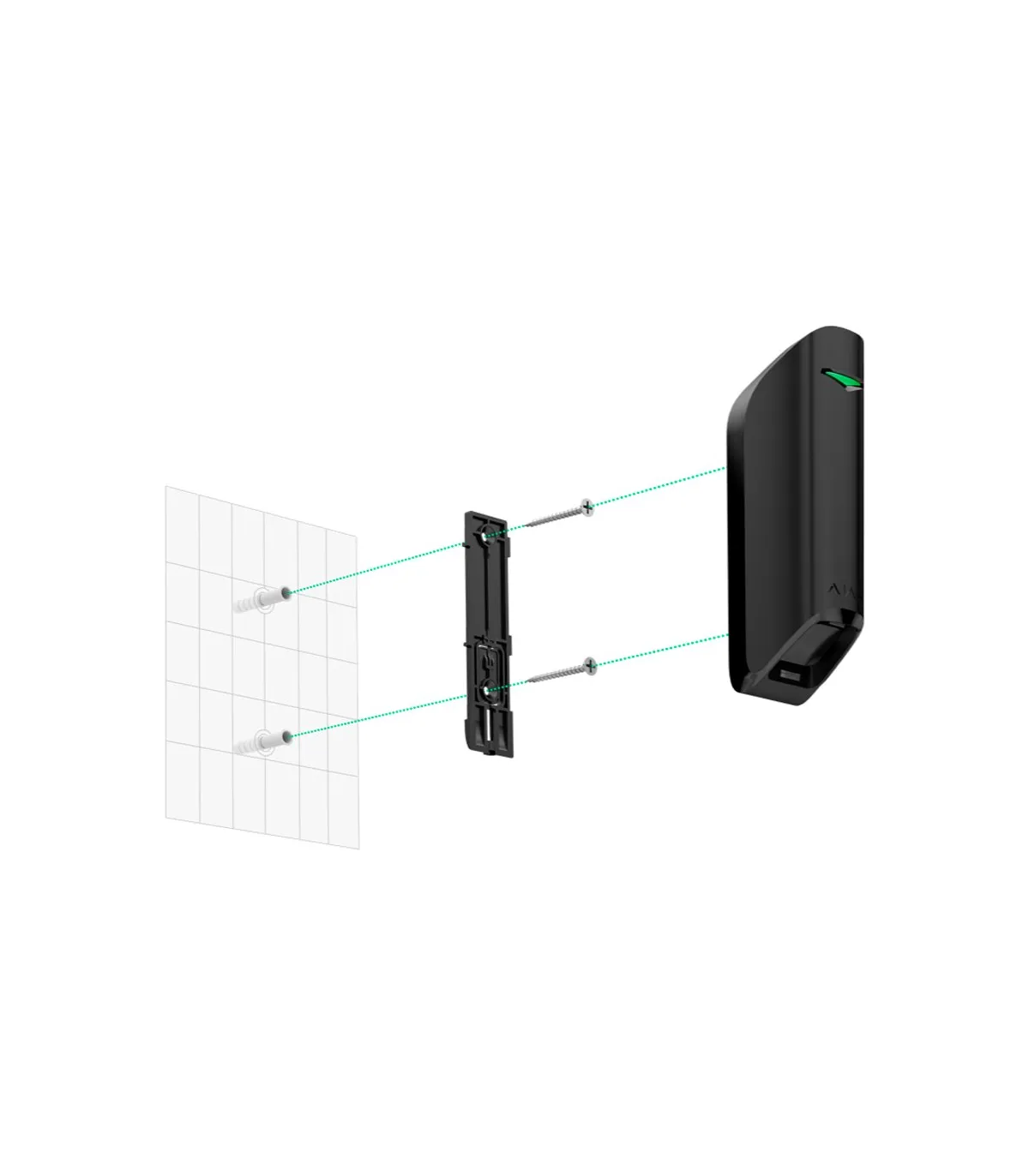

| Bracket | Includes regular bracket and L-bracket |
| Dimensions | 134mm (H) x 44mm (W) x 34mm (D) |
