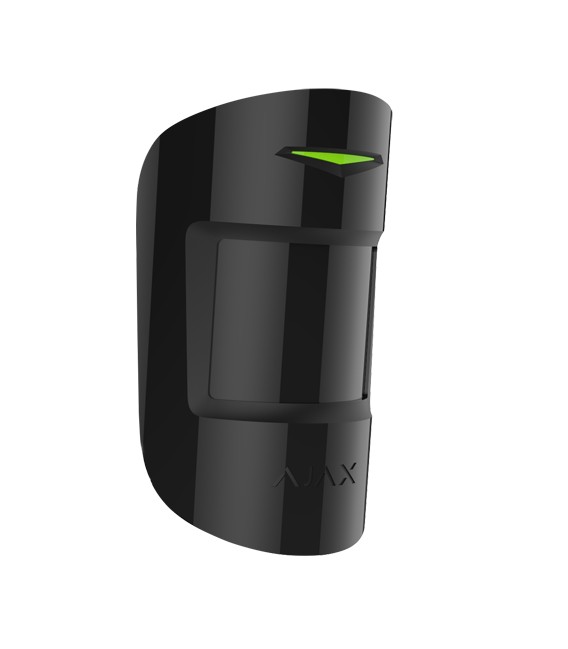

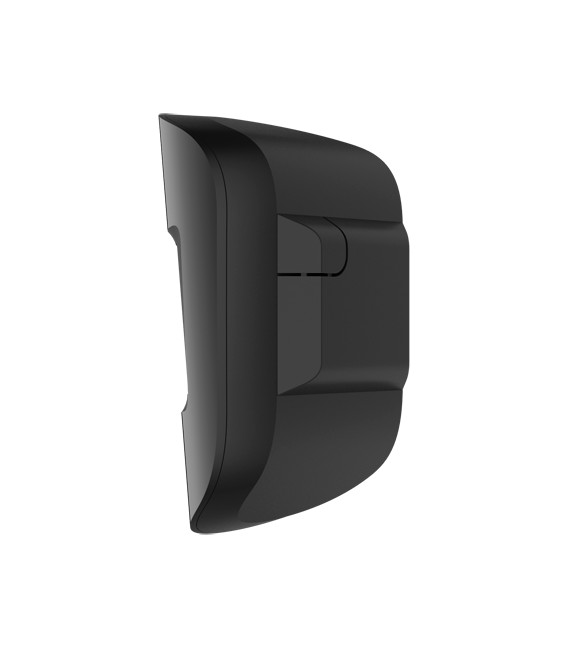

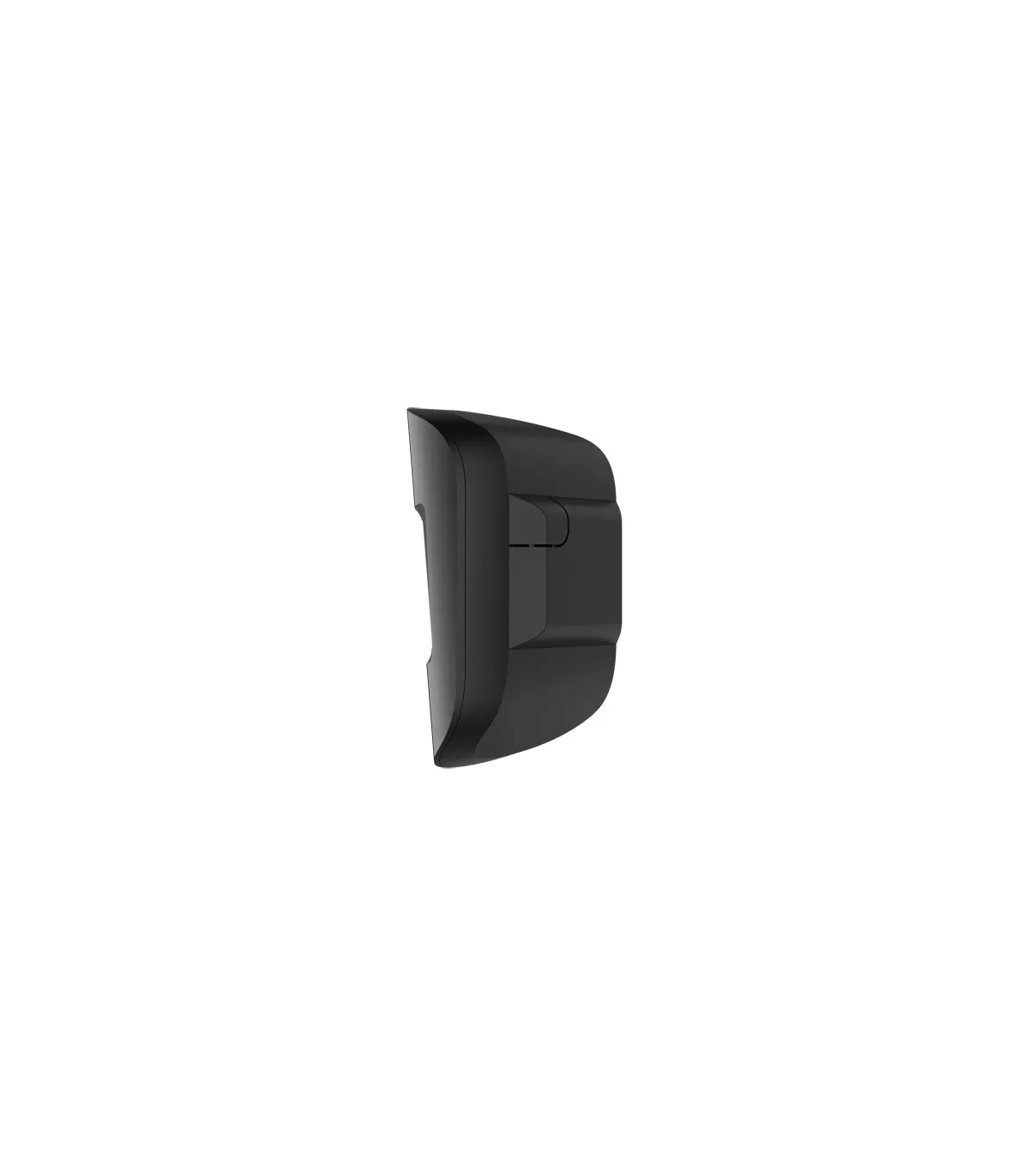

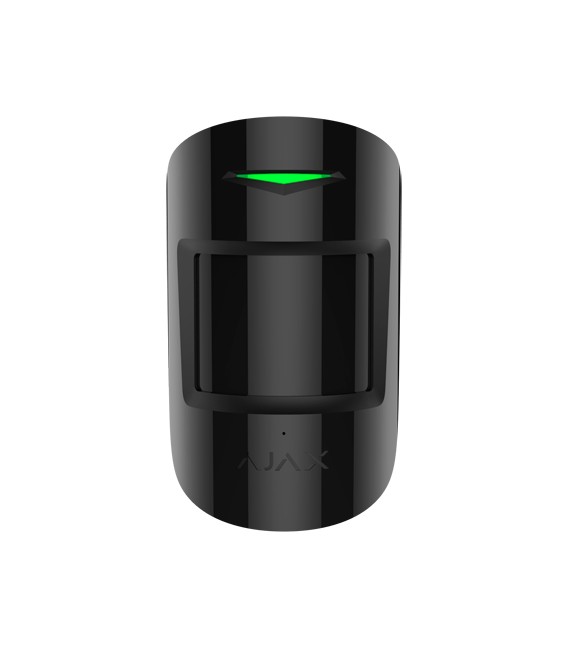

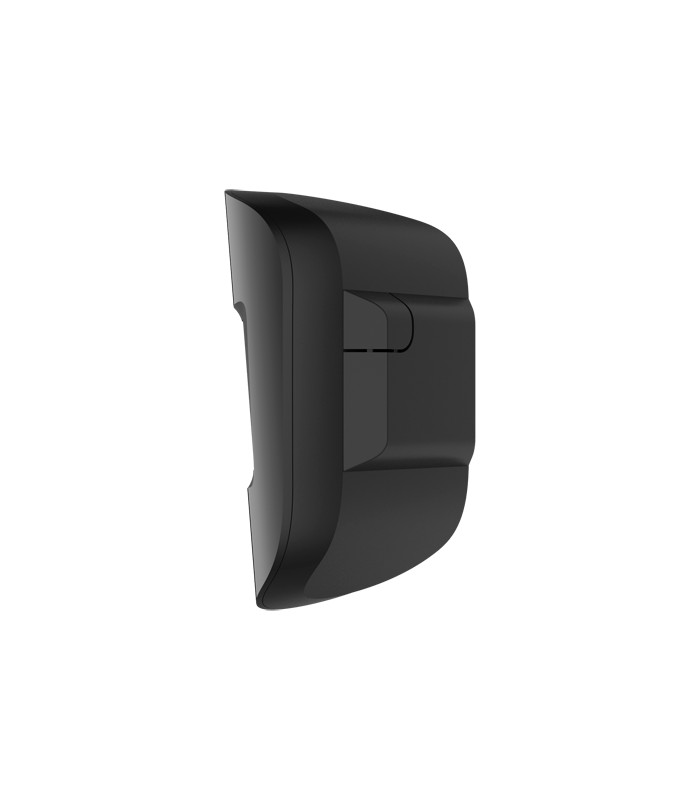

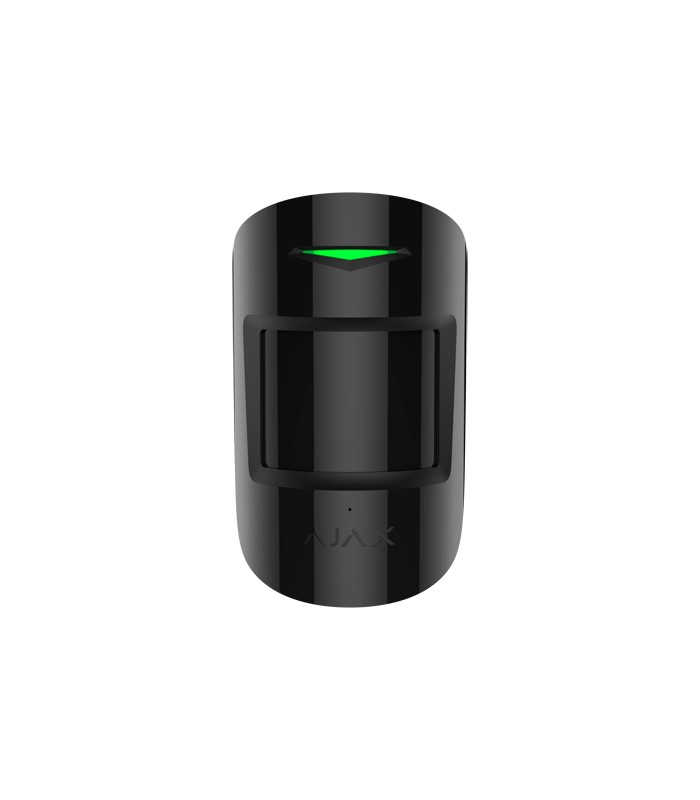

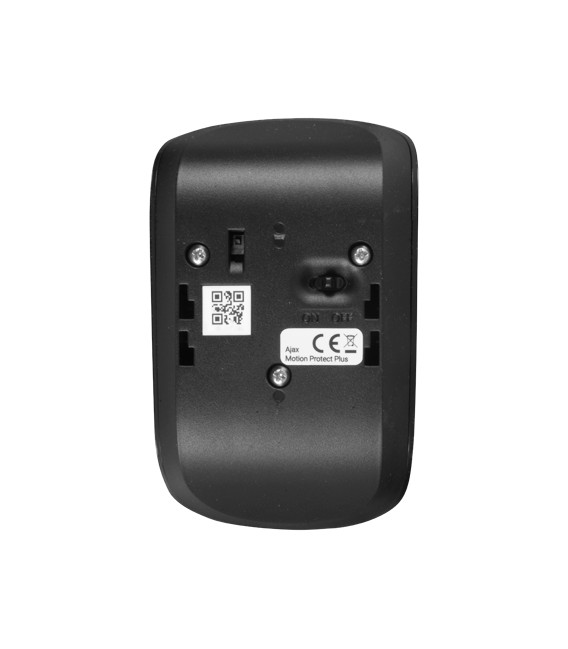

AJ-MOTIONPROTECTPLUS-B dual technology PIR detector
- Ajax
- PIR volumetric detector double technology immune to pets
- Bidirectional
- Wireless 868 MHz Jeweler
- Double technology: 1 infrared, 1 microwave
- Internal antenna free space range 1200 m
- Indicator detection movement
- Detection: Range 12 m / H: 88.5º / V: 80º
- Anti-opening tamper
- Immunity against pets ≤ 20 kg and ≤ 50 cm
- Power supply 1 CR123A 3.0 V battery (estimated duration 5 years)
- Indoor use
- Includes support
- Black color
Technical specifications
| Brand | Ajax |
| Technology | Volumetric PIR and microwave sensor |
| Security grade | Grade 2 |
| PIR lens | 24 zones and 6 planes |

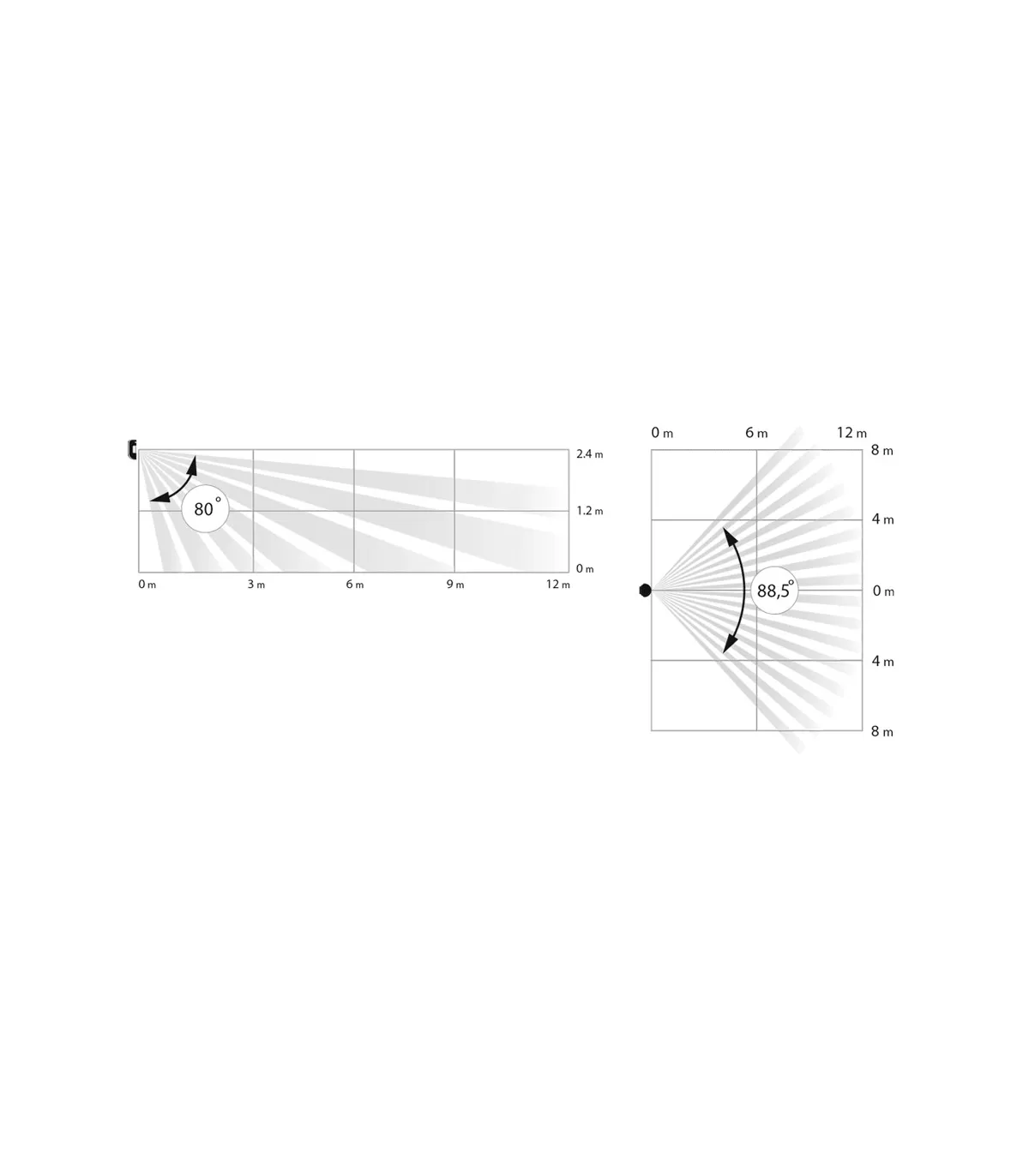

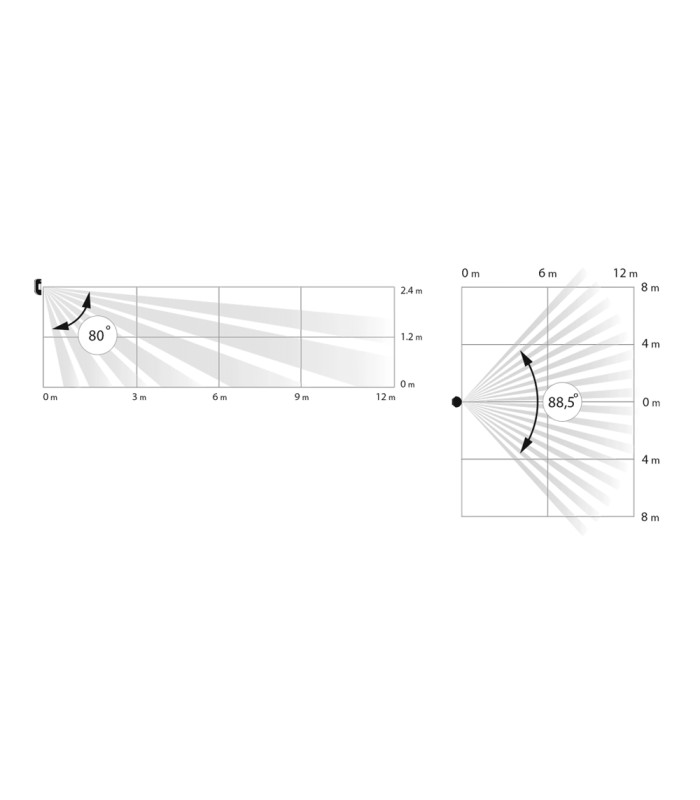

| Detection field | 12 m / H: 88.5º / V: 80º / Installation 2.4 m |
| Frequency | 868 MHz Jeweler |
| Transmission distance | ≤ 1200 m in open space |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Anti-masking | Not available |
| Sensitivity | Adjustable. 3 levels (low, medium and high) |
| LED indication | Alarm, tamper, signal |
| Battery | 1 CR123A 3.0 V battery (approximate duration 5 years) |
| Temp. operation | 0º C ~ 50º C |
| Cover material | ABS plastic |
| Dimensions (without support) | 110 (H) x 65 (W) x 50 (Fo) mm |
Contents
- Indoor PIR detector
- Instruction manual
- Mounting material
