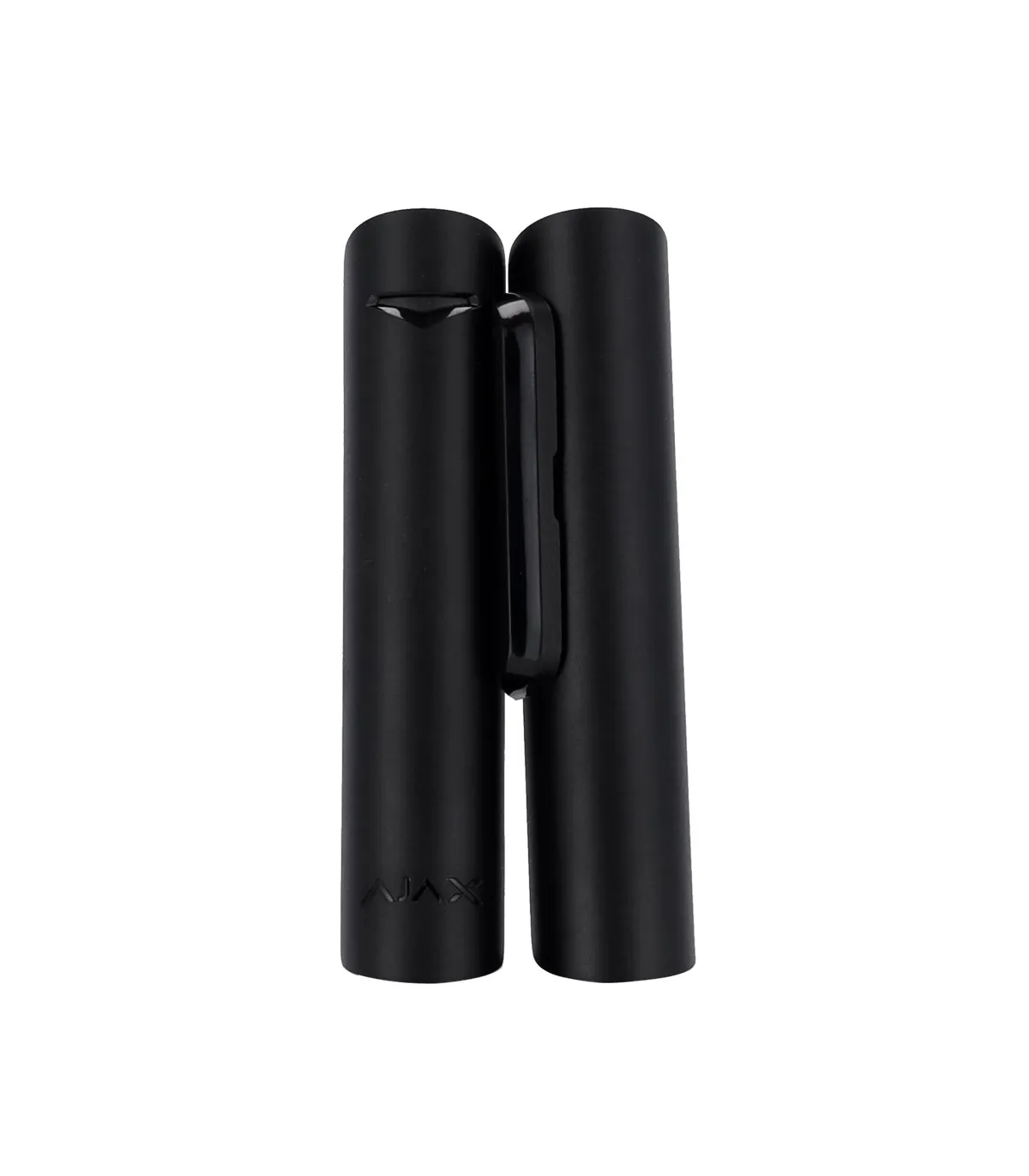

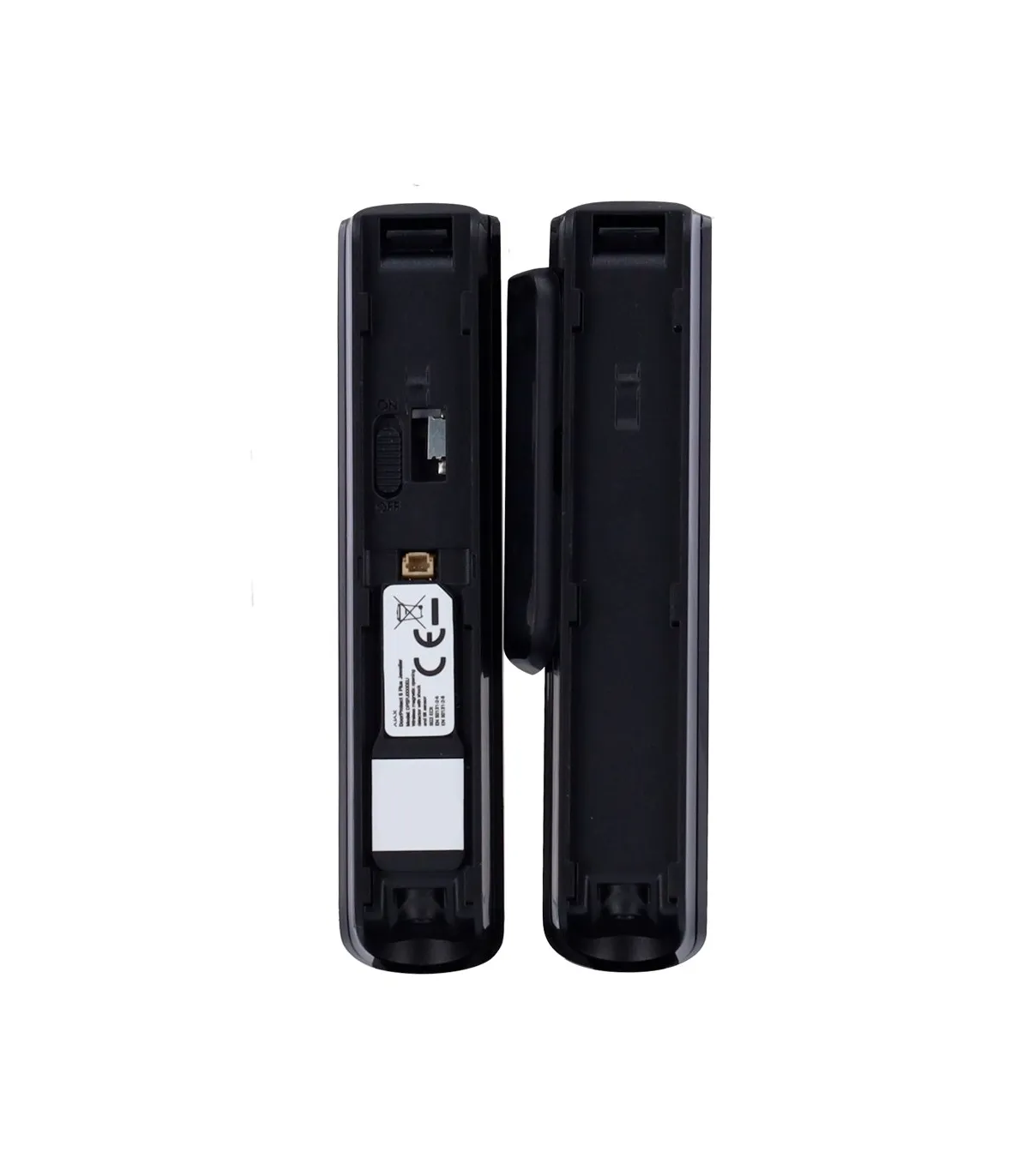

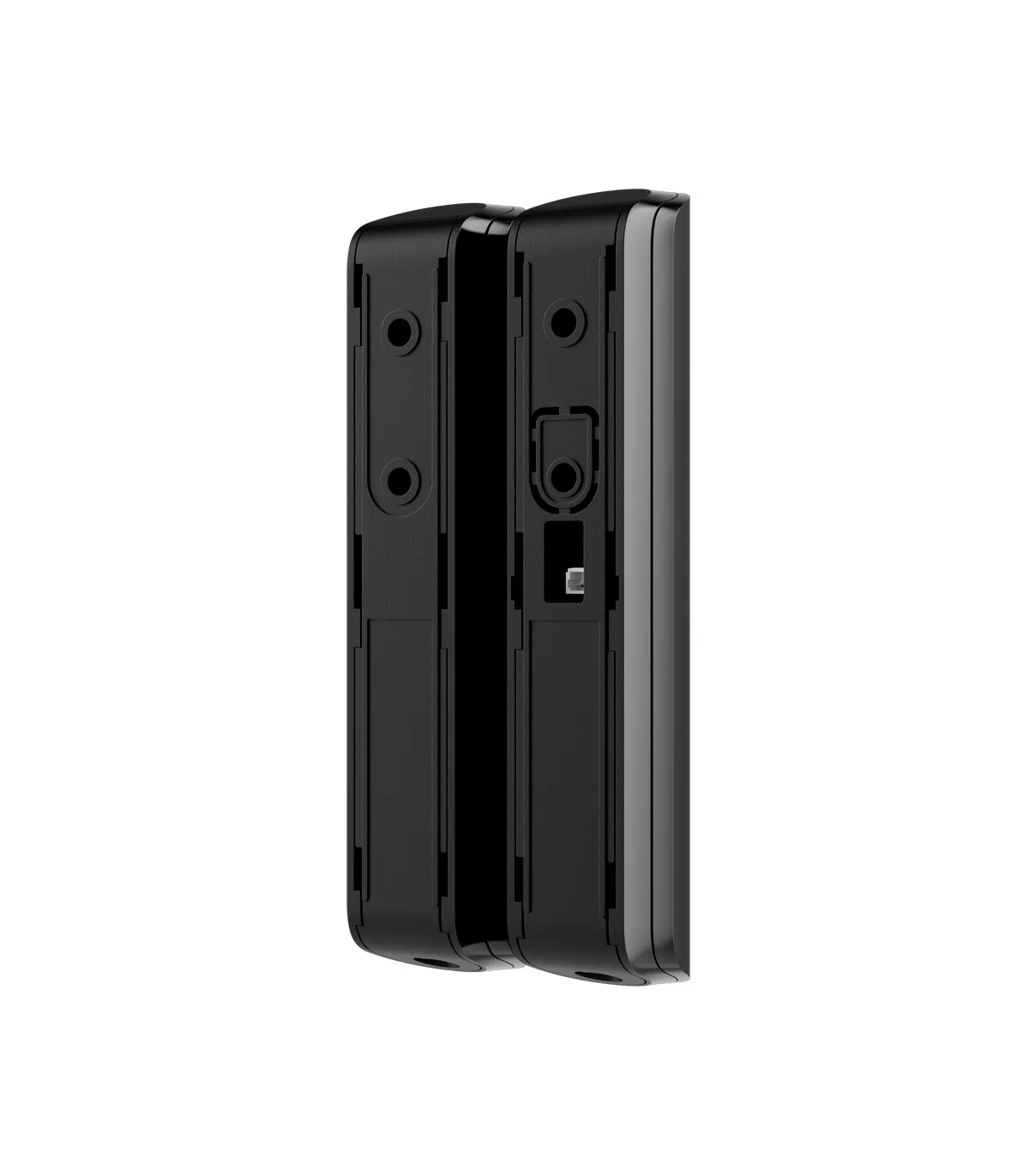

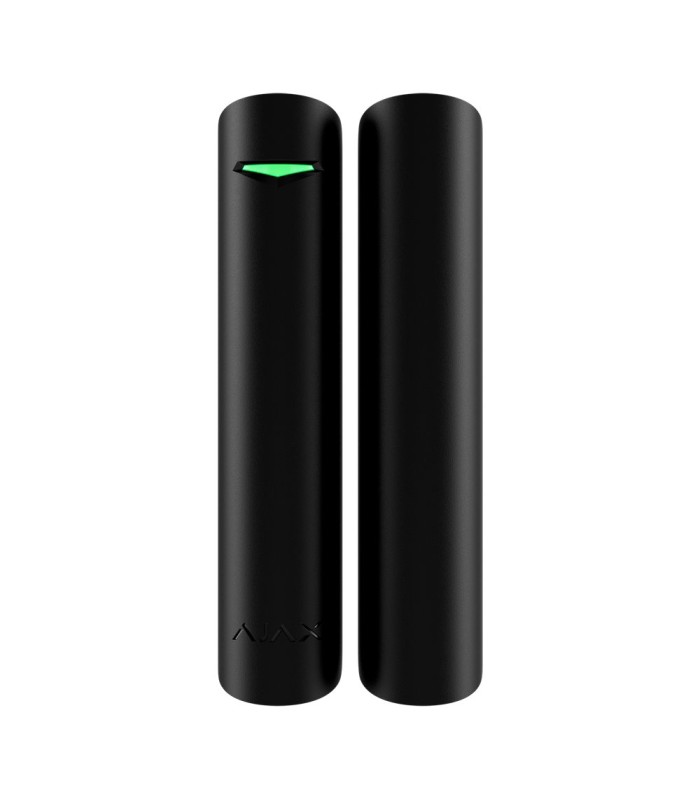

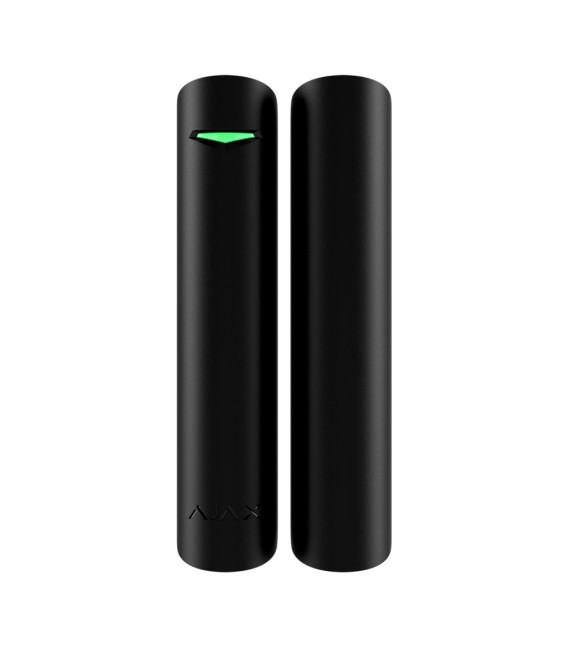

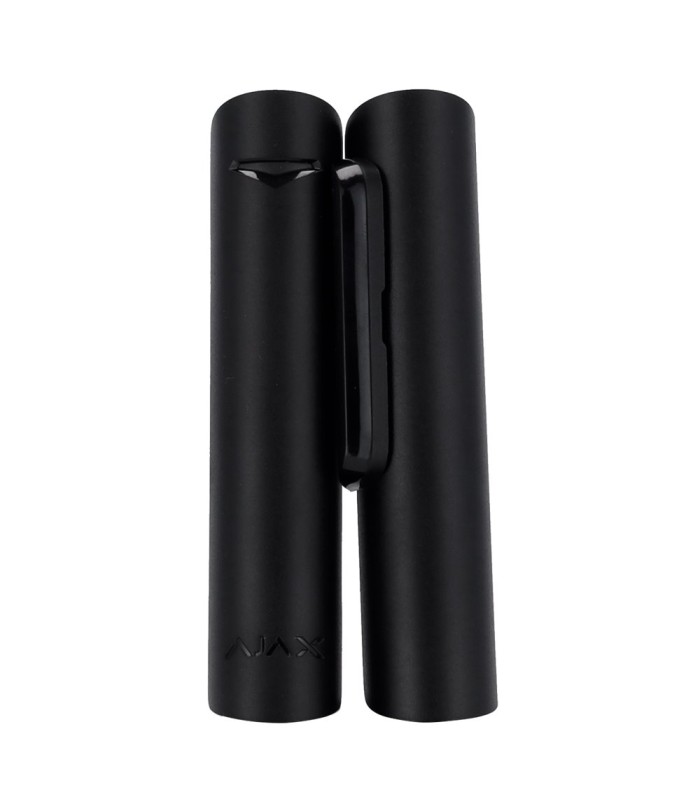

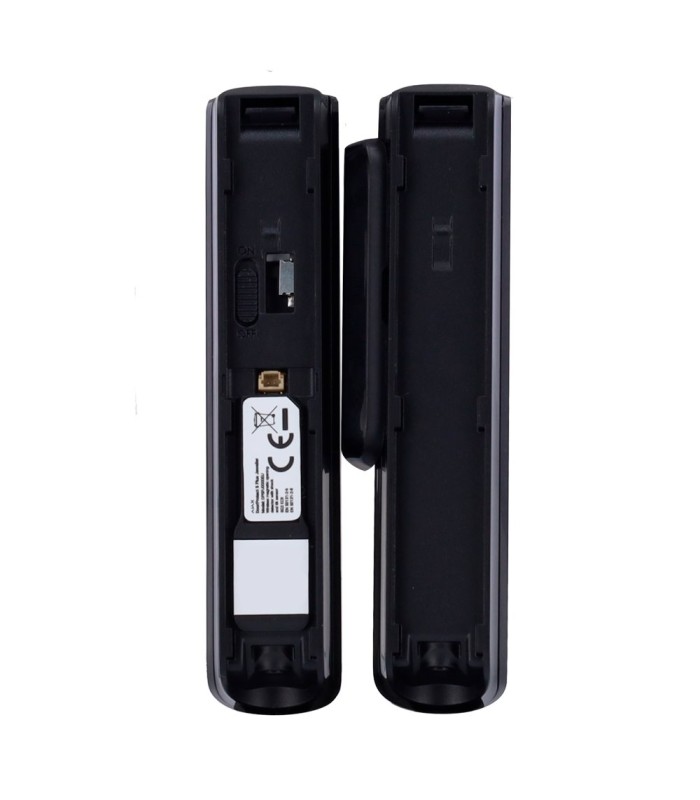

Ajax magnetic contact AJ-DOORPROTECT-S-B
Brand: AJAXSUPERIOR
- Magnetic Contact - Ajax Superior
- 2 reed relays: magnet installation on both sides

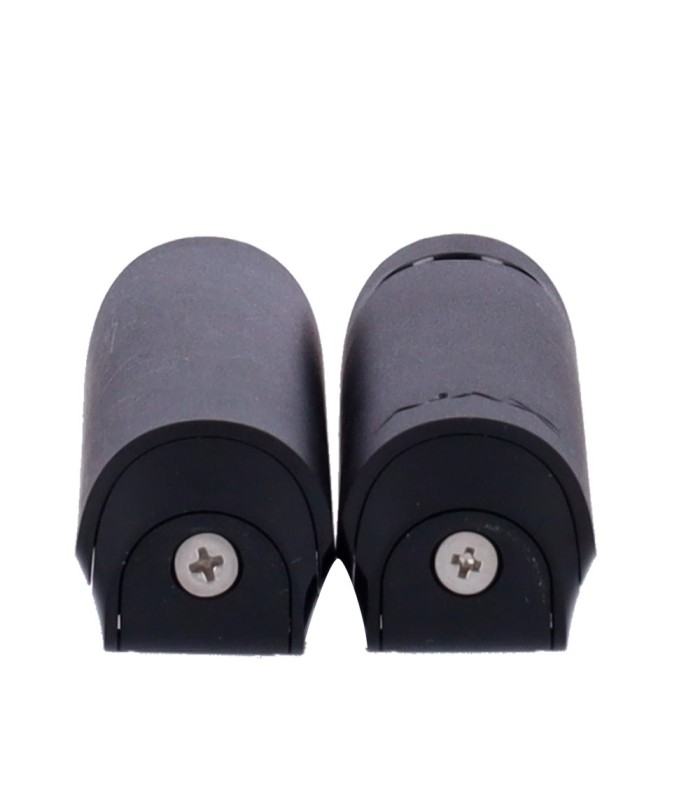

- Mounting bracket with screw fixation
- Powered by 1 CR123A 3.0 V Panasonic battery
- 868 MHz Jeweller wireless technology
- Grade 2 certified

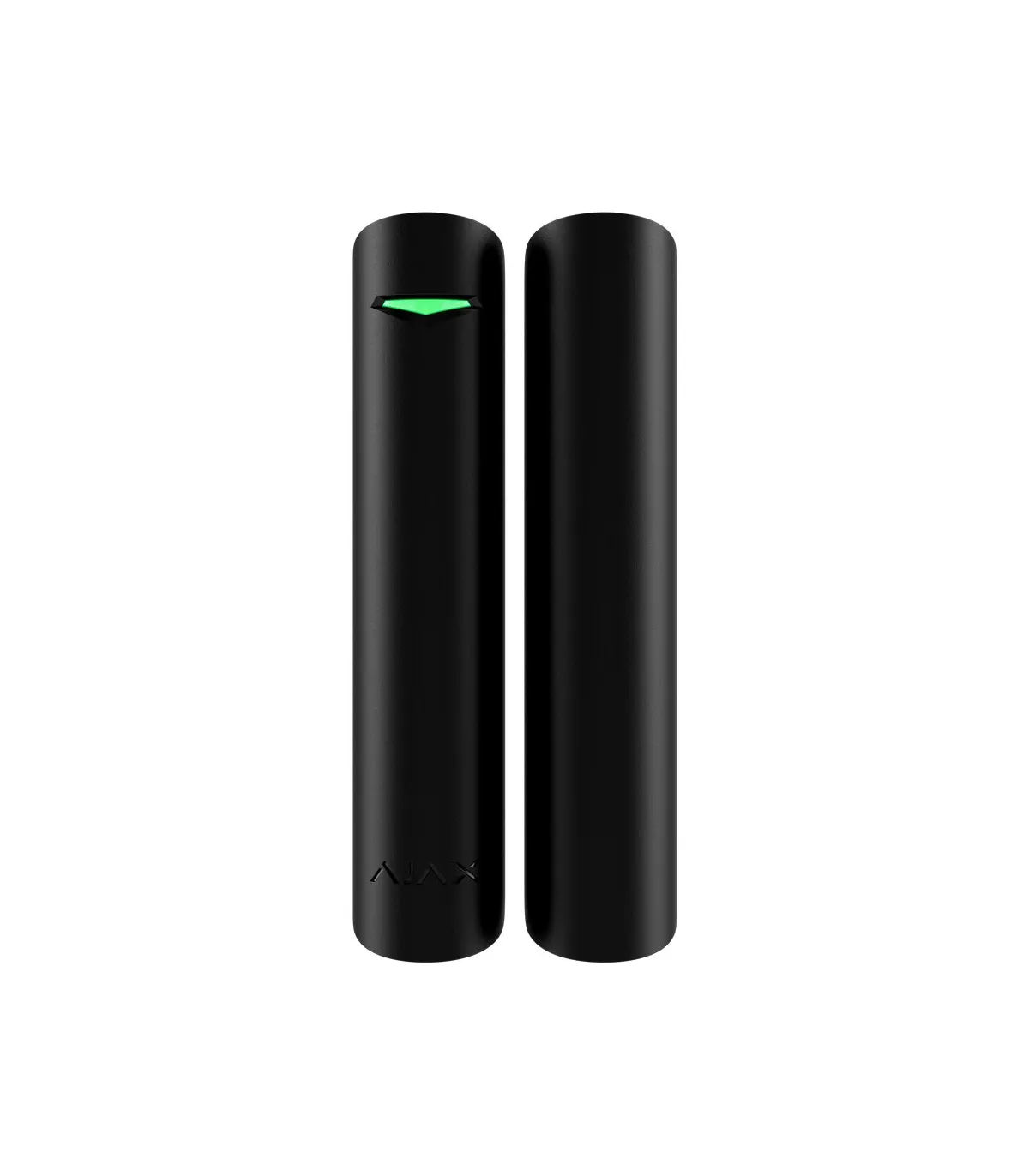

Ajax AJ-DOORPROTECT-S-B Magnetic Contact
The Ajax AJ-DOORPROTECT-S-B Magnetic Contact is an advanced security device that protects your home or business from intruders. With its magnetic detection technology, this sensor can detect any attempt to open doors or windows, sending an immediate alert to your security system. Additionally, its compact and discreet design makes it ideal for any type of environment, without compromising the aesthetics of your space. Protect what matters most with the Ajax AJ-DOORPROTECT-S-B Magnetic Contact!
General Features
- Ajax Superior
- Magnetic door/window contact
- Bidirectional
- Grade 2 certified
- 868 MHz Jeweller wireless
- Internal antenna with free space range of 1200 m
- Two reed relays: allows installation of magnet on both sides of the device
- Open/close detection indicator
- Supports wired sensor input
- Anti-tamper protection
- Power supply: 1 x CR123a 3.0 V Panasonic battery (estimated 7-year lifespan)
- For indoor use

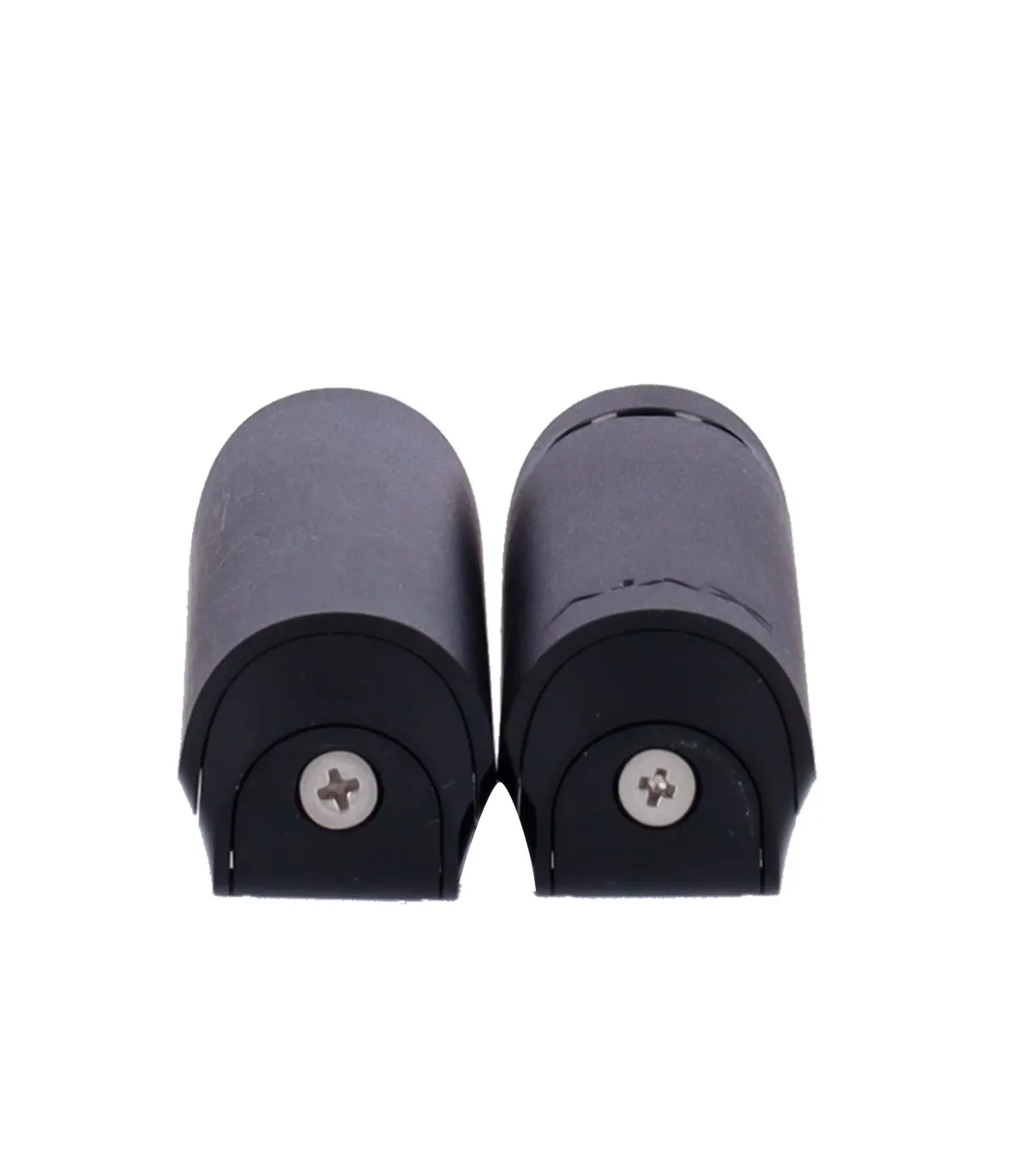

- Includes mounting bracket with screw
- Color: Black
Technical Specifications
| Brand | Ajax Superior |
| Security Grade | Grade 2 |
| Frequency | 868 MHz Jeweller |
| Transmission Distance | ≤ 1200 m in open space |
| Number of Relays | 2; allows magnet installation on both sides |
| LED Indications | Alarm, tamper, signal |
| Cover Material | ABS plastic |
| Battery | 1 x CR123A 3.0 V Panasonic battery (approx. 7-year lifespan) |
| Compatibility | Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G), ReX and ReX 2 |

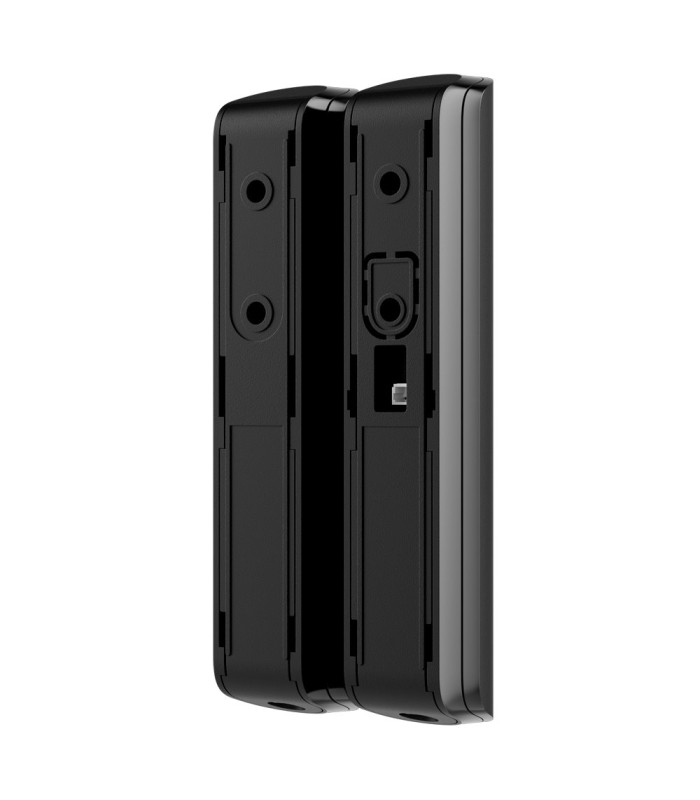

| Bracket | SmartBracket with mounting screw |
| Operating Temp. | 0 °C ~ 50 °C |
| Transmitter Dimensions | 90 mm (H) x 20 mm (Ø) |
| Magnetic Dimensions | 90 mm (H) x 20 mm (Ø) |
| Color | Black |
Package Contents
- Magnetic Contact
- User Manual
- Mounting Materials
