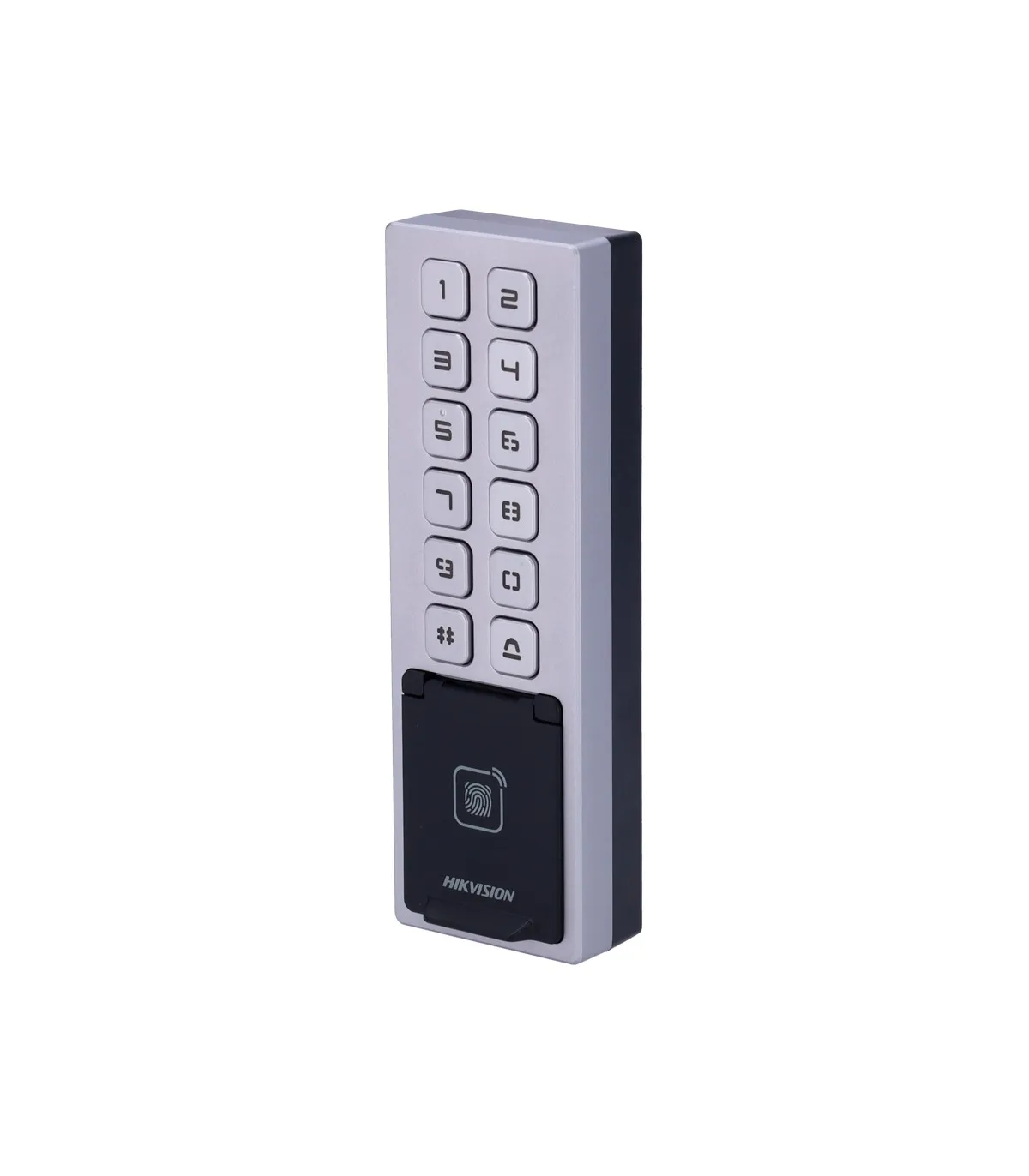

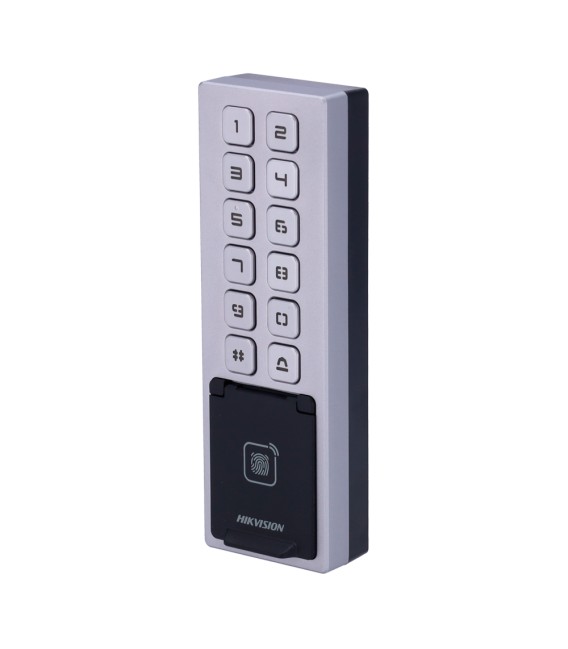

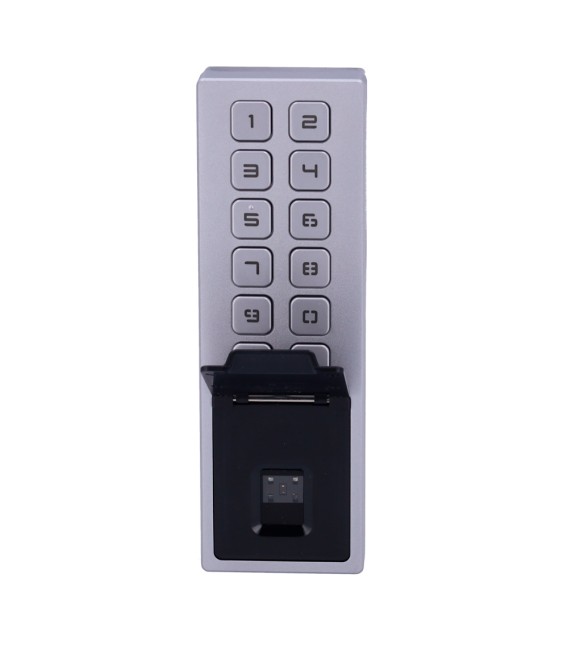

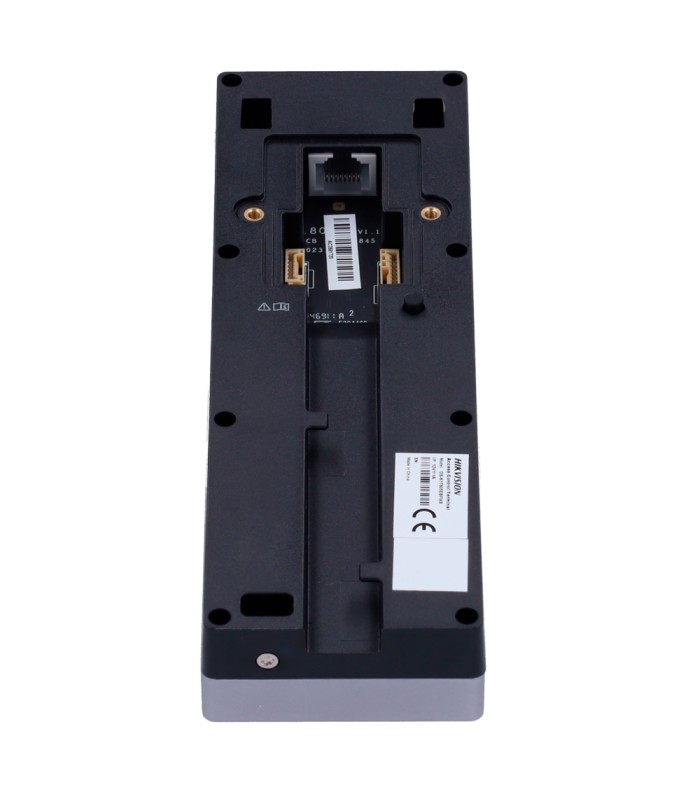

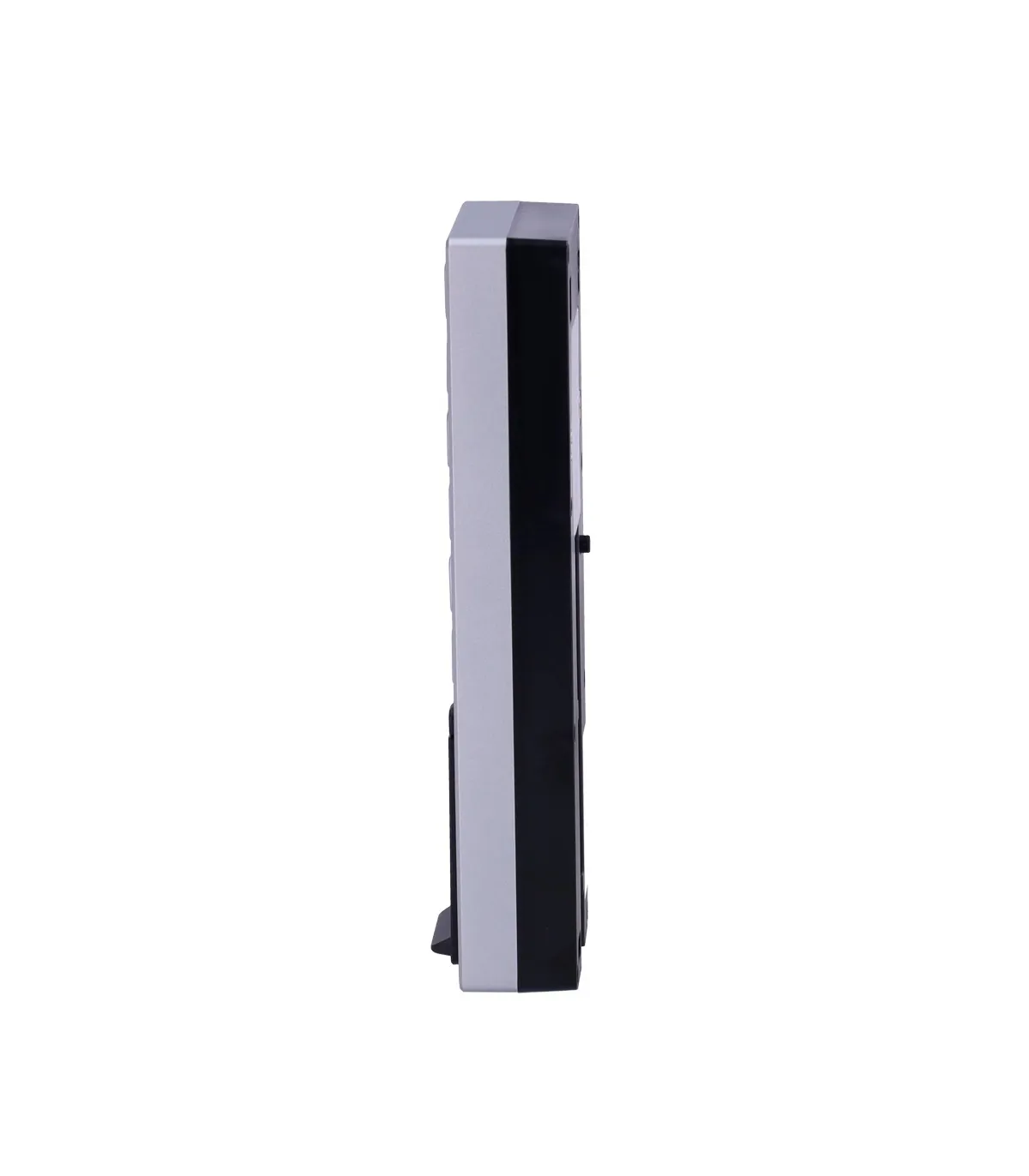

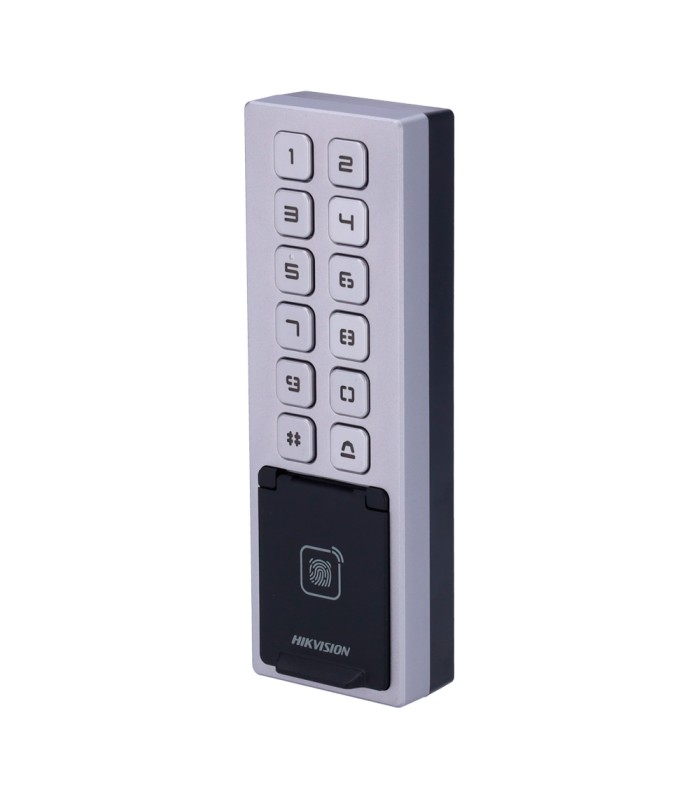

Access control IP65 IK08 Hikvision DS-K1T805EBFWX
- Hikvision
- Autonomous biometric access control reader
- Identification by EM card, fingerprint, Bluetooth (only supported with HikCentral), password and/or combinations
- Capacity 3,000 fingerprints, 10,000 cards and 100,000 records
- TCP/IP, WiFi, RS485 and Wiegand communication
- Integrated controller (door sensor, push button and relay)
- Remote openings from Hik-Connect
- Compatible with iVMS-4200 software
- Suitable for outdoor use IP65
- Anti-vandal IK08
Technical specifications
| Brand | Hikvision |
| Model | DS-K1T805EBFWX |
| Operating system | Linux |
| Capacity | Up to 3,000 fingerprints and 10,000 cards/passwords |
| Records | 100,000 records |
| Identification modes | Fingerprint, card, PIN and/or combinations Bluetooth (only supported with HikCentral through the HikCentral Mobile APP) |
| Proximity card | RFID EM (125 kHz) |
| Fingerprint verification time | < 1 sec |
| Communication | TCP/IP, WiFi, RS485 and Wiegand |
| Controller integrated | Wiegand 26/34, door sensor, push button and relay |
| Alarms | Tamper, 2 x alarm input, 1 x alarm output |
| Software | iVMS-4200 / iVMS-4200 AC |
| Mobile application | Hik-Connect |
| Power supply | DC 12 V / 1 A max. |
| Protection degree | Suitable for outdoor use IP65 Anti-vandal IK08 |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 58 (W) x 177 (H) x 29 (D) mm |
| Weight | 350 g |
Contents
- Hikvision biometric device
- Mounting material
- Instructions for use
