An autonomous access control device consists of the combination of a controller and a reader in a single unit: it is capable of identifying users, making the decision of whether they have permission to access the facility, and operating the electronic lock through its relay. Hybrid terminals combine access control and attendance control, also being able to perform time tracking of employees at the moment they are identified.

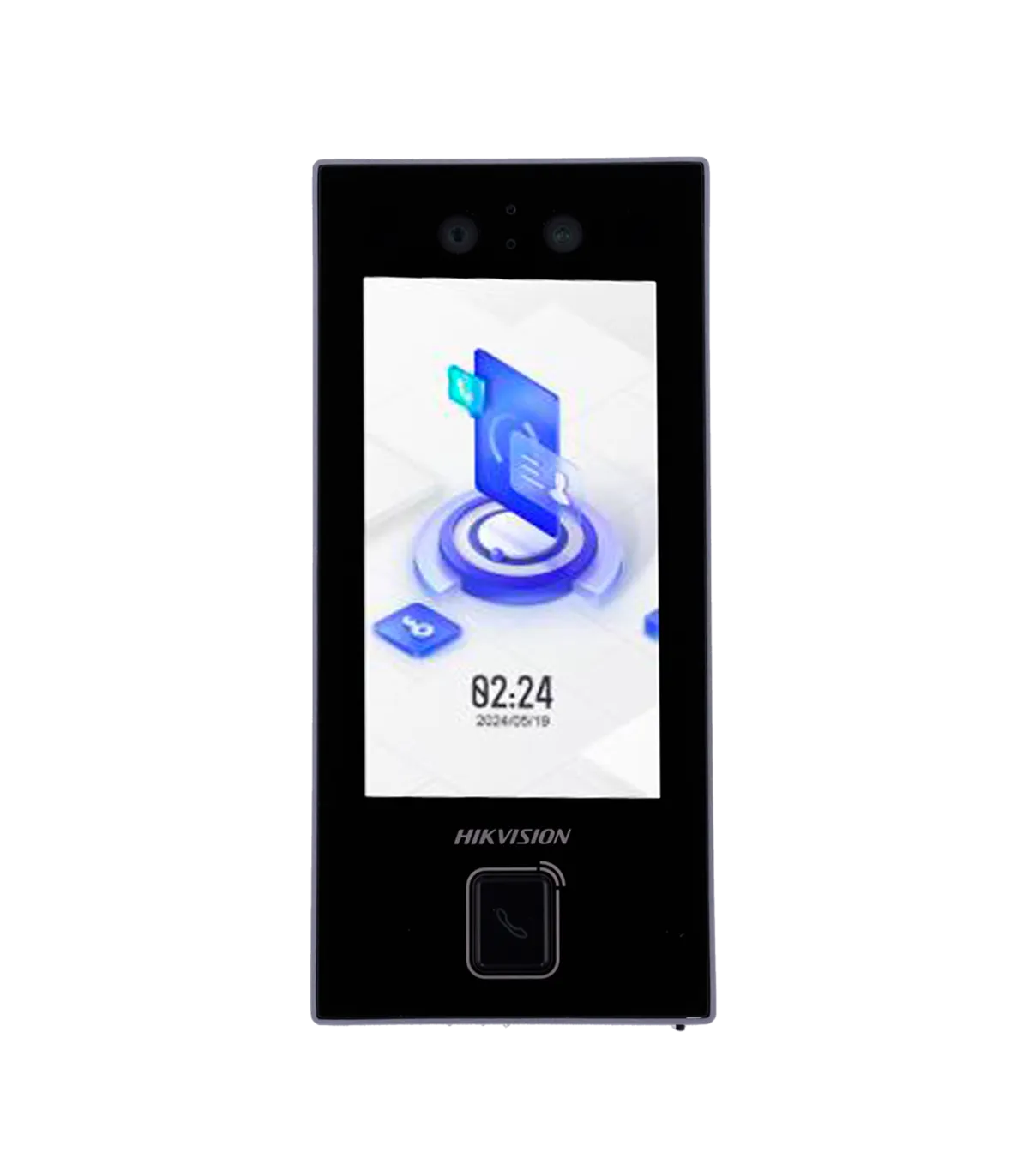

This device allows identification through MF technology cards or key fobs at 13.56 MHz, QR code reading, as well as a keypad for numeric codes and biometrics with facial recognition.
Its 4.5" touchscreen facilitates the operation and configuration of the device locally, both for autonomous use without software and for setting parameters required to connect to the software, such as network configuration.
Configurable advanced functions: 12 VDC output (allows direct powering of the electronic lock without the need for an additional power source as the device is powered by standard PoE) and functionality as a video intercom.
Its IP65 exterior rating allows for outdoor installation.
User, schedule, and access group configuration, as well as special functions, relay opening times, or reader reading times, are managed from the iVMS-4200 software.
| Brand | Hikvision |
| Model | DS-K1T344MBWX-E1 |
| Operating System | Linux |
| Capacity | Up to 3,000 faces and 3,000 cards/passwords/QR |
| Records | 150,000 records |
| Identification Modes | Facial recognition, fingerprint, card, PIN, QR and/or combinations Bluetooth (only supported with HikCentral and HikConnect Teams via HikCentral Mobile APP and HikConnect APP) Dynamic QR (only supported with HikCentral and HikConnect Teams via HikCentral Mobile APP and HikConnect APP) |
| Proximity Card | MF (13.56 MHz) |
| Screen | 4.5" color LCD TFT touchscreen |
| Screen Resolution | 480 x 854 |
| Camera | 2 MP with dual sensor for facial recognition |
| Facial Recognition Verification Time | < 0.2 sec |
| Facial Recognition Accuracy | > 99% |
| Facial Recognition Distance | 0.3 m to 1.5 m |
| Communication | TCP/IP, WiFi, USB, RS485, and Wiegand |
| Integrated Controller | Wiegand 26/34, door sensor, button, and relay |
| Alarms | Tamper, 2 x alarm input, 1 x alarm output |
| Audio | Two-way audio |
| Special Functions | Operation as a video intercom Physical call button DC 12 V / 1 A output (when powered by PoE) |
| Software | iVMS-4200 / iVMS-4200 AC |
| Mobile Application | Hik-Connect |
| Power Supply | DC 12 V / 1 A max. Standard PoE IEEE802.3af |
| Protection Rating | Outdoor suitable IP65 |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 76 (W) x 165 (H) x 25 (D) mm |
| Weight | 300 g |
