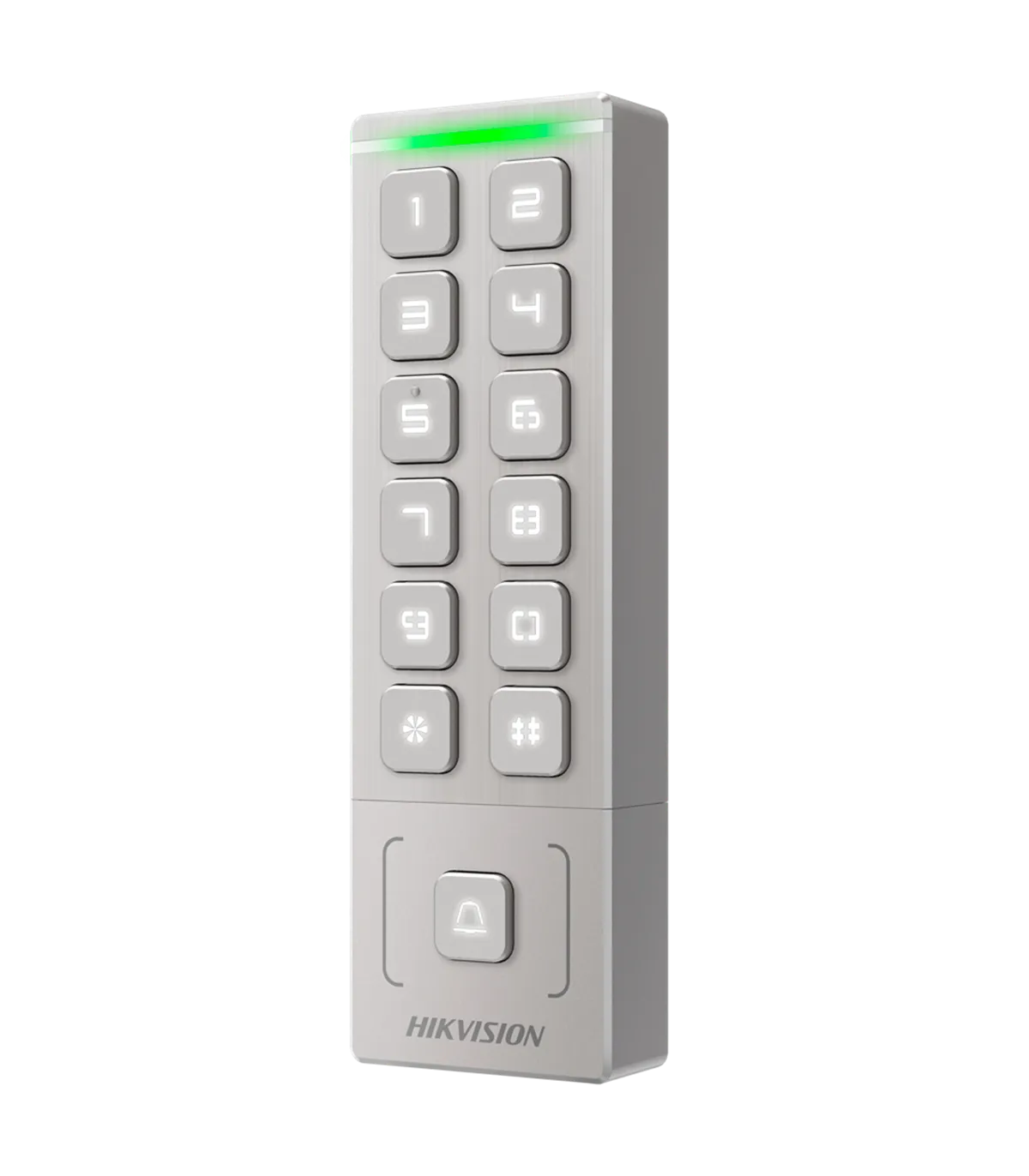

An autonomous access control device consists of the combination of a controller and a reader in a single unit: it is capable of identifying users, making the decision on whether they have permission to access the facility, and operating the electronic lock through its relay.
This device allows identification through cards or key fobs with MF technology at 13.56 MHz, as well as a keypad for numeric codes.
Its IP65 exterior rating allows for outdoor installation.
| Brand | Hikvision |
| Model | DS-K1T809MWX |
| Operating System | Linux |
| Capacity | Up to 1,000 users and 5,000 cards/passwords |
| Identification Modes | Card, PIN, and/or combinations |
| Proximity Card | MF (13.56 MHz) |
| Communication | WiFi and Wiegand WiFi connection for configuration only in AP mode |
| Integrated Controller | Wiegand 26/34, door sensor, push button, and relay |
| Alarms | 1 x bell output |
| Software | Standalone use without software (local configuration on the device or via AP mode) |
| Power Supply | DC 12 V / 1 A max. |
| Protection Rating | Suitable for outdoor use IP65 |
| Operating Temperature | -40º C ~ +65º C |
| Dimensions | 48 (W) x 151 (H) x 22 (D) mm |
| Weight | 220 g |
Data sheet
Specific References
