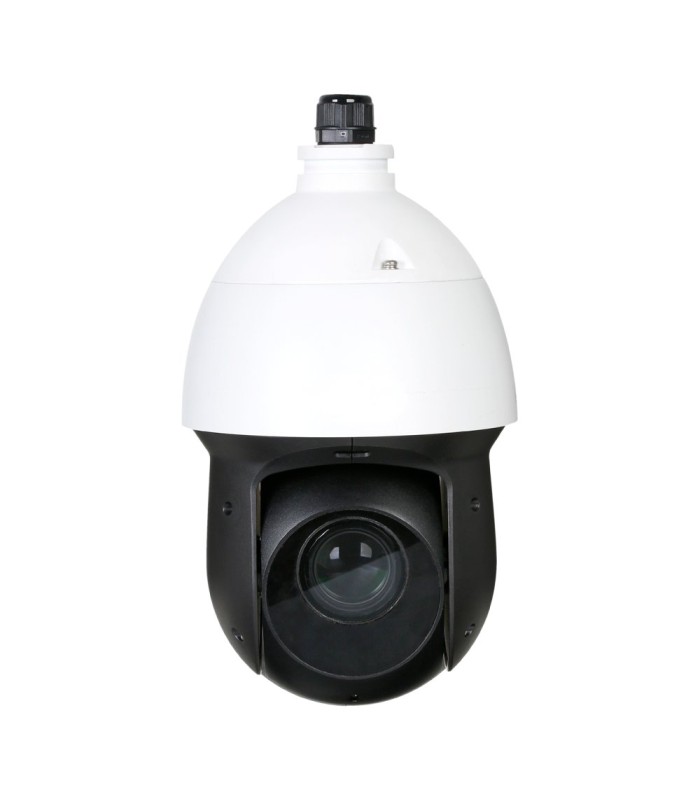

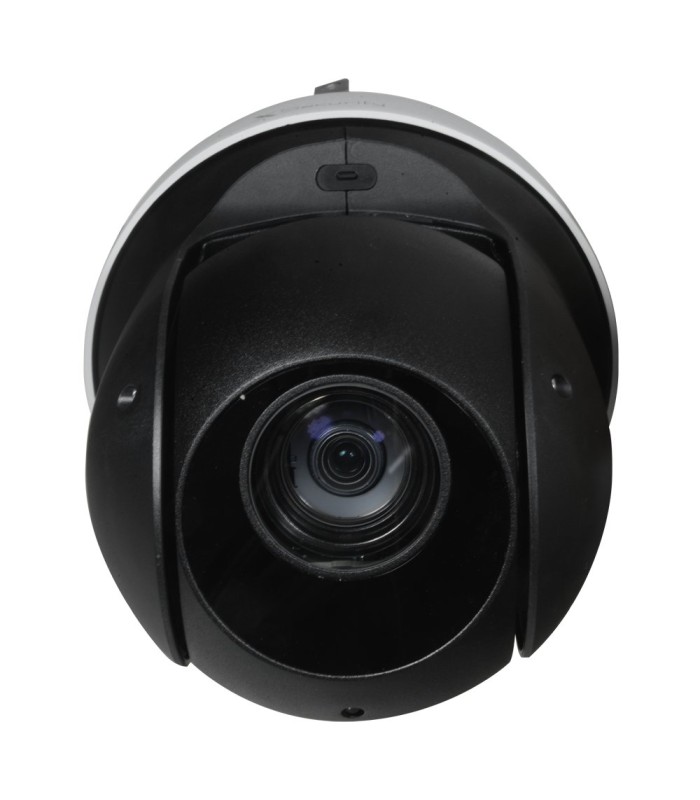

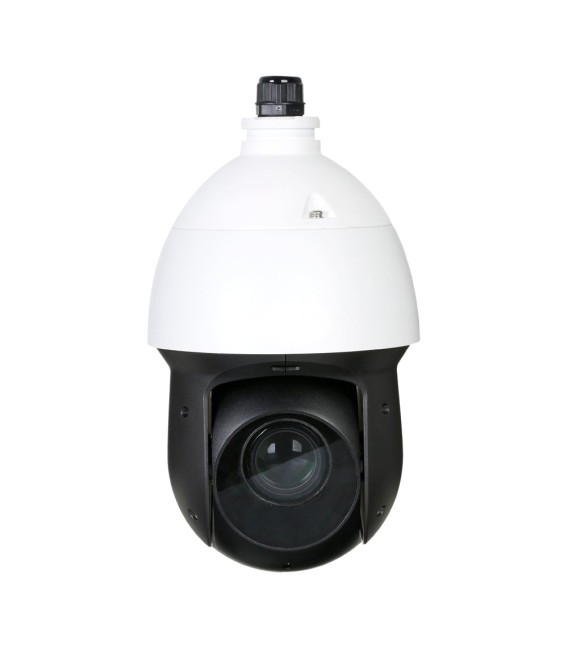

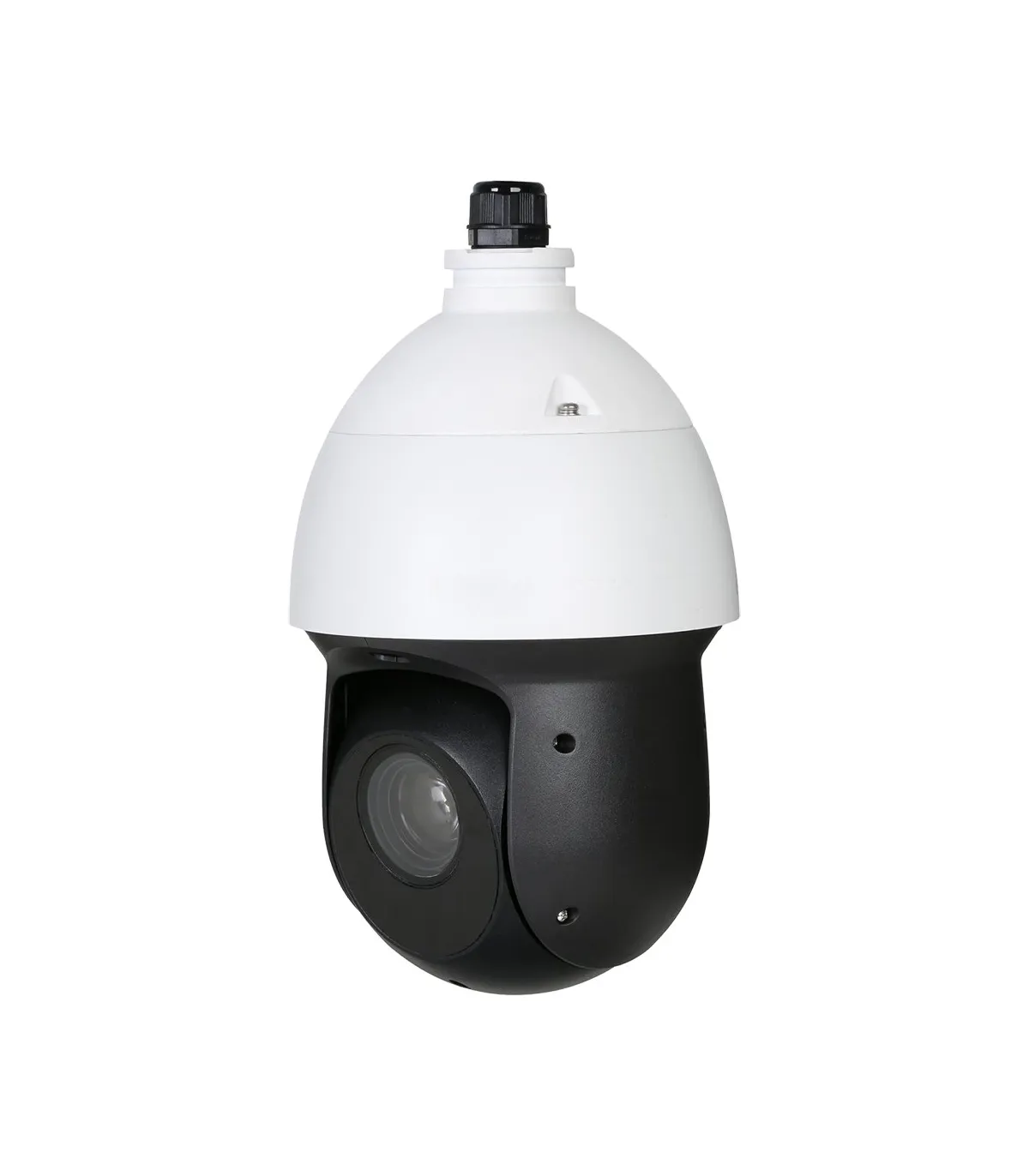

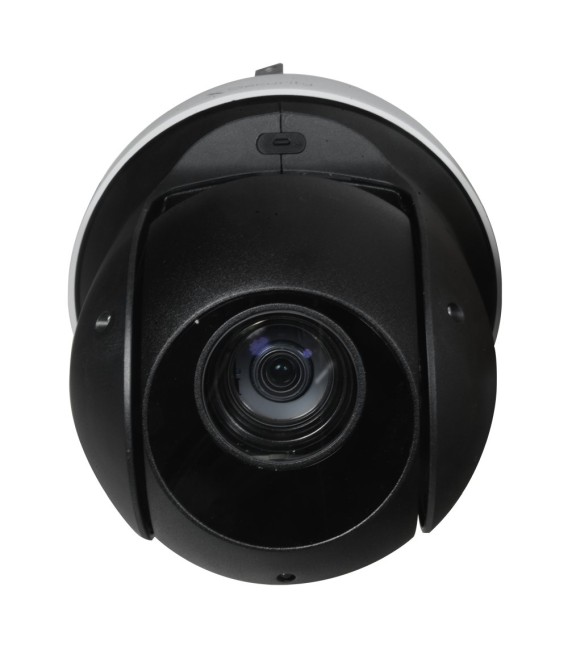

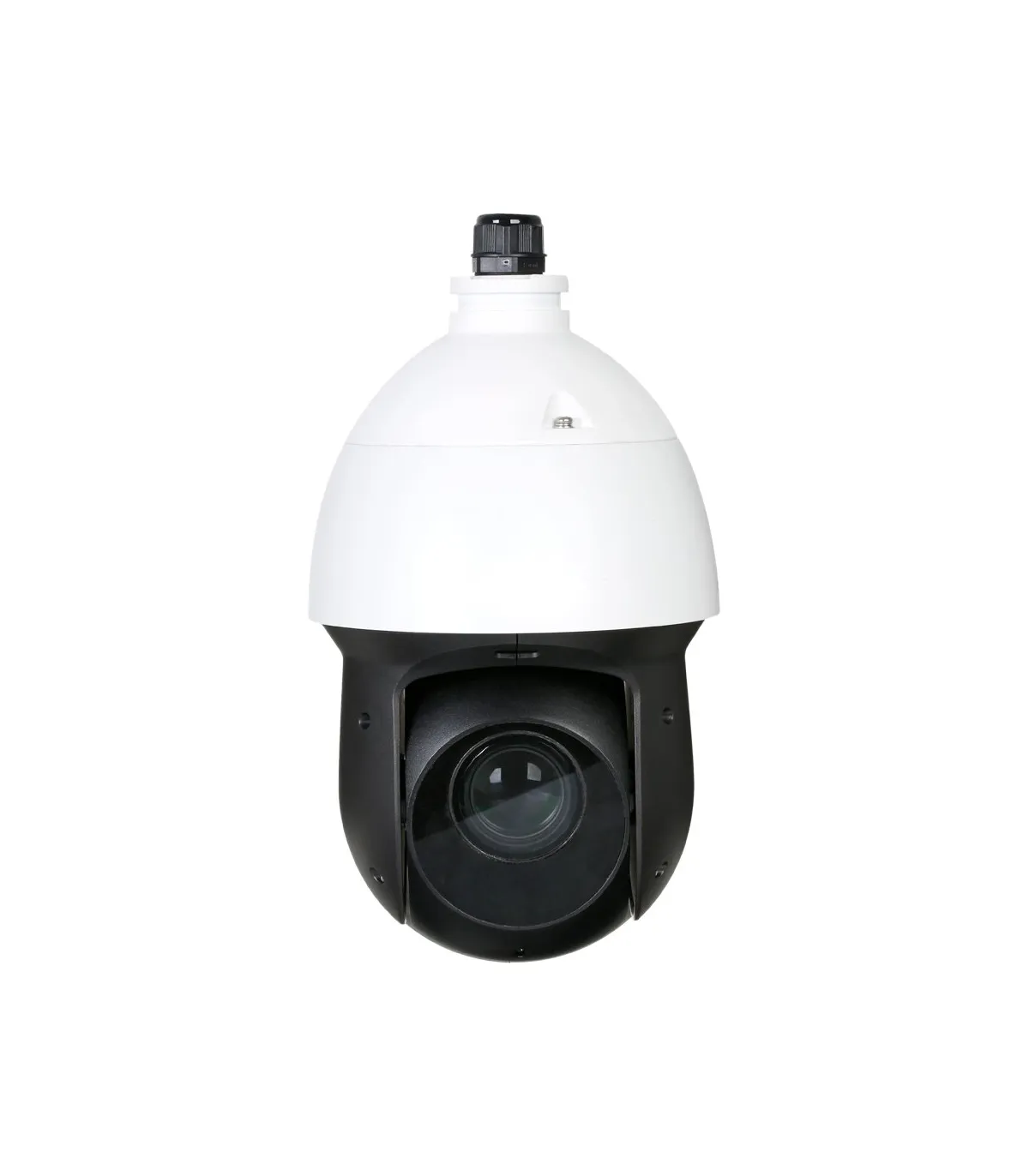

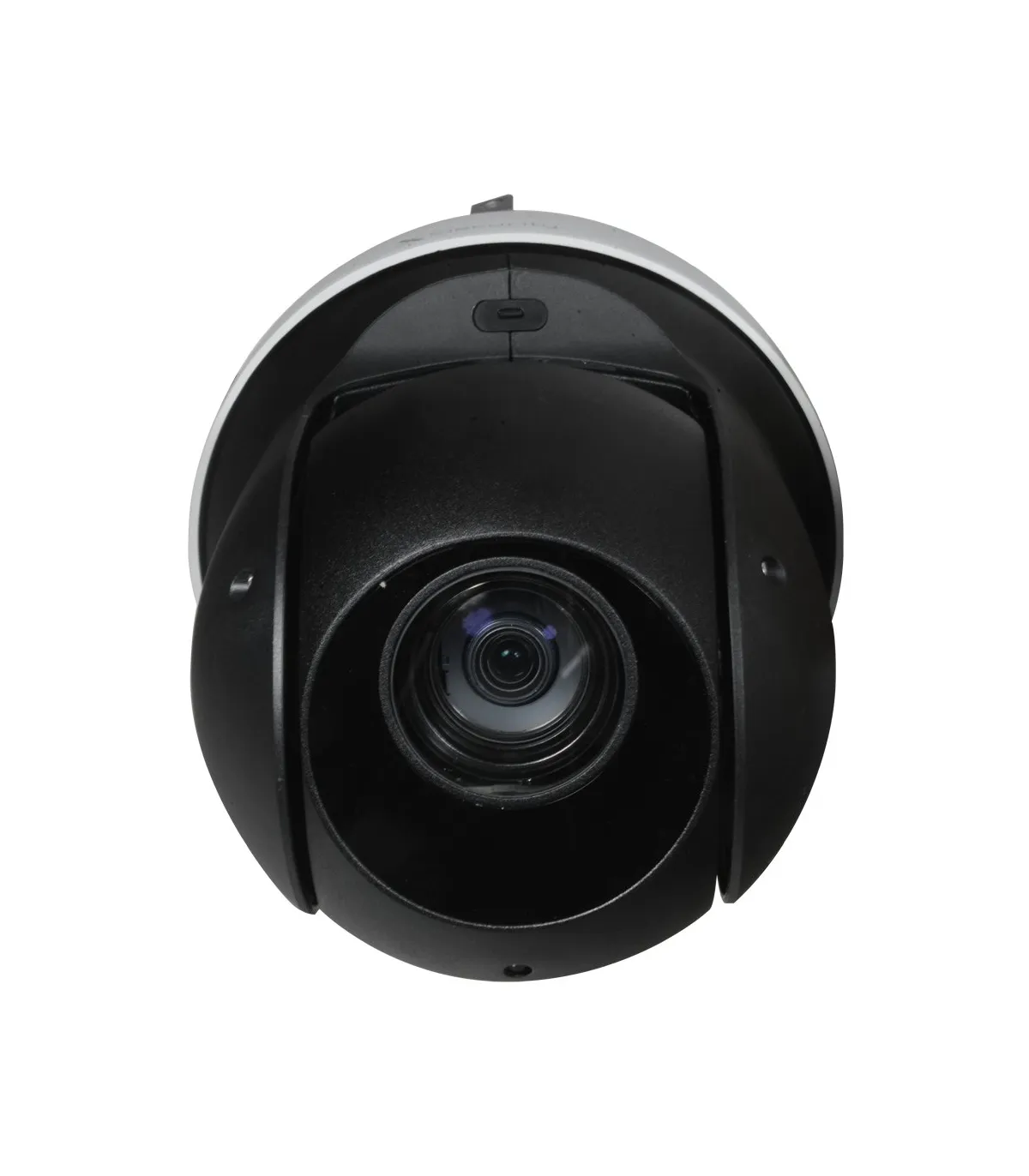

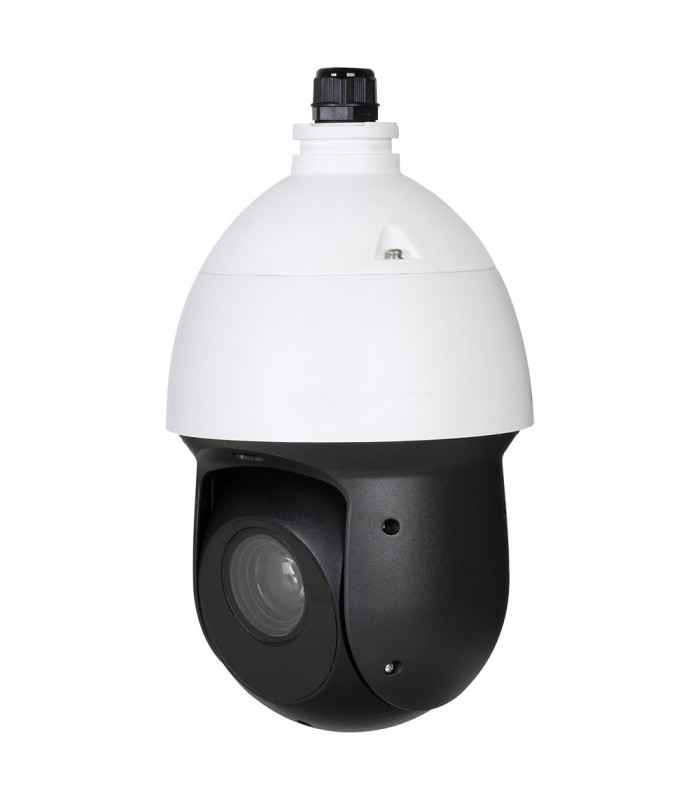

X-Security Motorized HDCVI Camera XS-SD6325ISWA-2E4N1
Brand: X-SECURITY
- X-Security motorized HDCVI camera 240º/s
- 1080P (25/30FPS) / 720P (25/50FPS)
- 1/2.8" Sony© 2 Megapixel Starvis CMOS
- 6 LEDs with 100 m range
- 25X Optical Zoom (4.8~120 mm)
X-Security motorized HDCVI dome camera XS-SD6325ISWA-2E4N1
- X-Security
- Motorized HDCVI and Analog dome camera
- High Speed 240º/second
- 25X optical zoom
- 16X digital zoom
- 1/2.8" Sony© 2 Megapixel Starvis CMOS
- HD 1080P (1920x1080)
- 4 in 1 output
- Varifocal lens 4.8~120 mm
- High sensitivity Starlight
- IR Range 100 m
- IR CUT
- WDR
- Audio
- Alarms
- Pelco P/D supported protocols
- OSD Menu
- Outdoor use IP66
- Wall mount support PFB305W included
Technical Specifications
| Brand | X-Security |
| Image Sensor | 1/2.8" Sony© 2 Megapixel Starvis |
| Resolution | 1080P at 25 FPS / 720P at 50 FPS |
| Video Output | 1 x BNC switchable HDCVI / CVBS |
| Minimum Illumination | 0.005 Lux (color) @F1.6 / 0 Lux (B/W) |
| Infrared Illumination | Automatic 6 IR LEDs range 100 meters |
| Optics | Varifocal 4.8~120 mm (25X optical zoom) |
| Digital Zoom | 16X |
| Electronic Shutter | 1/3s~1/100,000s |
| Day / Night | Removable ICR mechanical filter |
| Gain Control | Auto / Manual |
| Backlight Compensation | BLC, HLC, WDR (120dB), AWB, ATW, AGC, 2D/3D-NR, Privacy masking |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: -15°~90° auto flip 180° |
| Manual Speed | Horizontal: 0.1° ~200° /s, Vertical: 0.1° ~120° /s |
| Speed between Presets | Horizontal: 240° /s, Vertical: 200° /s |
| Pre-set Positions | 300 preset, 5 auto pattern, 8 auto tour, auto pan, auto scan |
| Communication | RS485, Pelco P / Pelco D / DH-SD |
| Audio | 1 input (Line In) |
| Alarms | 2 inputs / 1 relay NO/NC |
| Power Supply | 12 VDC / 3 A |
| Operating Temperature | -40º C ~ +70º C |
| Protection Grade | IP66 |
| Dimensions (without bracket) | 295 mm (H) x 160 mm (Ø) |
| Weight (without bracket) | 4200 g |
Contents
- Motorized dome camera
- Wall mount bracket PFB305W
- Allen key
- User manual
- CD with software and instructions
