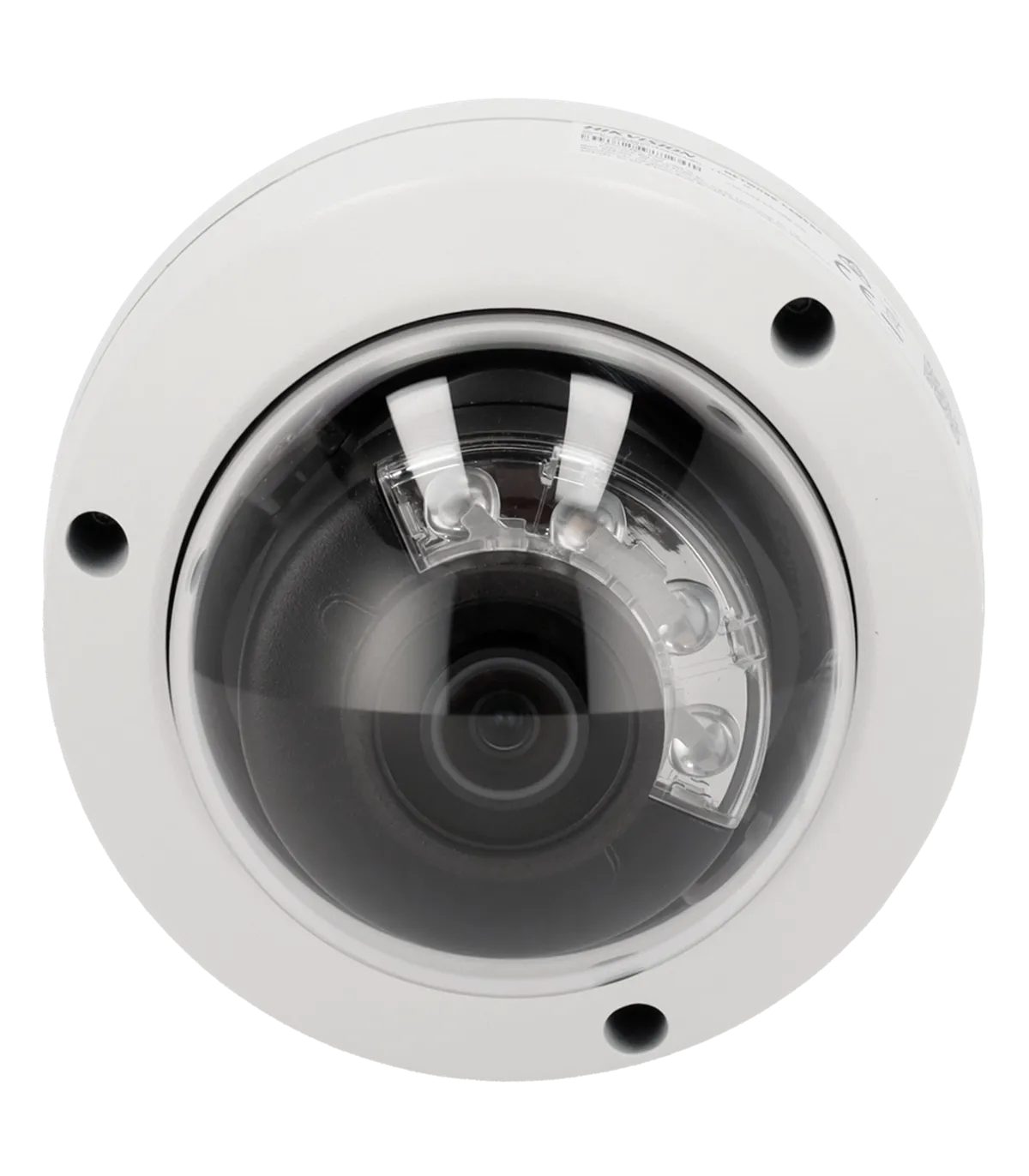

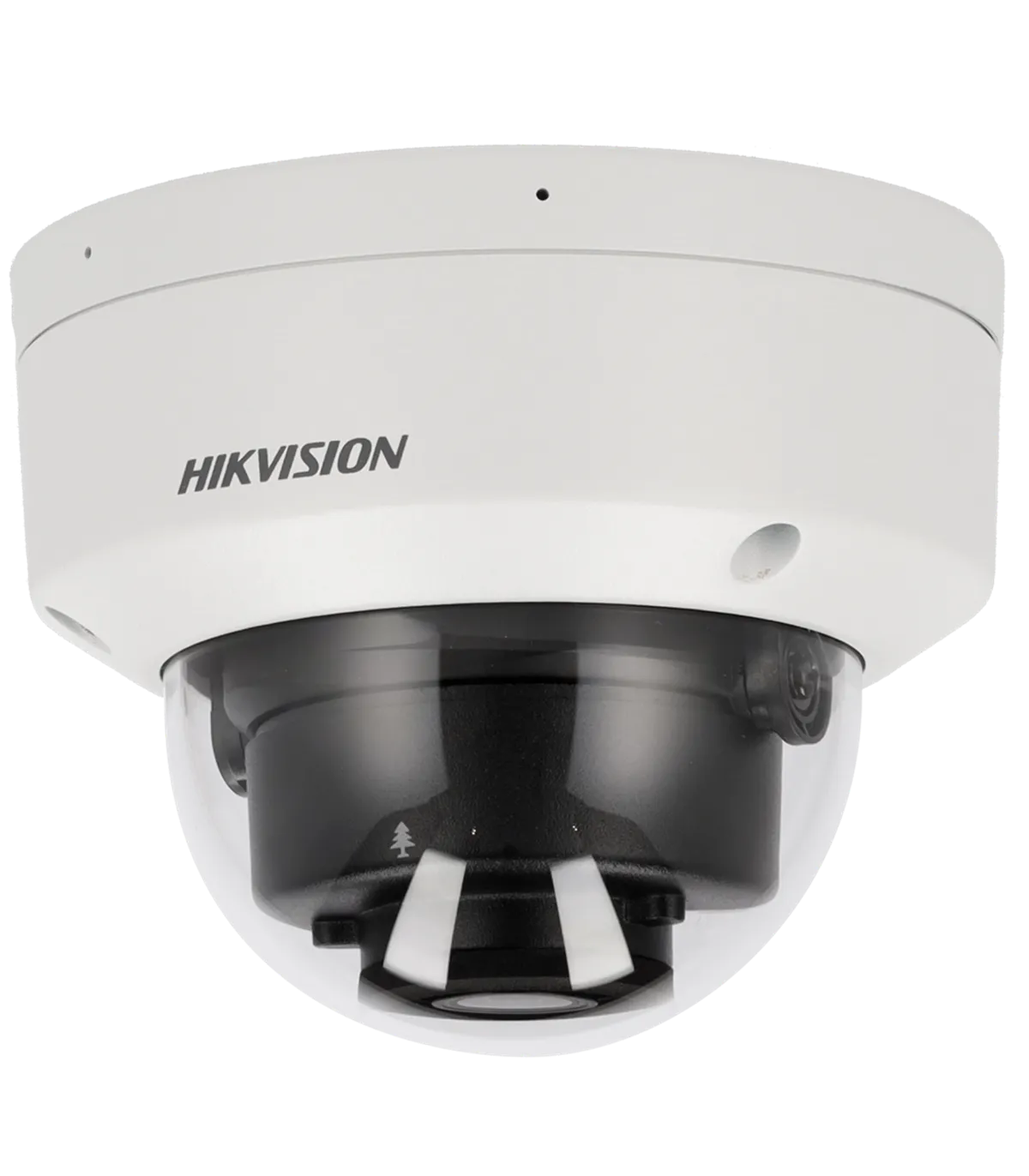

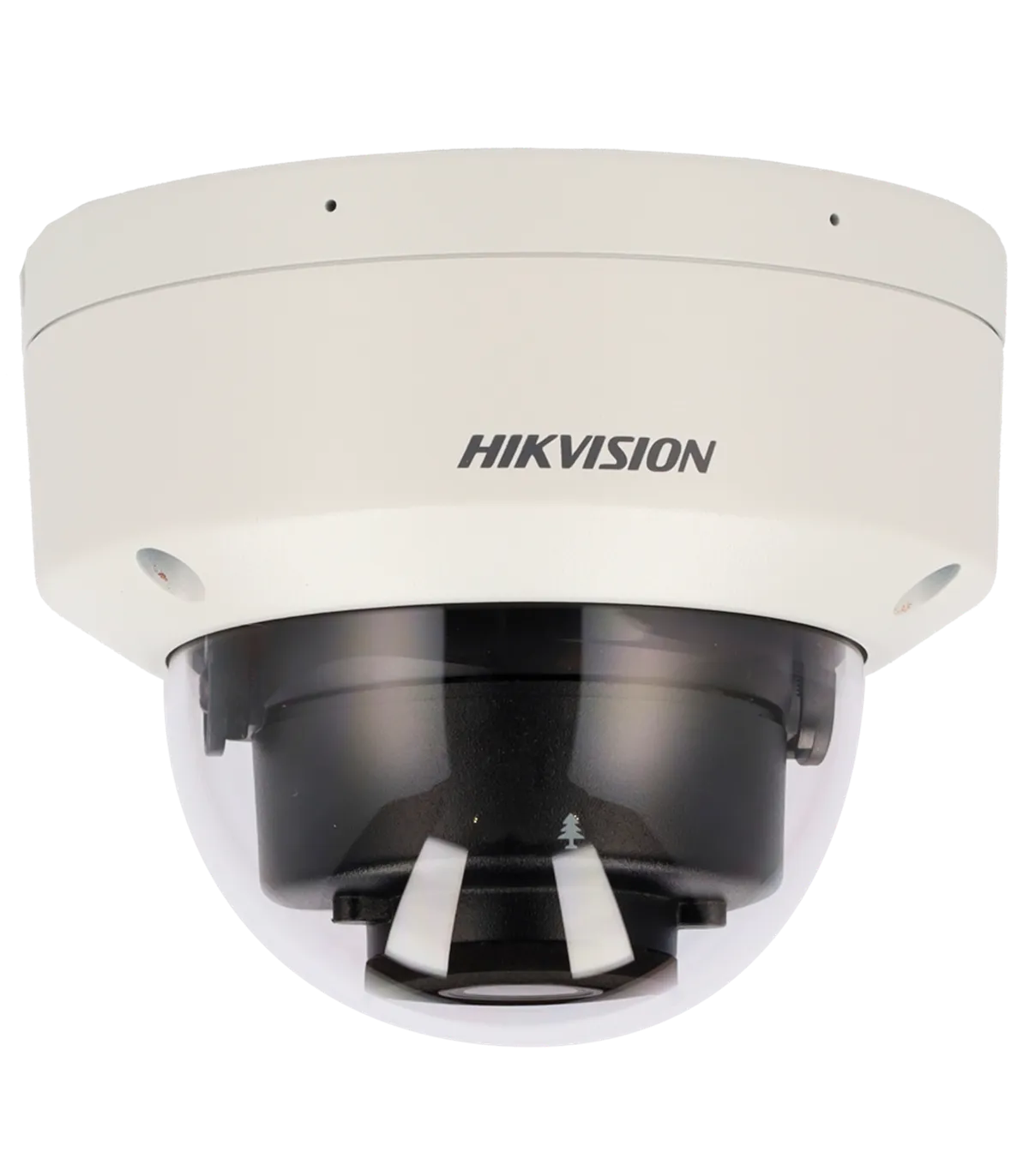

The DS-2CD2187G2H-LISU(2.8mm)(eF) is a high-performance IP dome camera designed for advanced surveillance applications. It is ideal for both indoor and outdoor environments, providing exceptional image quality with its 8 Megapixel resolution and ColorVu technology, which ensures vibrant color images even in low-light conditions. This camera is equipped with features such as motion detection and AcuSense technology, which significantly reduces false alarms by distinguishing between humans and vehicles. With its robust IP67 weatherproof rating and IK10 vandal resistance, it is well-suited for various security needs.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640×480, 640x360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640x360) * (The third stream is only available under certain configurations) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 105.1°, V: 54.8°, D: 128.2° |
| DORI | 89 m (D), 35 m (O), 17 m (R), 8 m (I) |
| Minimum Illumination | Color: 0.0005 Lux @(F1.0, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Illumination | Hybrid light: IR range 30 m White light range 30 m |
| Day/Night | ColorVu: 24-hour color imaging |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated microphone |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Features | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 660 mA / 8 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 waterproof, IK10 vandal-proof |
| Material | Base: Aluminum alloy Cover: Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm (H) × 97.6 mm (D) |
| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 525 g |
The DS-2CD2187G2H-LISU(2.8mm)(eF) camera is perfect for a variety of surveillance scenarios, such as monitoring retail stores, parking lots, or residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its 24-hour color imaging capability, it ensures that security personnel can monitor activities at any time of day. The motion detection feature allows for immediate alerts when unauthorized movement is detected, enhancing security response times. Additionally, the AcuSense technology minimizes false alarms, ensuring that staff only respond to genuine threats. The camera's IP67 rating guarantees durability against harsh weather conditions, making it suitable for outdoor installations. Overall, the DS-2CD2187G2H-LISU(2.8mm)(eF) is an excellent choice for those seeking reliable and effective surveillance solutions.
