Photodetector with Ajax image request AJ-MOTIONCAM-PHOD-W
Brand: Ajax Systems
- Image request photo detector
- Grade 2 certified
- 868 MHz Jeweller wireless
- Image sending up to VGA (640x480)
- Up to 5 images per detection
- Pet immune / Detection range 12 m

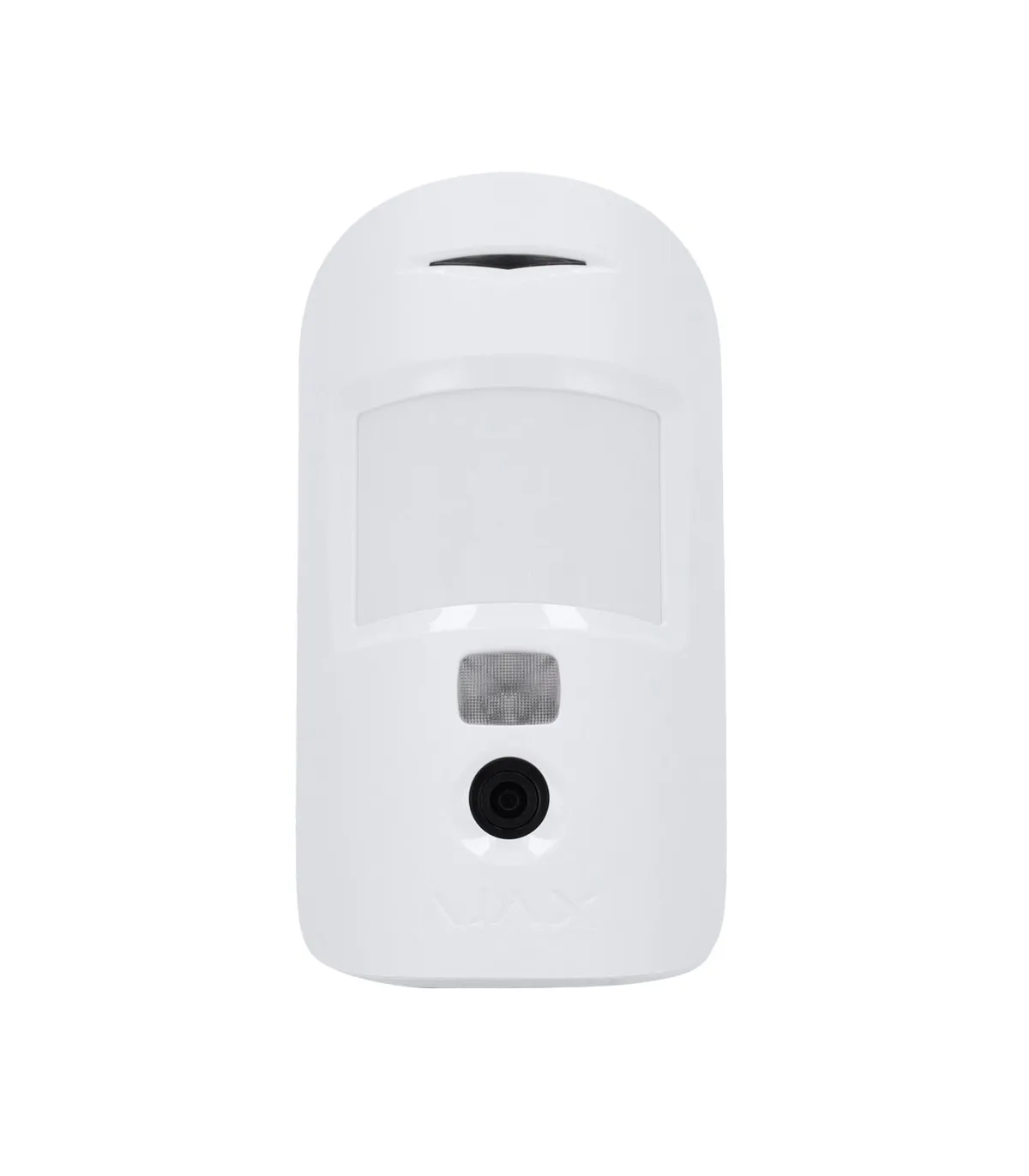

Image Request Photodetector Ajax AJ-MOTIONCAM-PHOD-W
The Image Request Photodetector Ajax AJ-MOTIONCAM-PHOD-W is an advanced tool that allows you to detect movements and request images quickly and efficiently. With this device, you can keep your home or business secure at all times.
Its Ajax technology ensures precise and reliable detection, while its image request function allows you to see what is happening in real-time. Additionally, its compact and easy-to-install design makes it the ideal choice for any space.
General Features
- Ajax
- Image Request Photodetector
- Grade 2 Certified
- Bidirectional
- Wireless 868 MHz Jeweller
- Internal antenna with free space range of 1700 m
- Motion detection indicator
- Detection: Range 12 m / H: 88.5º / V: 80º
- Anti-opening tamper
- Pet immunity ≤ 20 Kg
- Maximum resolution VGA
- Sends up to 5 images per detection

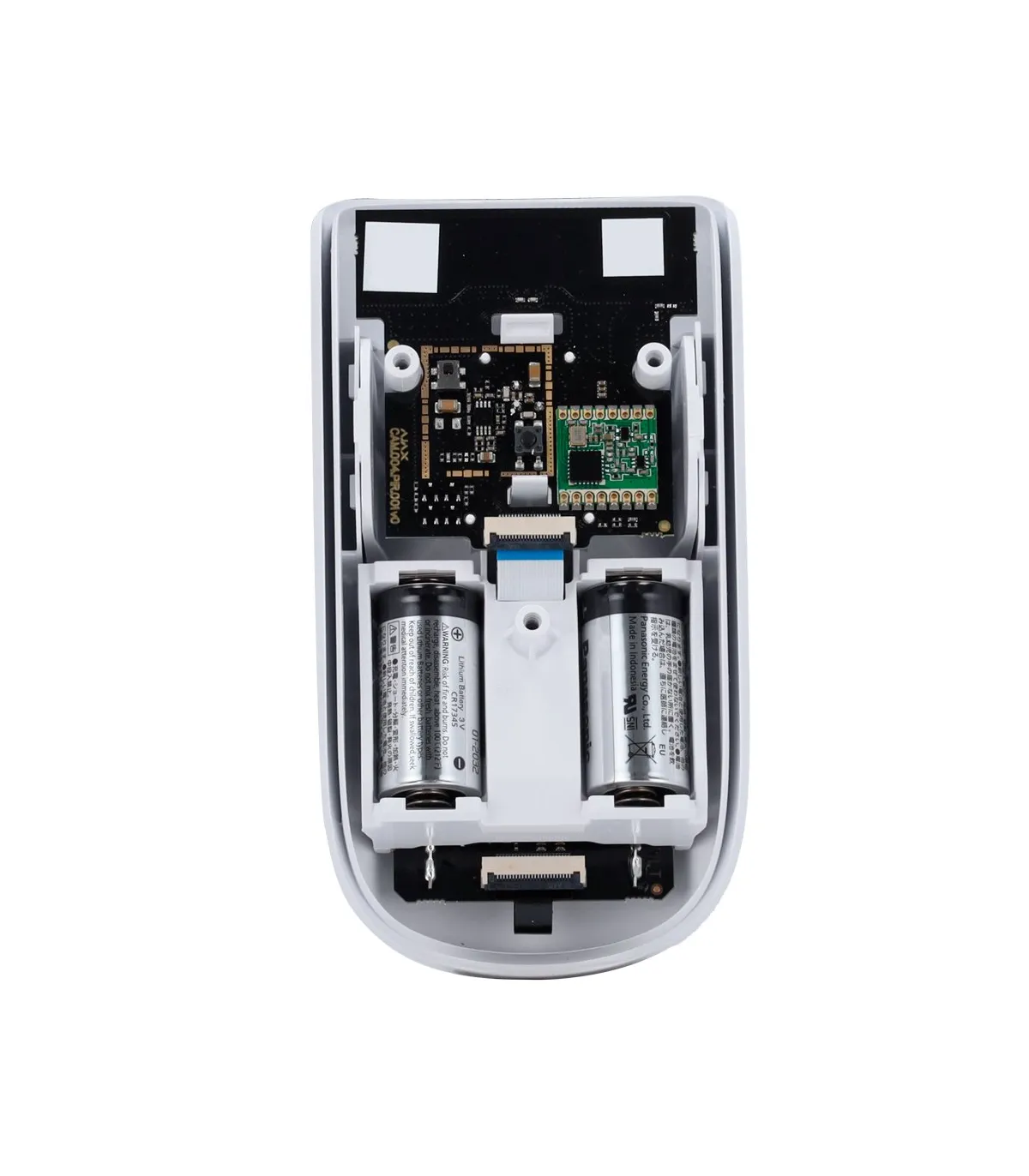

- Powered by 2 CR123A 3.0 V batteries (estimated lifespan of 4 years)
- For indoor use
- Includes bracket
- Compatible with Ajax Hub 2 and Hub 2 Plus
- Color: White
Technical Specifications
| Brand | Ajax |
| Technology | PIR volumetric with camera |
| Security Grade | Grade 2 |
| PIR Lens | 24 zones and 6 planes |

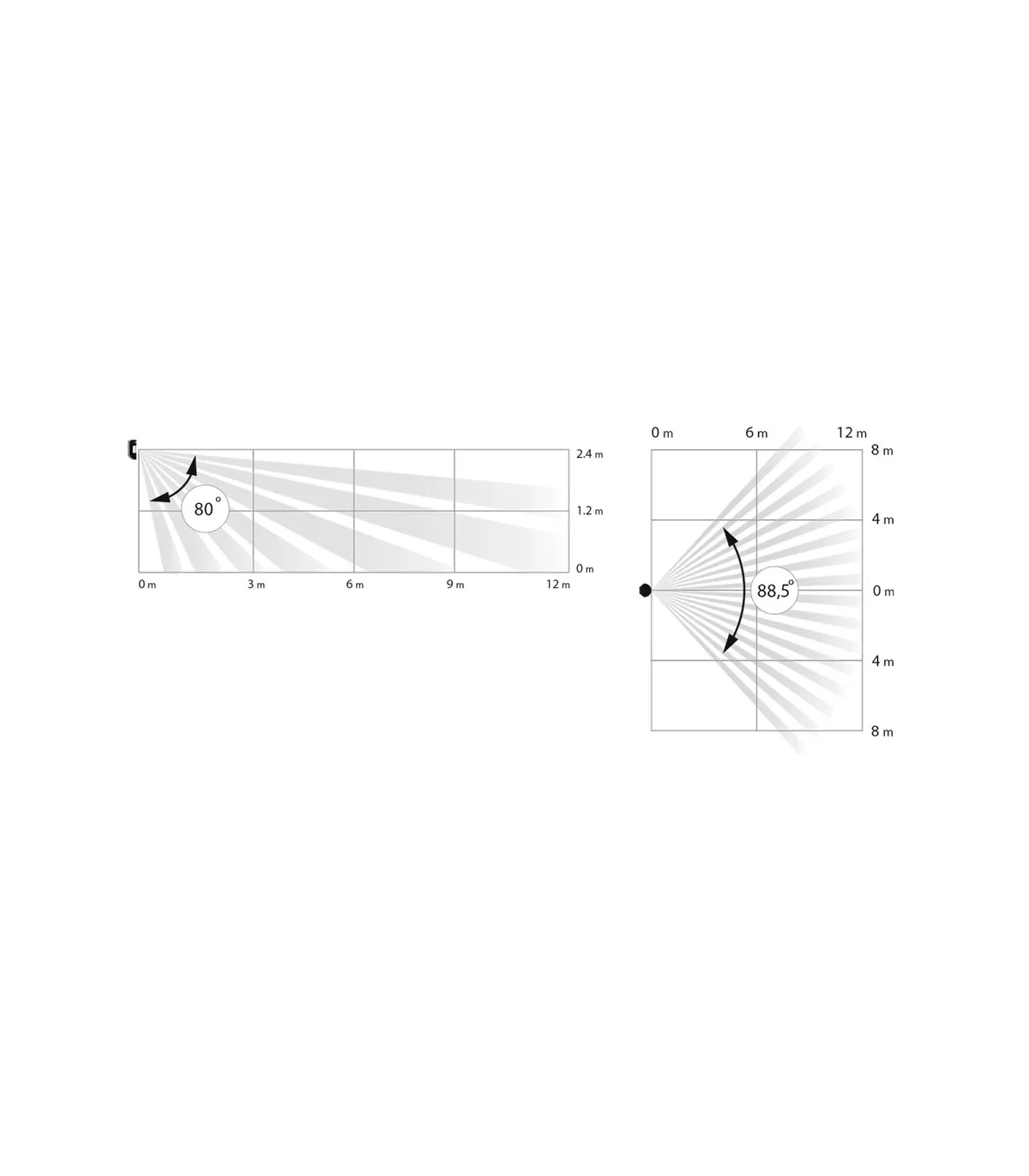

| Detection Range | 12 m / H: 88.5º / V: 80º / Installation 2.4 m |
| Frequency | 868 MHz Jeweller and Wings (image transmission) |
| Transmission Distance | ≤ 1700 m in open space |
| Pet Immunity | ≤ 20 kg, ≤ 50 cm |
| Anti-masking | Not available |
| Sensitivity | Adjustable. 3 levels (low, medium, high) |
| Privacy Management | End customer management of image request permissions |
| Image Resolution | Up to VGA (640 x 480) |
| Number of Images | Up to 5 images per detection |
| Image Transmission | Image transmission and reception in less than a minute |
| Infrared Illumination | IR for night mode |
| LED Indication | Alarm, tamper, signal |
| Battery | 2 CR123A 3.0 V batteries (up to 4 years lifespan) |
| Compatibility | Hub 2 and Hub 2 Plus |
| Operating Temperature | 0º C ~ 40º C |
| Cover Material | ABS plastic |
| Dimensions (without bracket) | 135 (H) x 70 (W) x 60 (D) mm |
Package Contents
- Indoor PIR Photodetector
- Instruction Manual
- Mounting Materials
