| Brand | HIKVISION |
| Range | Value |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 12.5 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 12.5 fps (1280x720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Angle of view (FOV) | H: 113°, V: 62°, D: 134° |
| DORI | 79 m (D), 31 m (W), 15 m (R), 7 m (L) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum illumination | Color: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR range 30 m |

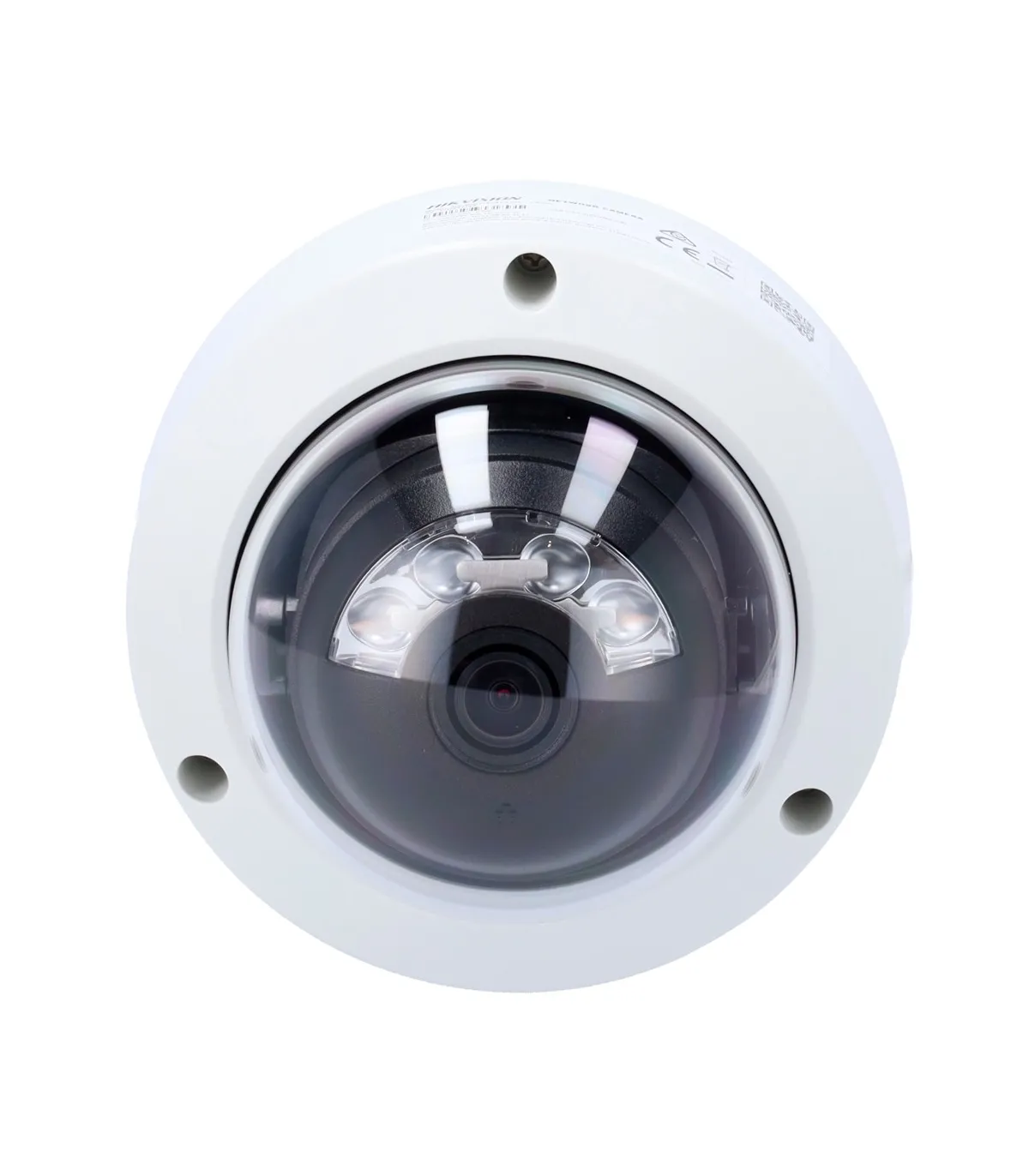

| Supplementary illumination | Light hybrid: IR range 30 m White light range 30 m |
| Day/night | Removable ICR mechanical filter |
| Improvements image | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion Detection 2.0 with classification of humans and vehicles applied in the detection of movement. |
| Internal storage | Not available |
| Audio | Built-in microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bit rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Internal storage | MicroSD card slot up to 512 GB |

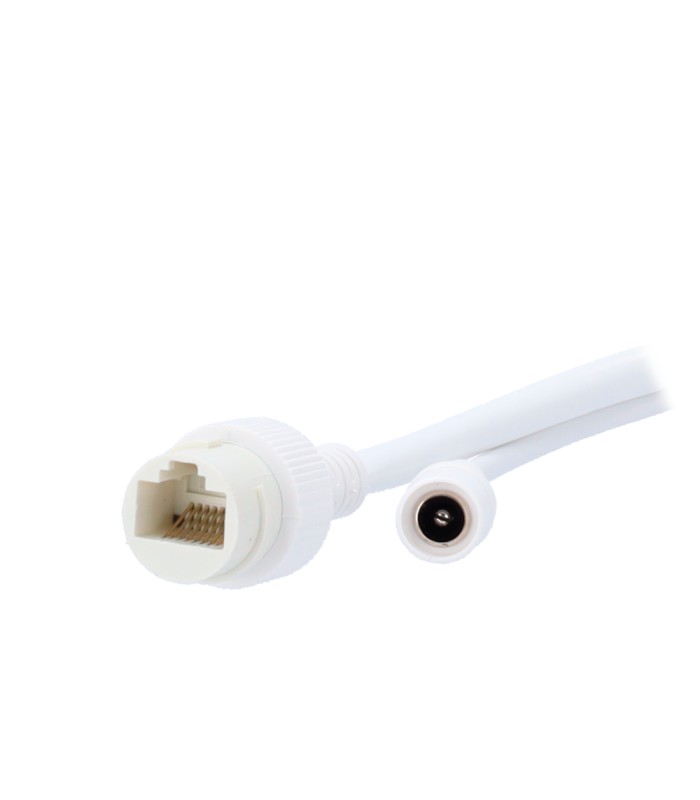

| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, Software PC iVMS-4200 and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 500 mA / 6W max. / PoE IEEE802.3af |
| Protection degree | Waterproof IP67, vandal-resistant IK08 |
| Material | Metal and plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | Ø 121.5 x 97.6 mm (H) |
| Weight | 550 g |
Data sheet
