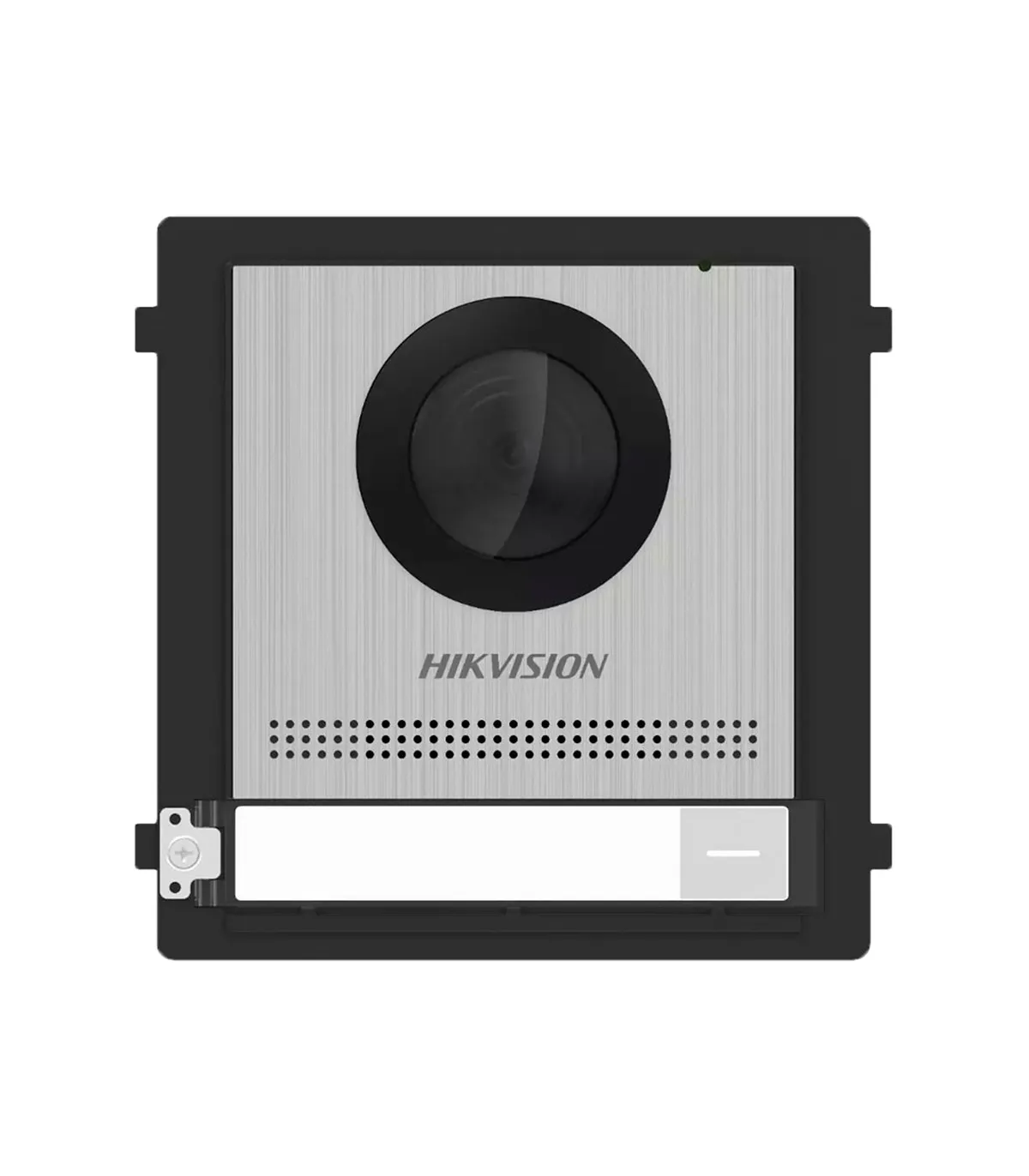

Hikvision DS-KD8003-IME1(B)/S Stainless Steel IP Video Intercom

Hikvision DS-KD8003-IME1(B)/S Stainless Steel IP Video Intercom

Stainless Steel IP Video Doorbell
2 Mpx Camera
Two-way Audio
Mobile App through Monitor
IP65 Outdoor Suitable
Modular Mounting | PoE

Hikvision DS-KD8003-IME1(B)/S stainless steel IP video intercom

Hikvision
IP video intercom with 2 Mpx camera
Wide angle lens
Integrated speaker and microphone
Night vision
Connection TCP/IP
Can be powered with standard PoE
Remote monitoring through iVMS-4200 software, Hik-Connect mobile app or indoor monitor
Remote door unlocking
Mounting with surface support or recessed with support (not included)
Personalization label with LED
Suitable for outdoor IP65
Integratable with modules Hikvision
Made of stainless steel

Technical specifications

Brand	Hikvision
Model	DS-KD8003-IME1(B)/S
Operating system	Linux
Image Sensor	Low Illumination 2 Mpx IR
Image functions	BLC / WDR / DNR
Angle vision	H: 146º, V: 82º, D: 180º
Audio	Two-way audio with microphone and speaker
Keyboard	Mechanical call button with LED customization label
Outputs	2 x relay for lock, 1 x module output, 1 x DC 12 V / 500 mA max.
Inputs	4 x auxiliary inputs (exit button, feedback, door sensor), 1 x tamper
Remote access	iVMS-4200 software Mobile application Hik-Connect
Network interface	Ethernet 10/100 BaseT / SIP 2.0 Protocol
Modular	Compatible with modular boards Hikvision
Power	DC 12 V / 850 mA max. / PoE (IEEE 802.3af)
Protection degree	Suitable for outdoor use IP65
Material	Plastic and steel stainless
Temp. operation	-40º C ~ +60º C
Dimensions	98 (H) x 100 (W) x 42 (D) mm
Weight	410 g

Hikvision video intercom exterior panel
Mounting material
Instructions for use
