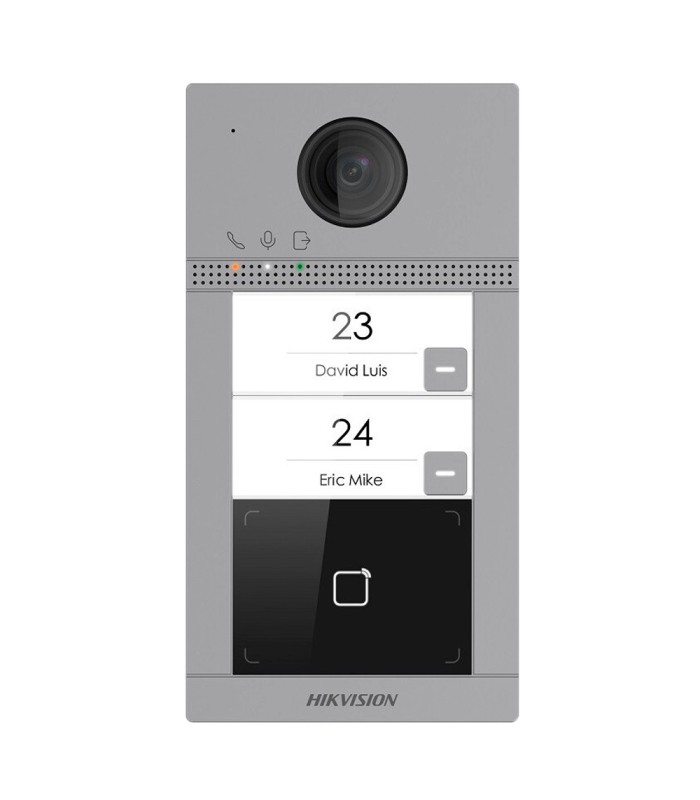

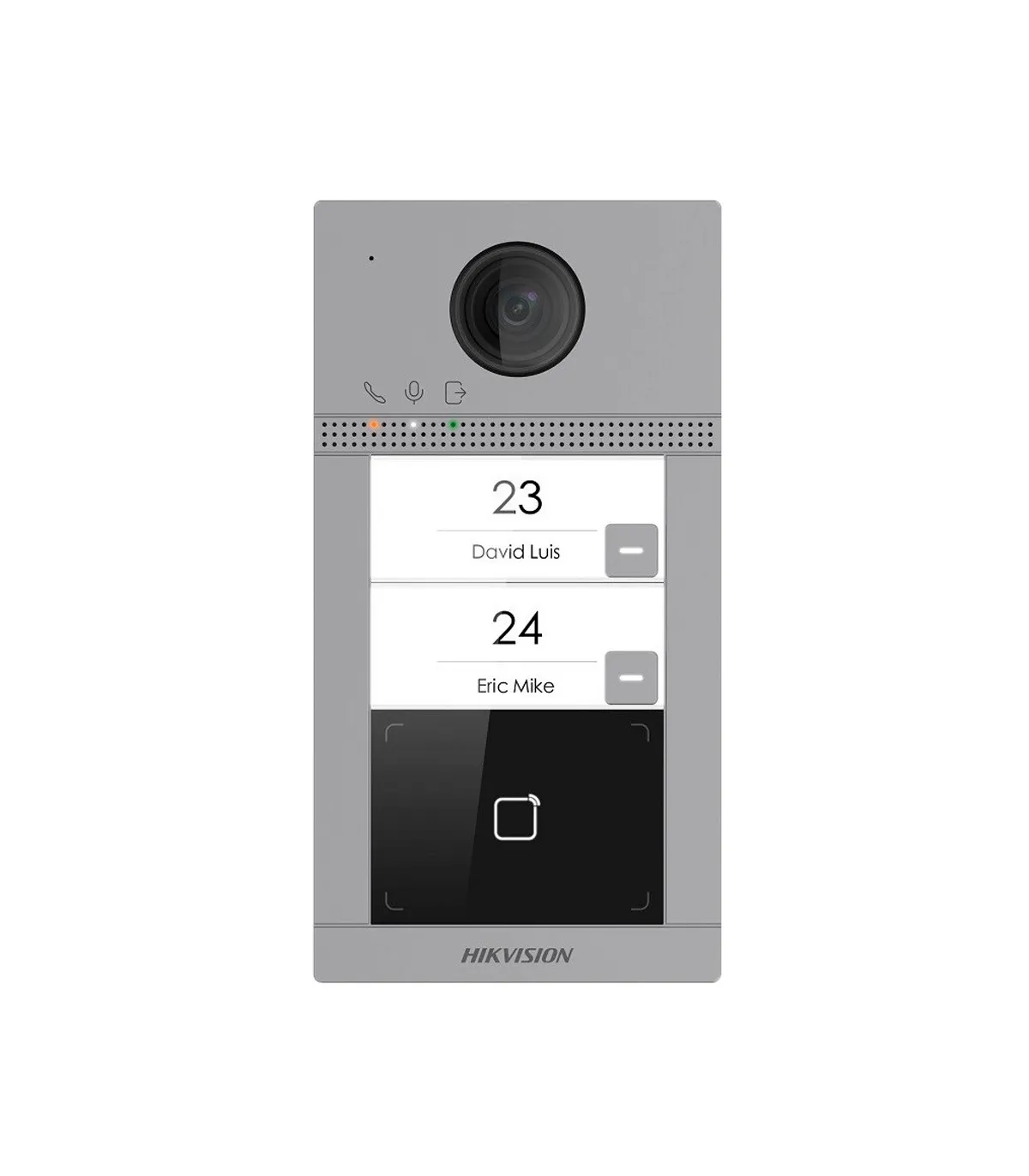

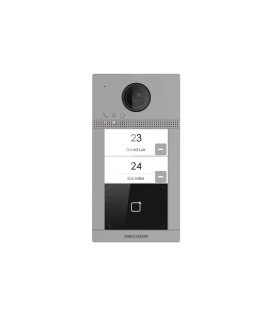

WiFi IP video intercom for 2 apartments Hikvision DS-KV8213-WME1(C)/Flush
- Hikvision
- IP video intercom with 2 Mpx camera for 2 apartments
- Wide angle lens
- Integrated speaker and microphone
- Night vision
- Connection TCP/IP, WiFi (P2P only) and RS485 - PoE IEEE802.3af
- MF card reader
- Remote monitoring via iVMS-4200 software, Hik-Connect mobile app or indoor monitor
- Remote door unlocking
- Call status LED
- Flush mounting
- Personalization label with LED
- Suitable for outdoor IP65
- IK08 vandal-proof aluminum alloy surface
Technical specifications
| Brand | Hikvision |
| Model | DS-KV8213-WME1(C)/Flush |
| Operating system | Linux |
| Image Sensor | 1/3" 2 Mpx CMOS wide angle IR |
| Image functions | BLC / WDR / DNR |
| Viewing angle | H: 124º, V: 75º |
| Audio | Two-way audio with microphone and speaker |
| Access control | Door opening with MF 13.56 MHz card Up to 2,000 users and 10,000 cards |
| Keyboard | 2 x mechanical call button with LED personalization label |
| Outputs | 2 x lock relay, 1 x RS485 |
| Inputs | 4 x auxiliary inputs (exit button, feedback, door sensor), 1 x tamper |
| Remote access | Web browser iVMS-4200 software Hik-Connect mobile application |
| Network interface | Ethernet 10/100 BaseT / SIP 2.0 Protocol / WiFi (only for connection to app via P2P) |
| Power | DC 12 V / 1000 mA max. / PoE IEEE802.3af |
| Protection degree | Suitable for outdoor use IP65 Vandal-resistant IK08 |
| Material | Aluminum alloy |
| Temp. operation | -40 ºC ~ +55 ºC |
| Dimensions | 174 (H) x 91 (W) x 29 (D) mm |
| Weight | 380 g |
Contents
- Hikvision video intercom exterior panel
- Mounting material
- Instructions for use
