€143.55
Video intercom monitor
7" TFT touch screen display
Two-way audio
2 wires, WiFi, SIP
MicroSD card slot up to 128 GB
Surface mount
HIKVISION INTERCOM Indoor Monitor 7" TFT Screen HD 2-Wire Two-Way Audio DS-KH7300EY-THE2
- Monitor for video intercom
- 7" TFT screen
- Two-way audio | Status LED
- 2-wire HD | Handset
- MicroSD card slot up to 128 GB
- Surface mount
€108.32
Reference:
DS-KH7300EY-THE2
Brand:
Add to wishlist

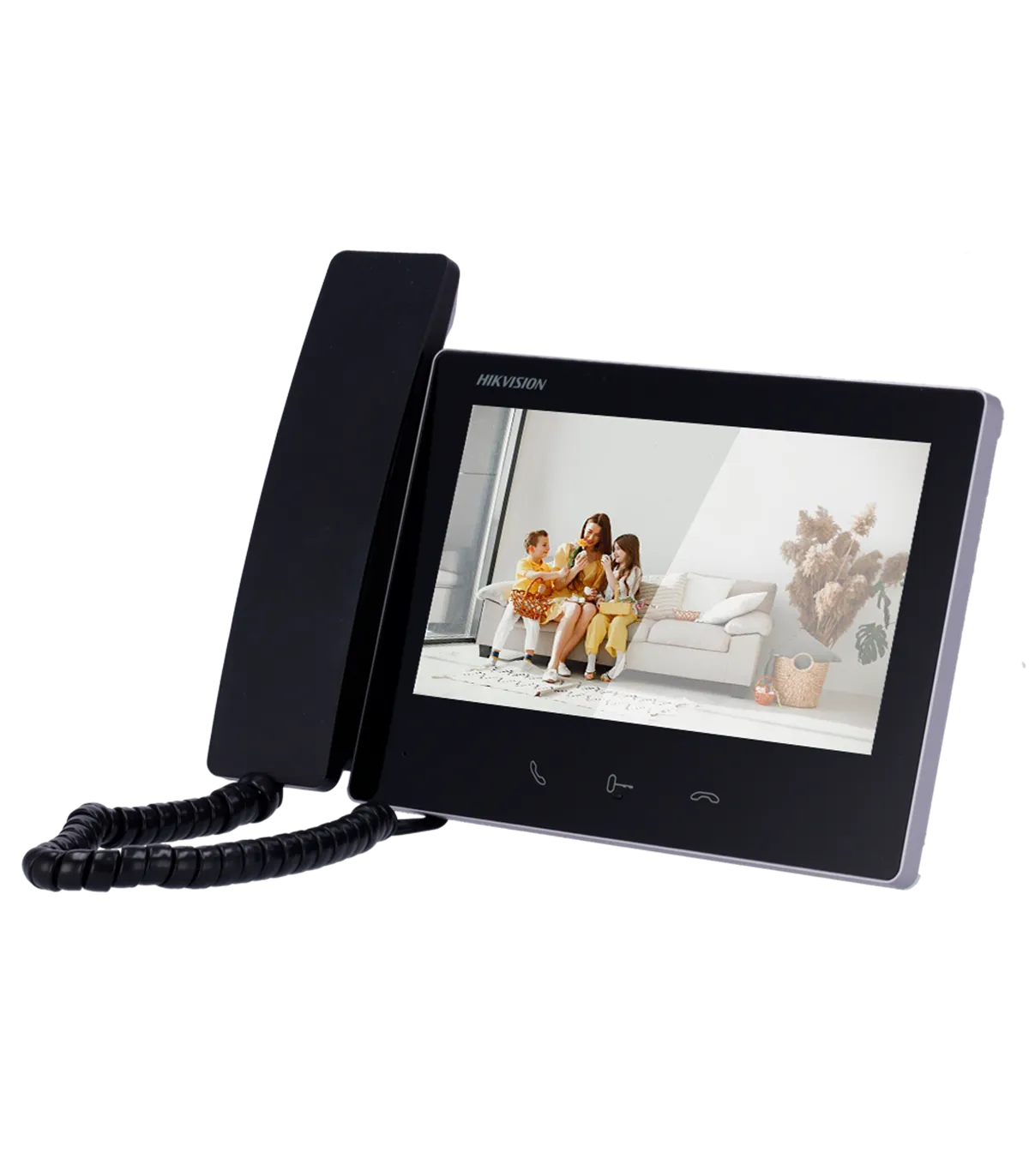

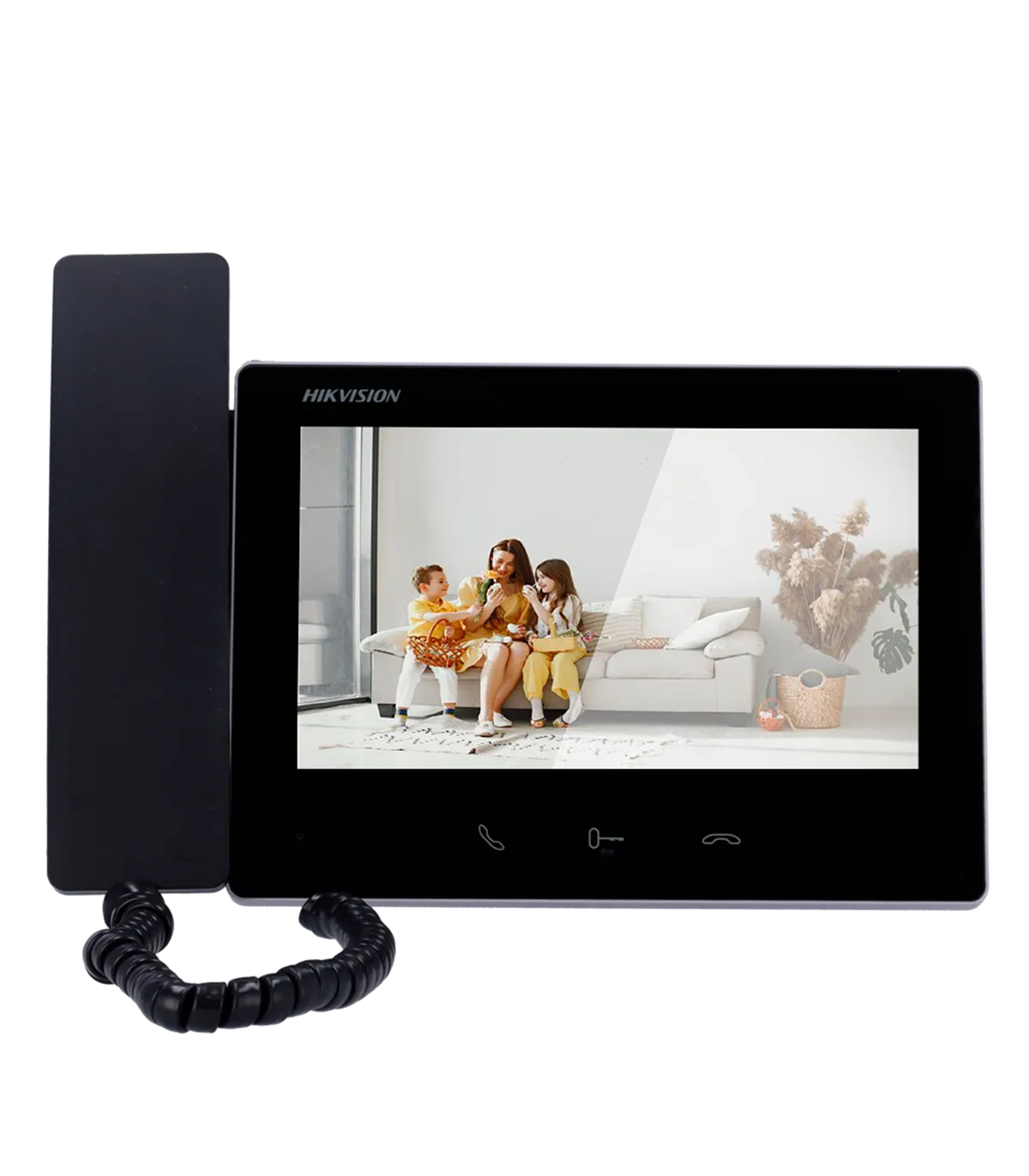

The video intercom monitor is the component that is installed inside the premises, also known as the indoor unit, and allows the building staff to receive calls from visitors.
This model features a 7" touchscreen that facilitates user operation. It also includes a handheld receiver to maintain greater privacy during calls.
The 2-wire systems communicate and are powered through conventional copper cables (referred to as wires) and distributors, allowing for the reuse of existing conventional installations that already have this type of wiring.
- Hikvision
- 7" HD 2-wire video intercom TFT screen
- Integrated microphone and speaker
- Handheld receiver with microphone and speaker
- Two-way audio
- MicroSD slot
- Image capture and recording
- LED status indicators

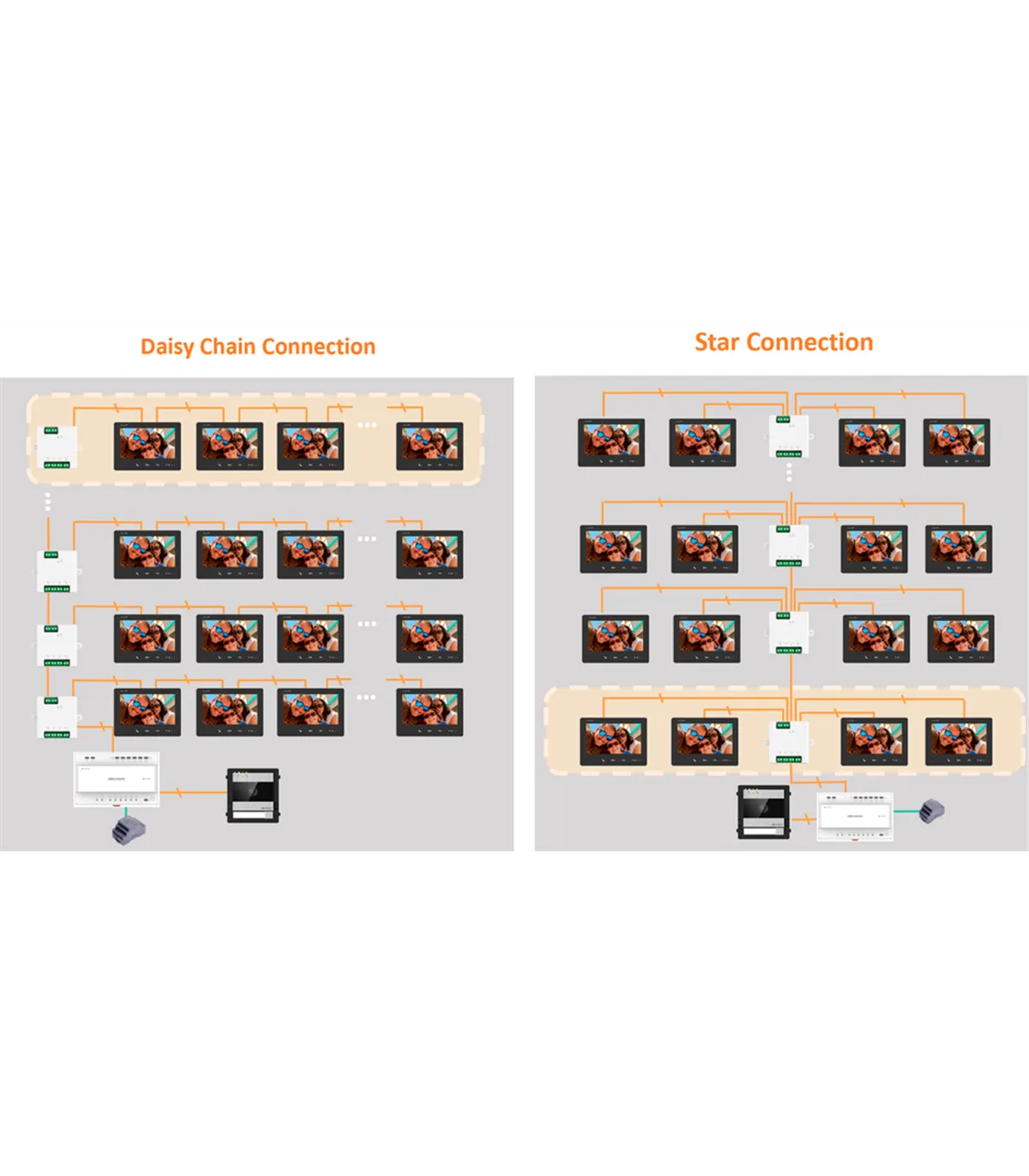

- Multiple screen extension: up to 4 monitors connected in series
- Surface mount
Specifications: DS-KH7300EY-THE2
| Brand | Hikvision |
| Model | DS-KH7300EY-THE2 |
| Operating System | Linux |
| LCD | 7" color touchscreen TFT |
| Screen Resolution | 1024 x 600 |
| Operation Mode | Additional touch button panel: call initiation, call termination, and door opening LED status indicators |
| Inputs | 1 x HD 2-wire |
| Outputs | 1 x HD 2-wire |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation Handheld receiver with microphone and speaker |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | HD 2-wire / RTSP |
| Remote Access | Not available |
| Power Supply | Via specific Hikvision hub for HD 2-wire intercoms (max 4 W) |
| Operating Temperature | -10 ºC ~ +50 ºC |
| Dimensions | 138 (H) x 190 (W) x 20 (D) mm |
| Weight | 500 g |
| Slave Monitors | Monitors not belonging to the HD 2-wire system cannot be used |
Package Contents
- Hikvision indoor video intercom monitor
- Handheld receiver
- Installation materials
- User instructions
DS-KH7300EY-THE2
Data sheet
- Brand
- HIKVISION INTERCOM
- Compatible models
- DS-KAD7061EY,DS-KAD7060EY,DS-KABH6350-T,CA2-100-H-INTERCOM,CA2-100-H-INTERCOM,CA2-100-H-INTERCOM
Specific References
- EAN13
- 6942160469232
