| Brand | HIKVISION |
| Range | Value |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Resolution maximum | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Angle of view (FOV) | H: 106°, V: 56°, D: 129° |
| DORI | 44 m (D), 17 m (W), 8 m (R), 4 m (I) |
| Minimum illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR range 30 m |

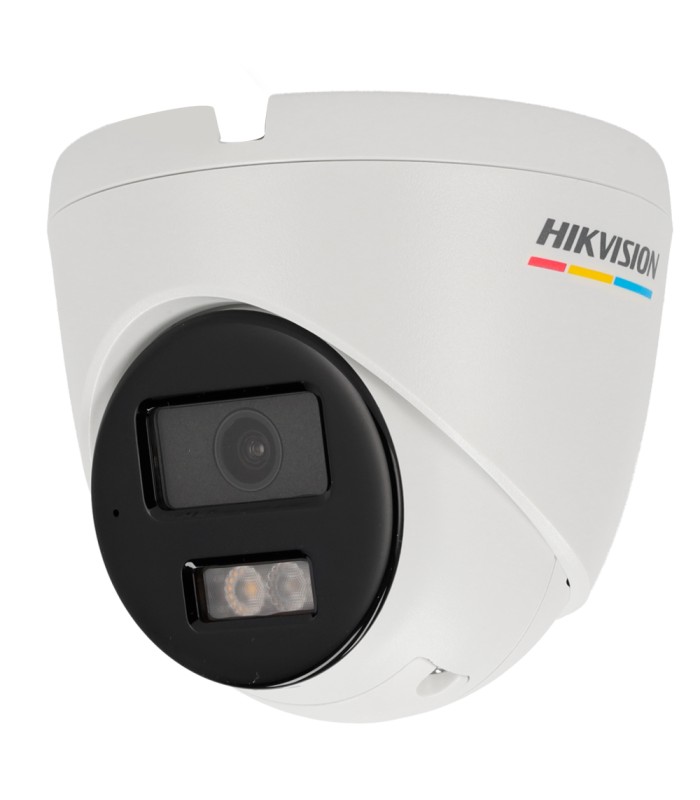

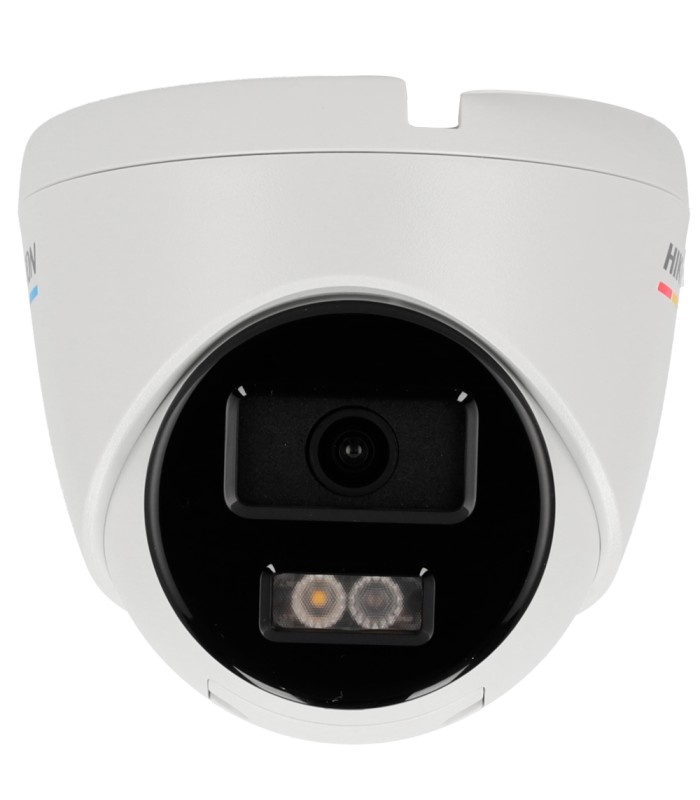

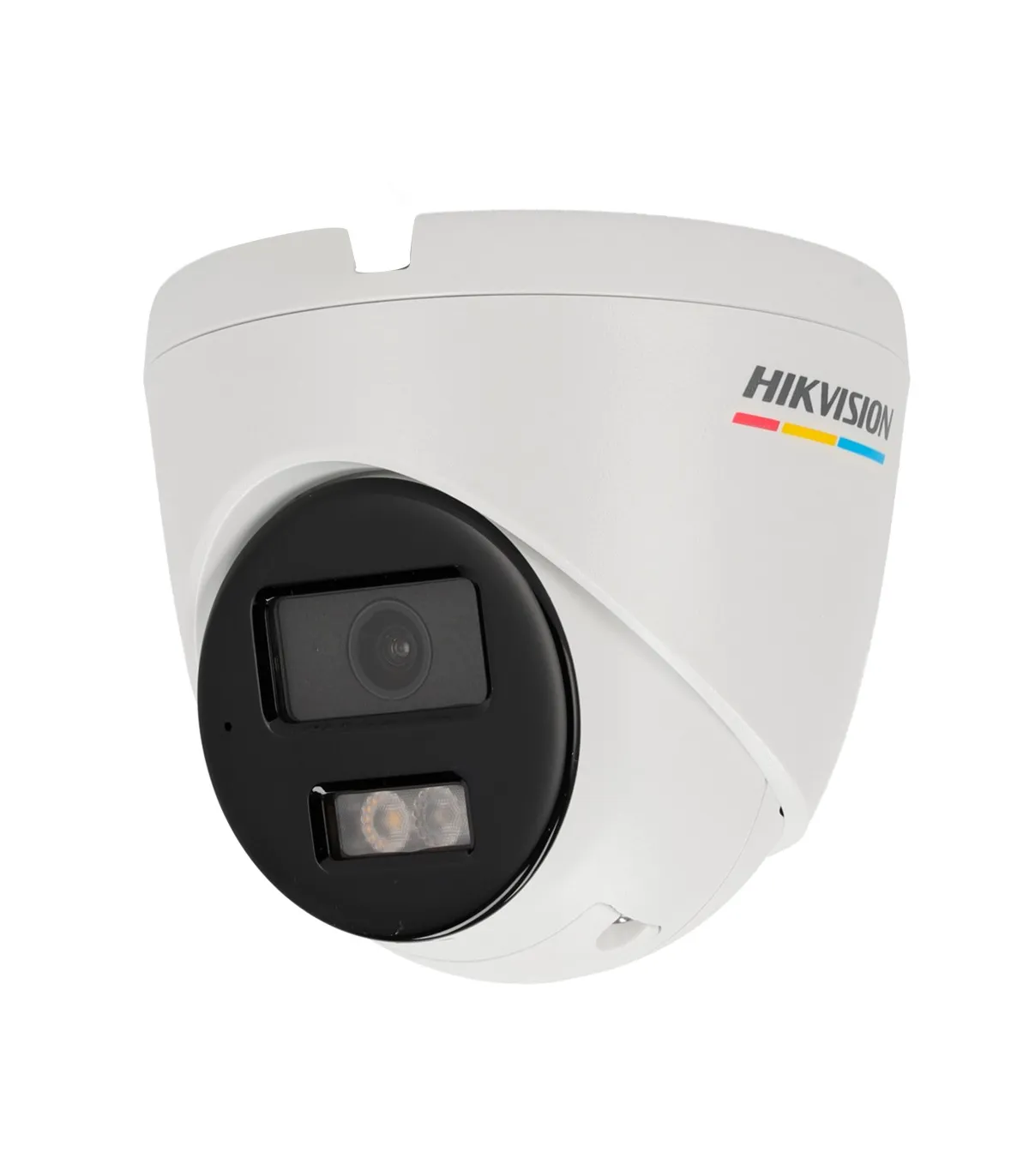

| Illumination supplementary | Hybrid light: IR range 30 m White light range 30 m |
| Day/night | ColorVu: 24-hour color image |
| Image enhancements | DWDR, BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion Detection 2.0 with human classification and vehicles applied in motion detection. |
| Audio | Built-in microphone |
| Audio type | Mono |
| Audio compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |

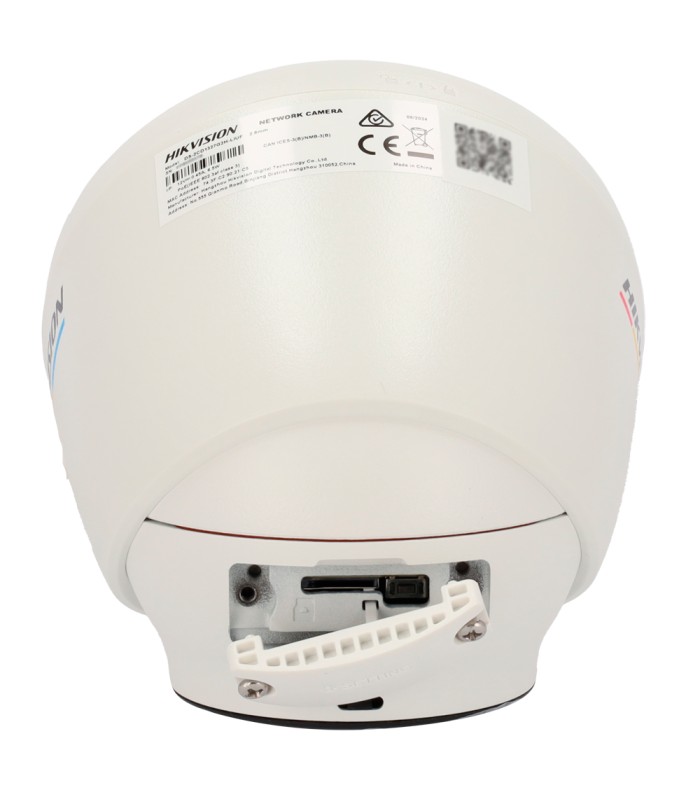

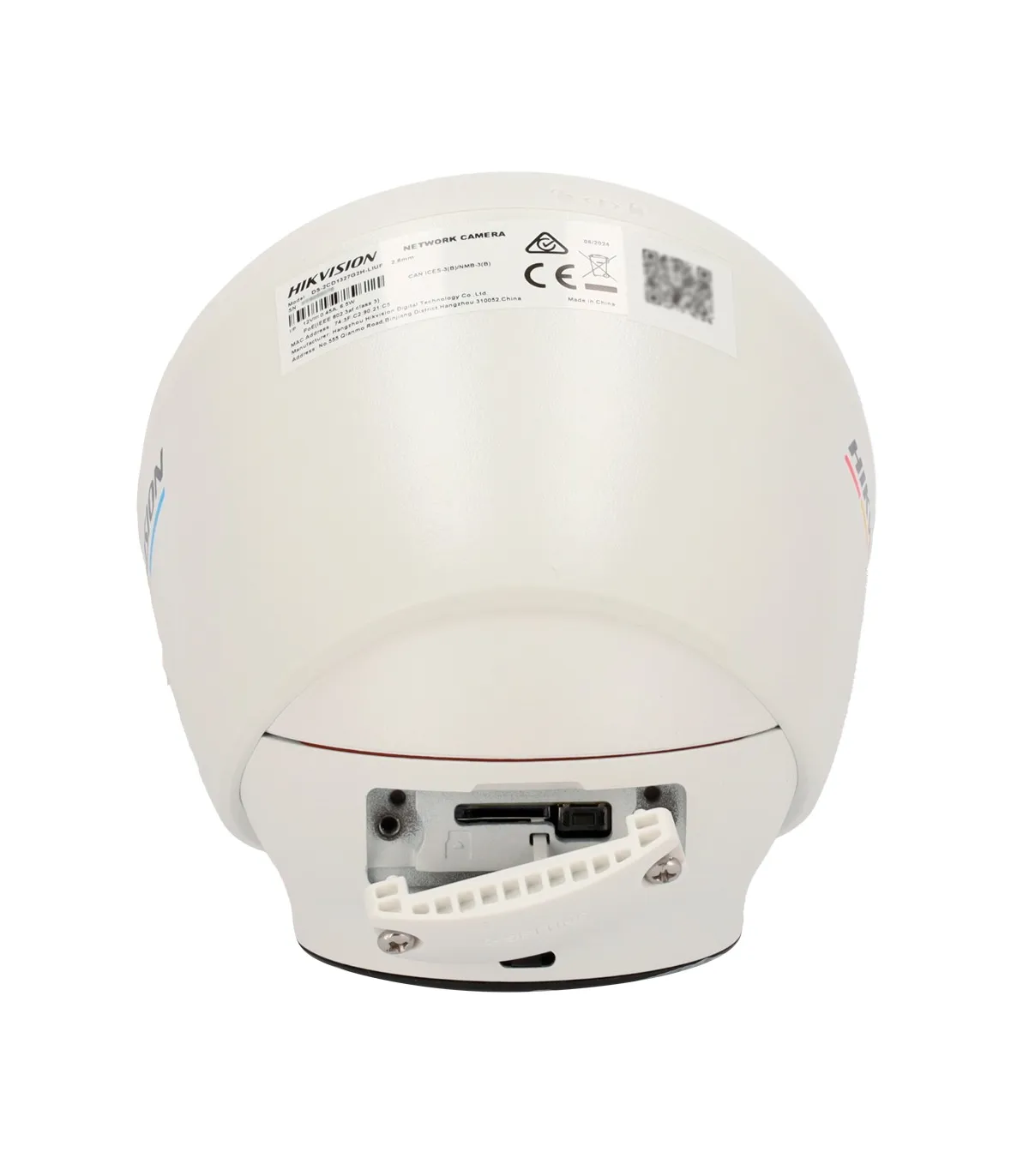

| Audio bit rate | 64 Kbps Card Slot MicroSD up to 512 GB |

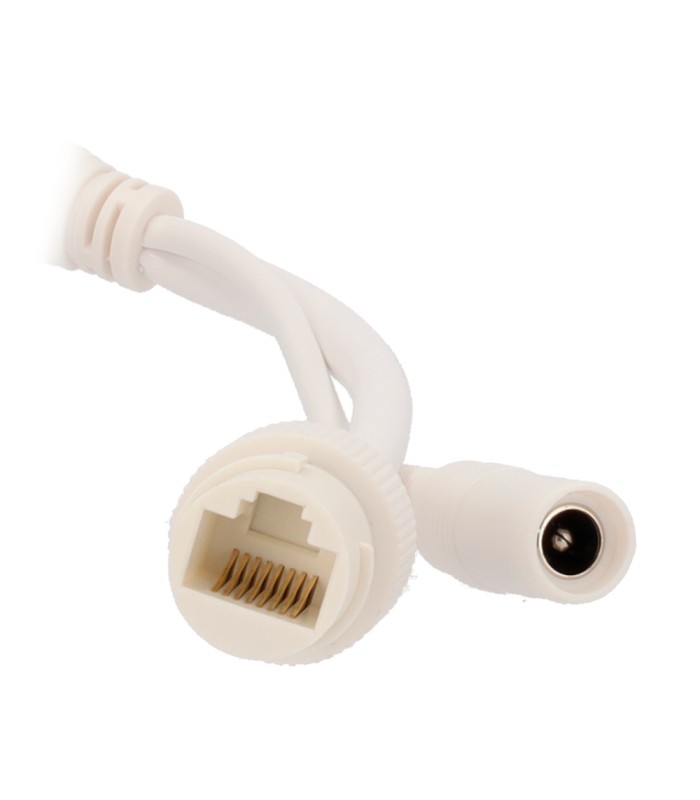

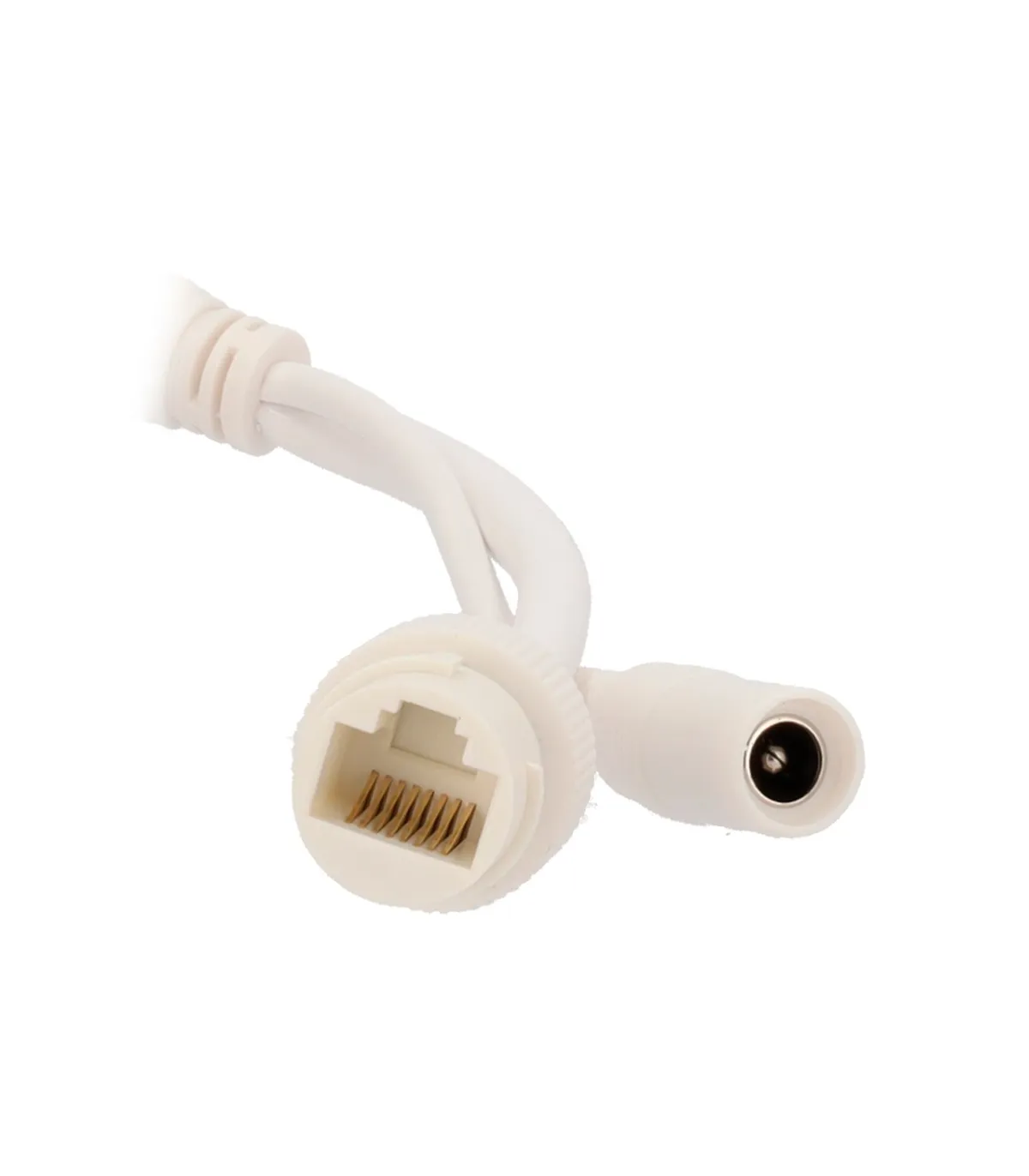

| Network interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Smartphone App Hik-Connect, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 450 mA / 5.4 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal and plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | Ø 110 mm x 93 mm (H) |

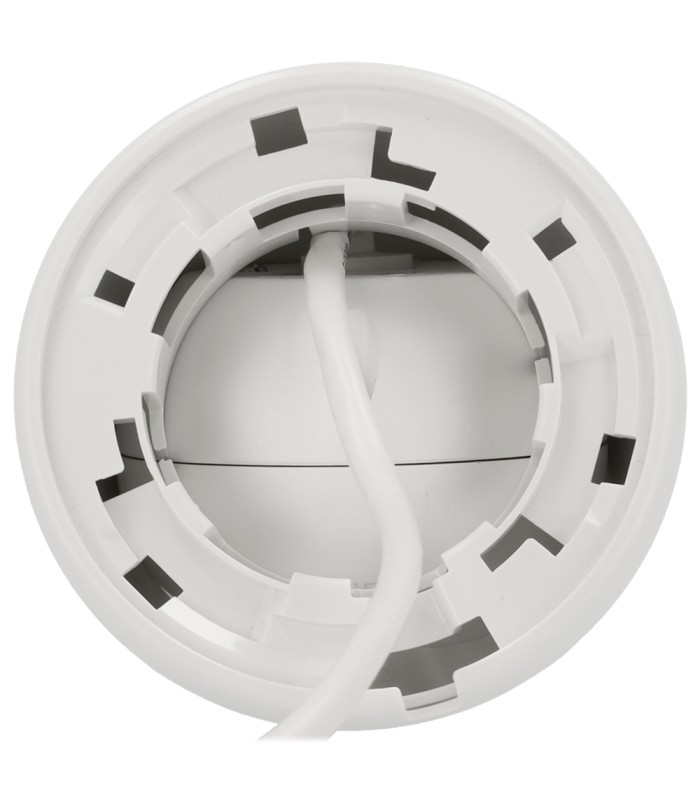

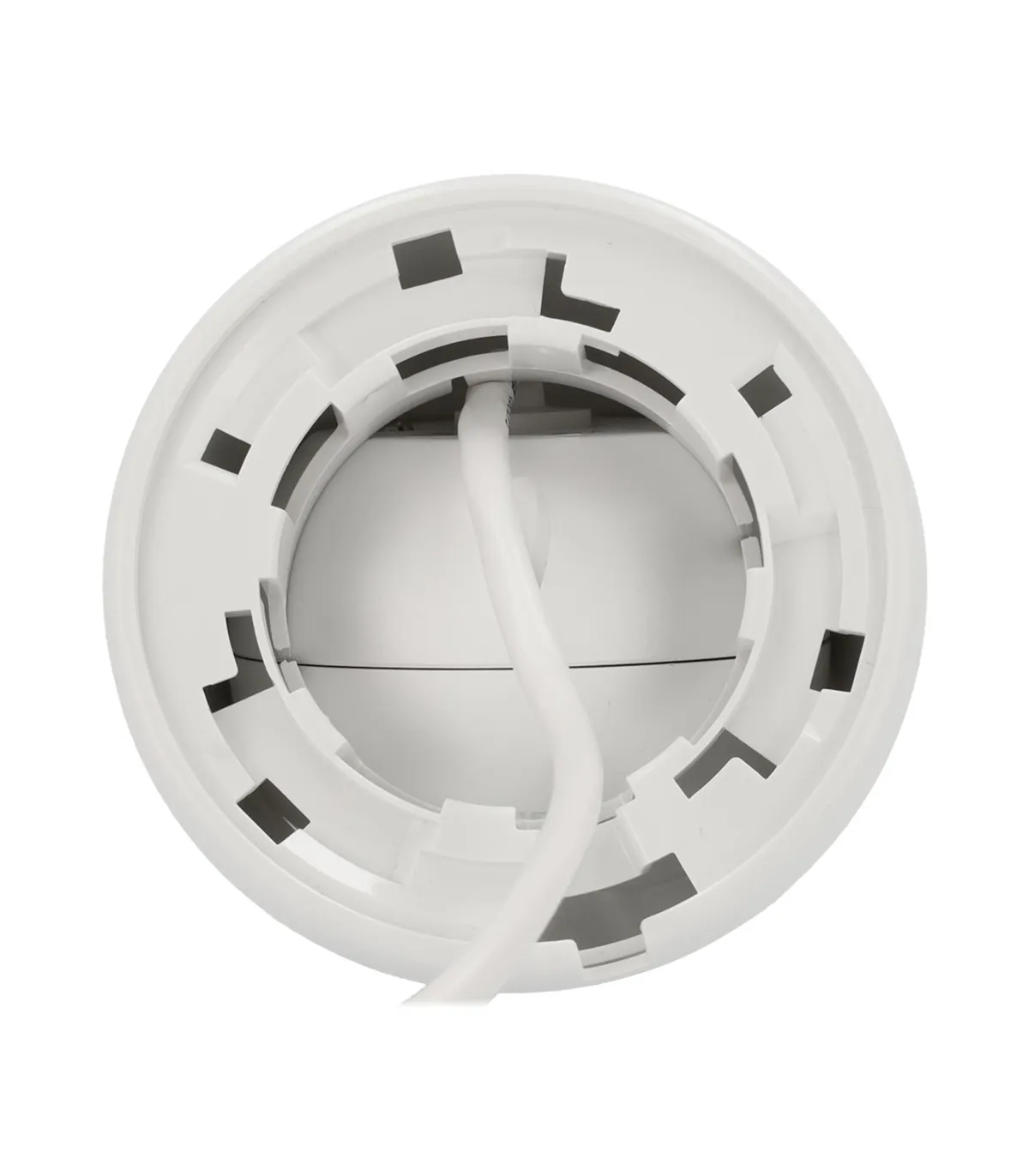

| Dimensions of the base | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 380 g |
Data sheet
