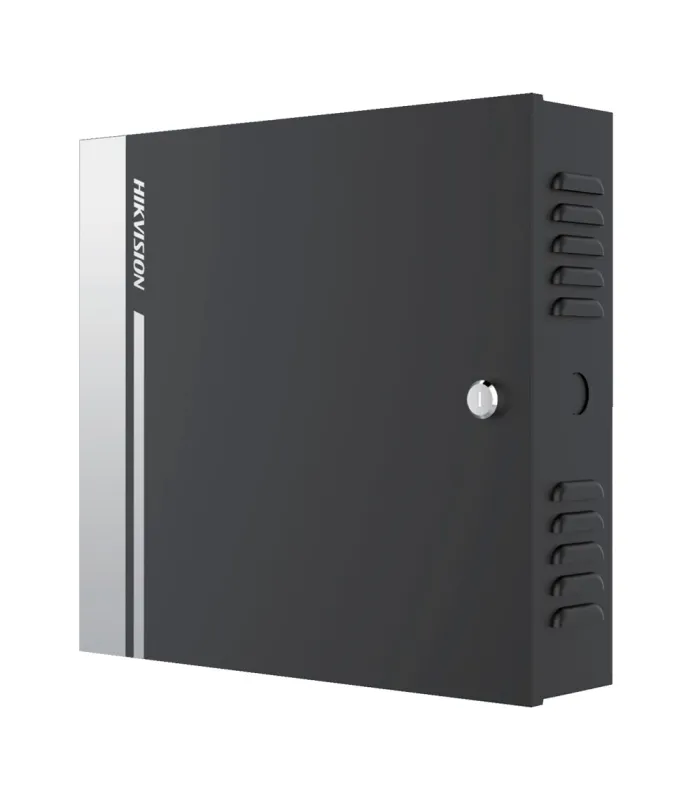

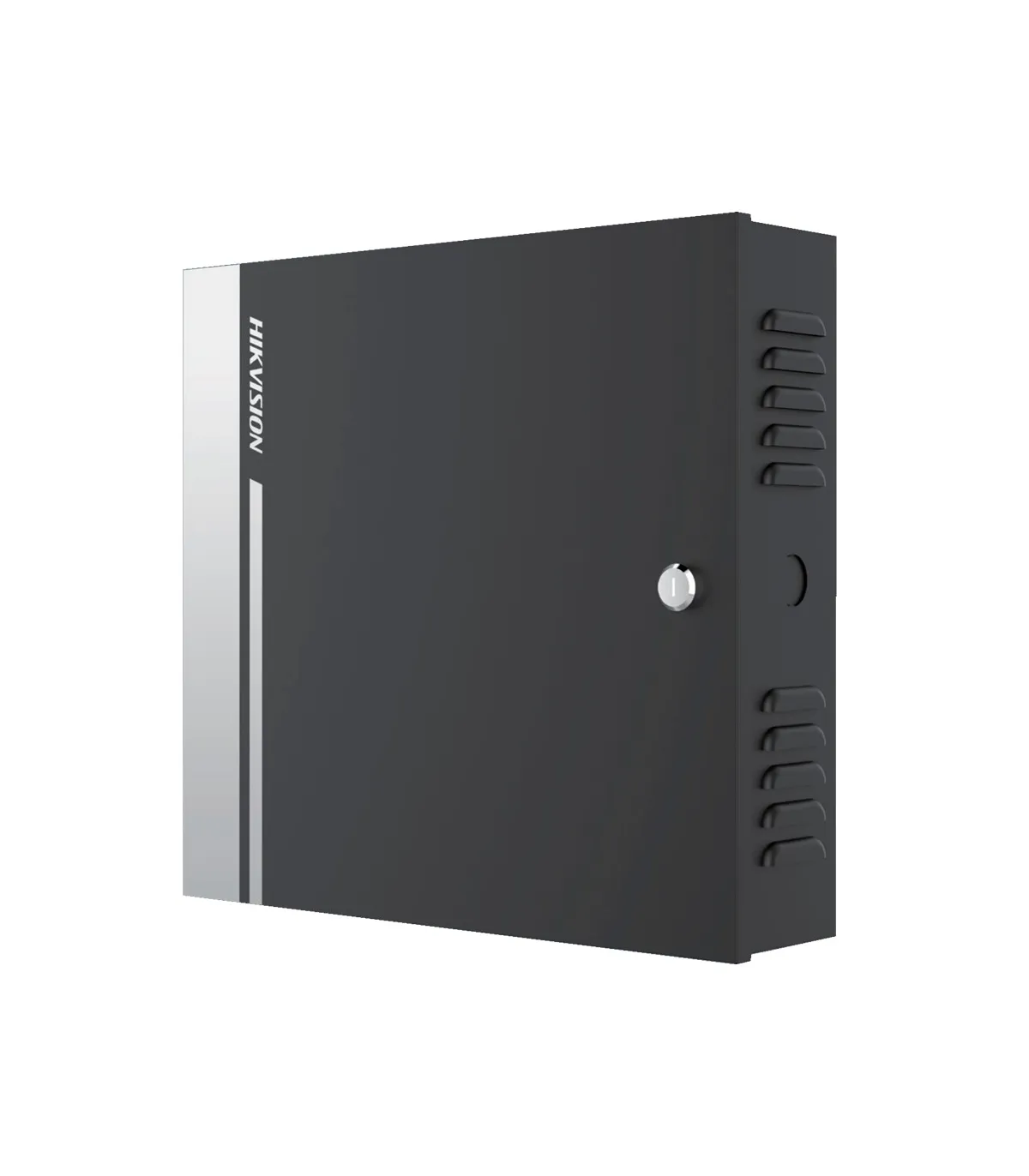

Hikvision DS-K2811 access controller
- Hikvision
- Access controller
- Box with power supply and battery compartment
- Management of 1 door
- Capacity 10,000 users and 50,000 records
- Supports up to 2 Wiegand readers and 2 RS485 readers
- TCP/IP communication
- Input of 1 push button, 1 door sensor and 1 auxiliary input
- 1 relay output and 4 alarm outputs
- NO/NC relay configuration
- Advanced functions: lock, anti-passback, multi-card and first card opening
- House for battery backup
- Compatible with iVMS-4200 software
Technical specifications
| Brand | Hikvision | |
| Model | DS-K2811 | |
| Hardware CPU | 32bit MIPS CPU | |
| Capacity | Up to 10,000 users | |
| Records | 50,000 records | |
| Identification modes | Card, QR and/or password | |
| Proximity card | RFID EM 125 kHz and MF 13.56 MHz | |
| Communication | TCP/IP | |
| Outputs | 1 x relay output, 4 x alarm output | |
| Inputs | 2 x Wiegand 26/34, 1 x RS485, 1 x door sensor, 1 x opening button, 1 x auxiliary, 1 x tamper >Functions | Multi-door locks, anti-passback, multi-card, first card opening |
| Power | Power supply included (DC 12 V / 1 A max.) connected to 220 VAC | |
| Temp. operation | -20º C ~ +65º C | |
| Dimensions | 345 (W) x 370 (H) x 90 (D) mm | |
| Weight | 2800 g |
Contents
- Hikvision access controller
- Mounting material
- Instructions for use
