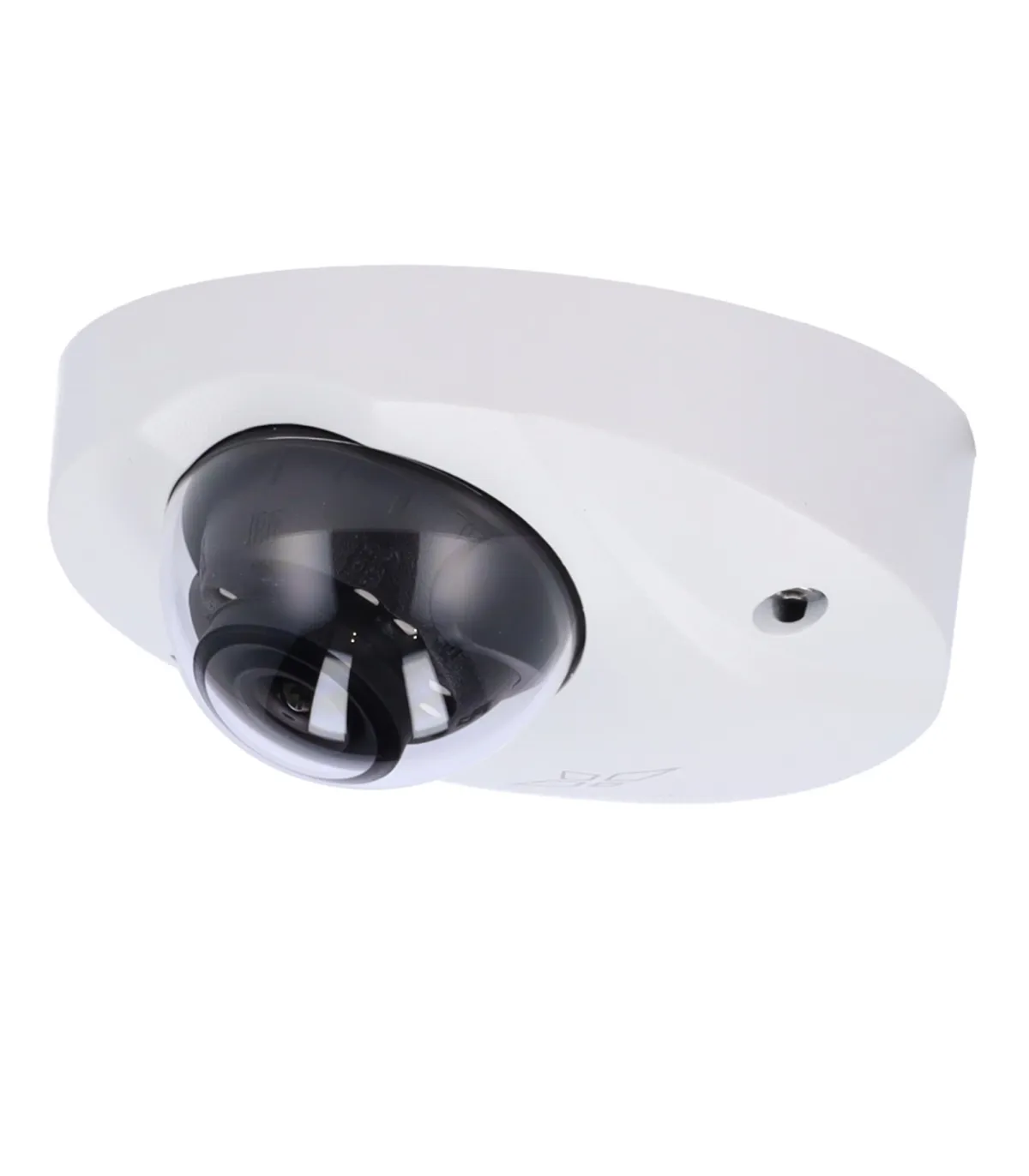

| Brand | X-Security |
| Range | PRO |
| Image Sensor | 3K 1/2.7" CMOS (5Mpx 16:9) |
| Maximum Resolution | 3K (2880x1620) |
| Resolution | 3K (1 ~ 25/30fps), 4 Mpx(1 ~ 25/30fps),1080P (1 ~ 25/30fps) |
| Lens Positioning | 3 axes |
| Lens | 2.8 mm |
| Minimum Illumination | 0.001 Lux / F1.6 |
| Infrared Illumination | 0 Lux / SMART IR (30 m) |
| Day/Night | Auto / Color / BW (Black and White) |
| Alarm | Not available |
| Audio | Built-in Microphone (Audio via coaxial cable in HDCVI) |

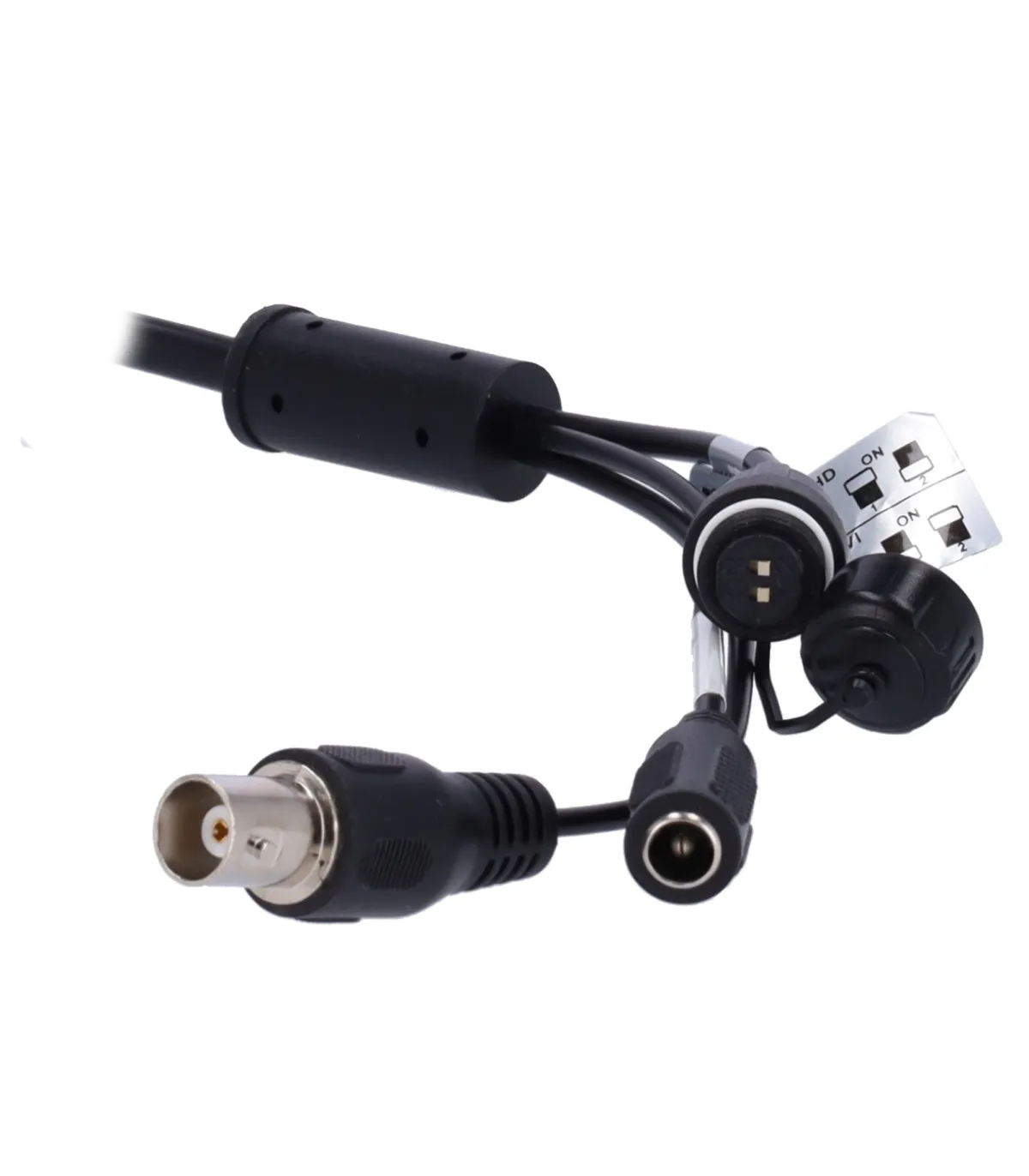

| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Through OSD |
| Basic Functions | OSD Menu (remote) |
| WDR | 120 dB |
| Configurable OSD Functions | 3D-DNR, HLC, BLC, AGC, Smart IR |
| Power | DC 12 V / 335 mA / 4 W max |
| Protection Grade | IP67 Waterproof |
| Operating Temperature | -40º C ~ +60º C |
| Material | Aluminum and plastic |
| Dimensions | 50.3 mm (H) x 106 mm (Ø) |
| Weight | 330 g |
Data sheet
