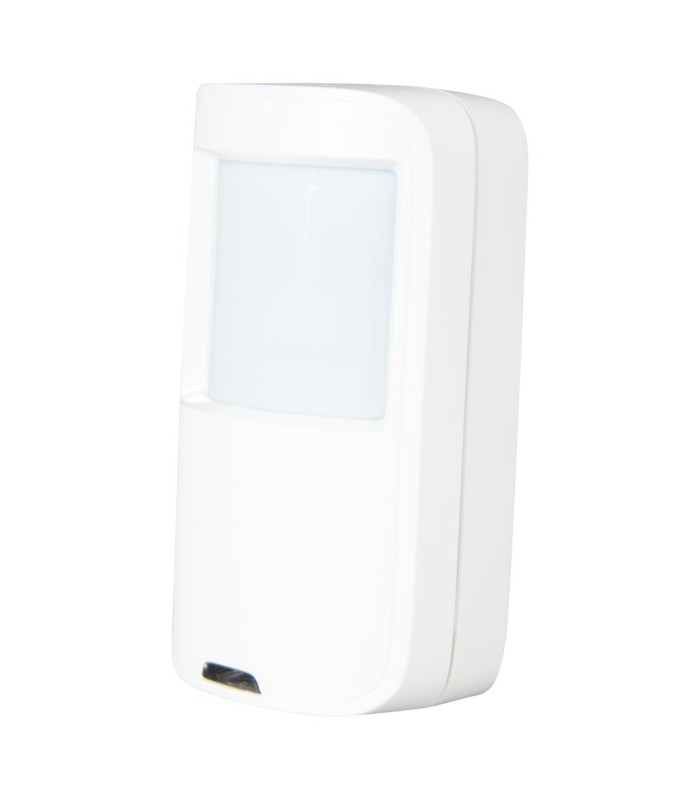

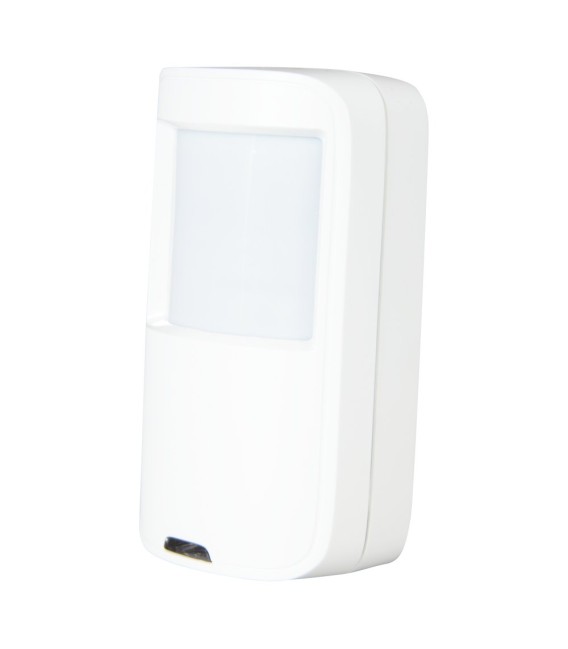

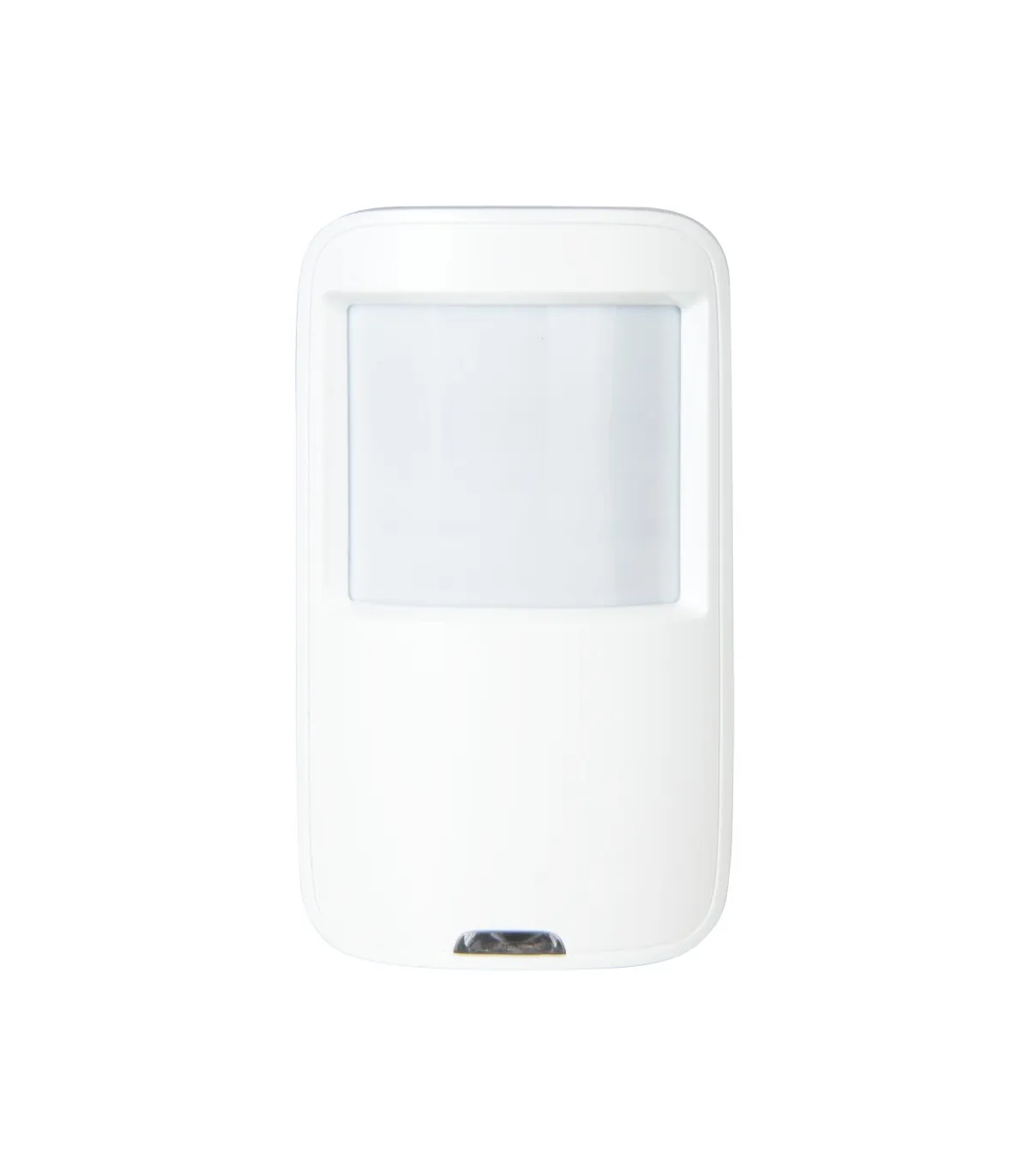

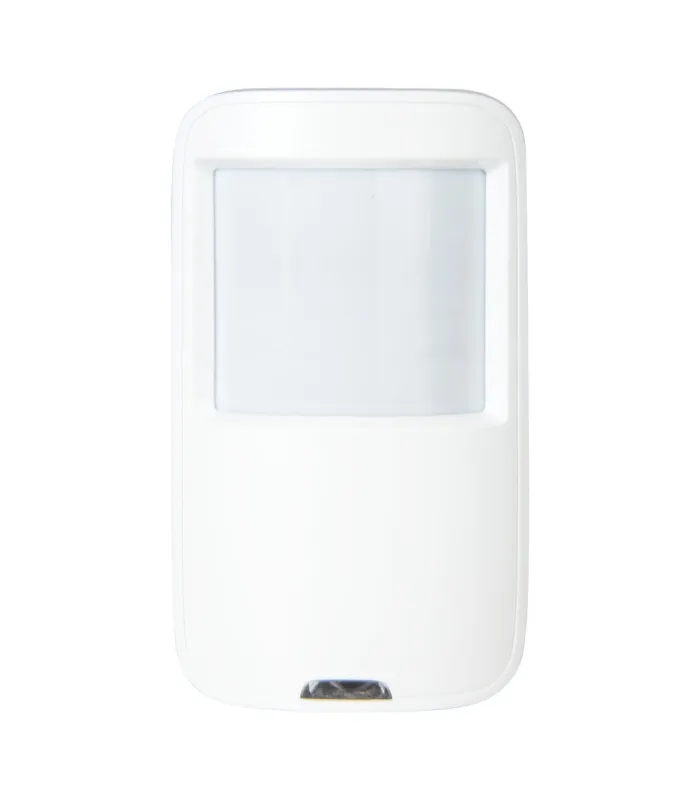

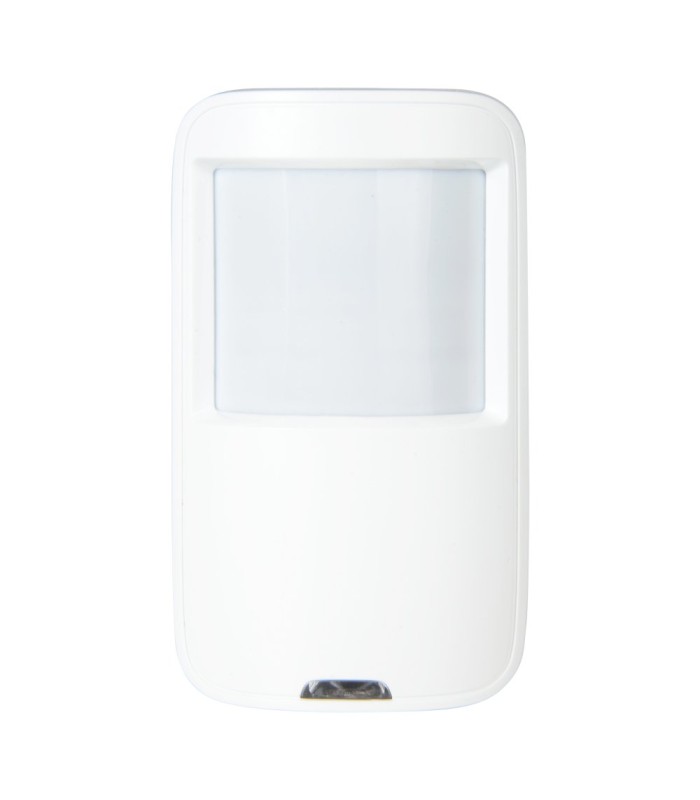

X-Security XS-PIR12P-W PIR Detector
Brand: X-SECURITY
- X-Security PIR Detector
- 433MHz Wireless
- Internal Antenna
- Range 150m
- 12m Range / 90º Angle
PIR Detector X-Security XS-PIR12P-W
- X-Security
- Volumetric PIR Detector
- Bidirectional
- Wireless 433MHz/868MHz/915MHz
- Internal antenna with free space range of 150m
- LED indicator
- Detection: Range 12m / Angle 90º
- Pet immunity ≤ 18 Kgs
- Power supply 1xCR123 3V (estimated duration 3 years)
Technical Specifications
| Technology | Volumetric PIR |
| Detection range | 12m @ 90º for H installation = 2.2~2.5m |
| Frequency | 433MHz / 868MHz / 915MHz |
| Range | Up to 150m |
| Pet immunity | ≤ 18 Kgs |
| Sensitivity | Adjustable Low or High via Jumper Switch |
| Light resistance | 6500Lux |
| LED indication | Alarm |
| Tamper | Device and wall |
| Battery | 1 x CR123A 3V (Up to 3 years duration) |
| Operating temp. | -10º C ~ 50º C |
| Protection rating | Indoor |
| Dimensions | 105(H) x 62 (W) x 41.3 (D) mm |
Contents
- Pet-immune PIR Detector
- Installation materials
- User instructions
