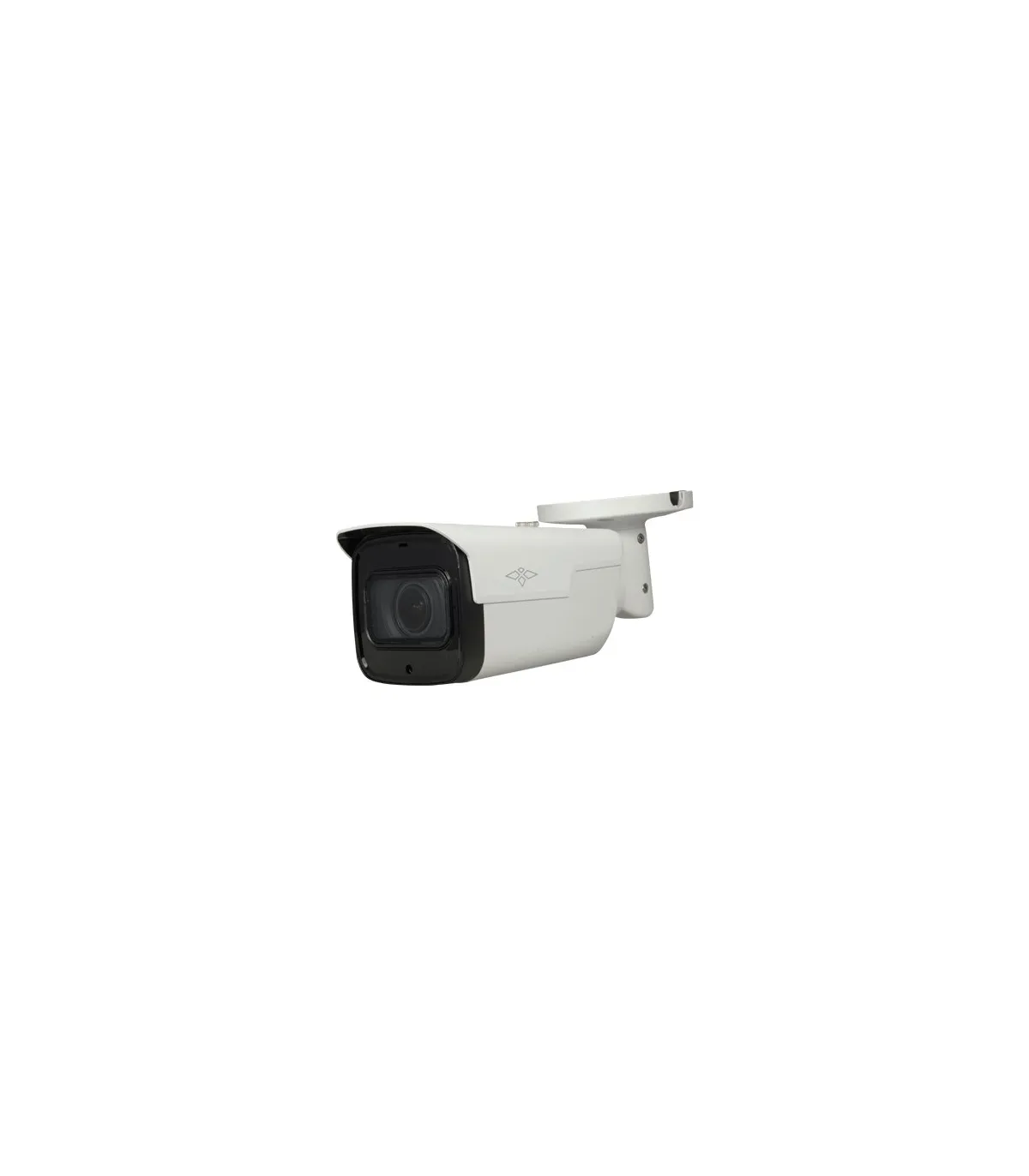

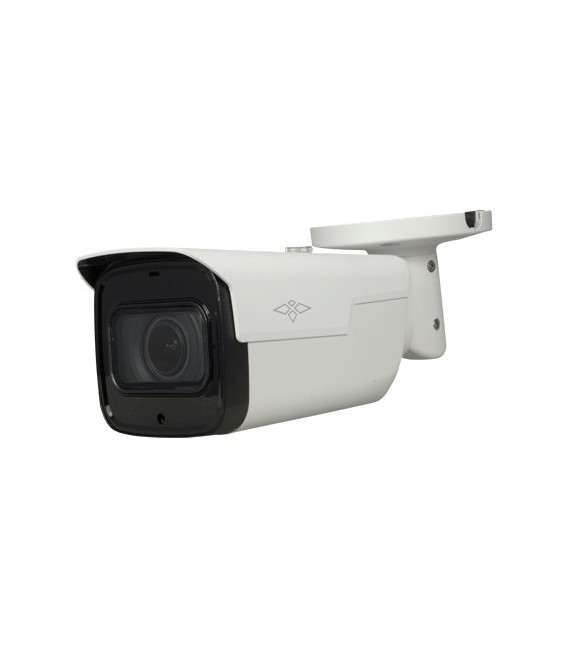

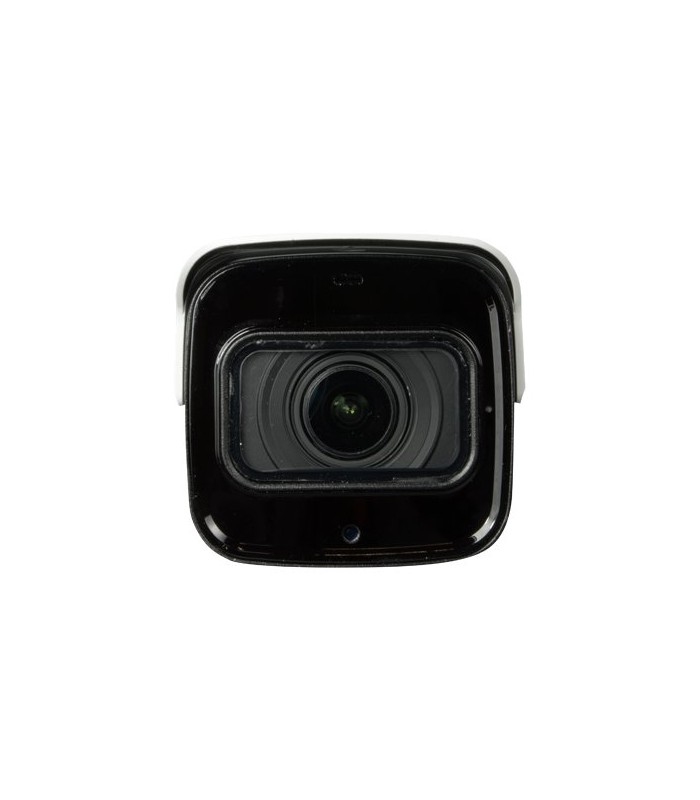

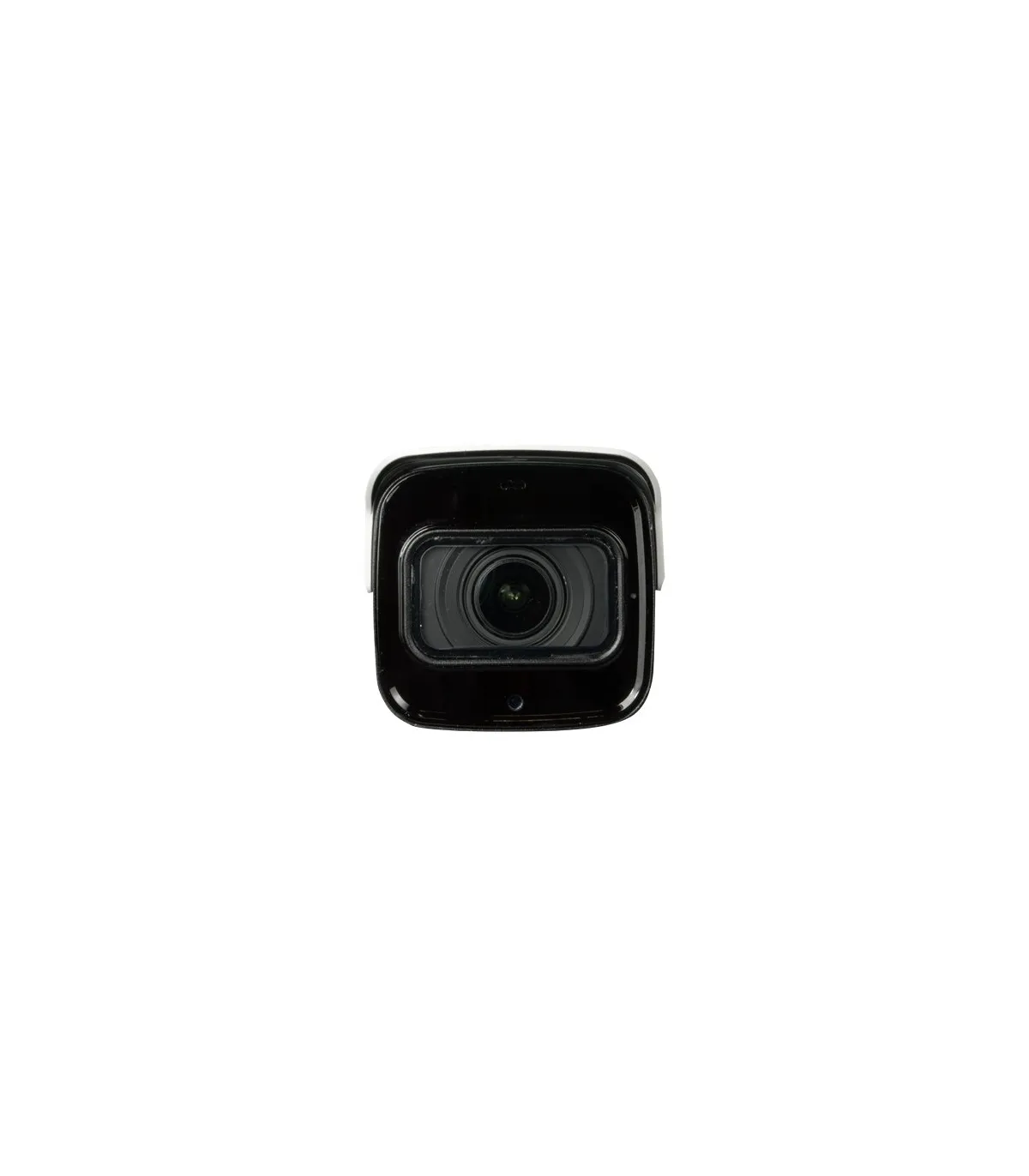

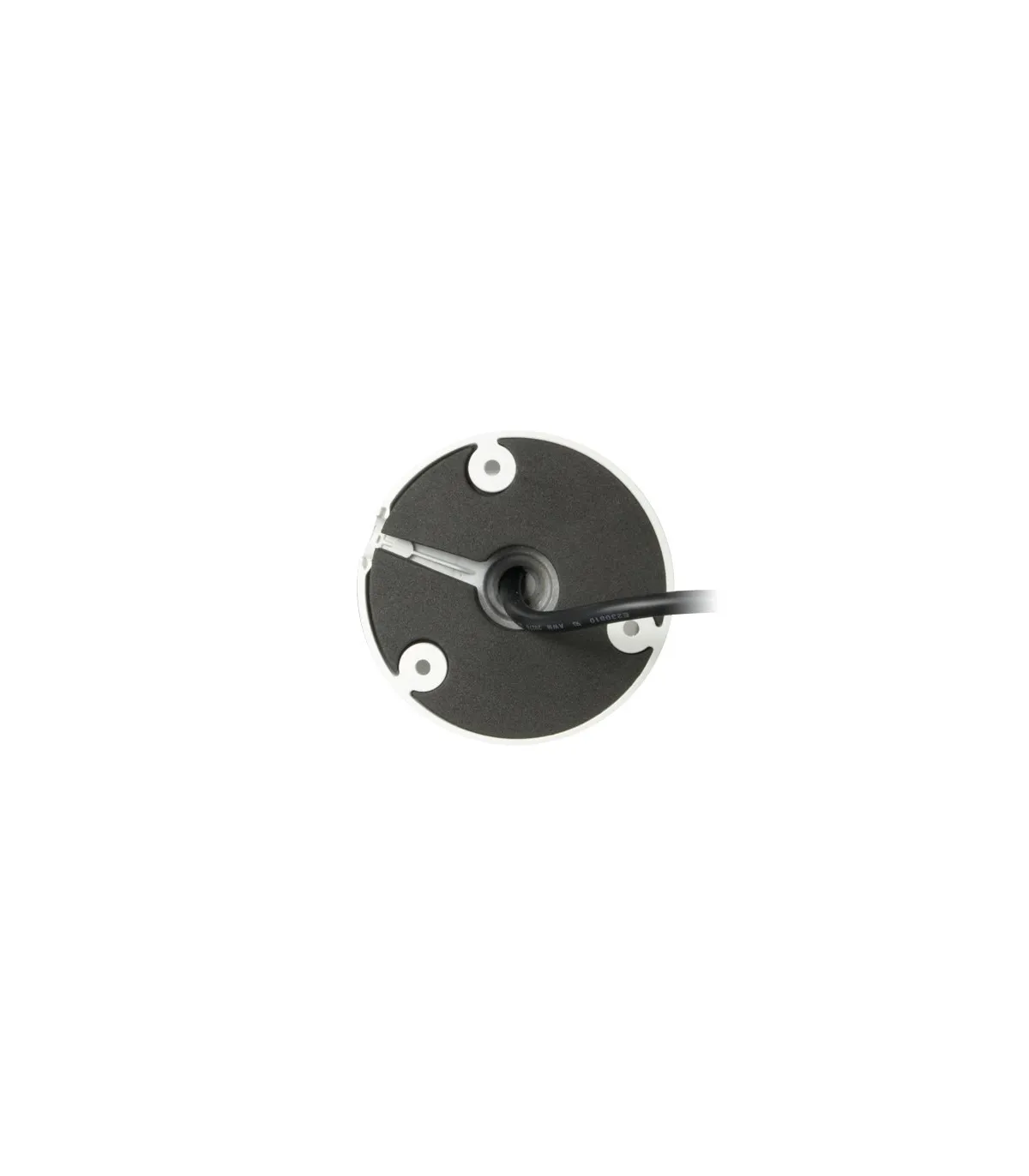

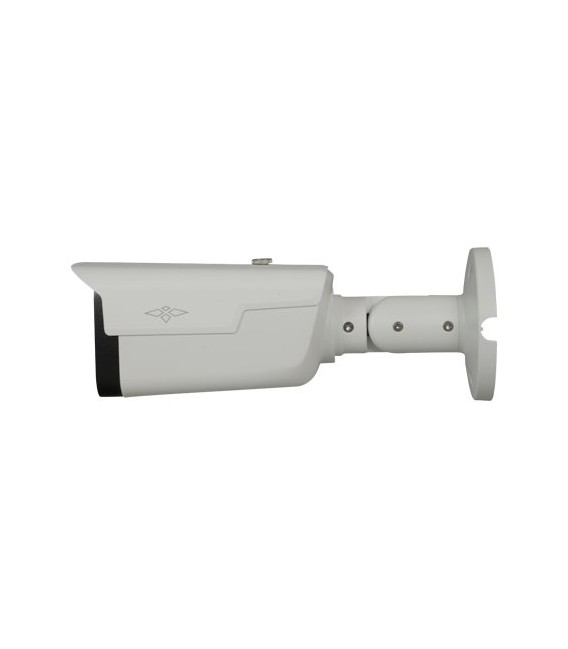

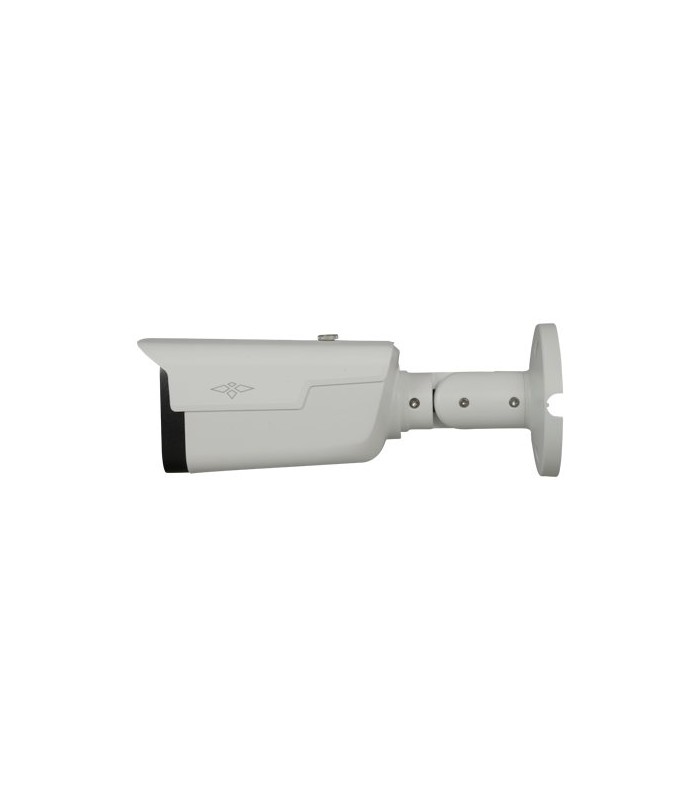

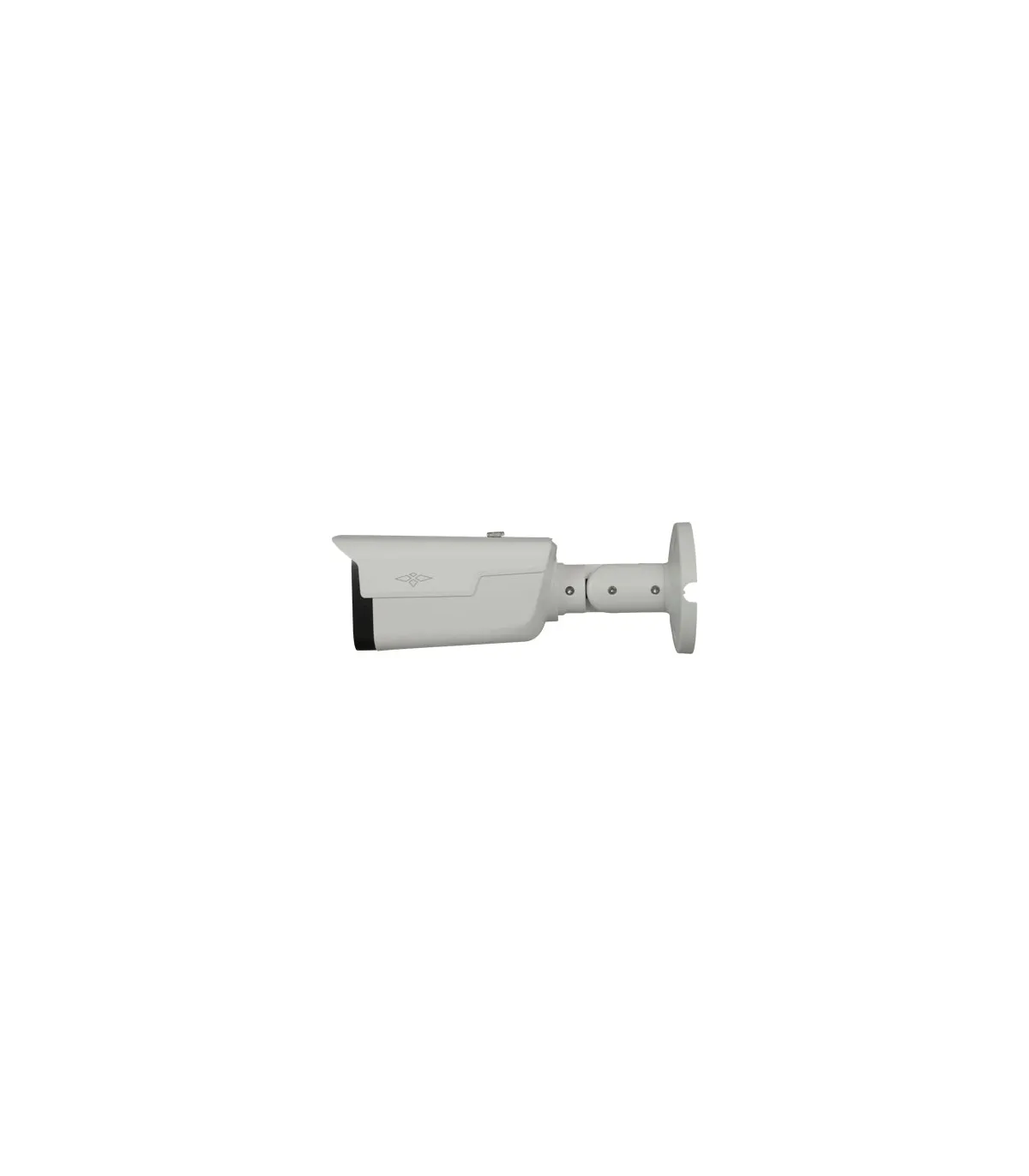

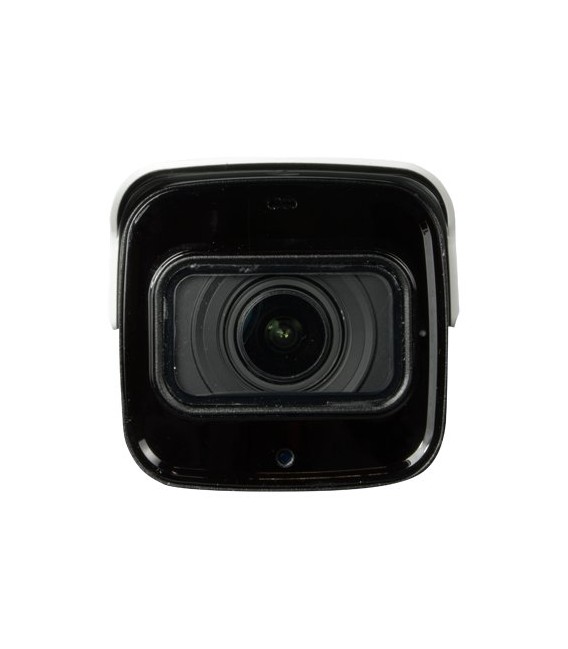

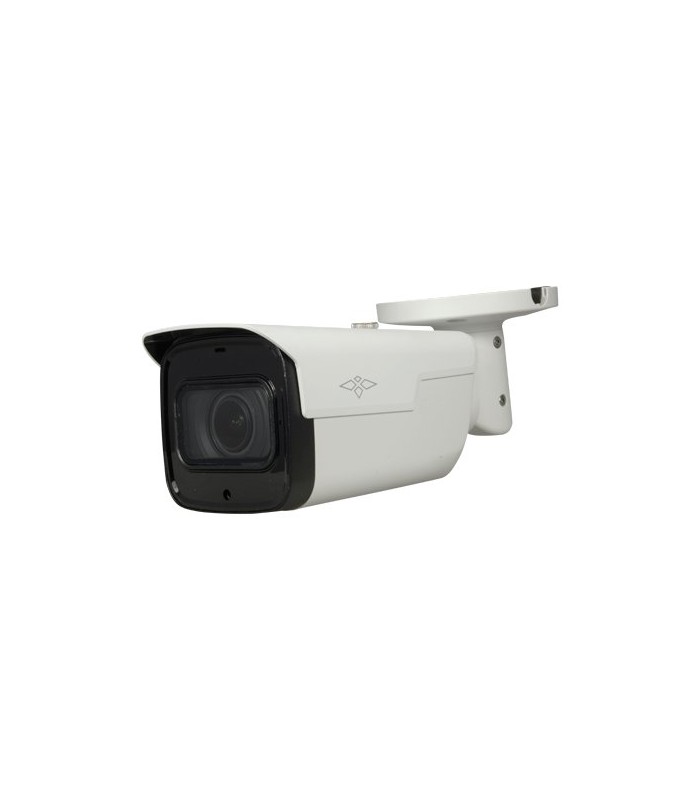

HDCVI bullet camera X-Security XS-B830ZSWA-5U4N1
Brand: X-SECURITY
- X-Security HDCVI Bullet Camera
- 1/2.7" Progressive CMOS 5 Megapixel Starlight+
- Motorized varifocal lens 2.7~13.5mm Autofocus
- WDR (120dB)
- IR LEDs range up to 80m
X-Security HDCVI Bullet Camera XS-B830ZSWA-5U4N1
- X-Security
- HDTVI, HDCVI, AHD, and Analog Bullet Camera
- ULTRA Range
- 1/2.7" CMOS Starlight
- 5 MP (2880x1620)
- 4 in 1 Output
- Motorized Lens 2.7~13.5 mm
- High Sensitivity Starlight+
- Color 0.001Lux
- B/W 0 Lux
- IR Array Range 80 m
- WDR (120dB)
- Audio with Integrated Microphone
- IR CUT
- IP67 Waterproof
Technical Specifications
| Brand | X-Security |
| Image Sensor | 1/2.7” Progressive CMOS Starlight |
| Maximum Resolution | 5 Megapixel (2880x1620) |
| Main Stream Rate | 5 MP (1 ~ 25/30fps), 4 MP (1 ~ 25/30fps), 1080P (1 ~ 25/30fps) |
| Lens | 2.7mm~13.5mm |
| Minimum Illumination | 0.001Lux/F1.6 (Color, 1/30s, 30IRE) |
| Infrared Illumination | 0 Lux / Array IR LEDs (80 m) |
| Image Enhancements | WDR, Smart IR, BLC, HLC, AWB, AGC, 3D-NR, Privacy Masking, Motion Detection, ROI |
| Day/Night | Removable ICR Mechanical Filter |
| Alarm | Not available |

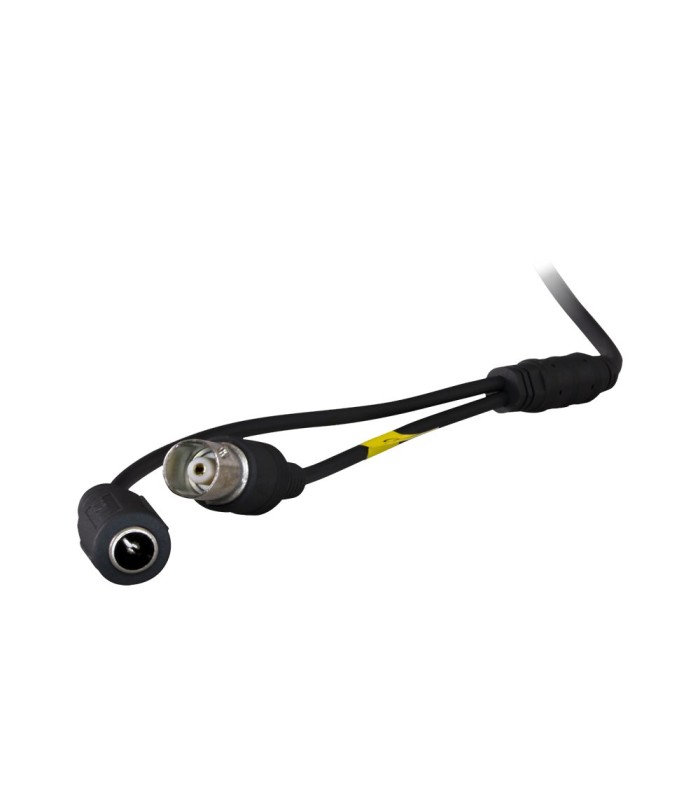

| Audio | Integrated Microphone (audio via coaxial cable) |
| Power | DC 12 V / 890 mA / 10.7 W |
| Protection Grade | IP67 Waterproof |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 244.1 mm (L) x 90.4 mm (W) x 90.4 mm (H) |
| Weight | 0.76 Kg |
Contents
- 4-in-1 X-SECURITY Bullet Camera
- 3 plugs and 3 screws for mounting
- Installation template
- User manual
- CD with software and instructions
