- PIR Detector - Ajax Superior
- Power supply 1 CR123A 3.0 V Panasonic battery
- Mounting bracket with fixing screw
- 868 MHz Jeweller wireless technology
- Detection range 12 m
- Grade 2 certified

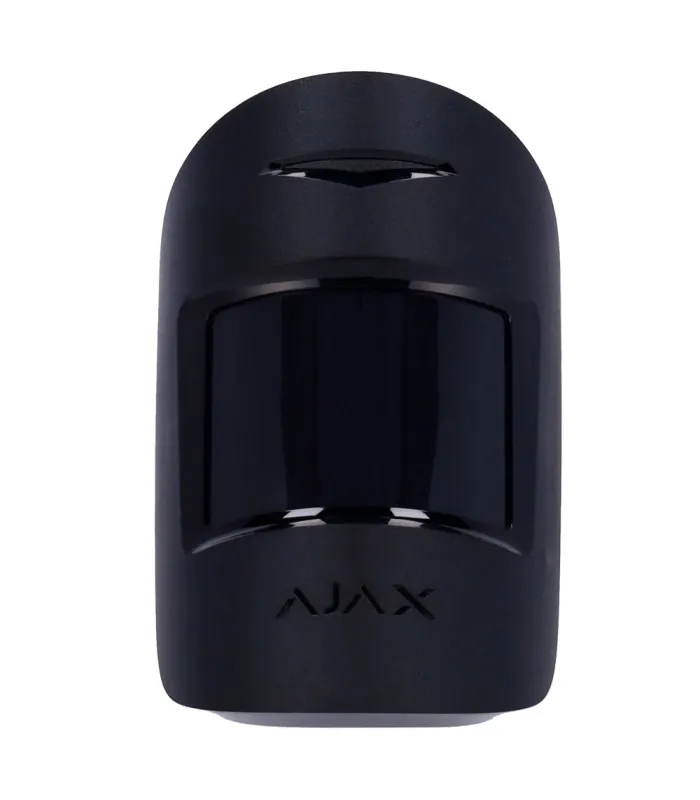

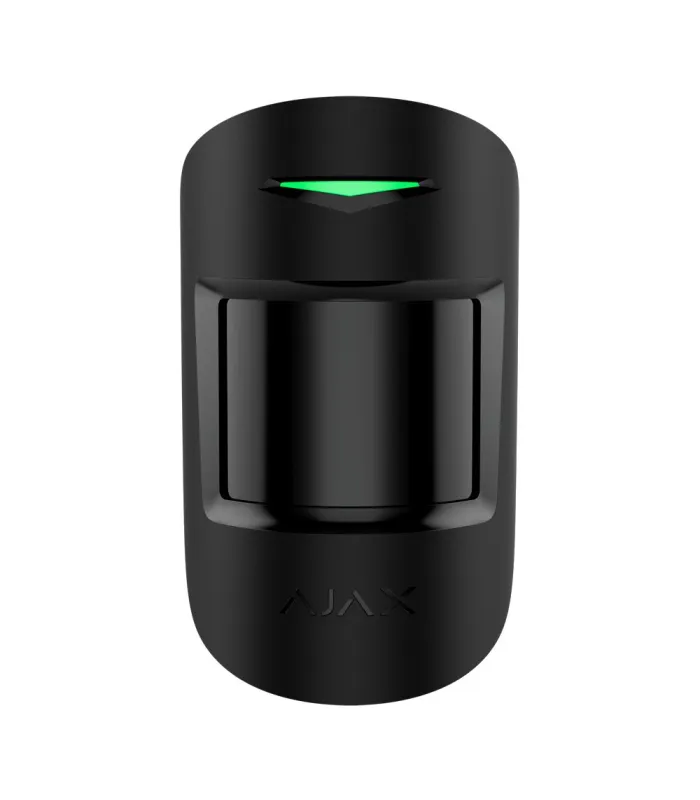

Ajax AJ-MOTIONPROTECT-S-B PIR Detector
The Ajax AJ-MOTIONPROTECT-S-B PIR Detector is a high-tech device that provides advanced protection for your home or business. With its passive infrared motion sensor, this detector is capable of detecting any unwanted intrusion on your property, sending an immediate alert to your Ajax security system.
Its compact and discreet design makes it ideal for installation in any environment, without compromising the aesthetics of your space. Additionally, its precise detection technology minimizes false alarms, ensuring effective protection 24 hours a day.
Protect what matters most with the Ajax AJ-MOTIONPROTECT-S-B PIR Detector, the perfect solution to maintain your peace of mind and security at all times.
General Features
- Ajax Superior
- Pet-immune PIR volumetric detector
- Bidirectional
- Grade 2 certified
- Wireless 868 MHz Jeweller
- Internal antenna with free space range of 1700 m
- Motion detection indicator

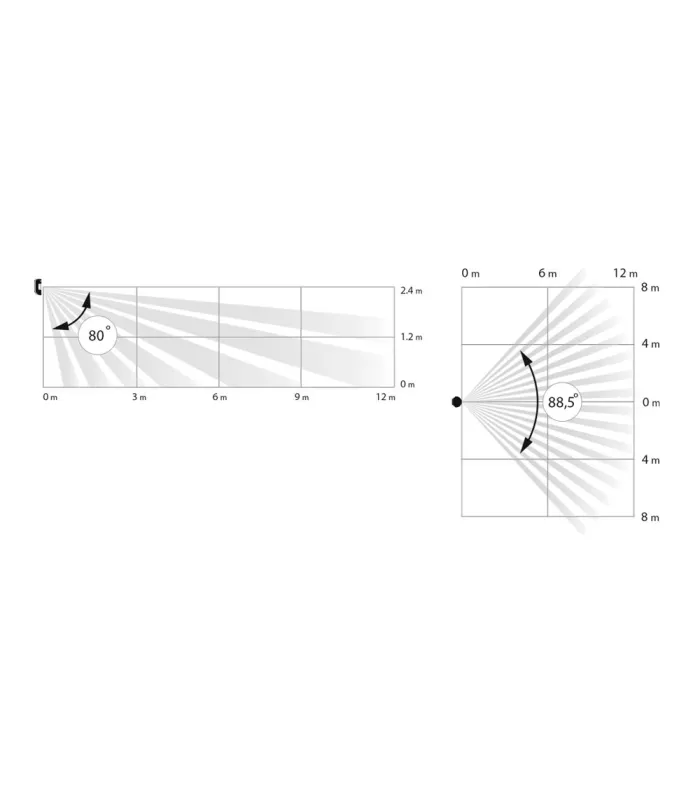

- Detection range: 12 m / H: 88.5º / V: 80º
- Anti-opening tamper
- Pet immunity <20 Kg, > 50 cm
- Power supply: 1 CR123a 3.0 V Panasonic battery (estimated lifespan 7 years)
- For indoor use
- Includes mounting bracket with screw
- Color: Black
Technical Specifications
| Brand | Ajax Superior |
| Technology | PIR volumetric |
| Security Grade | Grade 2 |
| PIR Lens | 24 zones and 6 planes |
| Detection Range | 12 m / H: 88.5º / V: 80º / Installation 2.4 m |
| Frequency | 868 MHz Jeweller |
| Transmission Distance | ≤ 1700 m in open space |
| Pet Immunity | ≤ 20 kg, ≤ 50 cm |
| Anti-masking | Not available |
| Sensitivity | Adjustable: 3 levels (low, medium, high) |
| LED Indication | Alarm, tamper, signal |
| Battery | 1 CR123A 3.0 V Panasonic battery (approximate lifespan 7 years) |
| Compatibility | Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G), ReX and ReX 2 |
| Bracket | SmartBracket with mounting screw |
| Operating Temperature | 0 º C ~ 50 º C |
| Cover Material | ABS plastic |
| Dimensions (without bracket) | 110 (H) x 65 (W) x 50 (D) mm |
| Color | Black |
Package Contents
- Indoor PIR Detector
- Instruction Manual
- Mounting Materials
Data sheet
- Brand
- AJAXSUPERIOR
- Case Color
- Black
- Indoor / Outdoor
- Indoor
- Product type
- Detector de movimiento
Specific References
- EAN13
- 4823114042324
