Ajax magnetic contact AJ-DOORPROTECTPLUS-S-W
Brand: Ajax Systems
- Magnetic Contact - Ajax Superior
- Vibration and Tilt Detector
- 2 reed relays: magnet installation on both sides
- Power supply 1 CR123A 3.0 V Panasonic battery
- Wireless 868 MHz Jeweller
- Grade 2 certified

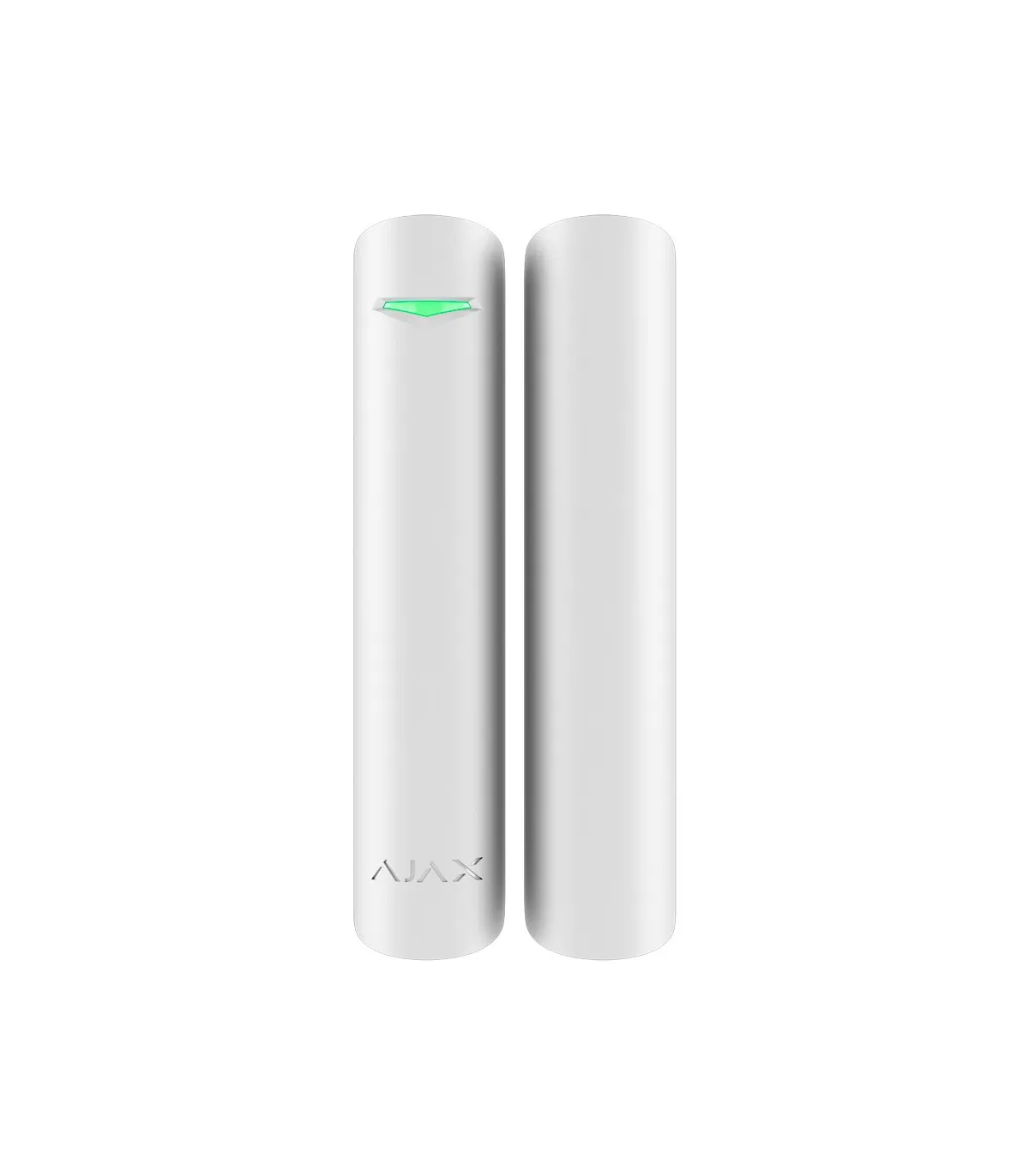

Ajax AJ-DOORPROTECTPLUS-S-W Magnetic Contact
The Ajax AJ-DOORPROTECTPLUS-S-W Magnetic Contact is an advanced security device that protects your home or business from unwanted intrusions. With its magnetic detection technology, this sensor is capable of detecting any attempt to open doors or windows, immediately triggering the alarm to alert you and deter potential intruders.
Its compact and discreet design makes it ideal for installation on any type of door or window, without affecting the aesthetics of your space. In addition, its easy installation and configuration make it a accessible security solution for any user, without the need for advanced technical knowledge.
General Features
- Ajax Superior
- Magnetic contact with vibration and tilt detection
- Bidirectional
- Grade 2 certified
- Wireless 868 MHz Jeweller
- Internal antenna with free space range of 1000 m
- Two reed relays: allows installation of magnet on both sides of the device
- Open/close detection indicator
- Supports wired sensor input
- Anti-tamper protection
- Power supply: 1 CR123a 3.0 V Panasonic battery (estimated 5-year lifespan)
- For indoor use
- Includes mounting bracket with screw
- Color: white
Technical Specifications
| Brand | Ajax Superior |
| Frequency | 868 MHz Jeweller |
| Security Grade | Grade 2 |
| Transmission Distance | ≤ 1000 m in open space |
| Number of Relays | 2; allows installation of magnet on both sides |
| Auxiliary Input External Contact | NC voltage-free or pulse counter card function compatible with shutter detector |
| LED Indications | Alarm, tamper, signal |
| Cover Material | ABS plastic |
| Battery | 1 CR123A 3.0 V Panasonic battery (approx. 5-year lifespan) |
| Compatibility | Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G), ReX and ReX 2 |

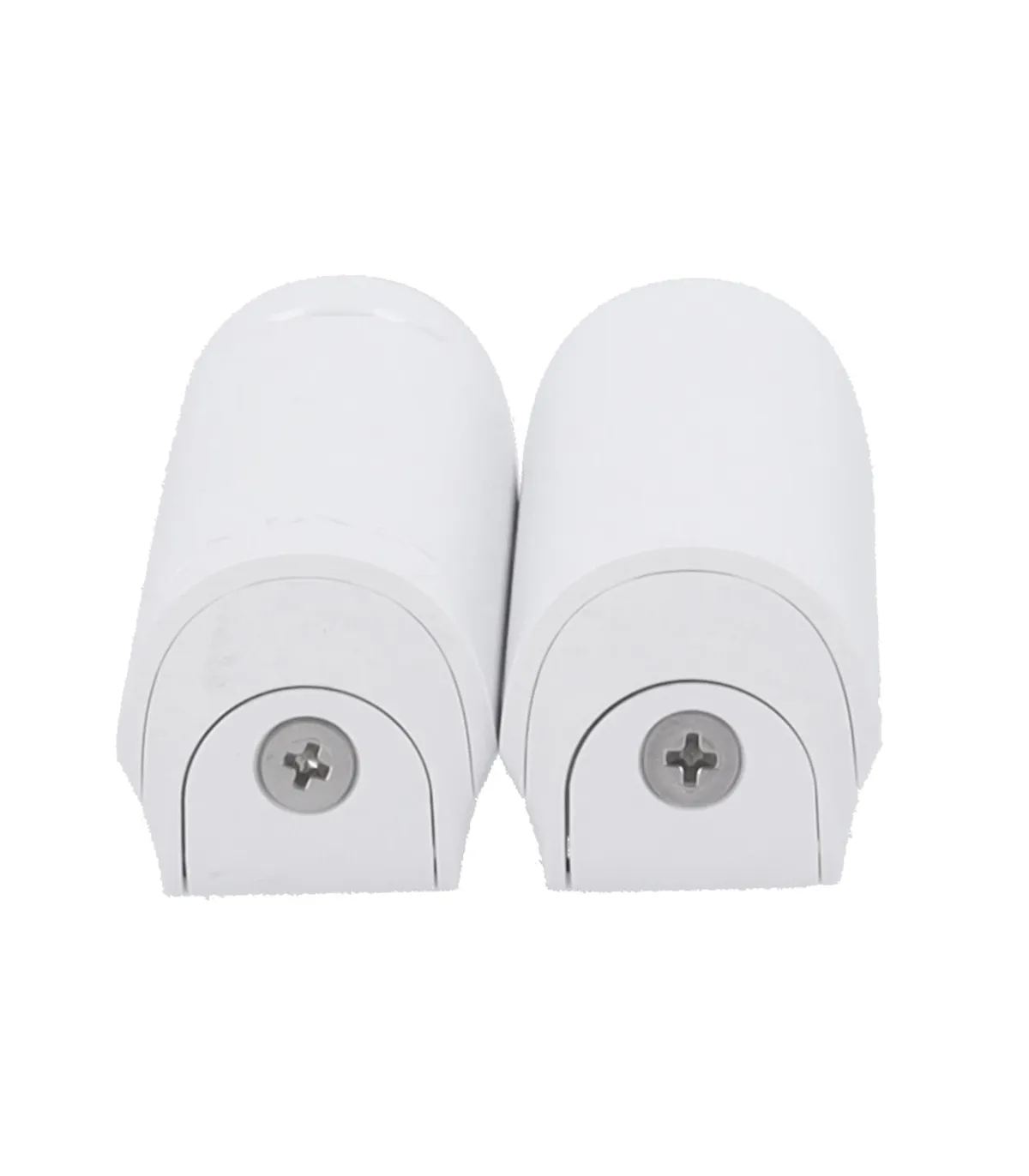

| Bracket | SmartBracket with mounting screw |
| Operating Temperature | 0 °C ~ 50 °C |
| Transmitter Dimensions | 90 mm (H) x 20 mm (Ø) |
| Magnetic Dimensions | 90 mm (H) x 20 mm (Ø) |
| Color | White |
Package Contents
- Magnetic contact
- User manual
- Mounting materials
