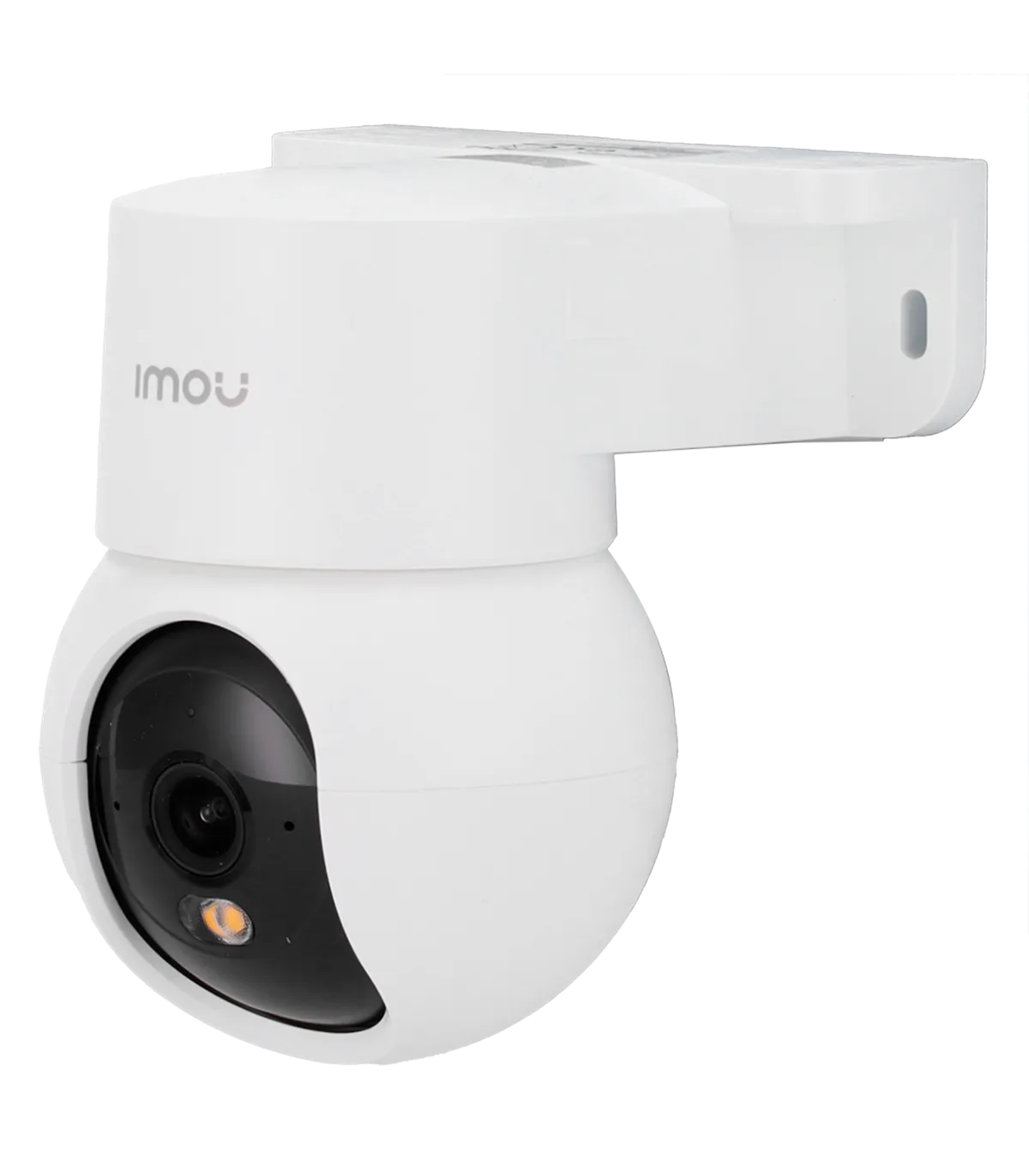

The Imou Ranger Mini 5MP is a motorized WiFi 6 camera engineered for continuous remote monitoring of homes and businesses. It delivers high-detail daytime and color night images, automatic person tracking and intelligent human detection to drastically reduce false alarms and notify you only for meaningful events. Built-in two-way audio and a configurable siren let you verify incidents and actively deter intruders in real time. As a DIY Imou product, installation and daily operation are straightforward via the Imou Life app, enabling rapid deployment and ongoing system management without professional installation.
| Brand | Imou |
| Model | IPC-K2MP-5H1WE-IMOU / Ranger Mini 5MP |
| Image sensor | 1/3” Progressive Scan CMOS — optimized for motion clarity and low-light sensitivity |
| Main stream encoding | 2688 x 1664 (5MP) — high-resolution stream for forensic-quality evidence |
| Lens | 3.6 mm (Diagonal field of view 94º) — wide enough for comprehensive room/area coverage |
| Remote Pan/Tilt movement | Horizontal: 355°, Vertical: 5~50° — near-complete horizontal rotation and adjustable tilt for tracking across large areas |
| Tracking modes | Motion-tracking (motion) — automatic follow-up on detected movement to maintain subject in frame |
| Infrared illumination | 0 lux IR LEDs (10 m) — invisible IR illumination for clear black-and-white night imaging up to 10 meters |
| Color illumination | Color Night Vision / Flash deterrent — provides color images at night and a configurable strobe to deter intruders |
| Audio | Two-way audio (microphone and speaker) — enables live verification and direct communication with people on site |
| Detection types | Video motion detection Intelligent human detection — combines motion sensing with AI filtering to focus alerts on human activity |
| Internal storage | Supports microSD card (max. 512GB) — local storage for continuous or event-based recording |
| External storage | NVR Imou or Dahua via private protocol Third-party NVR via ONVIF Cloud recording with Imou Protect subscription in the app — flexible retention options to suit performance and redundancy requirements |
| Network interface | WiFi 6 2.4GHz IEEE 802.11 b/g/n — WiFi 6 performance with backward compatibility Ethernet 10/100 BaseT (RJ45) |
| Remote access | Smartphone app: Imou Life Software: Imou PC No web browser access — mobile and PC client management for monitoring and configuration |
| Power | DC5 V / 1000 mA Type-C — standard low-voltage supply for easy installation |
| Protection rating | Waterproof IP66 — weather-resistant for reliable outdoor and indoor deployment |
| Operating temperature | -30º C ~ +60º C — designed for extreme temperature ranges |
| Dimensions | 95 mm x 96 mm x 109 mm |
| Weight | 200 g |
