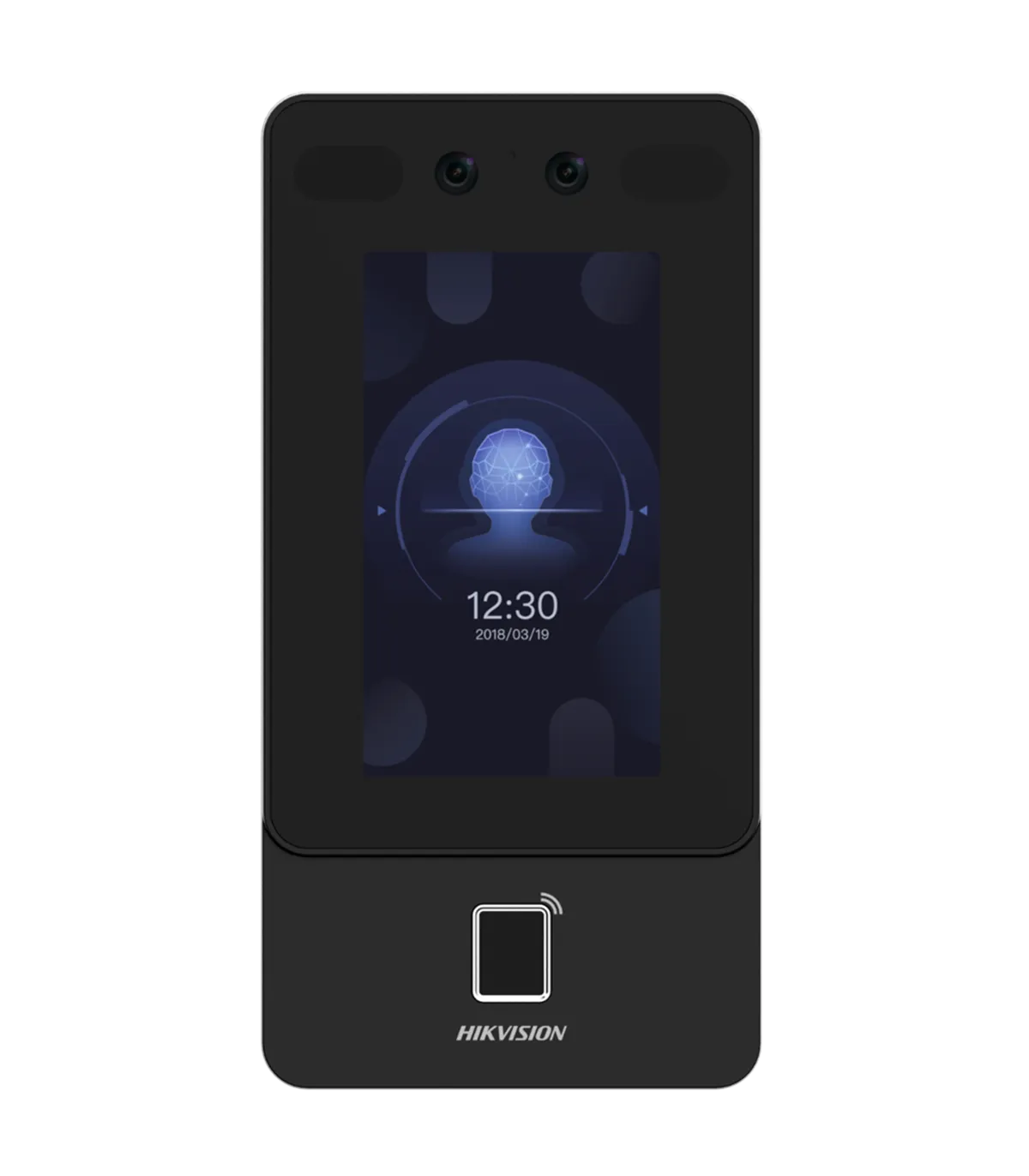

Hikvision Access Control Terminal Facial Recognition Fingerprint PoE IP65 DS-K1T342MFWX-E1
- PoE IP65 Access and Attendance Control
- Facial, fingerprint, MF card, QR, and PIN
- 1,500 users | 150,000 records
- TCP/IP, WiFi, USB, RS485, and Wiegand
- 4.3" TFT touchscreen | Integrated controller
- iVMS-4200 | Hik-Connect
€232.29
Reference:
DS-K1T342MFWX-E1
Brand:
Add to wishlist
An autonomous access control device consists of the combination of a controller and a reader in a single unit: it is capable of identifying users, making the decision of whether they have permission to access the facility, and operating the electronic lock through its relay. Hybrid terminals combine access control and attendance control, also being able to perform time tracking of employees at the moment they are identified.
This device allows identification through MF technology cards or key fobs at 13.56 MHz, QR code reading, as well as a keypad for numeric codes and biometrics with fingerprint and facial recognition.
Its 4.3" touchscreen facilitates local operation and configuration of the device, both for standalone use without software and for setting parameters required to connect to the software, such as network configuration.
Configurable advanced functions: 12 VDC output (allows direct powering of the electronic lock without the need for an additional power source as the device is powered by standard PoE) and function as a video intercom.
Its IP65 exterior rating allows it to be installed outdoors.
User, schedule, and access group configuration, as well as special functions, relay opening times, or reader reading times, are managed from the iVMS-4200 software.
- Hikvision
- Standalone biometric access control and attendance reader
- Identification by MF card, fingerprint, facial recognition, QR, password, and/or combinations
- 4.3" color TFT touchscreen
- Capacity for 1,500 faces, 3,000 cards, 3,000 fingerprints, and 150,000 records
- Communication via TCP/IP, WiFi, USB, RS485, and Wiegand
- Integrated controller (door sensor, button, and relay)
- 12 V output for lock
- Dual sensor camera for anti-spoofing technology
- Remote openings via Hik-Connect
- Compatible with iVMS-4200 software
- Outdoor suitable IP65
- Standard PoE IEEE802.3af
Specifications: DS-K1T342MFWX-E1
| Brand | Hikvision |
| Model | DS-K1T342MFWX-E1 |
| Operating System | Linux |
| Capacity | Up to 1,500 faces, 3,000 fingerprints, and 3,000 cards/passwords/QR |
| Records | 150,000 records |
| Identification Modes | Facial recognition, fingerprint, card, PIN, QR, and/or combinations |
| Proximity Card | MF (13.56 MHz) |
| Screen | 4.3" color LCD TFT touchscreen |
| Screen Resolution | 272 x 480 |
| Camera | 2 MP with dual sensor for facial recognition |
| Facial Recognition Verification Time | < 0.2 sec |
| Facial Recognition Accuracy | > 99% |
| Facial Recognition Distance | 0.3 m to 1.5 m |
| Fingerprint Verification Time | < 1 sec |
| Communication | TCP/IP, WiFi, USB, RS485, and Wiegand |
| Integrated Controller | Wiegand 26/34, door sensor, button, and relay |
| Alarms | Tamper |
| Audio | Two-way audio |
| Special Functions | Operation as a video intercom DC 12 V / 1 A output (when powered by PoE) |
| Software | iVMS-4200 / iVMS-4200 AC |
| Mobile Application | Hik-Connect |
| Power Supply | DC 12 V / 1 A max. Standard PoE IEEE802.3af |
| Protection Rating | Outdoor suitable IP65 |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 91 (W) x 181 (H) x 24.5 (D) mm |
| Weight | 360 g |
Package Contents
- Hikvision biometric device
- Mounting materials
- User instructions
- Power adapter
DS-K1T342MFWX-E1
Data sheet
- Brand
- HIKVISION
- Compatible models
- DS-KAB6-ZU1,DS-KAB6-ZU1,DS-KAB6-W1,DS-KAB34X-S1
Specific References
- EAN13
- 6942160439778
