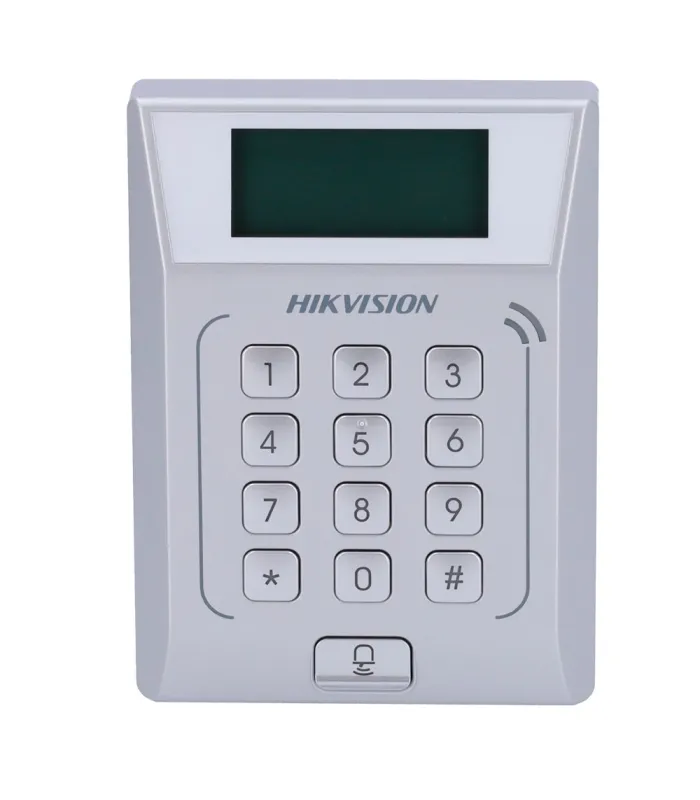

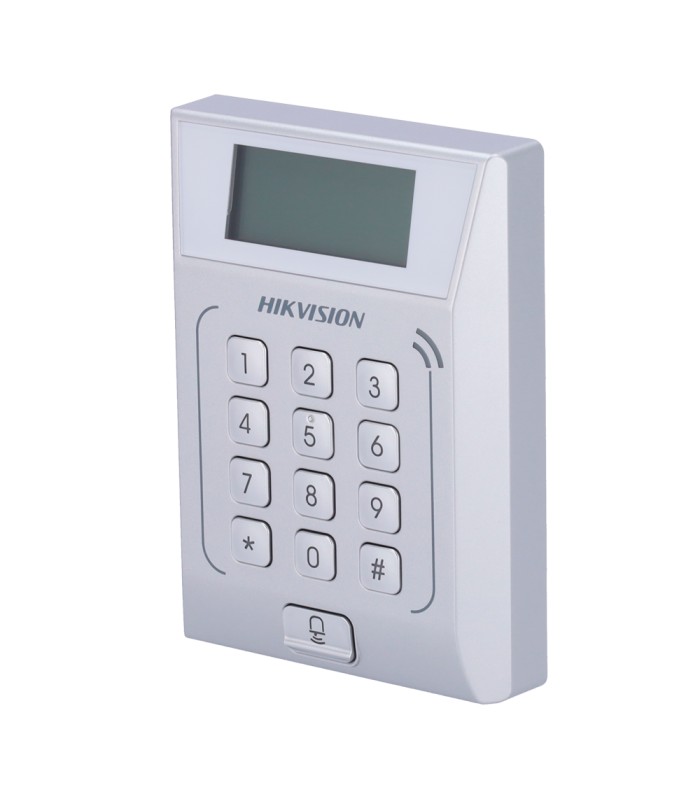

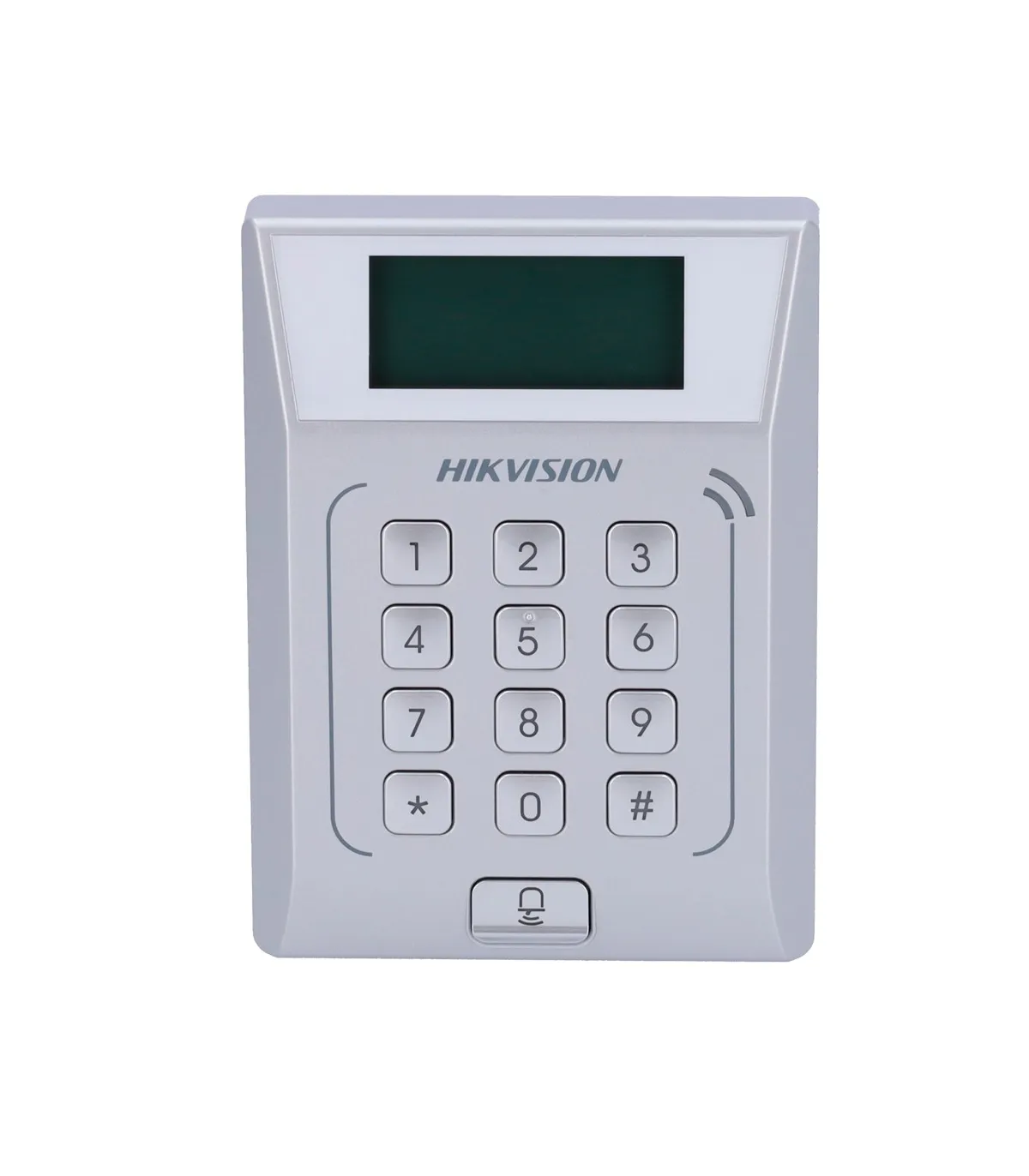

Access control Hikvision DS-K1T802M
- Hikvision
- Autonomous access control reader
- Identification by MF card, password and/or combinations
- Keyboard and dot matrix display
- Capacity 3,000 cards and 10,000 records
- TCP/IP communication
- Integrated controller (door sensor, push button, doorbell and relay)
- Compatible with iVMS-4200 software
Technical specifications
| 32 bit | |
| Capacity | Up to 3,000 cards/passwords |
| Records | 10,000 records |
| Identification modes | Card, PIN (configurable only through software) and/or combinations |
| Proximity card | MF (13.56 MHz) |
| Display | 128 x 64 dot matrix |
| Communication | TCP/IP |
| Integrated controller | Door sensor, push button, doorbell and relay (maximum DC load 30 V / 2 A) |
| Software | iVMS-4200 / iVMS-4200 AC |
| Power | DC 12 V / 170 mA max. |
| Protection degree | Suitable for indoors |
| Temp. operation | -20º C ~ +65º C |
| Dimensions | 94.5 (W) x 126.5 (H) x 24 (Fo) mm |
| Weight | 190 g |
Contents
- Hikvision access control device
- Mounting material
- Instructions for use
