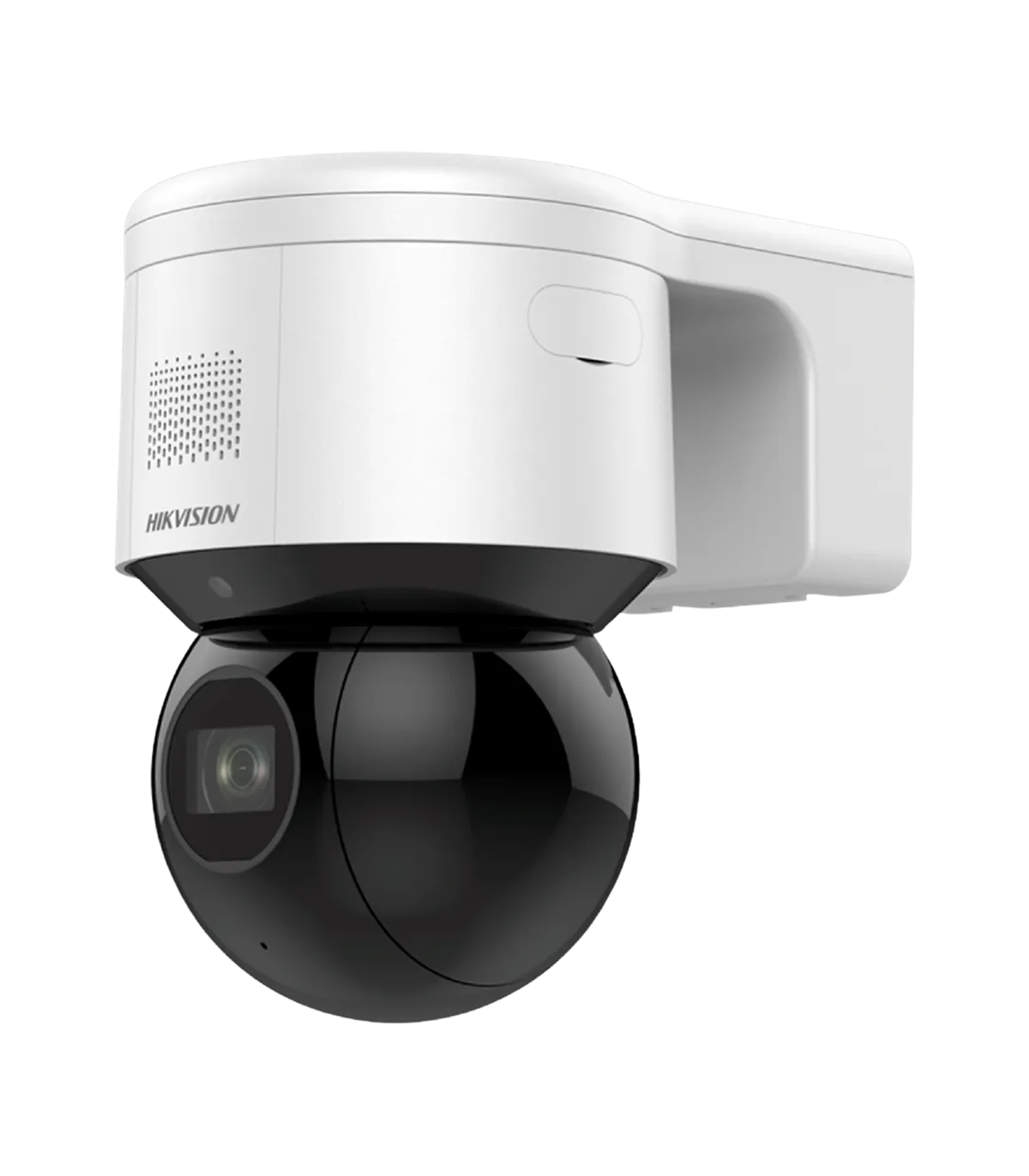

The DS-2DE3A404IWG-E/W is a high-performance IP PTZ camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera offers exceptional image quality and advanced features, making it suitable for security monitoring in various settings such as retail, parking lots, and public spaces. With its 4 Megapixel resolution and advanced low light performance, it ensures clear images even in challenging lighting conditions.
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/2.8“ Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Optics | Varifocal lens 2.8~12 mm (Optical zoom 4X) |
| Field of View (FOV) | 96.7~31.6º (H), 51.1~17.7º (V), 115.1~36.3º (D) |
| DORI | Tele: 180 m (D), 71.4 m (O), 36 m (R), 18 m (I) |
| Main Stream Rate | 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) |
| Extra Stream Rate | 25 fps (704x576, 640x480, 352x288) |
| Third Stream Rate | 25 fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288) |
| Minimum Illumination | Color: 0.005 Lux @ (F1.5, AGC ON) 0 lux with IR range 50 m |
| Additional Deterrent Light | White light range 6 m |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Bitrate | 32 Kbps ~16 Mbps |
| Digital Zoom | 16X |
| Electronic Shutter | 1/1s~1/30,000 s |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, Privacy Masking, ROI |
| ANR | Yes |
| Motion Detection | Yes |
| Intelligent Features | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region Face Detection |
| Pan/Tilt Range | Horizontal: 0~350°, Vertical: 0°~90° |
| Manual Speed | Horizontal: 0.1~60 °/s, Vertical: 0.1~50 °/s |
| Speed Between Presets | Horizontal: 60 °/s, Vertical: 50 °/s |
| Preset Positions | 300 presets, 4 auto patterns, 8 auto tours, auto pan, auto scan |
| Internal Storage | MicroSD card slot up to 256 GB |
| Audio | 1 input (Line In) / 1 output (Line Out) Integrated microphone and speaker |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2) |
| Alarms | 1 Input / 1 Output |
| PTZ Control | Via network access |
| Network Interface | Ethernet 10 / 100 BaseT Wi-Fi IEEE802.11 b/g/n |
| WiFi Frequency | 2.4 GHz ~ 2.4835 GHz |
| WiFi Encryption Mode | 64/128-bit WEP, WPA/WPA2, WPS |
| WiFi Modulation | 802.11b: CCK, DQPSK, DBPSK 802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK 802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central * With Wi-Fi connection, direct connection with Hik-connect is not possible |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 3.33 A / 16 W max. / PoE+ IEEE802.3at |
| Operating Temperature | -30º C ~ +65º C |
| Material | ADC12 + PC |
| Protection Rating | IP66 / 6000 V surge protection |
| Dimensions (without mount) | 182 mm (H) x 120.5 mm (W) x 179.3 mm (D) |
| Weight (without mount) | 1125 g |
The DS-2DE3A404IWG-E/W is an excellent choice for comprehensive surveillance in a variety of environments. For instance, in a retail setting, this PTZ camera can be strategically placed to monitor entrances and high-traffic areas. With its 4 Megapixel resolution and IR capabilities, it captures clear images both day and night, ensuring that no activity goes unnoticed. The AcuSense technology significantly reduces false alarms by accurately distinguishing between human and vehicle movements, making it ideal for busy locations. Additionally, the camera's remote monitoring capabilities allow security personnel to access live feeds via a smartphone or web interface, enhancing situational awareness. The robust IP66 rating ensures durability against harsh weather conditions, making it suitable for outdoor installations. Overall, the DS-2DE3A404IWG-E/W provides a reliable and efficient solution for modern security needs.
