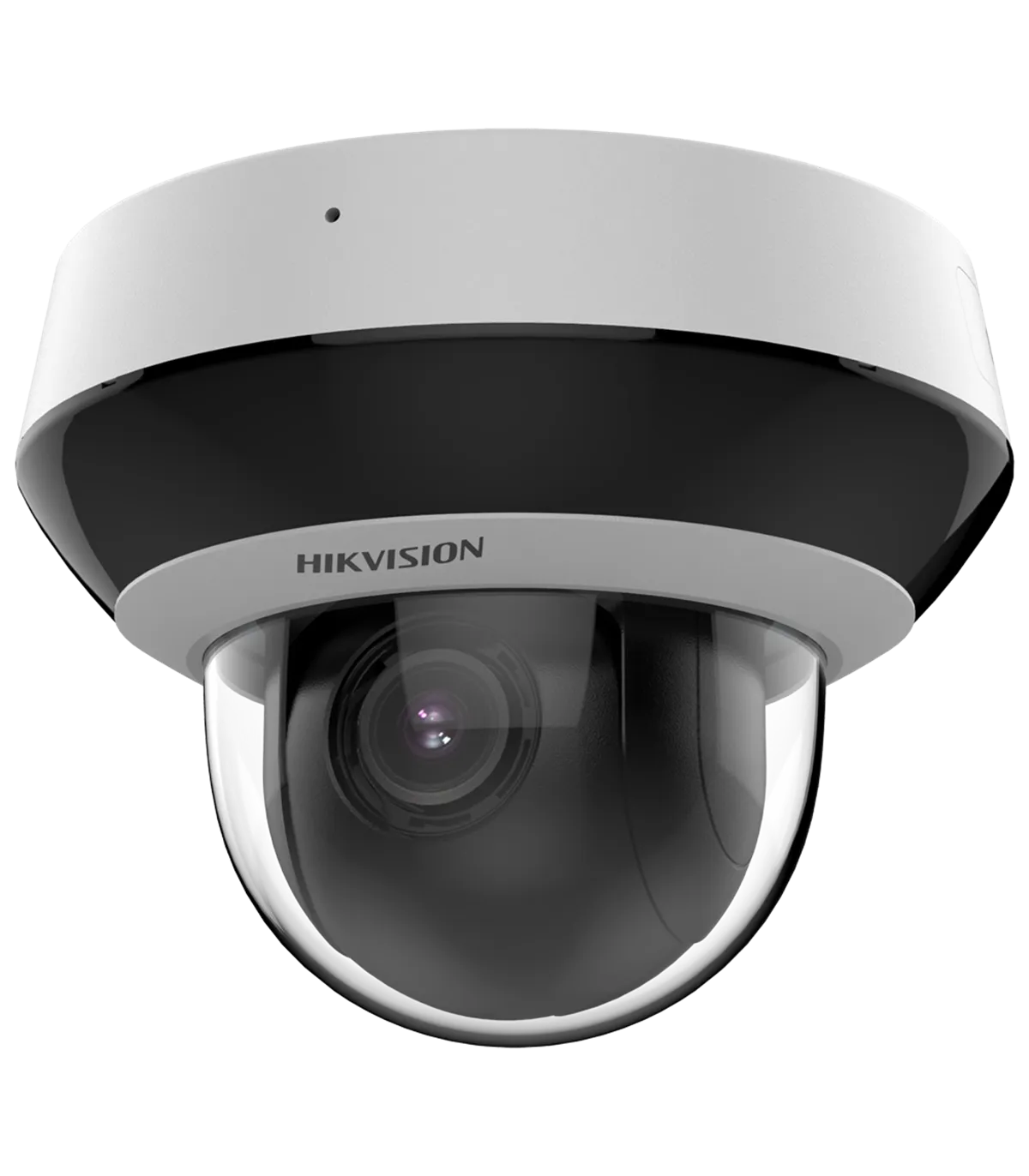

The DS-2DE2A404IWG1-E/W is a high-performance IP Mini PTZ camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera offers exceptional image quality with its 4 Megapixel resolution and advanced features such as Ultra Low Light capabilities powered by DarkFighter technology. With a motorized varifocal lens and a 4X optical zoom, it provides flexible monitoring options, making it suitable for various security needs.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8“ Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) |
| Extra Stream Rate | 25 fps (704x576, 640x480, 352x288) |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Minimum Illumination | Ultra Low Light (Powered by DarkFighter) Color: 0.005 Lux @ (F1.8, AGC ON) Black and white: 0.001 Lux @ (F1.8, AGC ON) 0 lux with IR LEDs range 20 m |
| Optics | Motorized varifocal 2.8~12 mm (4X optical zoom) |
| Field of View (FOV) | 99.4~32.8º (H), 51.7~18.4º (V), 119.9~37.5º (D) |
| DORI | 180 m (D), 71.4 m (O), 36 m (R), 18 m (I) |
| Digital Zoom | 16X |
| Electronic Shutter | 1/1s~1/30,000 s |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy Masking |
| ANR | Yes |
| AcuSense | Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion |
| Pan/Tilt Range | Horizontal: 0~355°, Vertical: 0°~90° |
| Manual Speed | Horizontal: 0.1~50 °/s, Vertical: 0.1~50 °/s |
| Speed Between Presets | Horizontal: 50 °/s, Vertical: 50 °/s |
| Preset Positions | 300 presets |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | 1 input (Line In) / 1 output (Line Out) Integrated microphone and speaker |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1), 32 to 160 Kbps (MP2L2), 16 to 64 Kbps (AAC-LC), 16 Kbps (G.726) |
| Alarms | Not available |
| PTZ Control | Via network access |
| Network Interface | Ethernet 10 / 100 BaseT Wi-Fi IEEE802.11 b/g/n |
| Wi-Fi Encryption Mode | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Wi-Fi Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Wi-Fi Modulation | 802.11b: CCK, DQPSK, DBPSK 802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK 802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 11.2 W max. PoE IEEE802.3af |
| Power Output | DC 12 V, 60 mA |
| Operating Temperature | -20º C ~ +60º C |
| Protection Rating | Waterproof IP66 Vandal-proof IK10 Surge protection 4000 V |
| Dimensions (without mount) | Ø 130.7 mm x 103.6 mm (H) |
| Base Dimensions | Ø base 122 mm / Ø between screws 96 mm / 4 screws |
| Weight (without mount) | 560 g |
The DS-2DE2A404IWG1-E/W is an excellent choice for a variety of surveillance scenarios, particularly in commercial settings such as retail stores, parking lots, and office buildings. With its motorized varifocal lens, users can easily adjust the field of view to cover specific areas of interest, enhancing security coverage. The camera's Ultra Low Light capabilities ensure clear images even in low-light conditions, making it ideal for nighttime monitoring. Additionally, the integration of AcuSense technology significantly reduces false alarms by accurately distinguishing between human and vehicle movements. This feature is particularly beneficial in high-traffic areas where unnecessary alerts can lead to alarm fatigue. The camera's remote monitoring capabilities via web and mobile applications allow users to access live feeds and recorded footage from anywhere, providing peace of mind and flexibility. Furthermore, its robust IP66 waterproof and IK10 vandal-proof ratings ensure durability in various environmental conditions, making it a reliable choice for outdoor installations.
