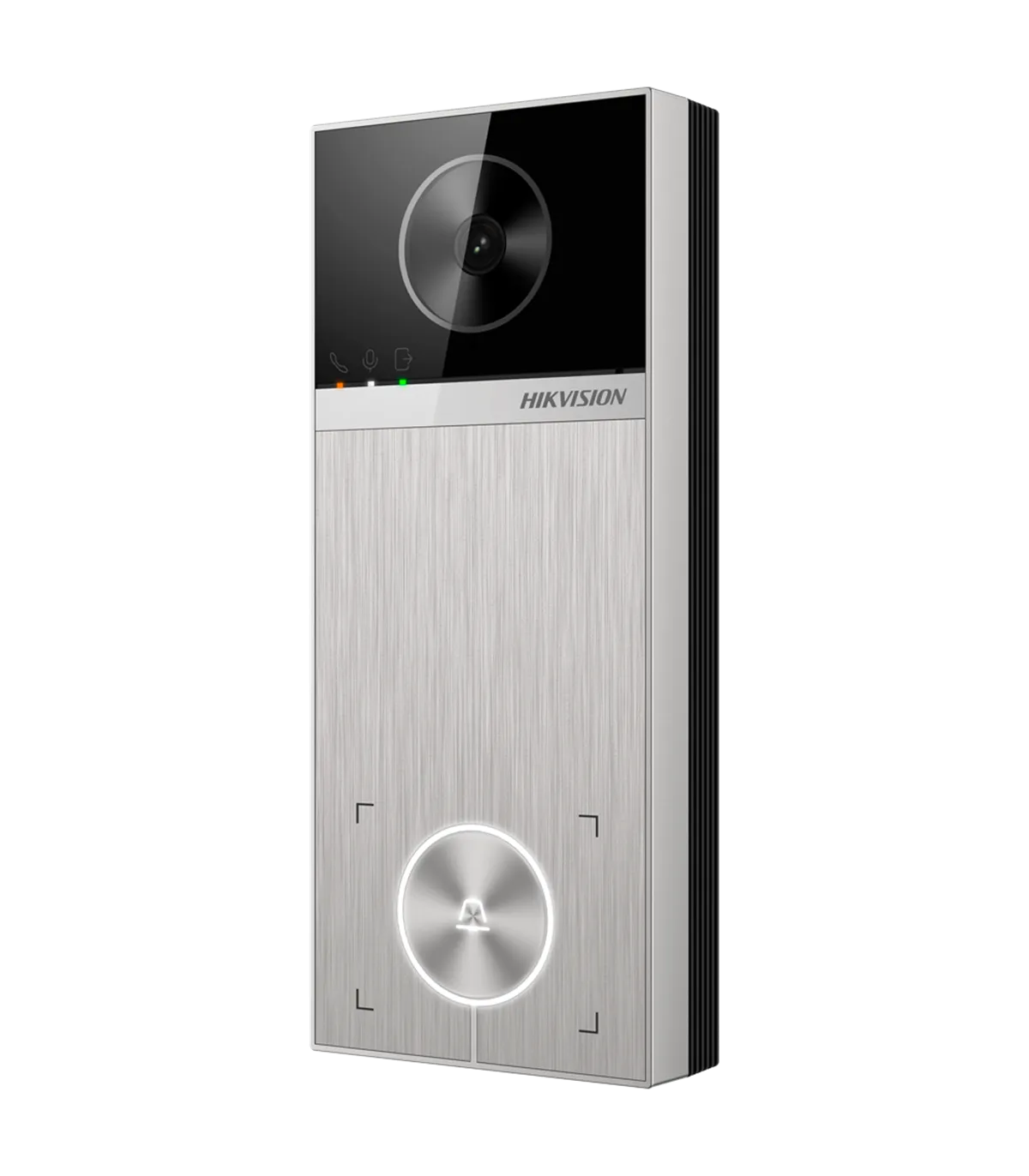

Hikvision IP Video Intercom 4MP PoE BLE Access DS-KV6114-MWBE1
- WiFi IP Video Doorphone
- 4 MP Camera | Two-way Audio
- BLE Access | 2 Relays
- Mobile App with or without Monitor
- Outdoor Suitable IP65
- Surface Mount | PoE
€164.43
Reference:
DS-KV6114-MWBE1
Brand:
Add to wishlist
The video intercom panel is the element that is placed outside the premises, also known as the outdoor unit, and allows visitors to make calls to the building staff.
These devices also have the capability to open the door through their relay outputs. This model features 2 relay outputs to manage up to 2 doors simultaneously, with a 12 VDC output (allowing direct power to the electronic lock without the need for an additional power source as the device is powered by standard PoE). Additionally, it includes integrated access control, enabling identification via Bluetooth.
IP devices communicate and are powered through Ethernet cables and PoE switches, reducing the number of cables required for operation.
The physical button panel allows users to call easily.
Its IP65 outdoor rating allows for installation in outdoor environments.
From the iVMS-4200 software, the linking of panels and monitors can be performed to make and receive calls, create contacts, send informational messages to monitors, or review call logs.
With the Hik-Connect mobile application for the end user, calls can be received, doors can be opened, or the camera feed from the panel can be viewed live, all from anywhere.
- Hikvision
- IP video intercom with 4 MP camera for 1 apartment
- Wide-angle lens
- Integrated speaker and microphone
- Night vision
- TCP/IP, WiFi (P2P only), and RS485 connection
- PoE IEEE802.3af
- Bluetooth (supported only with HikCentral and HikConnect Teams)
- Remote monitoring via iVMS-4200 software, Hik-Connect mobile app, or indoor monitor
- Call to the app with monitor not connected via P2P or without monitor
- Remote door unlocking
- Call status LED
- Surface mount
- Outdoor suitable IP65
- Aluminum alloy surface
Specifications: DS-KV6114-MWBE1
| Brand | Hikvision |
| Model | DS-KV6114-MWBE1 |
| Operating System | Linux |
| Image Sensor | 4 MP wide-angle IR CMOS |
| Image Functions | BLC / WDR / DNR |
| Viewing Angle | H: 150º, V: 75º |
| Audio | Two-way audio with microphone and speaker |
| Memory | MicroSD card slot (up to 128 GB) |
| Access Control | Up to 2,000 users Bluetooth (supported only with HikCentral and HikConnect Teams via HikCentral Mobile APP and HikConnect APP) |
| Keyboard | Mechanical call button |
| Outputs | 2 x relay for lock, 1 x RS485, 1 x DC 12 V / 1 A |
| Inputs | 4 x auxiliary inputs (exit button, feedback, door sensor), 1 x tamper |
| Remote Access | Web browser iVMS-4200 software Hik-Connect mobile application |
| Network Interface | Ethernet 10/100 BaseT / SIP 2.0 Protocol / WiFi 6 (for app connection via P2P only) |
| Power Supply | DC 12 V / 1.2 A max. / PoE IEEE802.3af |
| Protection Rating | Outdoor suitable IP65 |
| Material | Aluminum alloy |
| Operating Temperature | -40 ºC ~ +60 ºC |
| Dimensions | 164 (H) x 69 (W) x 25 (D) mm |
| Weight | 270 g |
Package Contents
- Hikvision outdoor video intercom panel
- Mounting materials
- User manual
DS-KV6114-MWBE1
Data sheet
- Brand
- HIKVISION
- Compatible models
- DS-KABV6114-RS,DR-54NDF/M,DR-54NDF/M
Specific References
- EAN13
- 6936422172404
