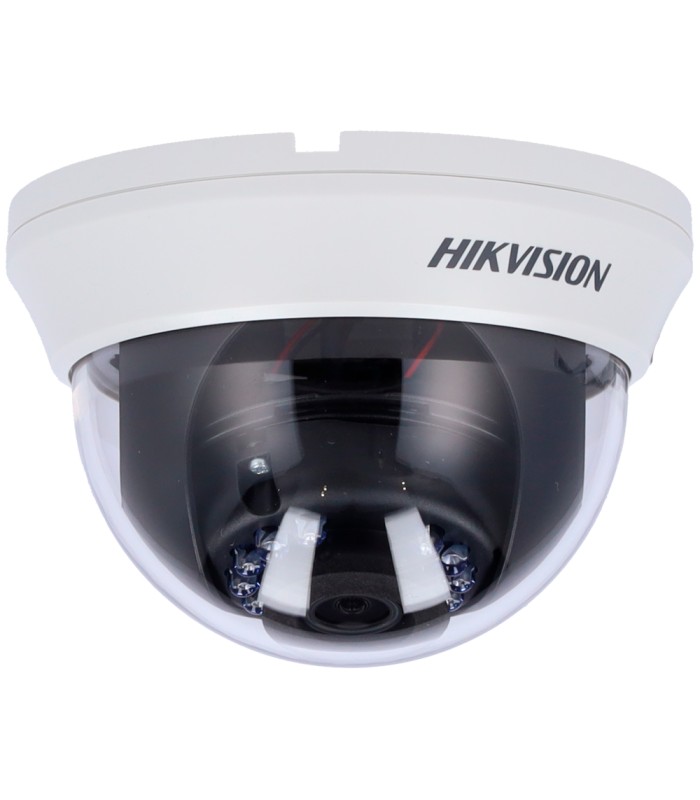

| Brand | Hikvision |
| Range | Value |
| Image sensor | 2 Mpx CMOS |
| Maximum resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Angle of view (FOV) | 79.6º (H), 43.5º (V), 93.7º (D) |
| Minimum illumination | 0.01 Lux @ (F2.0, AGC ON) |
| Infrared illumination | 0 Lux / (Smart EXIR IR Range 20 m) |
| Day / Night | Auto / Color / Black and White (ICR) |

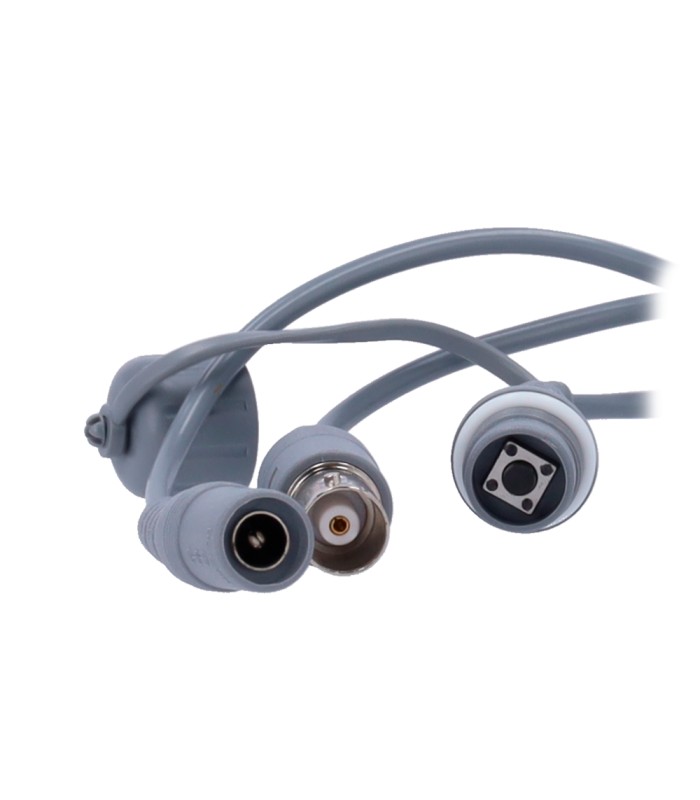

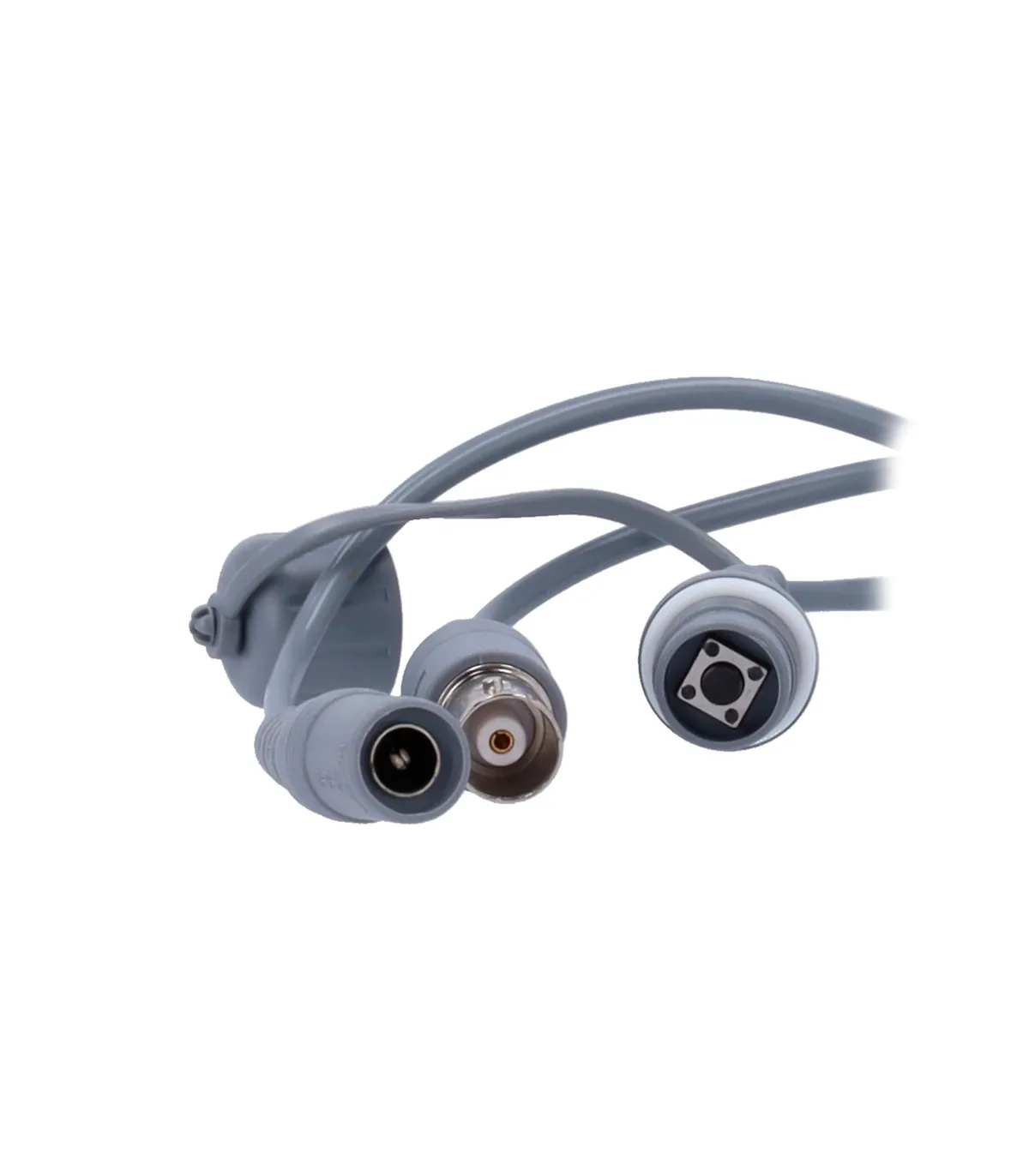

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| OSD functions configurable | DWDR, BLC, HLC, AGC, AWB, Smart IR |
| Communication | HIKVISION-C |
| Positioning Lens | 3 Axis |
| Power | DC 12 V / 1.8 W max. |
| Protection degree | Suitable for interior |
| Temp. operation | -40º C ~ +60º C |
| Material | Plastic |
| Dimensions | Ø 98 mm x 65.4 mm (H) |
| Weight | 146 g |
Data sheet
