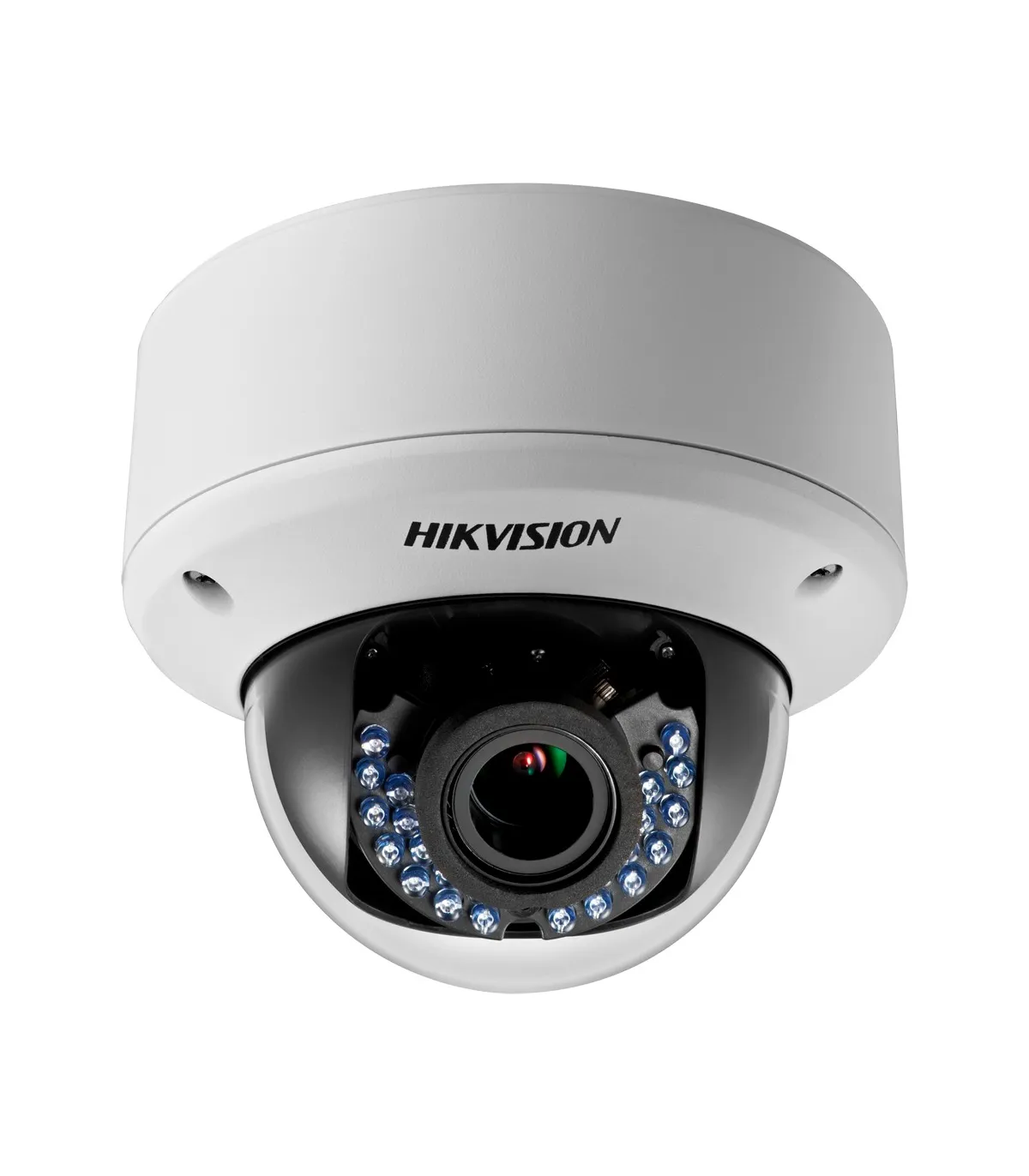

| Brand | Hikvision |
| Range | Value |
| Image sensor | 2 Mpx CMOS |
| Maximum resolution | 1080p (1920x1080) at 30 fps |
| Resolution | 1080p (25~30 fps) |
| Lens | Lens motorized varifocal 2.8~12 mm |
| Angle of view (FOV) | 105.2~32.8º (H) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared illumination | 0 Lux / (IR range 40 m) |
| Day / Night | Auto / Color / Black and white (ICR) |
| Video output | 1 x BNC HDTVI |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, 2DNR, AGC, Mirror function |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 4 W max. PoC.af (power over coaxial cable) |
| Protection degree | Waterproof IP67, vandal-resistant IK10 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 145.3 mm x 124.2 (H) mm |
| Weight | 1300 g |
Data sheet
