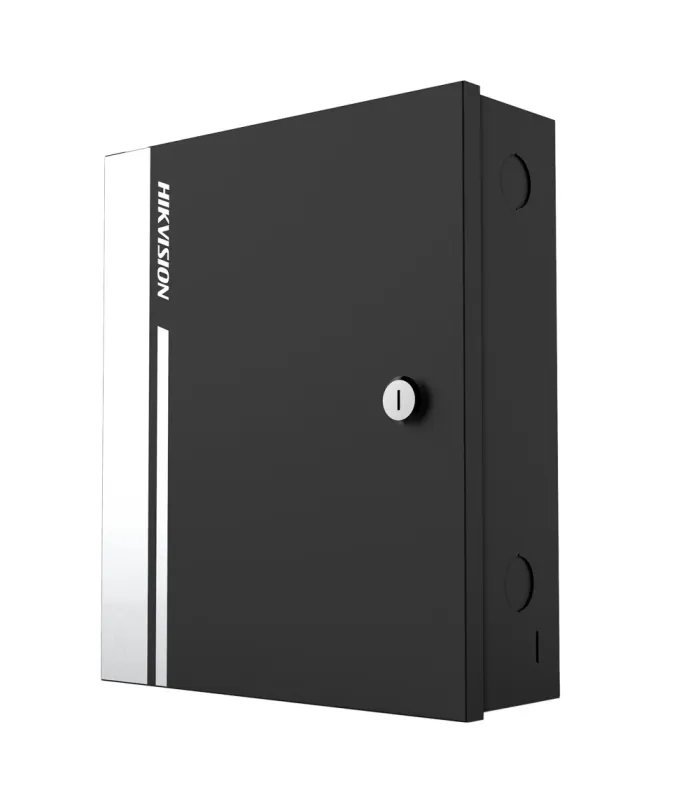

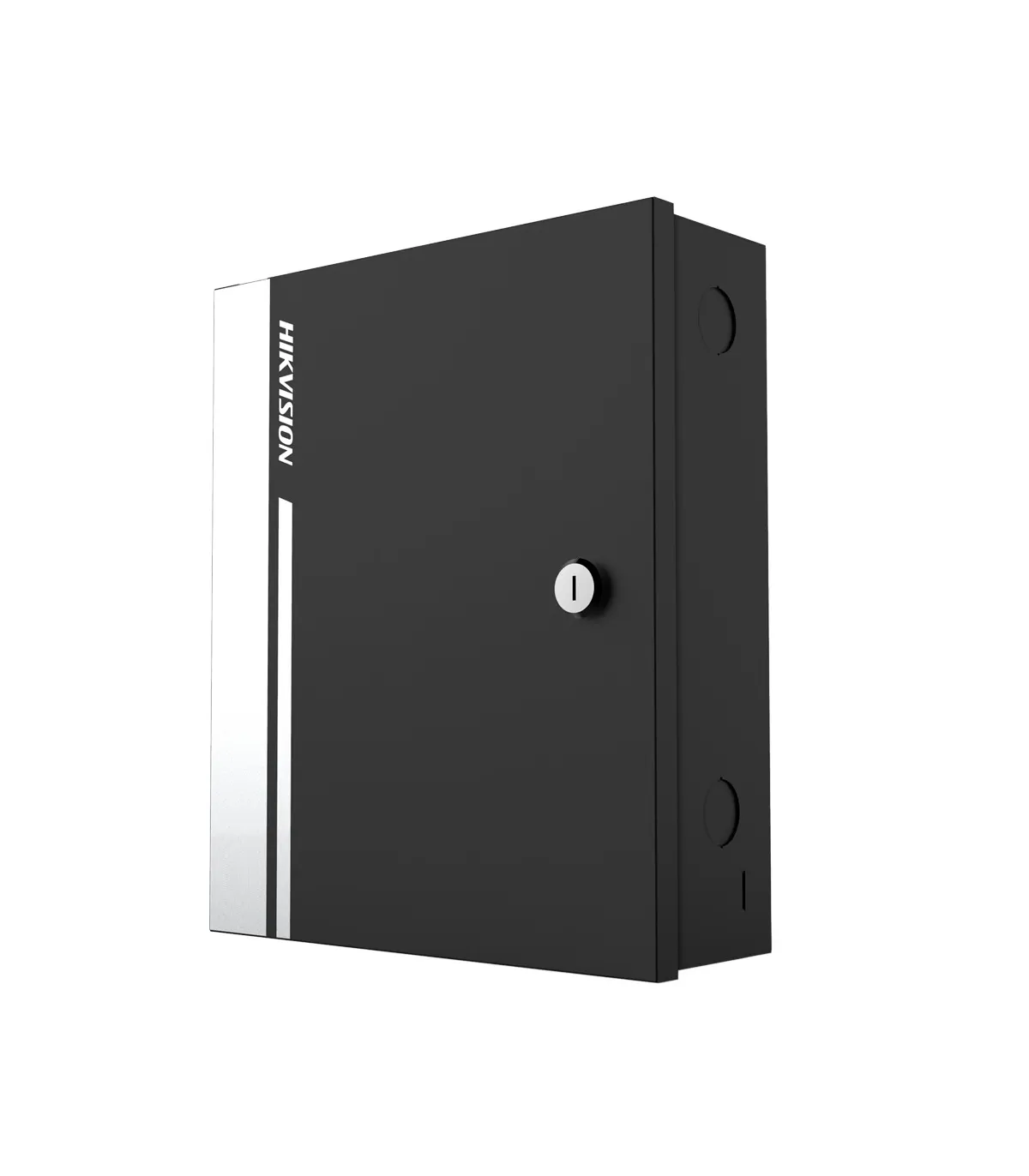

Hikvision DS-K2804 access controller
- Hikvision
- Access controller
- Box with power supply
- Management of 4 doors
- Capacity 10,000 users and 50,000 records
- Supports up to 4 readers Wiegand
- TCP/IP communication
- Input of 4 pushbuttons, 4 door sensors and 4 auxiliary inputs
- 4 relay outputs and 4 alarm outputs
- NO/NC relay configuration
- Compatible with iVMS-4200 software
Technical specifications
| Brand | Hikvision |
| Model | DS-K2804 |
| Hardware CPU | 32bit MIPS CPU |
| Capacity | Up to 10,000 users |
| Records | 50,000 records |
| Identification modes | Card, QR and/or password |
| Card proximity | RFID EM 125 kHz and MF 13.56 MHz |
| Communication | TCP/IP |
| Outputs | 4 x relay output, 4 x alarm output |
| Inputs | 4 x Wiegand 26/34, 4 x door sensor, 4 x opening button, 4 x auxiliary |
| Software | iVMS-4200 / iVMS-4200 AC |
| Functions | Anti-passback, multi-card, first card opening |
| Power | Power supply included (DC 12 V / 1 A max.) connected to 220 VAC |
| Temp. operation | -20º C ~ +65º C |
| Dimensions | 237 (W) x 285 (H) x 69 (D) mm |
| Weight | 1800 g |
Contents
- Hikvision access controller
- Mounting material
- Instructions for use
