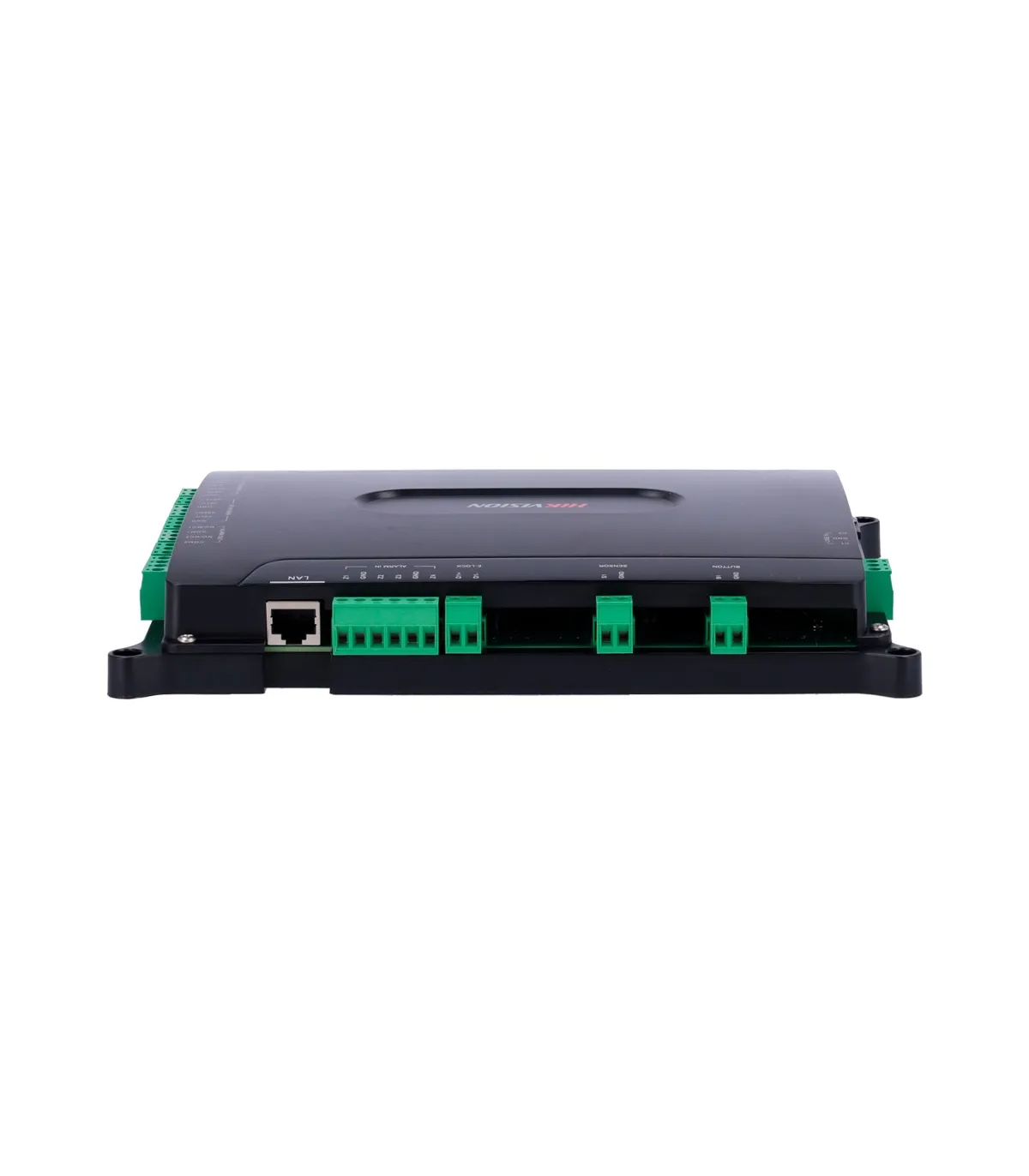

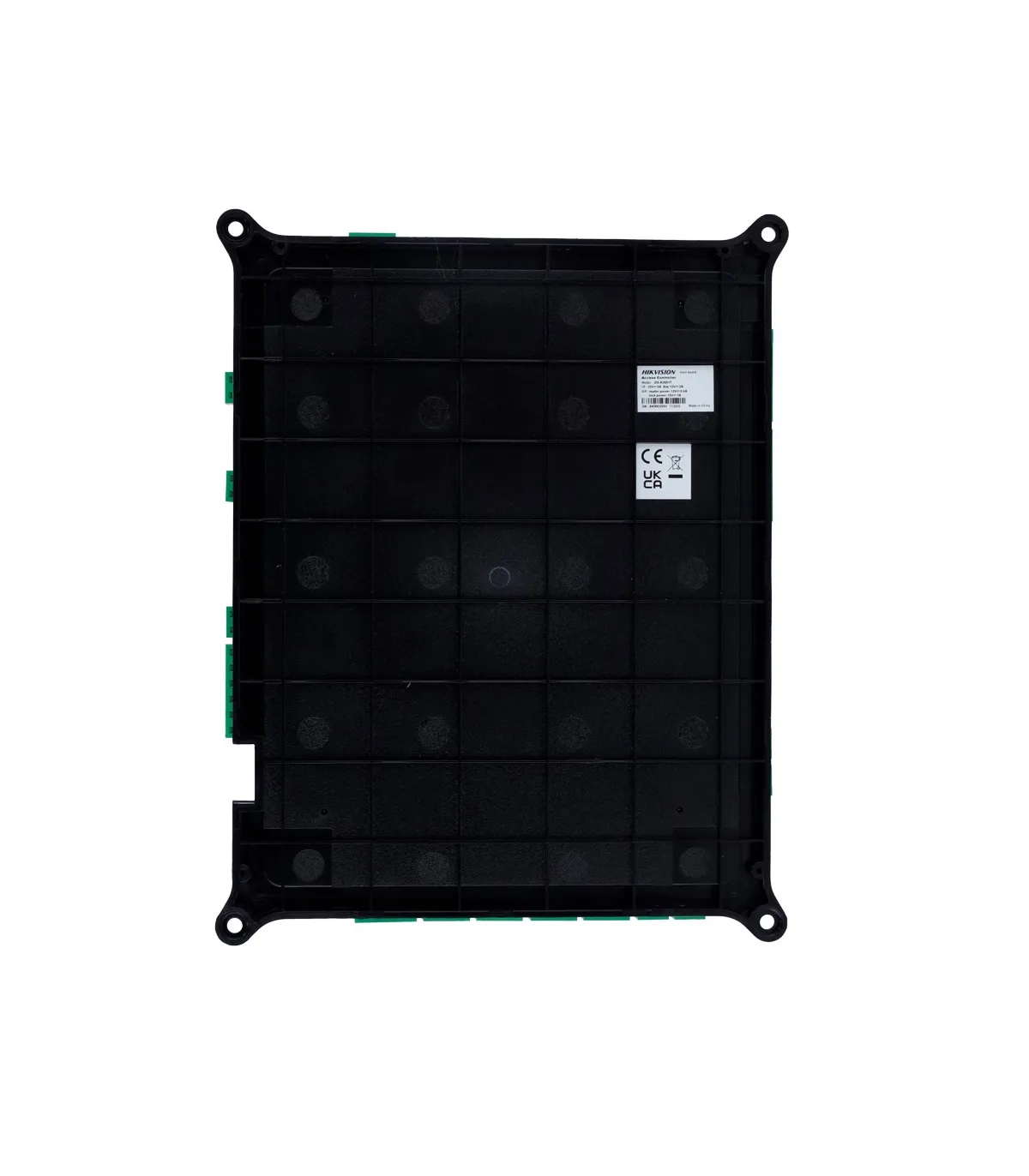

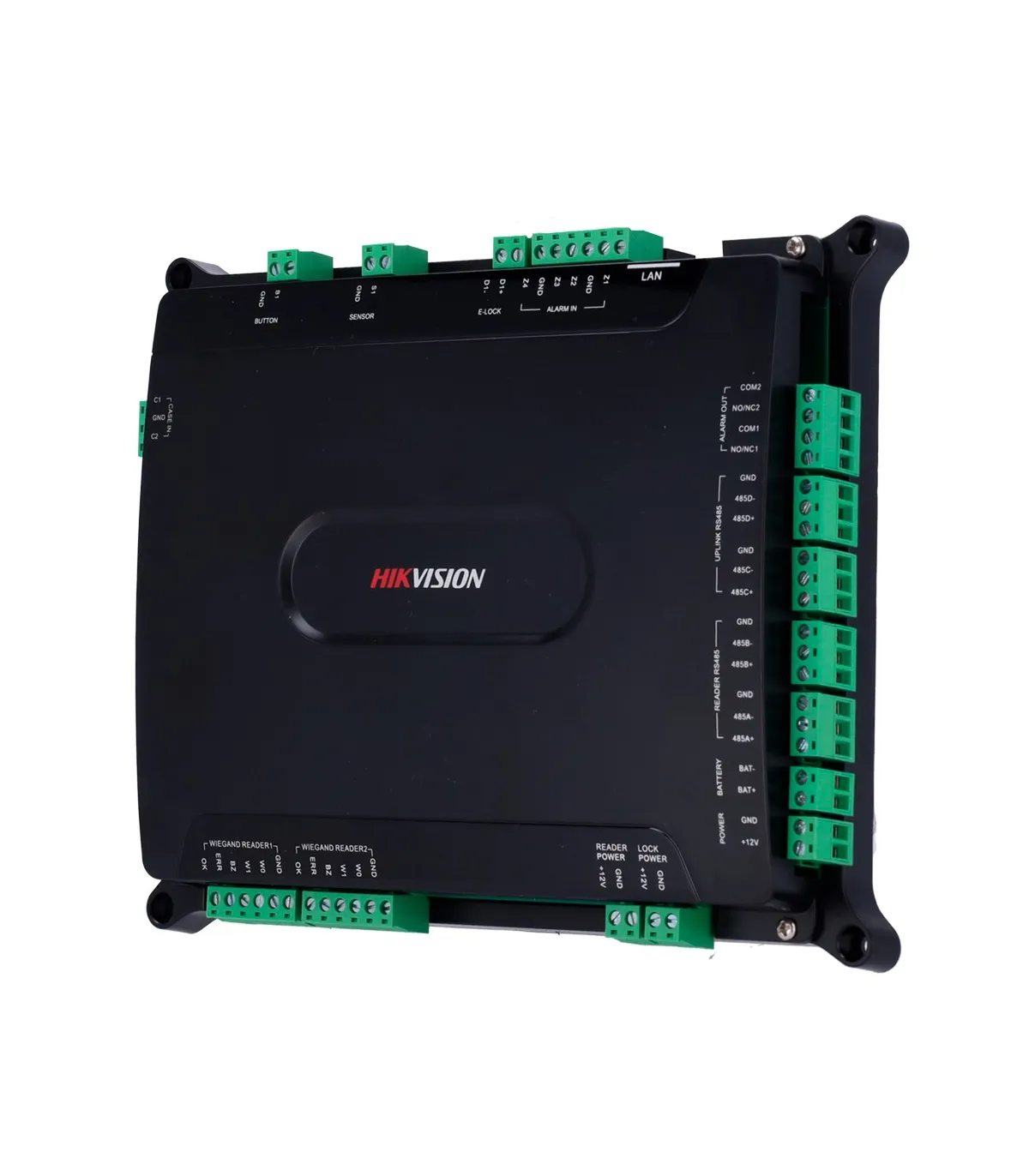

Hikvision DS-K2601T-MAINBOARD Multi-ID Access Controller

  • Multi-identification Access Controller
  • Facial, fingerprint, card, QR, or PIN
  • 1 door | TCP/IP and RS485 communication
  • 2 Wiegand readers | 2 RS485 readers
  • No box included
  • iVMS-4200 Software
Read moreShow less
€113.54
Reference:
DS-K2601T-MAINBOARD
Love0
Add to compare0
Add to wishlist
Description

Multi-identification access controller Hikvision DS-K2601T-MAINBOARD

  • Hikvision
  • Multi-identification access controller
  • Without box
  • 1 door management
  • Capacity 100,000 users and 300,000 records
  • Supports up to 2 Wiegand readers and 2 RS485 readers
  • TCP/IP, RS485, eHome and ISAPI communication
  • 1 pushbutton input, 1 door sensor, 4 alarm inputs and 2 auxiliary inputs
  • 1 relay output and 2 alarm outputs
  • NO/NC relay configuration
  • Functions advanced: locks, anti-passback or first user
  • Compatible with iVMS-4200 software

Technical specifications

BrandHikvision
ModelDS-K2601T
Hardware CPU32bit MIPS CPU
CapacityUp to 100,000 users (97,000 users / 3,000 visitors / 5,000 fingerprints)
Registrations300,000 records
Identification modesFacial, fingerprint, card, QR and/or passwords
Proximity cardRFID EM 125 kHz and MF 13.56 MHz
CommunicationTCP/IP, RS485, eHome and ISAPI
Outputs1 x relay output, 2 x output alarm

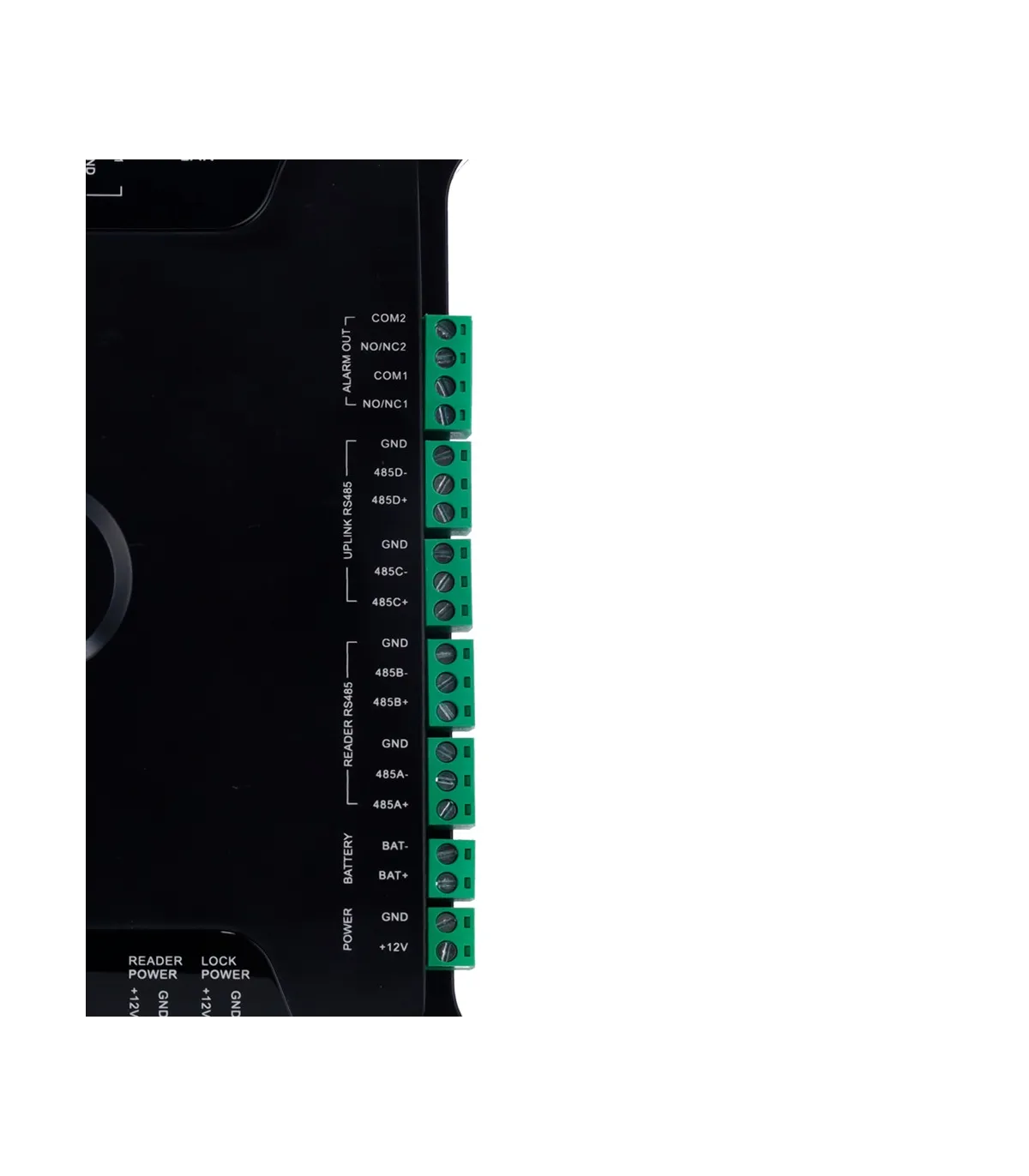

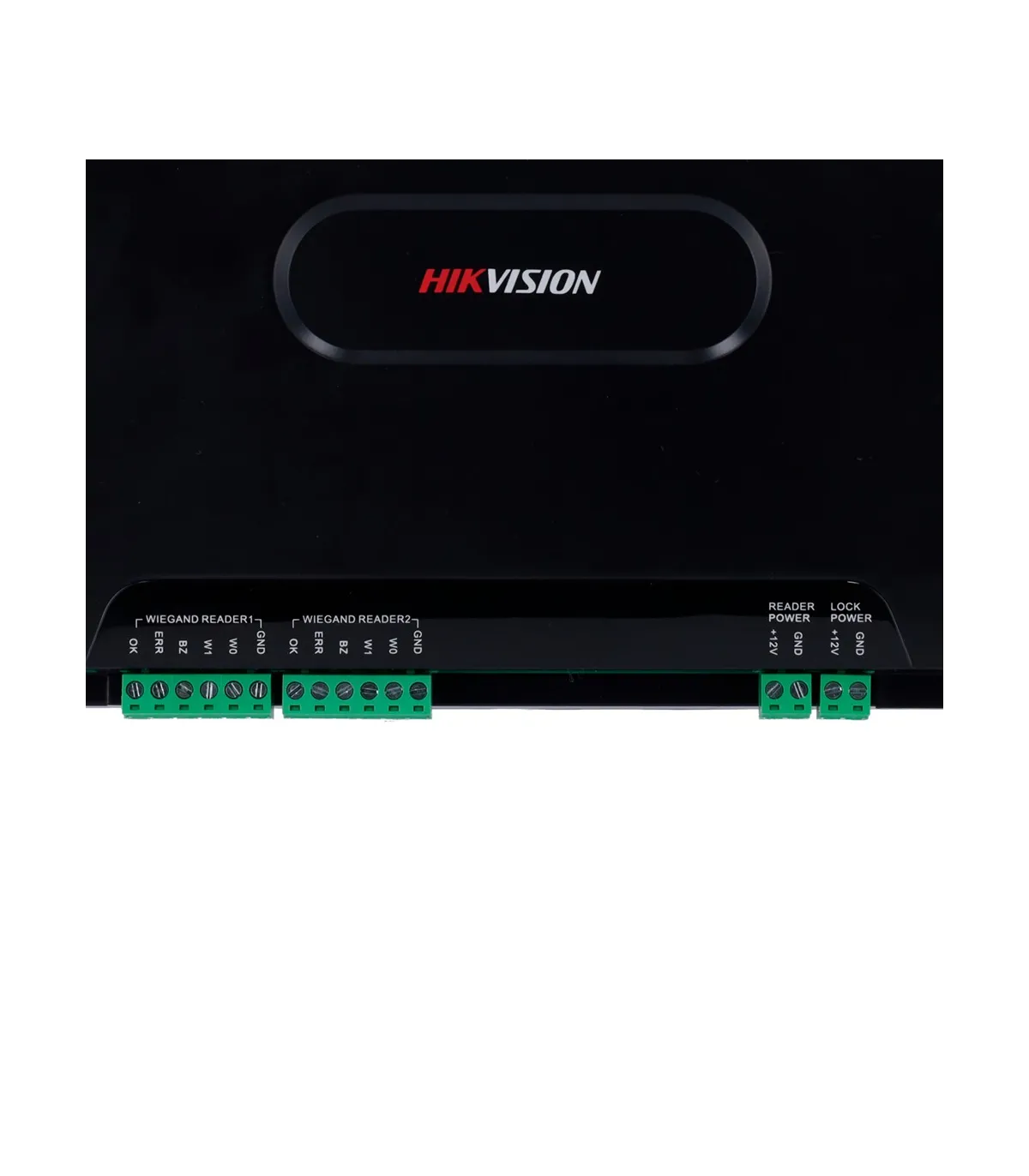

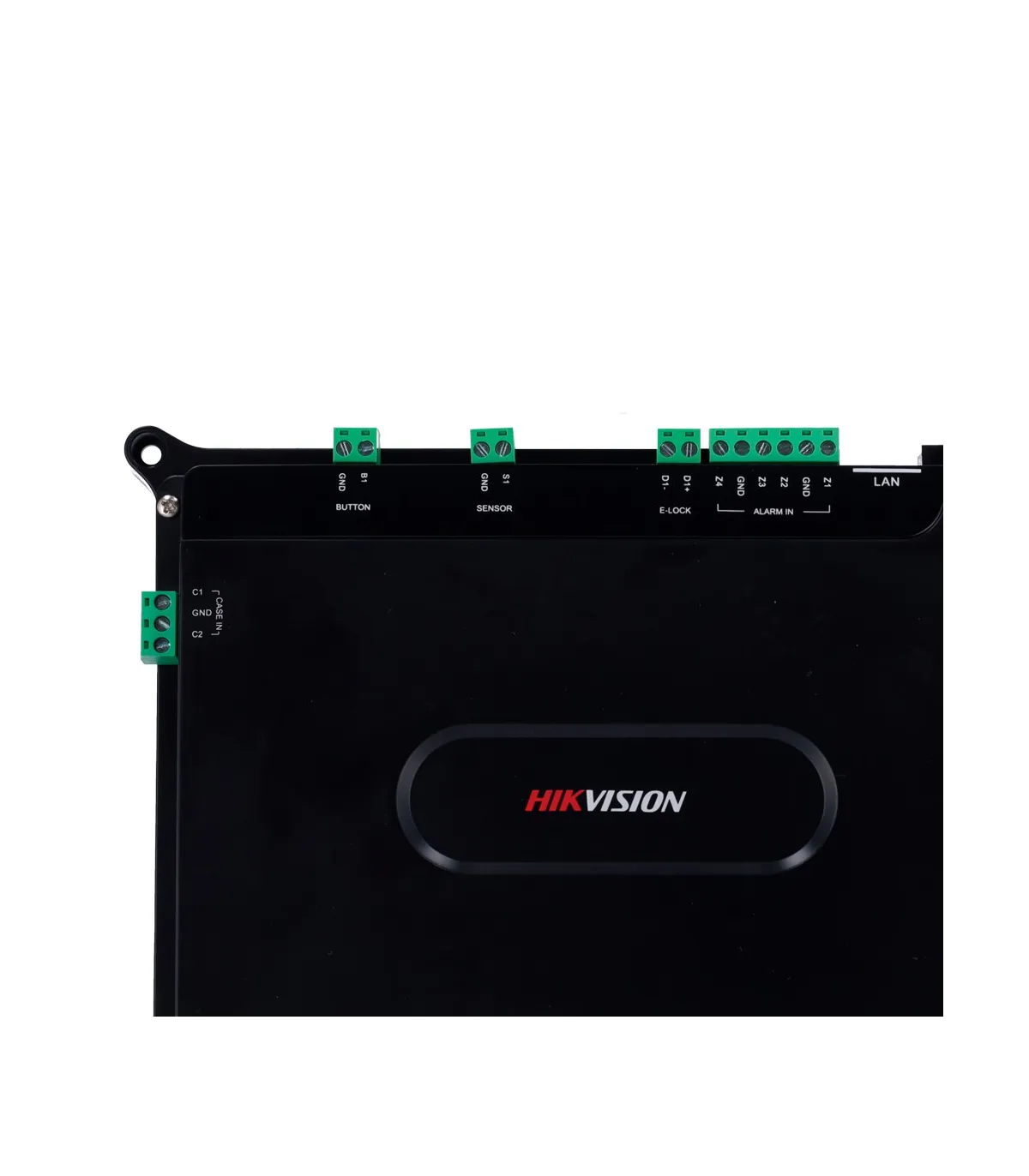

Inputs2 x Wiegand 26/34, 2 x RS485, 1 x door sensor, 1 x opening button, 2 x auxiliary, 4 x alarm input, 1 x tamper
SoftwareiVMS-4200 / iVMS-4200 AC
FunctionsMulti-door locks, anti-passback, multi-card, first card opening
PowerPower supply included (DC 12 V / 1 A max.) connected to 220 VAC
Temp. operation-20º C ~ +65º C
Dimensions220 (W) x 175 (H) x 40 (Fo) mm
Weight600 g

Contents

  • Access controller without Hikvision box
  • Mounting material
  • Instructions for use
Read moreShow less
Product Details
DS-K2601T-MAINBOARD

Data sheet

Brand
Hikvision

Specific References

EAN13
6941264037200
