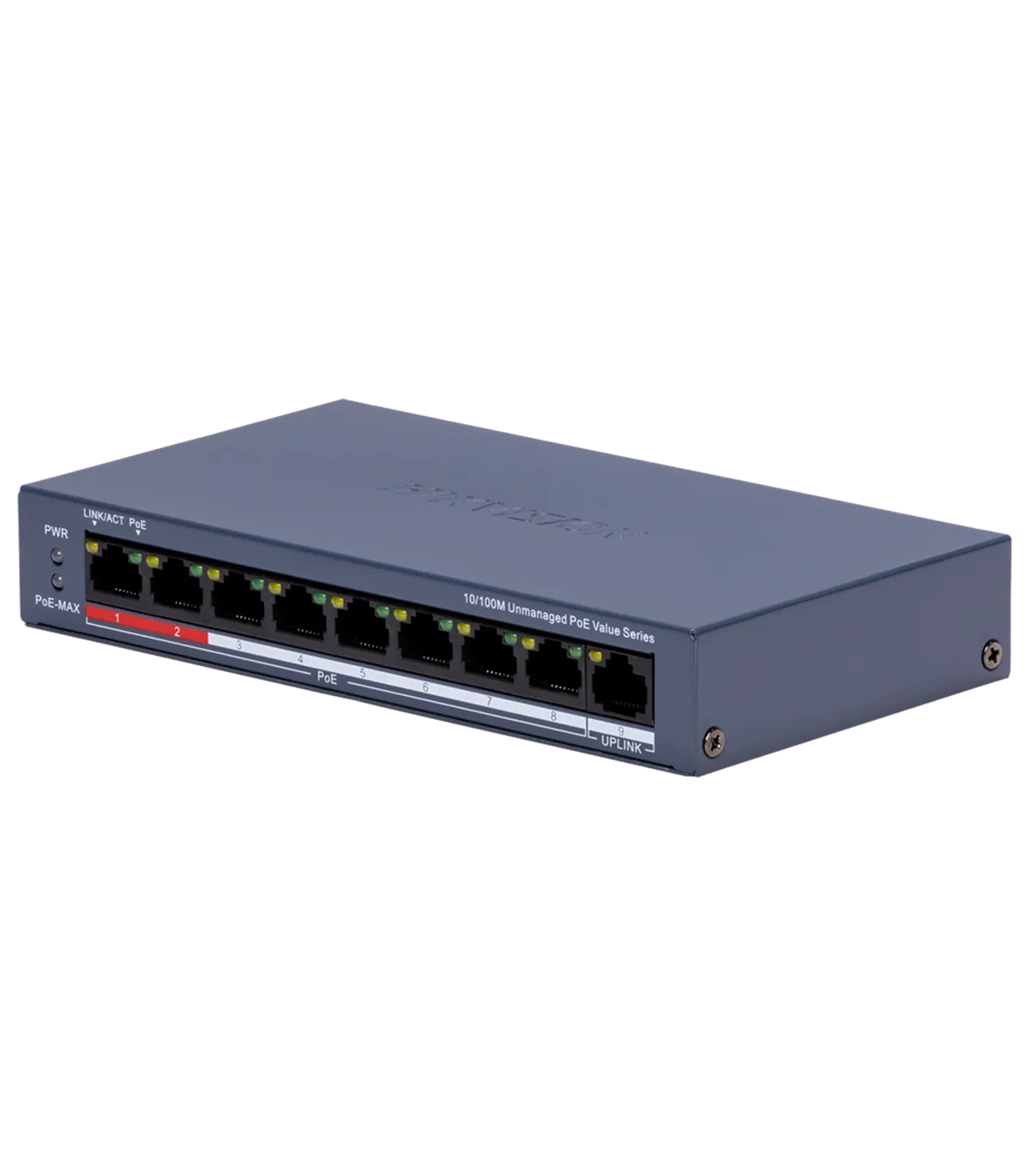

Hikvision Desktop 8-Port PoE Switch 80W Total 10-100 Mbps DS-3E0109P-E/M(C)

Description & Key Features: DS-3E0109P-E/M(C)

The Hikvision DS-3E0109P-E/M(C) is an unmanaged PoE switch designed for small to medium IP video surveillance networks. It features 8 PoE ports at 10/100 Mbps and 1 additional 10/100 Mbps uplink port, allowing for easy connection of IP cameras and other devices compatible with IEEE 802.3af/at, without the need for advanced configurations. This PoE switch is ideal for installations requiring reliable power and connectivity.

This switch provides a total PoE budget of 80 W, with a maximum of 30 W per port, sufficient to power multiple low to medium consumption cameras or devices. It also includes surge protection, offering greater reliability in demanding electrical environments, and allows for long-distance PoE transmission on certain ports, facilitating the installation of devices far from the main switch.

The DS-3E0109P-E/M(C) features a robust metal housing, silent fanless operation, and flexible wall or tabletop mounting. Its plug-and-play design makes it a practical and cost-effective solution for installations that require stable PoE power and simple connectivity, without advanced management features.

Specifications: DS-3E0109P-E/M(C)

Package Contents

• PoE Switch
• AC/DC Adapter
• User Manual

Use Case

In a typical deployment scenario, the Hikvision DS-3E0109P-E/M(C) PoE switch can be utilized in a small office environment where multiple IP cameras are installed for remote monitoring. The switch's plug-and-play capability allows installers to quickly set up the system without extensive configuration, making it ideal for businesses looking to enhance their security with minimal downtime. With its total PoE budget of 80 W, the switch can efficiently power several cameras simultaneously, ensuring continuous surveillance coverage.

Moreover, the surge protection feature safeguards the devices from electrical spikes, which is crucial in areas prone to power fluctuations. The extended mode capability allows for camera placement up to 300 meters away, providing flexibility in camera positioning without compromising on power supply. This makes the DS-3E0109P-E/M(C) an excellent choice for businesses aiming to implement a reliable and efficient video surveillance system.
