- Hikvision Managed PoE Switch
- 8 PoE 802.3af/at ports + 2 Uplink RJ45
- 8 RJ45 10/100/1000 Mbps + 2 RJ45 10/100/1000 Mbps
- 802.3af/at / Maximum 60W
- VLAN/Port Isolation/Loop Detection/LLDP
- Link Aggregation/PoE Watchdog/SNMP
Description & Key Features: DS-3E1510P-EI/M

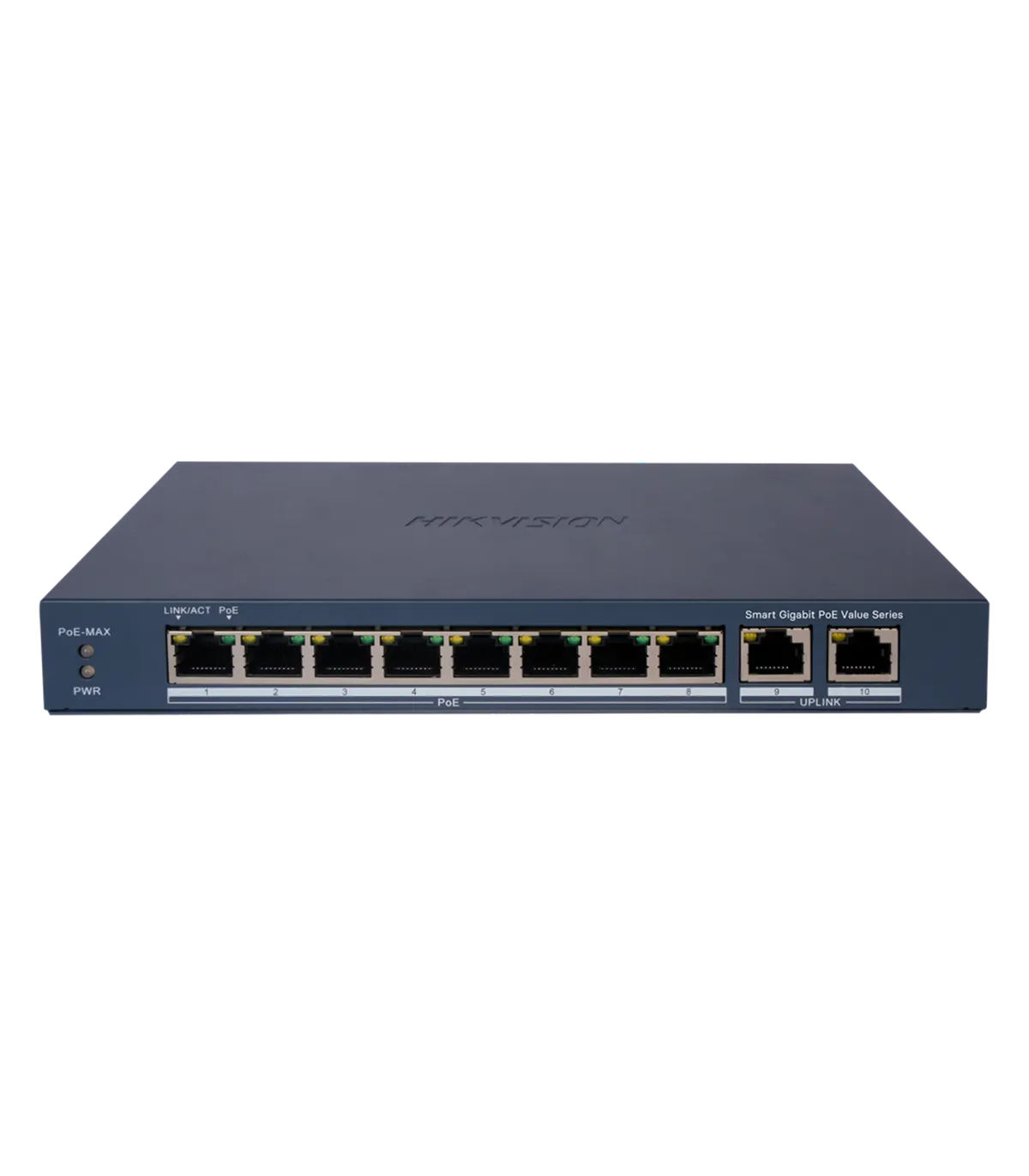

The DS-3E1510P-EI/M is a managed PoE switch designed for efficient network management and power delivery. Ideal for surveillance systems and IP camera installations, this device supports up to 8 PoE+ ports, making it perfect for environments requiring reliable connectivity and power. With its user-friendly interface through Hik-Partner Pro and Hik-Central Pro, it ensures seamless integration into existing networks.
- Hikvision
- Managed desktop PoE switch
- 8 PoE+ RJ45 ports 10/100/1000 Mbps + 2 Uplink 10/100/1000 Mbps
- Supports PoE power up to 60W in total for all ports
- Compatible with PoE IEEE802.3af/at
- Powerful and intuitive management with Hik-Partner Pro and Hik-Central Pro
Specifications: DS-3E1510P-EI/M
| Brand | Hikvision |
| Interface | 8 PoE+ RJ45 10/100/1000 Mbps + 2 RJ45 10/100/1000 Mbps uplink |
| RJ45 Port Speed | 8x 10/100/1000 Mbps 2x 10/100/1000 Mbps |
| PoE Power Supply | PoE/PoE+ 802.3af/at ports 1-8 Up to 60W total power |
| Extended PoE | Up to 300 meters (this may vary depending on the camera model or cable condition) |
| Management Protocols | Web/Hik-Partner Pro/Hik-Central Pro |
| Technologies and Protocols | Loop Detection (STP and RSTP) Up to 32 VLANs (supports trunk and access mode) Port Isolation Link Aggregation (supports static link aggregation) Supports an aggregation group PoE Watchdog LLDP/HPP SNMP v1/v2c Management IP 10.180.190.200 |
| Power Supply | External power adapter 54V/1.2A |
| Operating Temperature | 0° C ~ 40° C |
| Dimensions | 108.5 (L) x 27.6 (H) x 217.6 (W) mm |
| Weight | 1.08 kg (with package) |
Package Contents
- Switch
- External power adapter 54V/1.2A
- User manual
Use Case
The DS-3E1510P-EI/M is an excellent choice for installers setting up a surveillance network in a medium-sized office or retail environment. With its 8 PoE+ ports, it can easily connect multiple IP cameras while providing power through the same cable, simplifying installation and reducing clutter. The device's remote management capabilities via Hik-Partner Pro allow for easy monitoring and configuration from anywhere, enhancing operational efficiency. Additionally, the support for extended PoE up to 300 meters ensures that cameras can be placed in optimal locations without the need for additional power sources. This switch not only streamlines the installation process but also offers robust features like VLAN support and link aggregation, making it a versatile solution for modern security needs.
