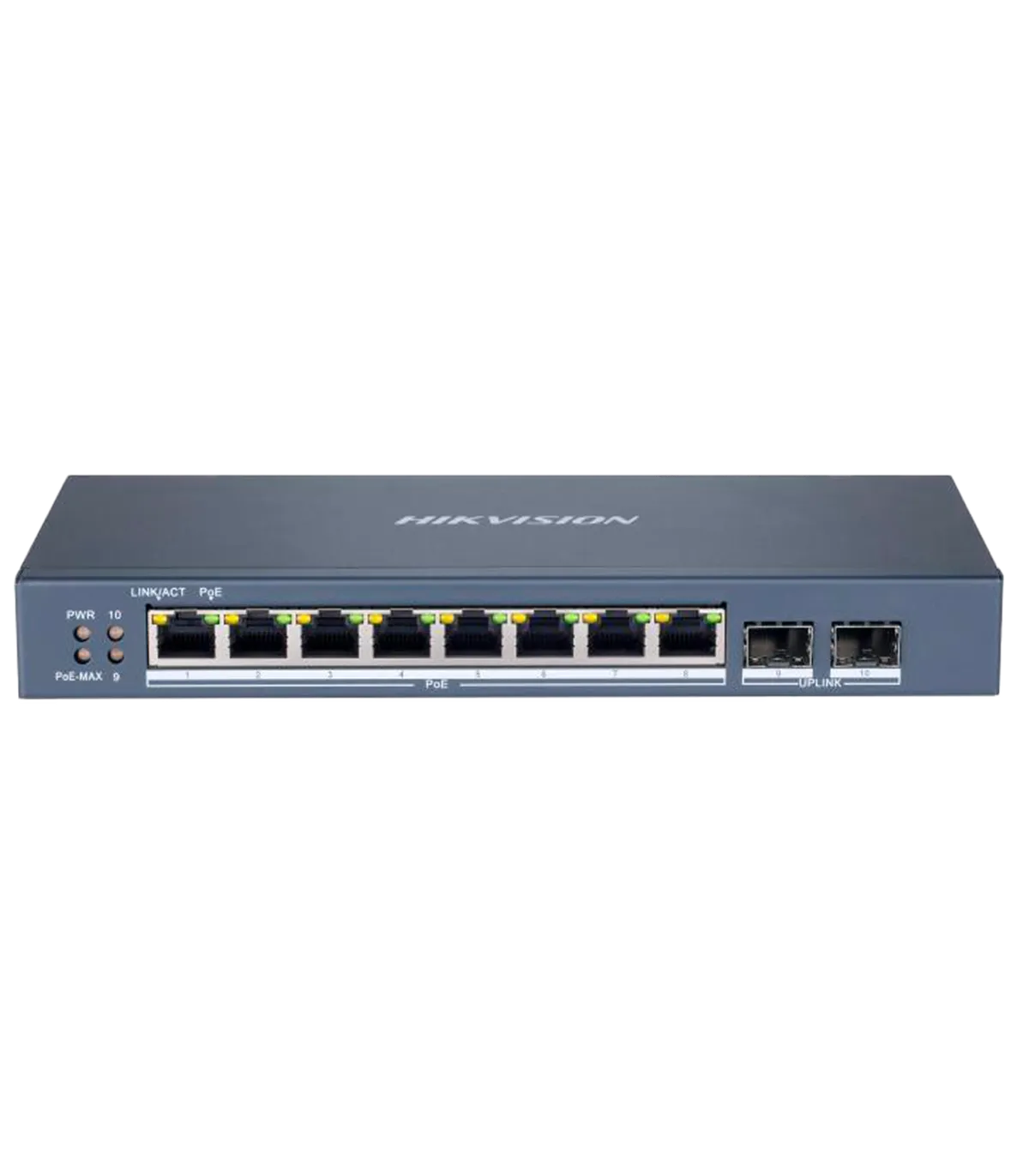

The Hikvision DS-3E1510P-SI is a powerful, flexible, and secure network infrastructure solution designed for video surveillance systems of any size. With features such as PoE, high transmission speed, advanced security, and scalability, it delivers excellent performance and easy management while reducing operational costs and enhancing reliability. These advantages make it an ideal choice for complex or large-scale environments, as well as for security applications that require uninterrupted and high-quality connectivity.
The network infrastructure of Hikvision is a powerful, flexible, and secure solution for video surveillance systems of any size. With features such as PoE, high transmission speed, advanced security, and scalability, it offers excellent performance and easy management, all while reducing operational costs and improving reliability. These advantages make it an ideal choice for complex or large-scale environments, as well as for security applications that require uninterrupted and high-quality connectivity.
| Interfaces | 8 Gigabit PoE RJ45 ports + 2 Gigabit SFP ports |
| PoE Features | Up to 30W on ports 1-8 802.3af/at Up to 110W total PoE power Pinout ports 1-16 1,2,7,8- / 3,6,4,5+ |
| PoE Functionalities | Extended PoE ports 1-8 up to 300 meters range at 10Mbps Port Isolation ports 1-8 PoE Watchdog ports 1-8 resets cameras if they are unresponsive VIP ports 1-8 prioritize these ports when bandwidth is insufficient |
| L2 Functionalities | Static link aggregation (8 groups) Loop prevention protocols (802.1D STP) VLAN (Max. 4094) 802.1Q Tag |
| HikPartner Pro Functionalities | Supports one-click remote management via Hik Partner Pro (Supported functions) 1. View port speed. 2. View port bandwidth utilization rate. 3. Display PoE power usage. 4. Show network topology information. 5. View alarm status. 6. Restart ports and devices. 7. Enable extended mode for ports. 8. Remotely update the device. |
| Management | Web management Management via Hik-Central Pro |
| MAC Table | 8K |
| Bandwidth | 20Gbps |
| Forwarding Rate | 14.88Mbps |
| Internal Cache | 4.1Mbits |
| Installation | Rack, Desktop, Wall-mounted |
| Surge Protection | 6kV |
| Power Supply | AC 100 ~240, 50/60Hz, Max 4A |
| Operating Temperature | 0º C ~ 40º C |
| Consumption | Idle 7W / With PoE 120W |
| Dimensions | 108.55 (L) x 27.8 (H) x 217.6 (W) mm |
| Weight | 1.3Kg |
The Hikvision DS-3E1510P-SI is ideally suited for deployment in large-scale video surveillance systems, such as those found in commercial buildings or campuses. Installers can leverage its managed switch capabilities to ensure seamless connectivity for multiple IP cameras, providing high-speed transmission and reliable power through its PoE ports. The device's PoE Watchdog feature is particularly beneficial, as it automatically resets unresponsive cameras, ensuring continuous operation. Additionally, the extended PoE functionality allows for camera placement up to 300 meters away, making it perfect for expansive areas. With its intelligent PoE management and remote monitoring capabilities via Hik Partner Pro, users can easily manage their network and monitor performance in real-time, enhancing overall security and efficiency.
