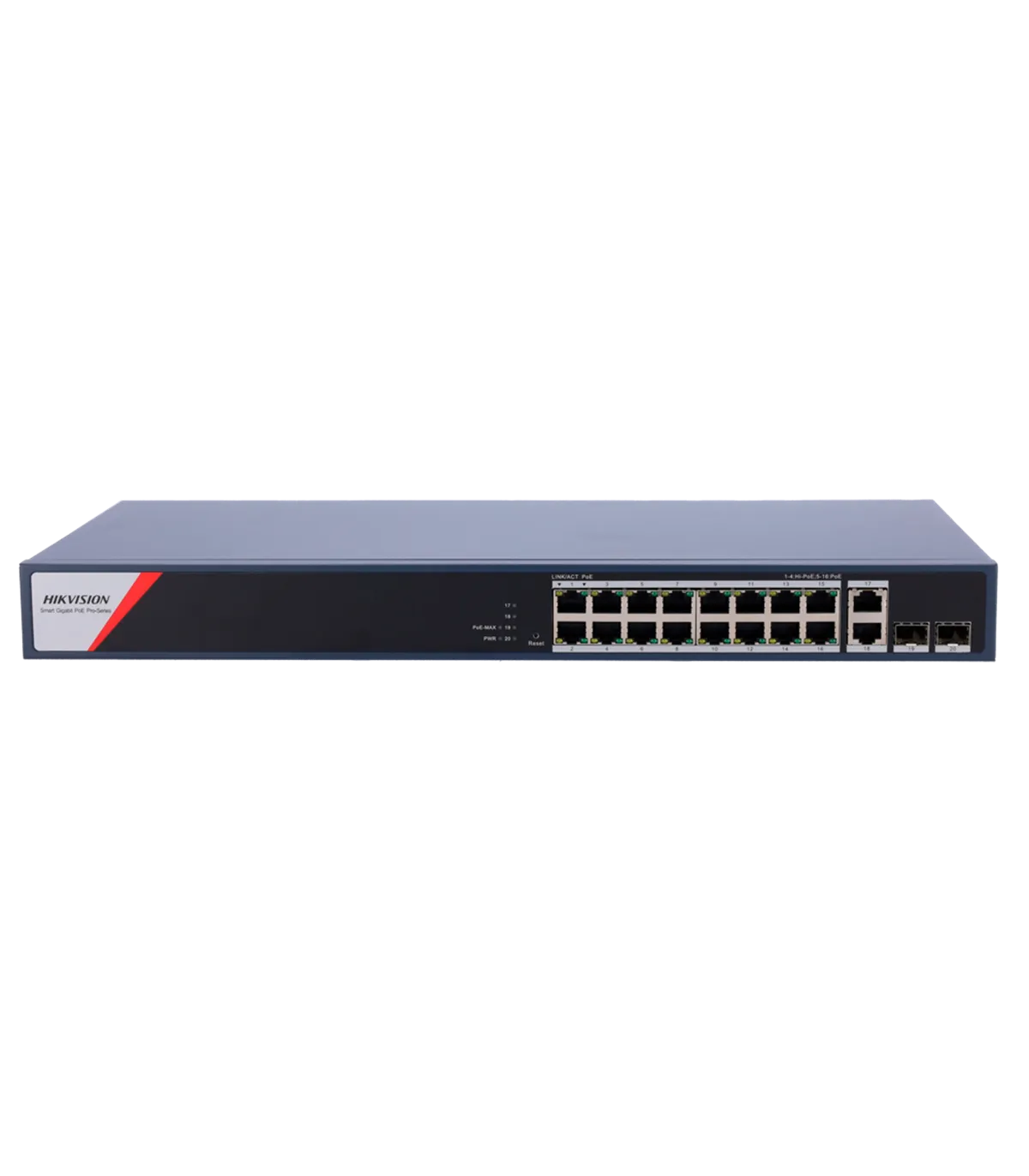

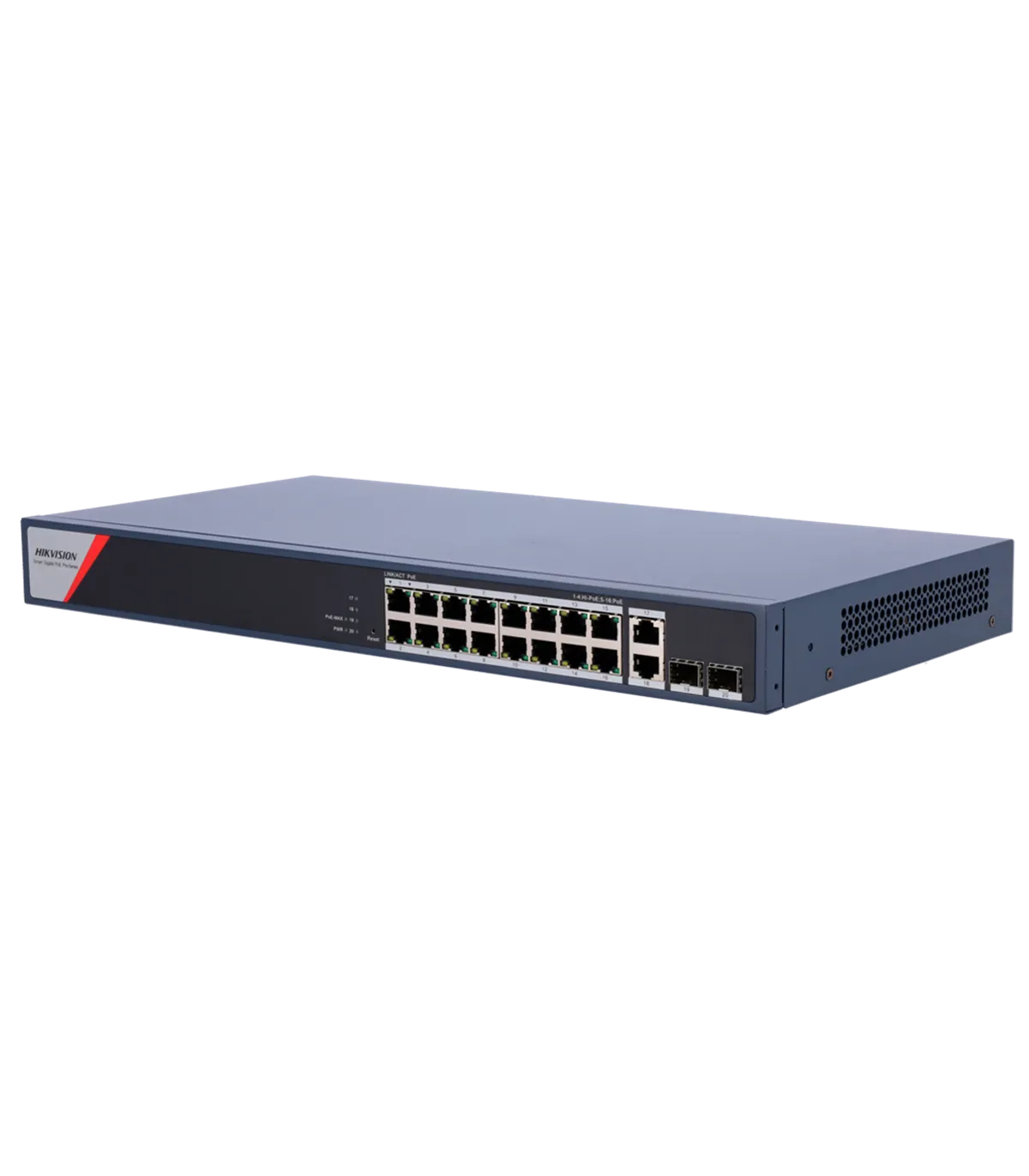

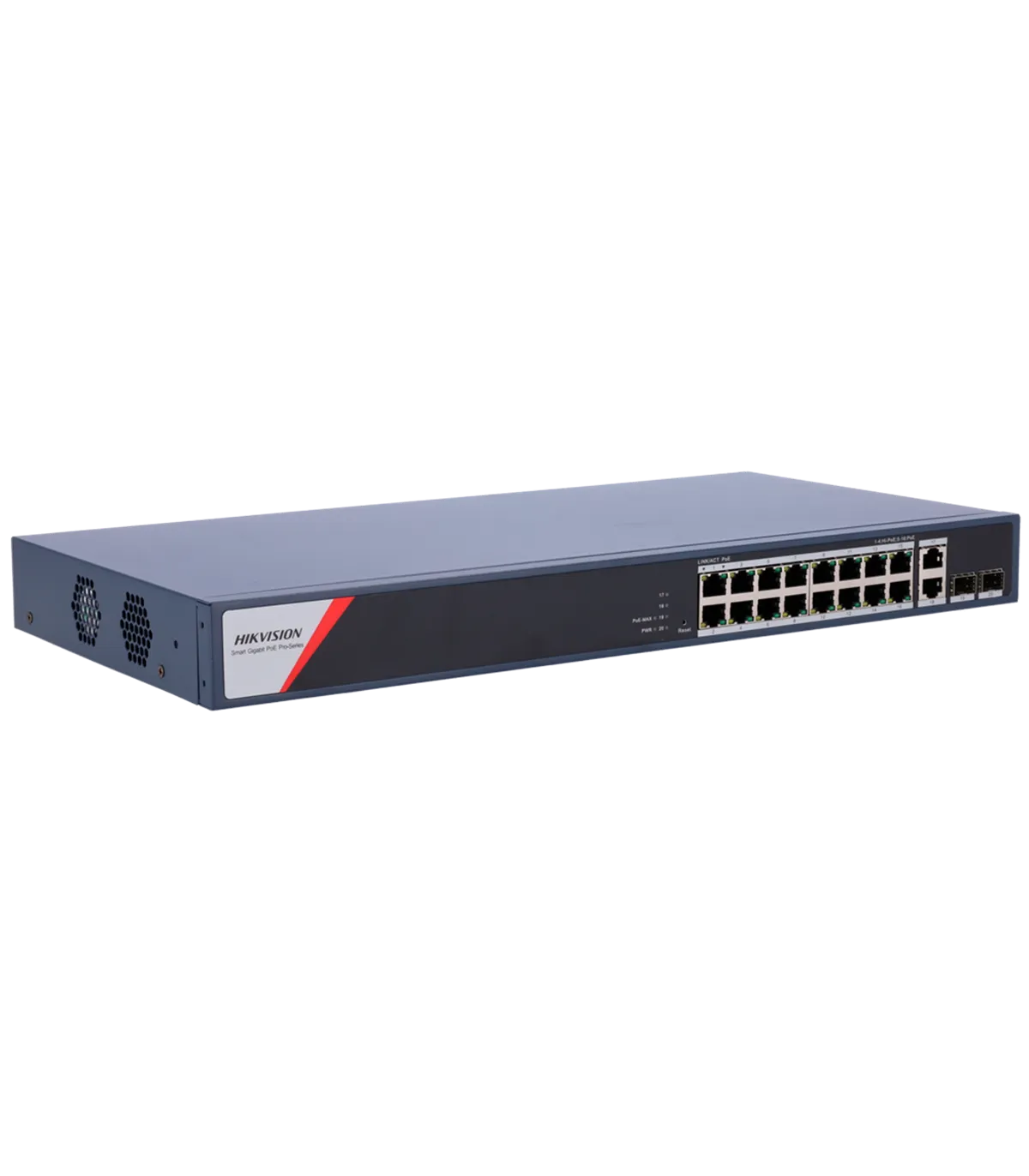

The DS-3E1520HP-SI-16P2T2F is a high-performance managed switch designed for efficient network management and power delivery. Ideal for IP surveillance systems and smart building applications, this device supports up to 16 PoE ports, making it perfect for powering multiple devices such as cameras and access points. With advanced features like PoE watchdog and intelligent PoE management, it ensures reliable operation and optimal performance in demanding environments.
| Interfaces | 16 PoE RJ45 10/100/1000 Mbps + 2 Gigabit combo RJ45/SFP ports |
| PoE Features | Hi-PoE ports 1-4 (up to 90W) PoE/PoE+ 802.3af/at ports 5-16 Up to 230W total power |
| PoE Functionalities | Extended PoE ports 1-16 up to 300 meters at 10Mbps Port Isolation for ports 1-16 PoE Watchdog for ports 1-16 resets cameras if unresponsive VIP ports 1-8 prioritize these ports when bandwidth is insufficient |
| L2 Features | Static link aggregation (1 group) Loop prevention protocols (802.1D STP and 802.1w RSTP) VLAN (Max. 4094) 802.1Q Tag 802.1ab LLDP DHCP Client Port Mirroring |
| HikPartner Pro Features | Supports one-click remote management via Hik Partner Pro (Supported functions) 1. View port speed. 2. View port bandwidth utilization rate. 3. Display PoE power usage. 4. Show network topology information. 5. View alarm status. 6. Restart ports and devices. 7. Enable extended mode for ports. 8. Remotely update the device. |
| Management | Web management Management via Hik-Central Pro Management via Hik-Partner Pro. |
| MAC Table | 16K |
| Bandwidth | 9.2Gbps |
| Forwarding Rate | 6.84Mbps |
| Internal Cache | 4 Mbits |
| Installation | Rack, Desktop, Wall-mounted |
| Surge Protection | 6kV |
| Power Supply | AC 100 ~240, 50/60Hz, Max 2.5A |
| Operating Temperature | 0º C ~ 45º C |
| Power Consumption | Idle 20W / With PoE 250W |
| Dimensions | 220.8 (L) x 44 (H) x 440 (W) mm |
| Weight | 3.3Kg |
The DS-3E1520HP-SI-16P2T2F is ideally suited for deployment in a medium-sized office environment where multiple IP cameras and network devices need to be powered and managed efficiently. For instance, an installer can set up this switch to connect 16 PoE devices, ensuring that each camera receives adequate power while maintaining a reliable network connection. The extended PoE feature allows for installations up to 300 meters, making it perfect for larger spaces where devices are spread out. Additionally, the PoE watchdog functionality ensures that any unresponsive cameras are automatically reset, minimizing downtime. With remote management capabilities through Hik Partner Pro, users can monitor bandwidth utilization and power consumption in real-time, enhancing overall network efficiency. This switch not only simplifies installation but also provides robust management tools, making it an excellent choice for modern security systems.
