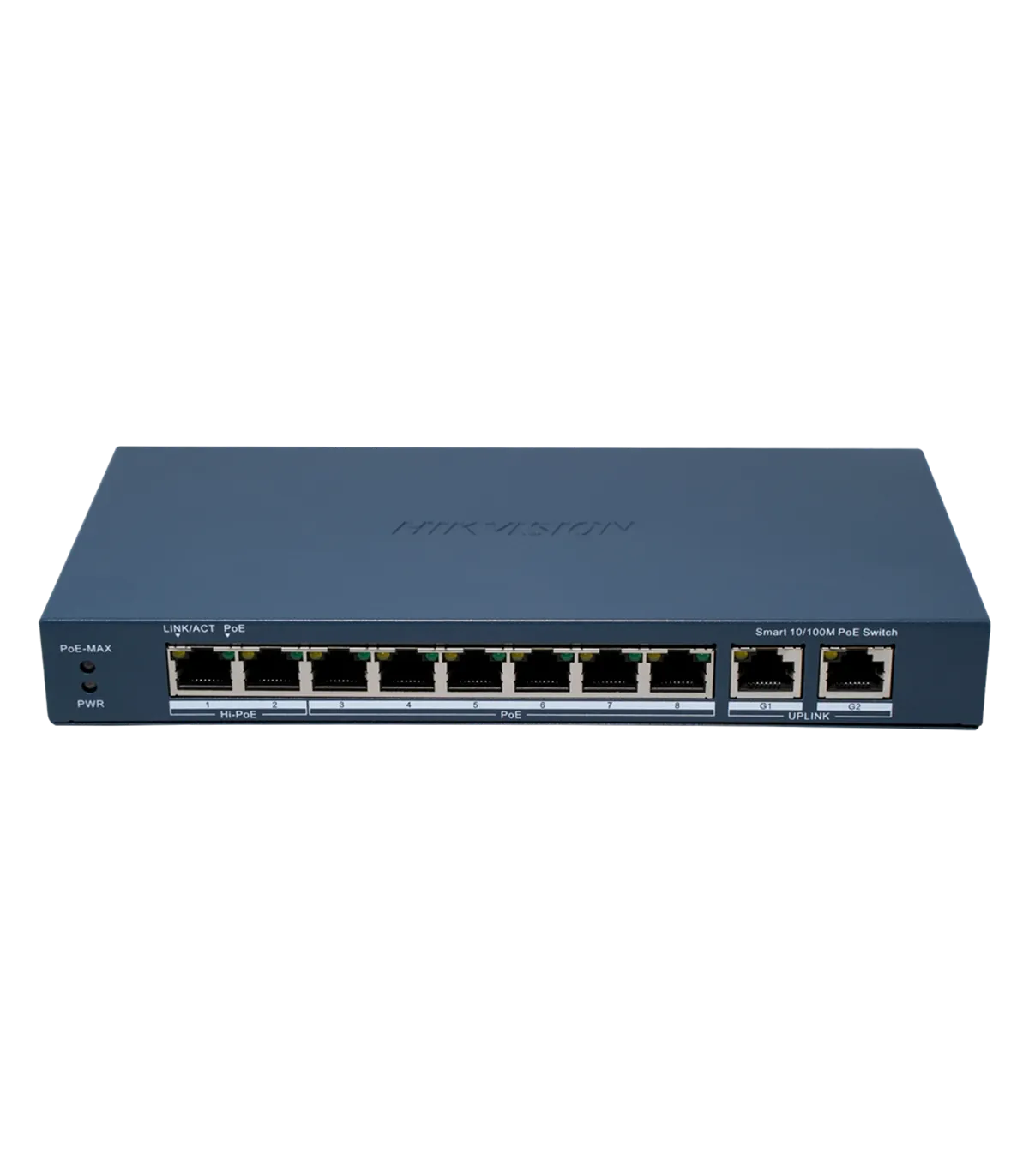

Hikvision 8-Port Managed PoE Switch 802.3af, 110W Max DS-3E1310HP-EI(B)

Description & Key Features: DS-3E1310HP-EI(B)

The Hikvision DS-3E1310HP-EI(B) is a smart-managed PoE switch designed for IP video surveillance installations and small to medium professional networks that require more control than a basic unmanaged switch. It features 8 PoE ports at 10/100 Mbps to power cameras or other devices compliant with IEEE 802.3af/at/bt standards and 2 Gigabit RJ45 uplink ports for faster connectivity to the main network, facilitating integration with recorders and other network devices.

This model offers a total PoE power budget of 110 W, with up to 90 W available on Hi-PoE ports (1 and 2) for higher consumption PTZ cameras and 30 W on the remaining ports, sufficient to power multiple high-consumption devices within the same installation. It includes useful network functions such as long-range PoE transmission (up to 300 m under specific conditions), PoE Watchdog to detect and restart unresponsive cameras, port isolation, loop prevention (STP/RSTP), and support for VLAN 802.1Q, providing basic traffic management and network security.

In addition to its robust metal housing and 6 kV surge protection, this switch can be installed on a desk or wall and has a maximum power consumption of around 120 W. Its combination of PoE ports, intelligent features, and Gigabit links makes it suitable for projects requiring reliable power and connectivity with simple control functions.

Specifications: DS-3E1310HP-EI(B)

Package Contents

• Switch
• External power adapter 54V/2.22A
• User manual

Use Case

In a typical deployment scenario, the Hikvision DS-3E1310HP-EI(B) switch is ideal for small to medium-sized businesses looking to enhance their video surveillance capabilities. For instance, a retail store can utilize this switch to connect multiple IP cameras throughout the premises, ensuring comprehensive coverage. The switch's long-range PoE transmission allows for flexible camera placement without the need for additional power sources, making installation straightforward and cost-effective.

With its PoE Watchdog feature, the switch can automatically detect and restart any unresponsive cameras, minimizing downtime and ensuring continuous monitoring. Additionally, the support for VLANs enhances network security by segmenting traffic, which is crucial for protecting sensitive data. The robust metal housing and surge protection further ensure that the switch operates reliably in various environments, making it a dependable choice for installers and end-users alike.
