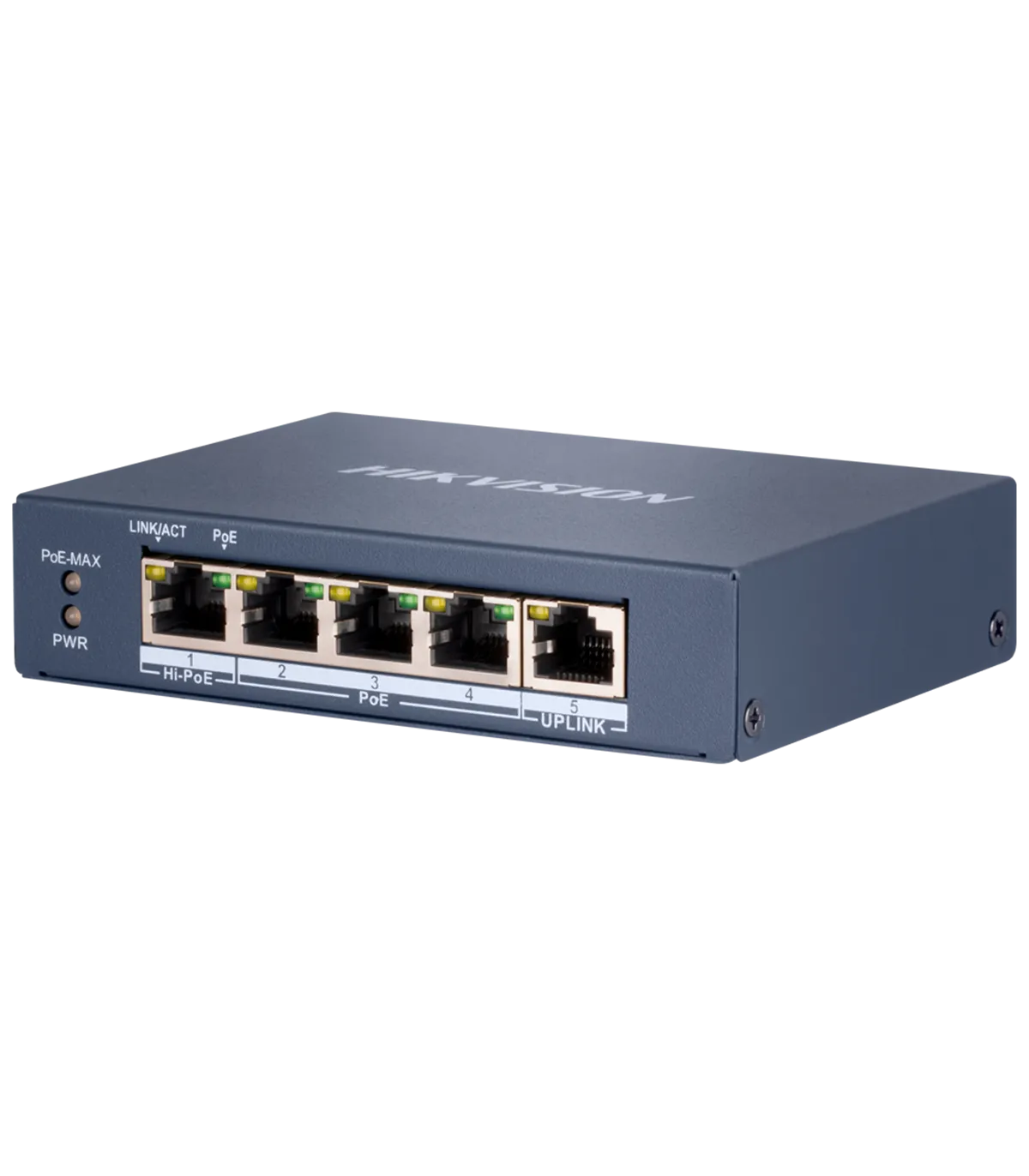

Hikvision DS-3E0505HP-E 4-Port Gigabit PoE Switch (3 PoE Ports, 1 Hi-PoE 60W Port) with 1 RJ45/SFP Uplink

Description & Key Features: DS-3E0505HP-E

The Hikvision DS‑3E0505HP‑E is an unmanaged Gigabit PoE switch with 5 ports, specifically designed for IP video surveillance installations and other networks requiring power over Ethernet. This device features 4 Gigabit PoE ports and 1 Gigabit uplink port to connect cameras or other devices with IEEE 802.3af/at/bt, including a Hi-PoE port that can deliver up to 60 W to high-consumption devices, while the other three ports support up to 30 W each. This switch provides a total PoE power budget of 60 W, making it suitable for powering multiple devices simultaneously in small to medium-sized networks. It includes practical features such as PoE Watchdog (which detects and restarts unresponsive cameras), port isolation to enhance network security, and long-range mode on specific ports to cover greater distances without repeaters.

With a robust metal chassis and fanless design, this model operates quietly and reliably, offering wire-speed transmission with a switching capacity of 10 Gbps and efficient traffic management among connected devices. Its plug-and-play installation makes it ideal for projects seeking stable PoE power and straightforward connectivity without advanced management.

Specifications: DS-3E0505HP-E

Package Contents

• Hikvision Switch
• Documentation
• Power Cable

Use Case

In a typical deployment scenario, the Hikvision DS‑3E0505HP‑E switch is ideal for small to medium-sized businesses looking to enhance their video surveillance capabilities. For instance, an office environment can utilize this switch to connect multiple IP cameras, ensuring reliable power delivery through its PoE functionality. The plug-and-play installation allows for quick setup, enabling businesses to monitor their premises without extensive network management. The PoE Watchdog feature ensures that any unresponsive cameras are automatically reset, maintaining continuous surveillance. Additionally, the long-range mode on specific ports allows for flexible camera placement, covering larger areas without the need for additional equipment. This switch not only simplifies the installation process but also enhances network security through port isolation, making it a valuable asset for any security-focused deployment.
