Hikvision 16-Port PoE Switch 130W Total Power 2 Gigabit SFP Ports DS-3E0318P-E/M(C)

Description & Key Features: DS-3E0318P-E/M(C)

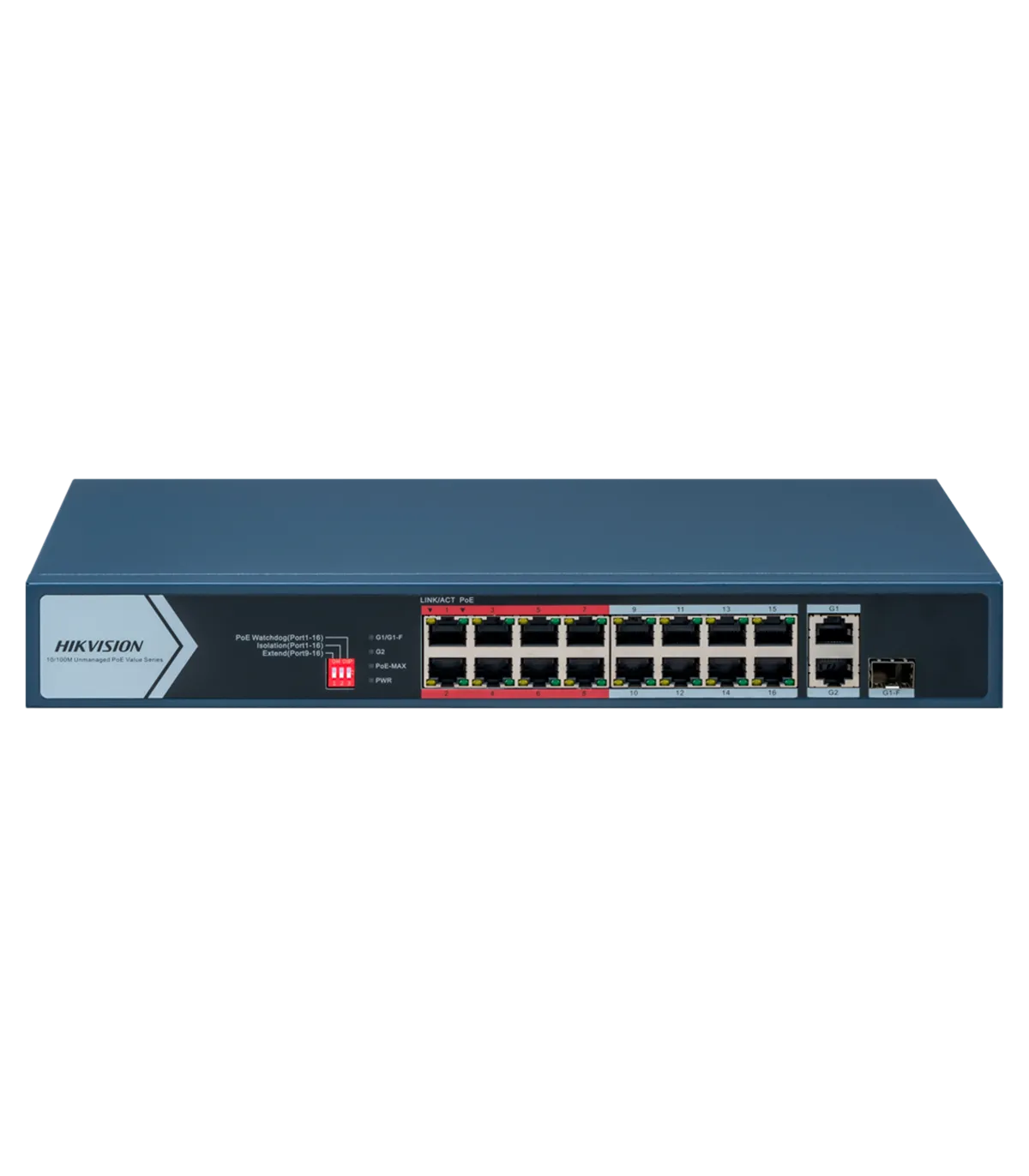

The Hikvision DS‑3E0318P‑E/M(C) is an unmanaged PoE switch with 16 ports operating at 10/100 Mbps, specifically designed for video surveillance networks and other Ethernet-powered devices. It enables the transmission of both data and power over the same cables to IP cameras and equipment compliant with the IEEE 802.3af/at standards, featuring a total power budget sufficient for multiple devices and intelligent power management functions that help optimize performance and extend the lifespan of the equipment.

In addition to its PoE ports, this switch includes one Gigabit RJ45 port and one combo Gigabit port (RJ45/SFP) for uplink connections to higher-speed networks. It offers useful features such as long-range PoE transmission (up to 300 meters on certain ports) and surge protection of up to 6 kV, making it suitable for demanding environments where cameras or other devices are located far from the main switch.

Its plug-and-play design without complex management facilitates installation in IP surveillance systems without the need for advanced configurations, and its robust metal housing allows for easy adaptation for both desktop and wall mounting. With a switching capacity of several gigabits and features aimed at ensuring prioritized video transmission during network congestion, this model is a practical and reliable solution for deploying multiple PoE cameras in a local network.

Specifications: DS-3E0318P-E/M(C)

Package Contents

• Hikvision Switch
• Documentation
• Power Cable

Use Case

In a typical deployment scenario, the Hikvision DS‑3E0318P‑E/M(C) switch can be utilized in a medium-sized office building where multiple IP cameras are installed for security monitoring. The switch's plug-and-play capability allows for quick installation, enabling the cameras to be powered and connected to the network without complex configurations. With its long-range PoE functionality, installers can place cameras up to 300 meters away from the switch, ensuring comprehensive coverage of the premises. The built-in PoE Watchdog feature enhances reliability by automatically resetting any unresponsive cameras, minimizing downtime. Additionally, the robust surge protection ensures that the system remains operational even in adverse weather conditions. This switch not only simplifies the installation process but also provides a reliable and efficient solution for maintaining a secure environment.
