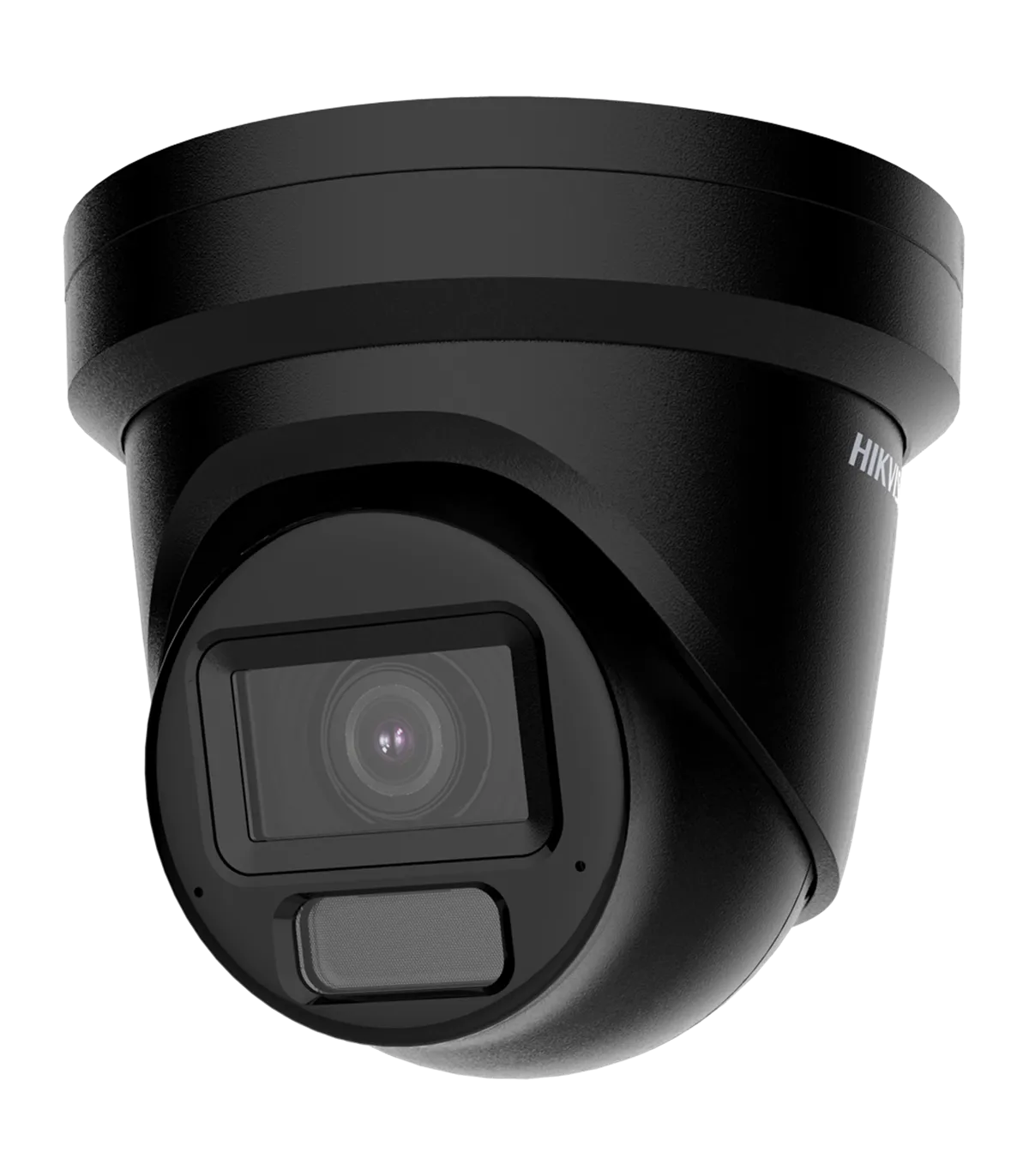

The DS-2CD2H83G2-LIZS2U(2.8-12mm)/BLACK is a high-performance IP turret camera designed for comprehensive surveillance solutions. Ideal for both indoor and outdoor environments, this camera excels in providing detailed 8 Megapixel (3840x2160) video quality. With features such as motion detection and face detection, it ensures enhanced security monitoring. The device is equipped with a motorized varifocal lens (2.8~12 mm) and hybrid illumination capabilities, making it suitable for various lighting conditions. Its robust design, rated IP67 for water resistance and IK10 for vandal resistance, makes it a reliable choice for demanding security applications.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 106.5~30.2°, V: 55.7~17°, D: 128.5~34.7° |
| DORI | 88.3~289.7 m (D), 35~114.9 m (O), 17.7~57.9 m (R), 8.8~29 m (I) |
| Electronic Shutter | 1/3~1/100.000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 40 m |
| Supplementary Illumination | Hybrid light: IR range 40 m White light range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI, SDK |
| Power Supply | DC 12 V / 880 mA / 10.56 W max. PoE IEEE802.3af |
| Protection Rating | Waterproof IP67 Vandal-proof IK10 |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 138.3 mm x 123 mm (H) |
| Base Dimensions | Ø base 138.3 mm / Ø between screws 96 mm / 4 screws |
| Weight | 860 g |
| Color | Black |
The DS-2CD2H83G2-LIZS2U(2.8-12mm)/BLACK is an excellent choice for security professionals looking to deploy a reliable surveillance solution in commercial or residential settings. For instance, in a retail environment, this camera can be strategically placed at entry points to monitor customer traffic and deter theft. With its high-resolution imaging and advanced motion detection capabilities, it provides clear footage that can be crucial for incident investigations. The hybrid illumination feature ensures visibility even in low-light conditions, while the remote monitoring capabilities allow users to access live feeds from anywhere via a smartphone app. Additionally, the camera's vandal-proof design ensures durability in high-risk areas, making it a versatile option for various security applications.
