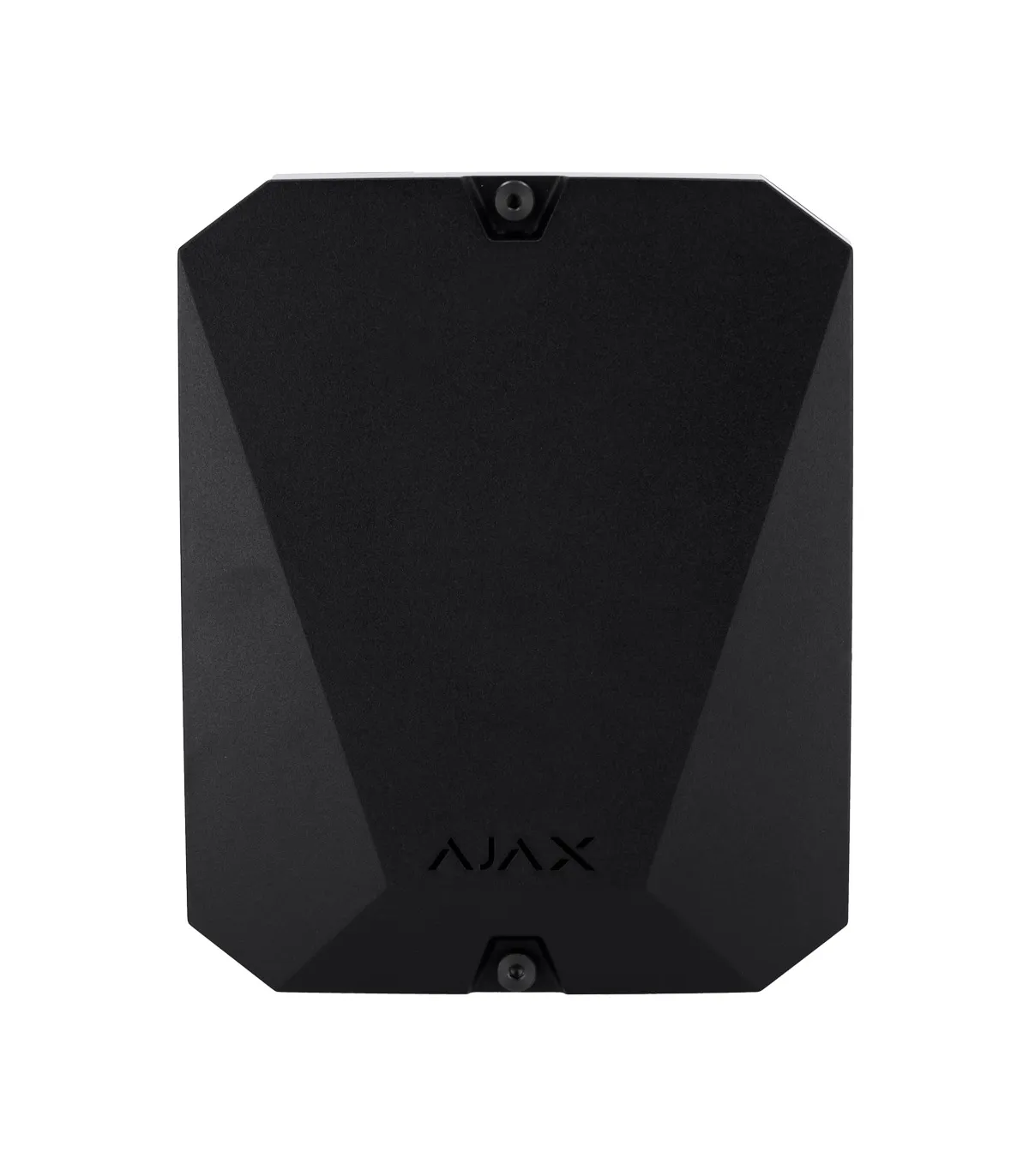

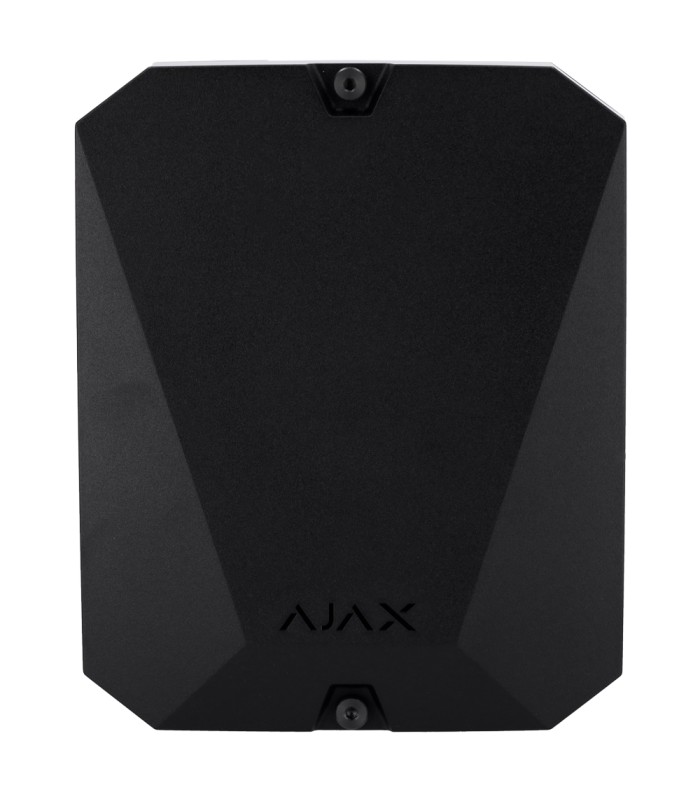

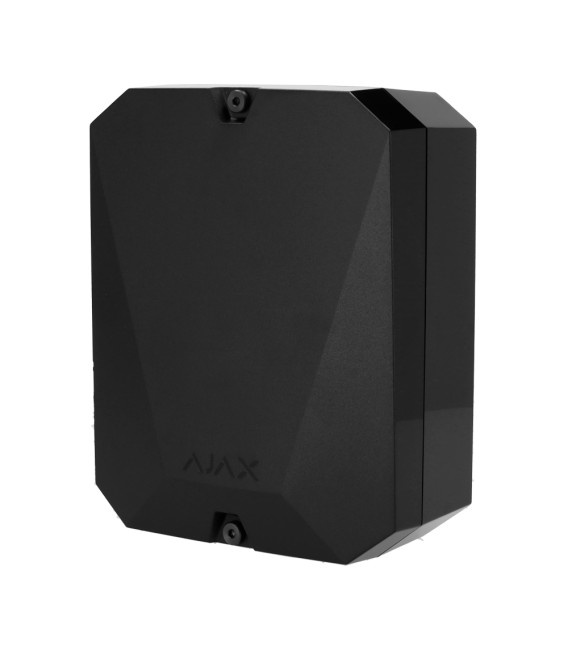

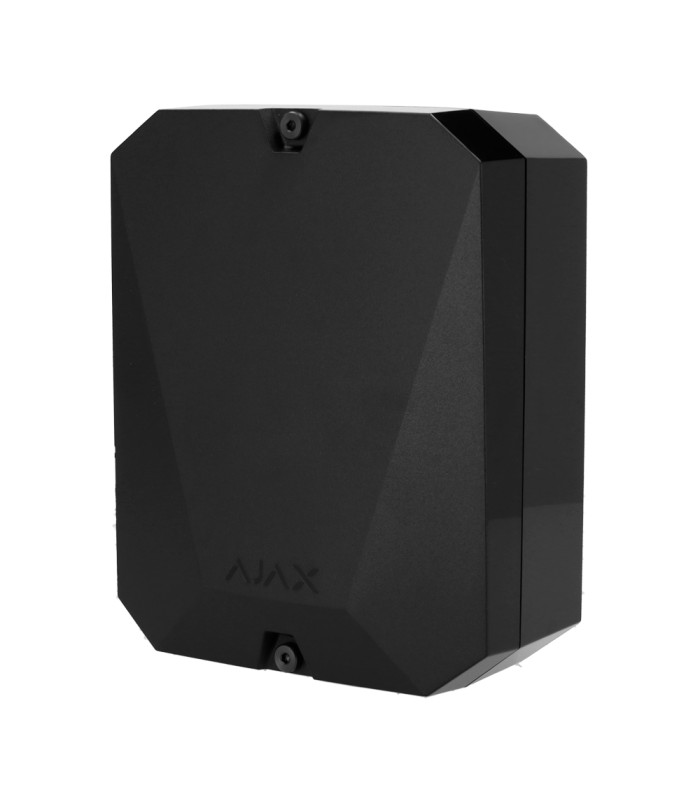

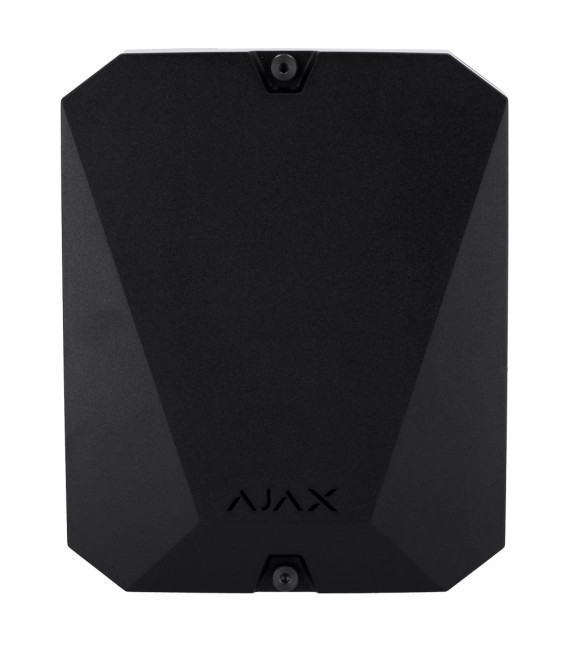

| Brand | Ajax |
| Frequency | 868 MHz Jeweler |
| Transmission distance | ≤ 2000 m in open space |
| Anti-inhibition detection | Available |
| Wired inputs | Up to 18 (Intrusion, Fire, Help Medical, Panic Button, Gas Alarm, Tamper Alarm, Malfunction, Flood, Custom) |
| Tamper Input | NC: Normally Closed |
| Tamper Inputs alarm | NO, NC, EOL, 2EOL, 3EOL / Pulse or bistable |
| EOL end of line resistance | From 1 kΩ to 15 kΩ in increments of 100 Ω |
| Cable length | Up to 400 meters |
| Anti-opening tamper | Front and rear |
| Power output | Two 12 V / 1 A outputs (total) for wired detectors |
| Compatibility | Compatible with Hub, Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid, ReX and ReX 2 |
| 3EOL function compatibility | Compatible with Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid, ReX and ReX 2 |
| Power | AC 110~250 V, 50/60 Hz |
| Backup battery | 12 V / 4 or 7 Ah battery (not included) |
| Advanced Features | KeyArm Zone |
| Temp. operation | -10 ºC ~ 40 ºC |
| Backup battery dimensions | 150 (H) x 64 (W) x 94 (D) mm |
| Dimensions | 238 (H) x 192 (W) x 100 (D) mm |
| Color | Black |
