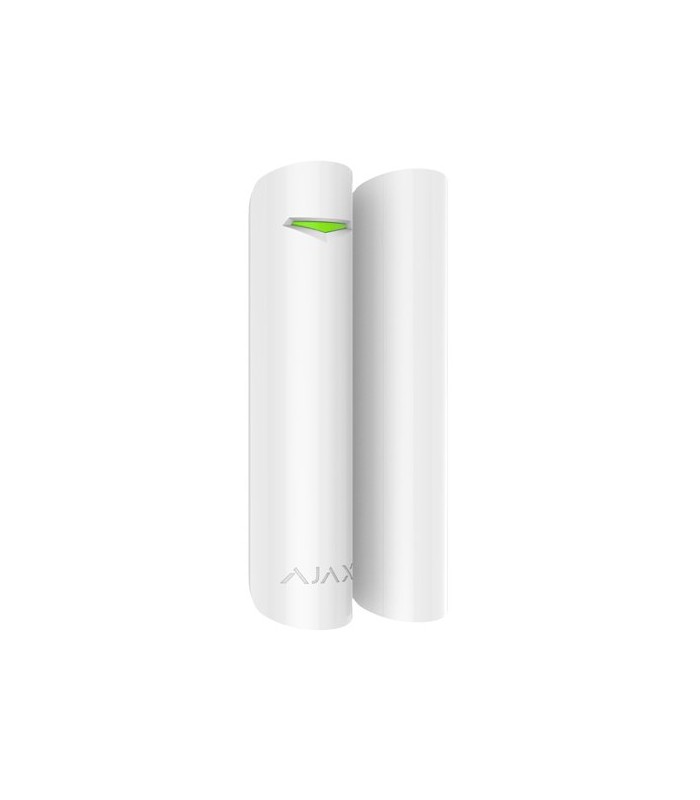

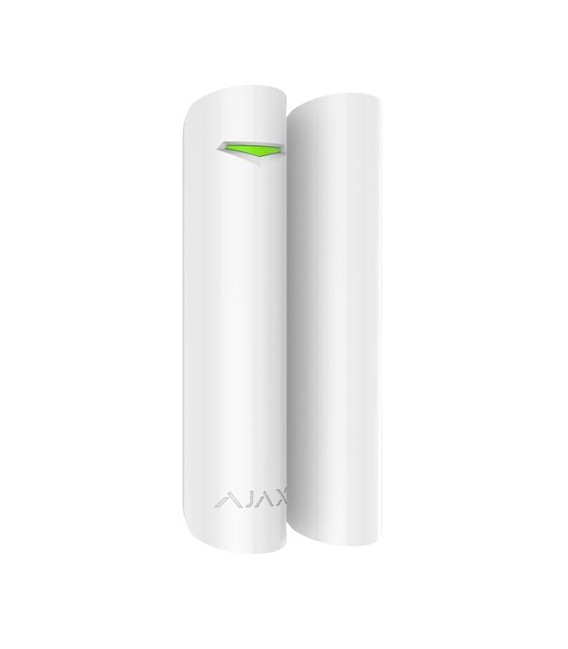

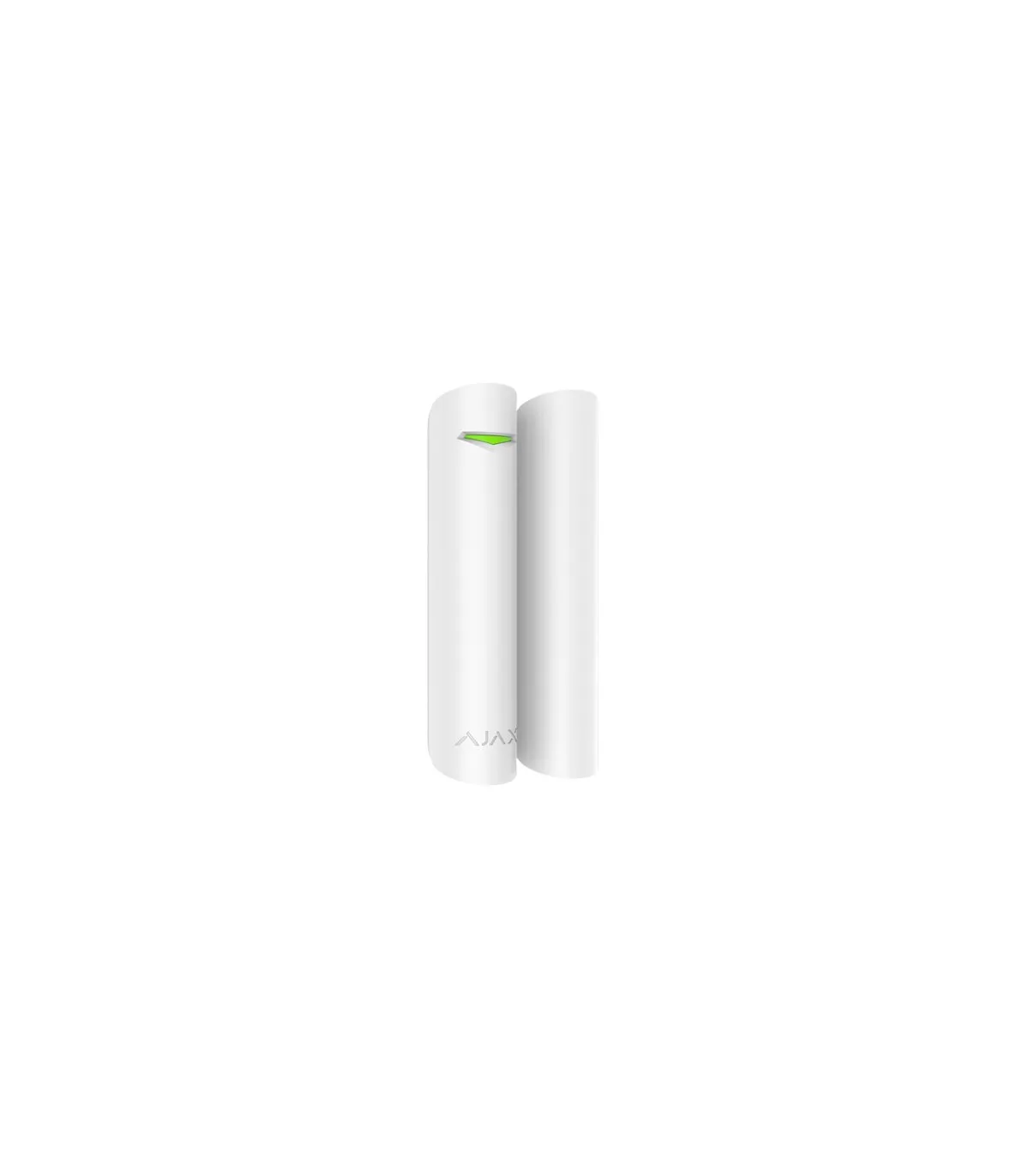

Ajax AJ-DOORPROTECT-W Magnetic Door/Window Contact
The Ajax AJ-DOORPROTECT-W Magnetic Door/Window Contact is an advanced security device that is installed on doors and windows to protect your home or business. With its magnetic technology, this sensor detects any unauthorized opening and sends an alert signal to your Ajax security system.
Thanks to its compact and discreet design, the Ajax AJ-DOORPROTECT-W Magnetic Door/Window Contact seamlessly integrates into any type of door or window without affecting the aesthetics of your space. Additionally, its installation is quick and easy, with no need for wires or complications.
Protect what matters most with the Ajax AJ-DOORPROTECT-W Magnetic Door/Window Contact and keep your home or business secure at all times.
General Features
- Ajax
- Magnetic door/window contact
- Bidirectional
- Grade 2 certified
- 868 MHz Jeweller wireless
- Internal antenna with free space range of 1200 m
- Open/close detection indicator
- Supports wired sensor input
- Anti-tamper feature
- Power supply: 1 x CR123A 3.0 V battery (estimated lifespan of 7 years)
- For indoor use
- Includes mounting bracket
- Color: white
Technical Specifications
| Brand | Ajax |
| Frequency | 868 MHz Jeweller |
| Security Grade | Grade 2 |
| Transmission Distance | ≤ 1200 m in open space |
| LED Indications | Alarm, tamper, signal |
| Cover Material | ABS plastic |
| Battery | 1 x CR123A 3.0 V battery (approx. 7-year lifespan) |
| Operating Temp. | 0°C ~ 50°C |
| Transmitter Dimensions | 90 mm (H) x 20 mm (Ø) |
| Magnetic Dimensions | 90 mm (H) x 20 mm (Ø) |
Package Contents
- Magnetic contact
- User manual
- Mounting materials
